DOC NO. PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

TEC601

3 Zone 19-inch Rack

Extinguishing Control Panel

Rev 04.01

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL


PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE
- i -

TABLE OF CONTENTS
SYSTEM DESCRIPTION _______________________________________________________________ 1
SUMMARY OF FEATURES _____________________________________________________________ 1
RECOMMENDED STAT-X UNIT PER SERVER CABINET SIZE ________________________________ 1
GENERAL ASSEMBLY ________________________________________________________________ 2
INDICATIONS & CONTROLS ___________________________________________________________ 3
1 Indications ______________________________________________________________________ 4
2 Controls________________________________________________________________________ 4
QUICKSTART / INSTALLATION _________________________________________________________ 5
PRINCIPLE OF OPERATION ____________________________________________________________ 5
1 Operation in Auto & Manual Mode ___________________________________________________ 6
2 Operation in Manual Only Mode _____________________________________________________ 6
WIRING DIAGRAMS___________________________________________________________________ 6
EVENT LOGGING_____________________________________________________________________ 7
PROCEDURE FOR EXTRACTING LOGS __________________________________________________ 8
1 Equipment Needed _______________________________________________________________ 8
2 Parameters _____________________________________________________________________ 8
PROCEDURE FOR SETTING THE DATE AND TIME_________________________________________ 9
1 Equipment Needed _______________________________________________________________ 9
2 Parameters _____________________________________________________________________ 9
SERVICE AND MAINTENANCE ________________________________________________________ 10
1 Maintenance Schedule ___________________________________________________________ 10
1.1 Daily Actions ___________________________________________________________________10
1.2 Monthly Actions_________________________________________________________________10
1.3 Quarterly Actions________________________________________________________________10
1.4 Annual Actions _________________________________________________________________10
2 Aerosol Generator Removal from Service ____________________________________________ 10
3 Replacement of Components ______________________________________________________ 11
3.1 Batteries ______________________________________________________________________11
3.2 Stat-X Replacement _____________________________________________________________11
3.3 Detector Replacement____________________________________________________________11
TEC601 TECHNICAL SPECIFICATIONS _________________________________________________ 12
STAT-X AEROSOL SPECIFICATIONS ___________________________________________________ 12
1 Aerosol Installation Dimensions & Weights ___________________________________________ 12
2 Aerosol Discharge Stream Characteristics Installation Limits _____________________________ 12
3 Generator Housing Clearance _____________________________________________________ 13
STAT-X ELECTRICAL SPECIFICATIONS ________________________________________________ 13
ORDERING INFORMATION____________________________________________________________ 13
WARRANTY ________________________________________________________________________ 13
DISCLAIMER _______________________________________________________________________ 13
REVISION INFORMATION _____________________________________________________________ 13



TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 1 -

1. SYSTEM DESCRIPTION

The TEC601 is an all-in-one fire and extinguishing rack-mountable control system designed to protect

electronic equipment in server room cabinets. The unit can detect a fire with the built-in conventional point

detectors or the external zone and release either the built-in or externally mounted Stat-X aerosol

generators.

Upon activation, the generators produce an exceptionally effective, ultra-fine, potassium-based aerosol.

Unlike gaseous systems, Stat-X aerosol generators are very cost-effective to install and maintain –as they

do not require the pressure vessels, piping or expensive installation costs associated with other

extinguishing systems. Space and weight requirements are minimal. On an agent weight basis, Stat-X

aerosol is ten times more effective than gaseous agent alternatives. The Stat-X generator’s effectiveness is

a function of its patented design, aerosol composition, and ultra-fine particle size. Fire suppression is rapidly

achieved through interference between the ultra-fine aerosol particulate and the flame’s free radicals –

terminating propagation of the fire. Stat-X aerosol generators are virtually maintenance-free and have a

service life of over ten years. This, coupled with low installation costs, makes it an extremely cost-effective

fire protection solution. Furthermore, the extinguishant can also easily be replaced after a discharge to

minimise any downtime.

The TEC601 also provides relay outputs for the monitoring of Fire, Fault, and Discharge conditions. A third

fire detection zone is also available which can be used to connect to an additional detector that may be

positioned elsewhere in the equipment cabinet.

A power output for the equipment rack Air Handling Unit (AHU) is also provided to allow the TEC601 to shut

down the air-handling unit just before the release of the extinguishant.

The TEC601 can store 1,022 time-stamped events in non-volatile memory on a FIFO (First-in-First-out)

basis. The event log is easily downloaded via the built-in USB port.

2. SUMMARY OF FEATURES

▪Fully self-contained fire detection and

extinguishing unit

▪Built-in battery backup with intelligent battery

charging and testing

▪Third zone available for external use

▪Potential free relay outputs for Fire, Fault and

Discharge

▪Built-in real-time clock with dedicated

battery backup

▪Monitored extinguishant, sounder and zone outputs

▪Air handling unit cut-off

▪Event memory log

▪Battery fail detection and warning

▪Tactile membrane keypad

▪Mount rack unit (2U)

▪USB port

3. RECOMMENDED STAT-X UNIT PER SERVER CABINET SIZE

Server Cabinet Size

(W x D x H) mm

Recommended

Stat-X Unit

Server Cabinet Size

(W x D x H) mm

Recommended

Stat-X Unit

20U (600 x 600 x 1100)

30 g

38U (600 x 600 x 1900)

60 g

20U (600 x 800 x 1100)

60 g

38U (600 x 800 x 1900)

60 g

20U (600 x 1000 x 1100)

60 g

38U (600 x 1000 x 1900)

100 g

25U (600 x 600 x 1350)

60 g

43U (600 x 600 x 2120)

60 g

25U (600 x 800 x 1350)

60 g

43U (600 x 800 x 2120)

100 g

25U (600 x 1000 x 1350)

60 g

43U (600 x 1000 x 2120)

100 g

25U (600 x 1200 x 1350)

100 g

34U (600 x 600 x 1720)

60 g

34U (600 x 800 x 1720)

60 g

34U (600 x 1000 x 1720)

100 g

Please contact Technoswitch if your server cabinet size is not listed above.

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 2 -

4. GENERAL ASSEMBLY

FIGURE 1 TEC601 GENERAL ASSEMBLY

FIGURE 2 TEC601 ENCLOSURE BACK VIEW

FIGURE 3 ACCESS TO SMOKE DETECTORS FROM BOTTOM HATCHES

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 3 -

FIGURE 4 MINIMUM RECOMMENDED CLEARANCES

5. INDICATIONS & CONTROLS

Refer to FIGURE 1 and Table 1 & Table 2 for the location and description of panel indications and controls.

FIGURE 5 TEC601 MEMBRANE

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 4 -

5.1 INDICATIONS

Label

Description

Colour

FIRE

Indicates a fire per zone

Red

FAULT

There is a fault on a zone

Amber

DISABLED

The zone is disabled

Amber

POWER ON

The panel is switched on

Green

GENERAL FIRE

A fire has been detected

Red

GENERAL FAULT

Comes on with any fault condition

Amber

SYSTEM FAULT

There is a technical fault

Red

SUPPLY FAULT

There is a power fault

Amber

SOUNDER FAULT

There is a fault on the sounder circuit

Amber

AHU SUPPLY ON

The AHU is connected

Green

AHU SUPPLY OFF

The AHU has been cut off

Amber

RELEASE INITIATED

Count down to an extinguishant release has begun

Red

EXTINGUISHANT

RELEASED

Flashes during an extinguishant release and stays on after a

release

Red

FAULT

Indicates a fault on the release circuit

Amber

AUTO & MANUAL

Automatic release is enabled

Amber

MANUAL ONLY

Automatic release is disabled

Amber

TABLE 1 DESCRIPTION OF LED INDICATORS AND COLOURS

5.2 CONTROLS

Button

Description

DISABLE + ZONE 1

Disables Zone 1 and the respective Disable LED will be illuminated.

DISABLE + ZONE 2

Disables Zone 2 and the respective Disable LED will be illuminated.

DISABLE + ZONE 3

Disables Zone 3 and the respective Disable LED will be illuminated.

SILENCE BUZZER

The buzzer is silenced, and the respective fault LEDs will stop flashing,

indicating that the fault has been acknowledged. The buzzer will sound

again with flashing LEDs on any new fault.

SILENCE ALARM

The sounder is silenced.

RESET

The unit is reset, and a self-diagnostic is performed. Should there be any

faults, the respective fault LEDs will flash with the buzzer. Please ensure

that all faults are cleared before replacing the extinguishant.

NOTE: A reset does not clear disabled zones.

RELEASE

EXTINGUISHANT

This button will start the extinguishant release process, which is indicated

by the Release initiated LED. The buzzer and sounder will sound. After 15

seconds the panel will begin to release the extinguishant, this is indicated

by a fast flashing “EXTINGUISHANT RELEASED”LED for five seconds.

This LED will remain on after a discharge procedure. The yellow button

cover must be pulled down to access this button. The cover prevents

casual activation.

ABORT EXTINGUISHANT

RELEASE

This button will stop the extinguishant release process after a double knock

only if it is pressed before the “EXTINGUISHANT RELEASED”LED

illuminates.

TABLE 2 BUTTONS AND FUNCTIONAL DESCRIPTIONS

NB: RELEASE MODE is indicated by the LED indicator and not the position of the key switch. Either the

onboard or external key switch will toggle the Auto & Manual or Manual Only modes.

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 5 -

6. QUICKSTART / INSTALLATION

Step 1

Unpack the TEC601 that includes: 1x TEC601 Extinguishing Panel, 1x Mains Cable, and 1x Key.

Step 2

The unit is already connected to the internal battery and therefore it is not necessary to wire the

internal batteries. Should you need to replace the batteries, then connect the batteries as follows:

1. Red lead to red (+) battery terminal on battery A.

2. Black lead to black (–) battery terminal on battery B.

3. Use link to connect black (–) battery terminal on battery A to red (+) terminal on battery B.

4. Place the batteries into the space provided and secure with the battery clamp.

NB: New off-the-shelf batteries may not be able to pass an initial load test. Should you still get a

supply fault (battery load fail), reset the panel and the battery will be re-tested and charged if

required with no supply fault.

Step 3

Mount and connect Stat-X unit.

Refer to FIGURE 1 TEC601 General Assembly on page 2.

Step 4

Secure the main panel cover.

Step 5

Securely position the unit into the section of the cabinet, adhering to recommended clearances.

Refer to FIGURE 4 Minimum Recommended Clearances on page 3.

Step 6

Ensure that the discharge area at the rear of the unit is free from obstruction for 300 mm to the rear of

the enclosed cabinet.

Refer to FIGURE 4 Minimum Recommended Clearances on page 3.

Step 7

Connect the sounder to the sounder terminals at the rear of the panel.

Refer to FIGURE 6 Sounder & 3rd Zone Using External Smoke Detector or

FIGURE 7 Sounder & 3rd Zone Using Linear Heat Cable on page 6.

Step 8

Plug the main cable into the rear of the unit and the other end into a 230 V AC power source.

Step 9

Plug and supply the AHU from the AHU socket at the back of the panel.

Refer to FIGURE 2 TEC601 Enclosure Back View on page 2.

Step 10

Switch the unit on (at the back of the unit).

NB: The cabinet is now protected.

When initially plugged in, the panel will carry out a lamp test followed by a battery test.

Only the POWER ON, AHU SUPPLY ON and MANUAL LEDs will remain on, indicating that the unit has no

fault.

NB: The back section of the server cabinet should be closed to ensure Stat-X extinguishant distribution.

The technician must ensure that all faults and fires have cleared before the Stat-X unit is replaced

after a discharge, as there is a chance that its monitoring resistance remains within specification

after a discharge. There is also a chance that the smoke particles remain in the smoke detectors for a

prolonged period that would result in another fire condition after reset or power on.

7. PRINCIPLE OF OPERATION

When the panel is powered on or reset, all the LEDs on the front panel will light up; the SYSTEM FAULT

LED will flash, and a self-check is performed. Thereafter, in the normal state, the green POWER ON, AHU

SUPPLY ON and MANUAL LEDs will be on continuously.

On first time power-up, the panel will default to MANUAL mode. The key switch only toggles the MANUAL &

AUTO and MANUAL ONLY modes and the mode is determined by the respective illuminated LED and not

by the position of the key switch.

Should there be an under- or over voltage supply, the panel will automatically switch to battery. The SUPPLY

FAULT and GENERAL FAULT LEDs will flash and the buzzer will sound only if the mains fault continues for

30 seconds and will need to be reset by following the process to Silence or Reset a fault condition as

indicated in Table 2. The panel will automatically switch between mains and battery.

NB: The fire detection and extinguishing functions will not function when a battery fault and mains fault

occur simultaneously, as there would then be no reliable power source available.

The discharge, battery, zones, and sounder circuits are also monitored for short or open circuit and the

GENERAL FAULT LED will flash, together with the applicable FAULT LED, should any of these conditions

be present.

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 6 -

7.1 OPERATION IN AUTO & MANUAL MODE

The automatic release of the extinguishant requires two separate fire alarm signals from any of the three

zones, otherwise known as “double knock”. These signals, referred to within this manual as 1st Knock (signal

from first zone in fire) and 2nd Knock (signal from second zone in fire), will only be recognised if the

extinguishing control panel is switched to Auto & Manual mode.

On 1st Knock the panel will

- illuminate the GENERAL FIRE LED and the respective zone FIRE LED

- the internal buzzer and external sounder circuit will be activated

On 2nd Knock the panel will

- illuminate the GENERAL FIRE LED and the respective zone FIRE LED

- the internal buzzer and external sounder circuit will be activated

- illuminate the RELEASE INITIATED LED

- and after the set time delay (15 seconds), the Extinguishant Release output is activated to trigger the Stat-X.

The automatic release signal can be stopped during the INITIATED stage by switching the panel to MANUAL

mode. If after investigation, it is desirable to release the extinguishant, then either activate the manual

release call point or switch back to AUTO & MANUAL mode. The extinguishant release delay cycle will

restart from the beginning of the set time delay.

During a discharge, the “EXTINGUISHANT RELEASED” LED will flash twice per second. After a discharge

has taken place, the “EXTINGUISHANT RELEASED” LED will remain on.

A manual reset on the TEC601 is required before the panel will be able to reset to Normal.

7.2 OPERATION IN MANUAL ONLY MODE

Manual release of the extinguishant is achieved by lifting the protector flap and pushing the “RELEASE

EXTINGUISHANT” pushbutton. Once this has been activated the following occurs:

- The GENERAL FIRE LED will illuminate

- The internal buzzer and the sounder output will be activated

- The RELEASE INITIATED LED will illuminate

- After the pre-programmed 15-second delay has timed out the extinguishant release output is activated.

During a discharge, the “EXTINGUISHANT RELEASED” LED will flash twice per second. After a discharge

has taken place, the “EXTINGUISHANT RELEASED” LED will remain on.

A manual reset on the TEC601 is required before the panel will be able to reset to Normal.

8. WIRING DIAGRAMS

NB: Check the EOL resistors on the sounder output and Zone 3 before finalising the commissioning.

FIGURE 6 SOUNDER & 3RD ZONE USING EXTERNAL SMOKE DETECTOR

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 7 -

NB: Please check the EOL resistors on the sounder output and Zone 3 before finalising the

commissioning.

FIGURE 7 SOUNDER & 3RD ZONE USING LINEAR HEAT CABLE

9. EVENT LOGGING

The events and conditions as listed in Table 3 below are logged and time stamped, provided that the RTC

battery is maintained throughout the lifespan of the product. These events are logged into non-volatile

memory with a 100,000 read/write lifespan. The panel will log a total of 1,022 entries on a FIFO basis.

In order to extract the event logs, connect a USB cable to the USB type B port provided and follow the

procedure as detailed in 10 PROCEDURE FOR EXTRACTING LOGS on page 8.

Button Pressed

Logged Code

Disable Zone 1

Disable Zone 2

Disable Zone 3

Silence Buzzer

Silence Alarm

Reset

Manual Release

Abort Extinguishant Release

FIRE CONDITIONS

Z1 Fire

Z2 Fire

Z3 Fire

FAULT CONDITIONS

Z1 Fault

Z2 Fault

Z3 Fault

General Fault

System Fault

Mains Supply Fault

Battery Fault

Charger Fail

Sounder Fault

Extinguishant Fault

TEC601 3 Zone 19” Rack Extinguishing Control Panel – INSTALLATION & OPERATION MANUAL

PRMAN-0025 TEC601 Rev 04.01 210203.docx E&OE

- 8 -

OPERATIONAL

Release Initiated

Extinguishant Released

AHU Supply Switched Off

Start Up

Manual mode using panel key switch

Auto & Manual mode using panel key switch

Manual mode using external key switch

Auto & Manual mode using external key switch

TABLE 3 LOGGING CODES FOR EACH EVENT

NB: It is always recommended to keep the USB cable unplugged to avoid any problems with static,

ground loops and potential differences.

10. PROCEDURE FOR EXTRACTING LOGS

10.1 EQUIPMENT NEEDED

To install the USB drivers, you will need the following:

1. TEC601 with USB port.

2. USB Cable (Type A plug to Type B plug).

3. Computer running MS Windows 7 with a spare USB port.

4. TEC601 USB driver “Technoswitch USB Driver.inf”. It is best to extract the

files to a folder on your PC.

5. Hercules version 3.2.8.

Next, decide which USB port to connect your device to. If your computer has

USB ports on the front, consider using one of those if you plan to frequently

connect and disconnect the device. (You can use any port the next time you

plug in the device.)

Plug the TEC601 into your computer. Make sure both the TEC601 and the

computer are turned on before connecting them. During the driver installation,

select “Have Disk” and browse to the “Technoswitch USB Driver.inf” file to complete the driver installation

process.

Open “Hercules_3-2-8.exe” and configure the program as follows:

Select the Serial tab of the Hercules utility.

10.2 PARAMETERS

Name: Set the correct serial

communication port

Baud: 115200

Data size: 8

Parity: none

Handshake: OFF

Mode: Free

Press “A” to see that the terminal accepts the

command. Then press “D” to extract all the logs

from the panel.

Once completed, close the program and ensure

the USB cable is unplugged from the TEC601.

Inhaltsverzeichnis

Andere technoswitch Bedienfeld Handbücher

technoswitch

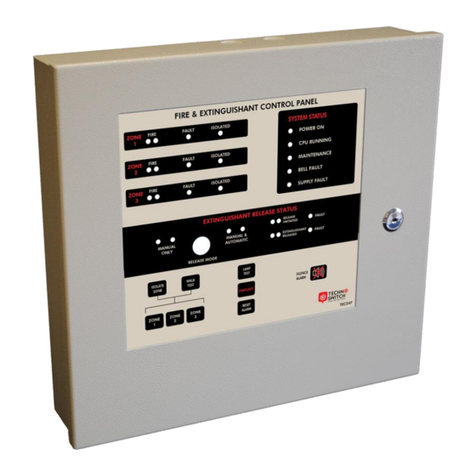

technoswitch TEC247 Bedienungsanleitung

technoswitch

technoswitch ORYX200 Series Bedienungsanleitung

technoswitch

technoswitch ORYX200 Series Bedienungsanleitung

Beliebte Bedienfeld Handbücher anderer Marken

RDZ

RDZ PC-HRX Bedienungsanleitung

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Technisches Handbuch

Efka

Efka Variocontrol V810 Bedienungsanleitung

Cebora

Cebora 208-10 Bedienungsanleitung

AMX

AMX AutoPatch CP-15 Bedienungsanleitung

Satel

Satel CA-6 KLED-S Bedienungsanleitung

Evolution

Evolution IQ plus 800 Bedienungsanleitung

Fagor

Fagor 8040 TCO CNC Bedienungsanleitung

Trane

Trane ComfortLink II XL950 Control Bedienungsanleitung

AKO

AKO PROCool AKO-17635-2 Bedienungsanleitung

ABB

ABB 6136/30M-101 Bedienungsanleitung

Telikou

Telikou BK-603 Belt Pack Bedienungsanleitung

Mapei

Mapei Mapeheat Thermo Touch Bedienungsanleitung

Bosch

Bosch D9412GV4 Bedienungsanleitung

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Bedienungsanleitung

Sminn

Sminn BOX L VF1L EI Bedienungsanleitung

Balboa

Balboa TP600 Bedienungsanleitung

Nice

Nice HSCU1 Technische Daten

technoswitch TEC601 Bedienungsanleitung

Beliebte Bedienfeld Handbücher anderer Marken
