General description
The OPT-851A daughter board provides optical isolation and output digital signal
conditioning of the DAQ cards.
The board provides eight output blocks (isolated between each other) for switching
DC signals up to 32 V. All channels work as noninverting, i.e. high level on control
port activates the output switch. Every channel is fitted with an indicating LED,
signalizing high level on control port.
The output circuits are realized by isolated semiconductor switches protected by
TVS diodes (overvoltage and polarity reversal protection).
General instructions for use
The OPT-851A board is designed for DAQ&C applications and may be used only
according to the manufacturer's recommendations and precautions given in this
manual and other general standards and terms and may be used only such a way,
that its failure caused by any reason will not be dangerous to any person or property.
Installation
The OPT-851A board is supplied as an unencapsulated kit intended for fastening via
four screws, a plastic housing DIN-801 suitable for mounting on the 35 mm DIN
rail is supplied optionally.
The board can be used in an environment with operating temperature -10~60 °C and
relative humidity up to 90%, noncondensing and normal levels of pollution.
Specifications
switching voltage: 24 VDC (max. 32 VDC )
switching current (see note below): 0.5 A max.
switch overload: 1 A (100 ms; once every ten seconds)
drop voltage ("ON"): < 1.2 V (I = 0.5 A)
control voltage "L" ("OFF"): < 0,8 V
control voltage "H" ("ON"): +3~6 V
control current "H" (UIN = 5 V): 8 mA
maximum control voltage: +10 V / -1 V
signal delay: < 0.5 ms
isolation voltage (see note below): 1500 VAC (all inputs against outputs)
100 VDC (between inputs)
power supply (see note below): +8~30 VDC (10 mA typ., 15 mA max.)
recommended cable length: 10 m max. (output signals)
2 m max. (control signals)
dimensions of board: 72 x 88 mm
mounting hole spacing: 61.5 x 77 mm
mounting hole diameter: 3.5 mm
Note: When installed without airflow in the space at the bottom of the board (i.e.
DIN-801 housing), the total current of all outputs is limited to 2.5 A.
Note: "AC" indicates the rms value of a 50 Hz AC harmonic signal.
K1 connector pin assigment (interface port, D-Sub 9, female)
1 CH0 - DOUT port signal (PC card) 6 CH1 - DOUT port signal (PC card)
2 CH2 - DOUT port signal (PC card) 7 CH3 - DOUT port signal (PC card)
3 CH4 - DOUT port signal (PC card) 8 CH5 - DOUT port signal (PC card)
4 CH6 - DOUT port signal (PC card) 9 CH7 - DOUT port signal (PC card)
5 GND - common signal (PC card)
Note: HC/HCT control signals are required, active in H level.
SV1 terminals pin assigment (digital outputs)
1 CH0 - output signal (positive) 9 CH4 - output signal (positive)
2 CH0 - output signal (negative) 10 CH4 - output signal (negative)
3 CH1 - output signal (positive) 11 CH5 - output signal (positive)
4 CH1 - output signal (negative) 12 CH5 - output signal (negative)
5 CH2 - output signal (positive) 13 CH6 - output signal (positive)
6 CH2 - output signal (negative) 14 CH6 - output signal (negative)
7 CH3 - output signal (positive) 15 CH7 - output signal (positive)
8 CH3 - output signal (negative) 16 CH7 - output signal (negative)
Note: The schematic of the output circuits is shown in the figure Fig. 1.
CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7
OPT-851A
K1
SV1116

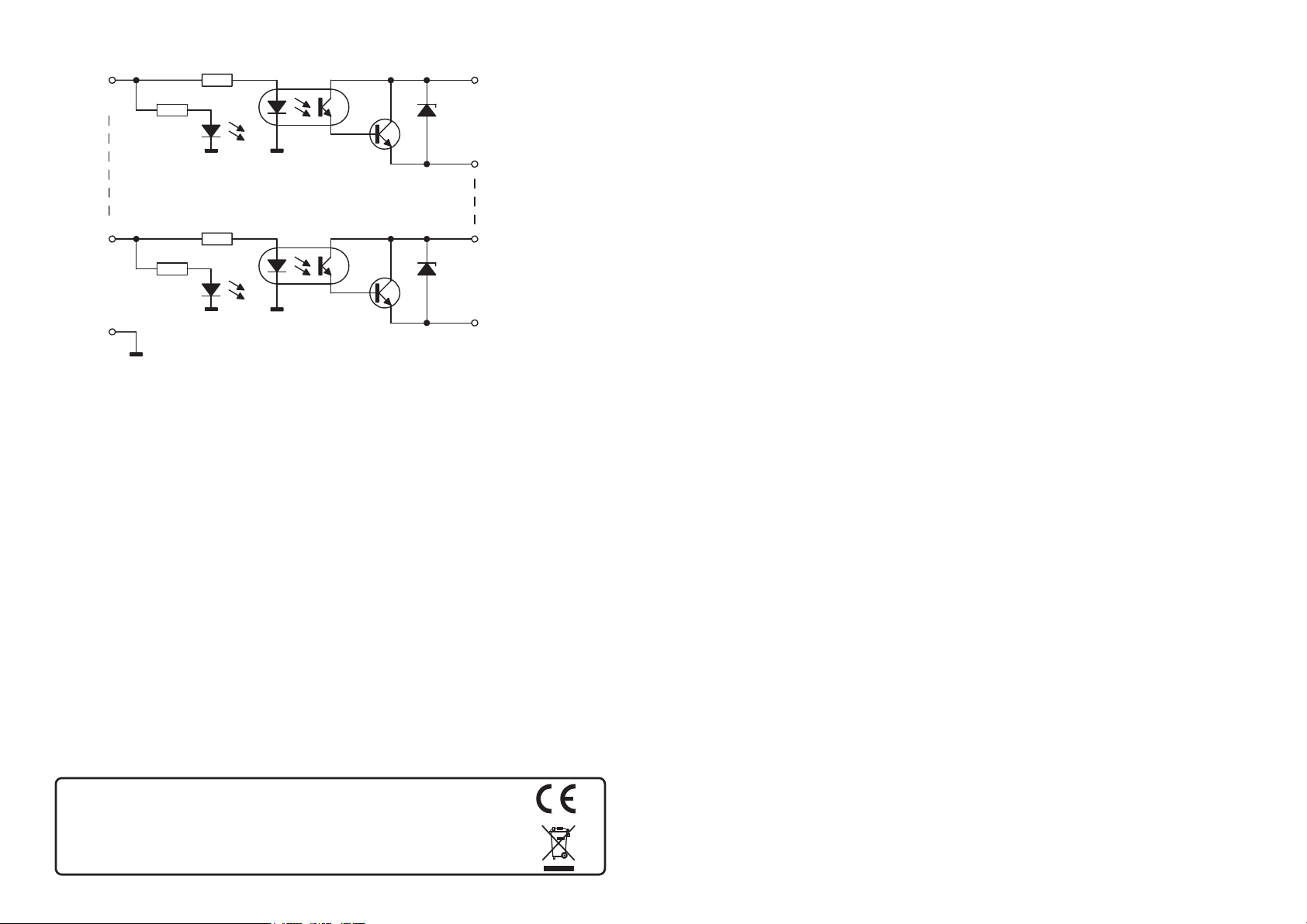

Fig. 1. Simplified schematic of OPT-851A internal circuits.
SV1-16
SV1-2
SV1-1K1-1
K1-9
K1-5
SV1-15
1K0
680R
33V
33V
1K0
680R
Manufacturing, sales office, service center and technical support:
TEDIA spol. s r. o.
Zabelska 12, 31200 Plzen, Czech Republic
phone/e-mail: https://www.tedia.eu/contacts
address:
OPT-851A
User Guide
(further information available at http://www.tedia.eu)
document revision: 02.2013, © 1994-2013 TEDIA®spol. s r. o.
