TEGRAS Concept Airnet 320 Bedienungsanleitung
concept
Compressed air generator
user manual
Compressed air generator 2-29
introduction
Dear customer:
Many thanks for having placed your trust in a quality product from
TEINNOVA.
This product has been made using modern manufacturing procedures
and a range of measures to guarantee quality.
We endeavour to do everything possible to ensure you are satisfied with
this product and have no problems when working with it.
If you have any questions about this product please contact your distribu-
tor or contact our company directly.
Before starting the machine, carefully read the usage
instructions for your equipment.
Consider this manual as part of the machine and always have it to hand for
future queries.
Our training services have been designed to support
our clients in achieving their objectives and
together we develop training programmes that suit their
strategy.
We offer the possibility of providing companies with specific training
for using our equipment and training their operatives so that they can
perform the best service and thus contribute to the success of their
end clients. This includes aspects such as knowing how to
draft a good, objective budget, solving specific problems that may arise or
offering a more professional and efficient service.
Thanks to manufacturing the cleaning equipment ourselves we can control
the quality and the performance of each machine we manufacture at all times.
This has allowed us to have very low repair rates which have al-
ways been resolved by our own Technical Assistance Service in very
short time frames. The service is managed by the same human
team as the factory.
We have every type of replacement available for your equipment as well as
related accessories.
This instruction manual is protected by copyright. We reserve all rights, especially the right to produce,
translate and create using electronic systems.
Training services
Technical service
Compressed air generator 3-29
symbols
safety warnings
intended conditions of use
get to know your machine
accessories and related equipment
operating instructions
5-29
6-29
7-29
8-29
9-29
11-29
contents
transport
20-29
21-29
maintenance and care
Compressed air generator
27-29
28-29
29-29
technical specifications
conditions of the warranty
declaration of compliance
contents
26-29
problem solving guide
4-29
Compressed air generator
symbols
All of the graphic symbols shown in this manual as well as those indicated on
the equipment itself are explained in this section. It is important to read the text
relating to these symbols with special care as it concerns personal and equipment
safety.
DANGER!
This symbol warns of a potentially dangerous situation that could cause serious
injuries or even death if the indicated instructions are not followed appropriately.
Ensure that you read all the instructions described in the “Safety information”
section.
WARNING!
This symbol warns of a potentially dangerous situation that could either
cause mild or moderate injuries or damage to property, causing personal injuries,
if the indicated instructions are not followed appropriately.
CAUTION!
Thissymbolwarnsofasituationthatcouldcausedamagetopropertywithoutcausing
personal injuries if the indicated instructions are not followed appropriately.
IMPORTANT NOTE!
Thissymbolwarnsofinformationrelatingtotheoptimaluseoftheequipmentinorder
to avoid possible handling errors.
5-29
Compressed air generator
The AIRNET 320 compressed air generating equipment must not be used for purposes other than those
outlined in this instruction manual.
The use of the AIRNET 320 by several people at the same time is unnecessary and is also prohibited
for safety reasons.
The AIRNET 320 compressed air generator is NOT suitable for use in areas with a potentially explo-
sive atmosphere.
Make sure the AIRNET 320 compressed air generator is placed on a smooth and stable surface so that
the machine is steady when operating.
The electrical installation must be compatible with the voltage, frequency and power of the motor and
the cables must have the appropriate size.
Safety glasses are mandatory to prevent any possible dust or matter being projected into the opera-
tor’s eyes.
Adequately secure the AIRNET 320 compressed air generator and lock the wheels when transporting
it in a vehicle.
Should you have doubts about the proper performance of the compressor or its components, we ad-
vise you to contact TEINNOVA’s Technical Assistance Service on telephone +34 941 44 50 56.
Do not open the control box on your AIRNET 320 compressed air generator. In the event of a fault,
contact TEINNOVA’s Technical Assistance Service on telephone number: +34 941 44 50 56.
safety warnings
6-29
Compressed air generator
Any other use is completely pro-
hibited without written authoriza-
tion from the manufacturer.
The machine is to be handled
only by authorized and properly
trained personnel or at least by
personnel with a sufficient level of
technical experience.

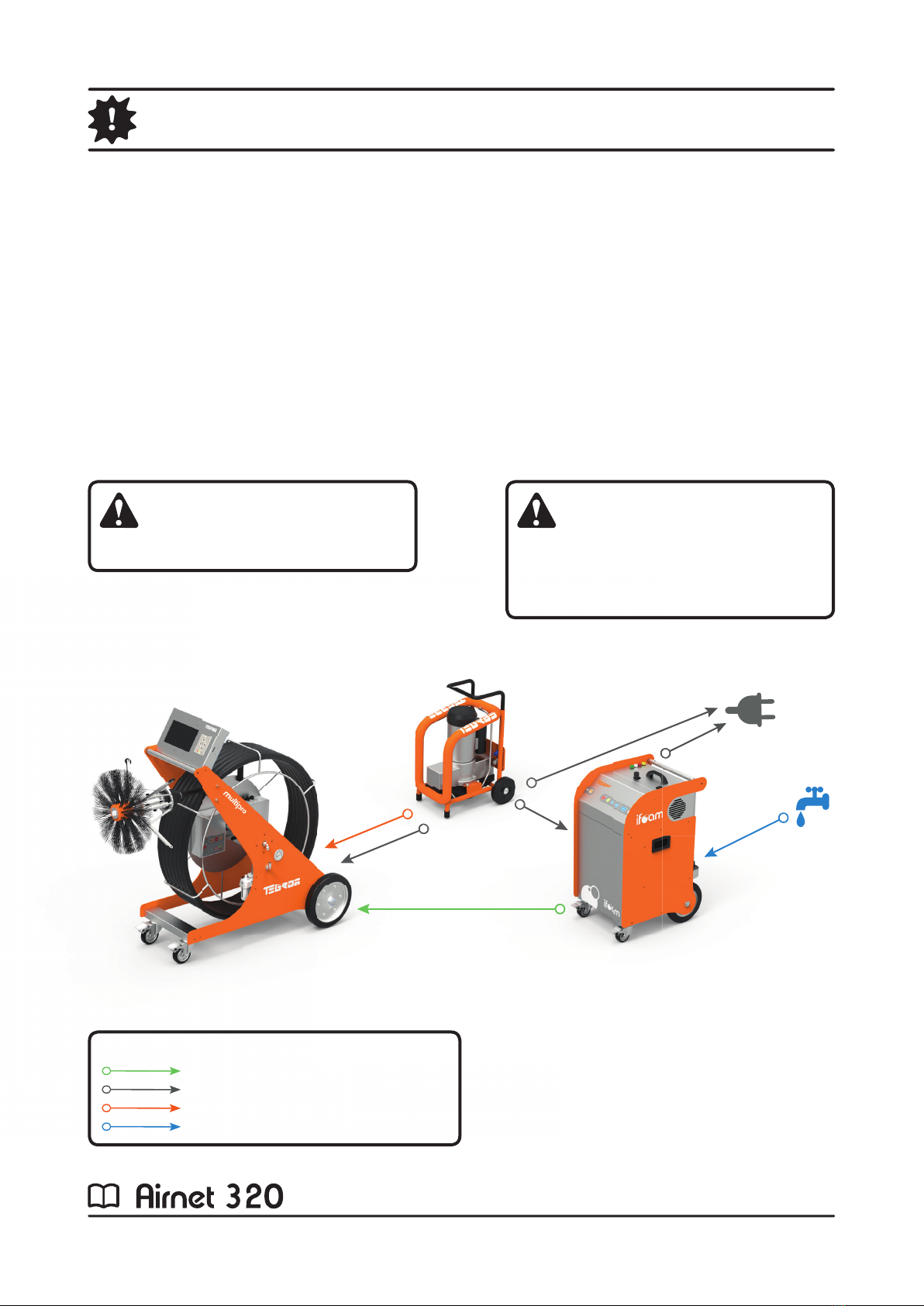

KEY
The AIRNET 320 is a machine for generating compressed air using a double boxer-type piston. Keeping a
space free for ventilation around the machine while it is working is essential for its proper operation. Keep a
distance of more than 1.5 metres between the air generator and any other object or wall.
It can be used in combination with either a TECAI brushing robot, or a TEGRAS brushing robot as shown
in the usage diagram in cases where the power supply for the compressor is 220V 50Hz. Where the com-
pressor power supply is 110V 60Hz, the TEGRAS brushing robot CANNOT be used. Your AIRNET 320
also has a second air outlet in case you want to use another pneumatic tool. It also has an electric power
outlet at the same voltage and frequency as the intake. This enables us to power other electrical equipment
through the AIRNET 320.
intended conditions of use
IFOAM MINI
Active foam generator
and rinser
AIRNET 320
Compressed
air generator
TEGRAS MULTIPRO
Pneumatic brushing robot for
cleaning ducts
chemical product and low pressure rinsing
electric power supply
compressed air
mains water
7-29
Compressed air generator
1
11 14
12
137
8654
3
2
9 10

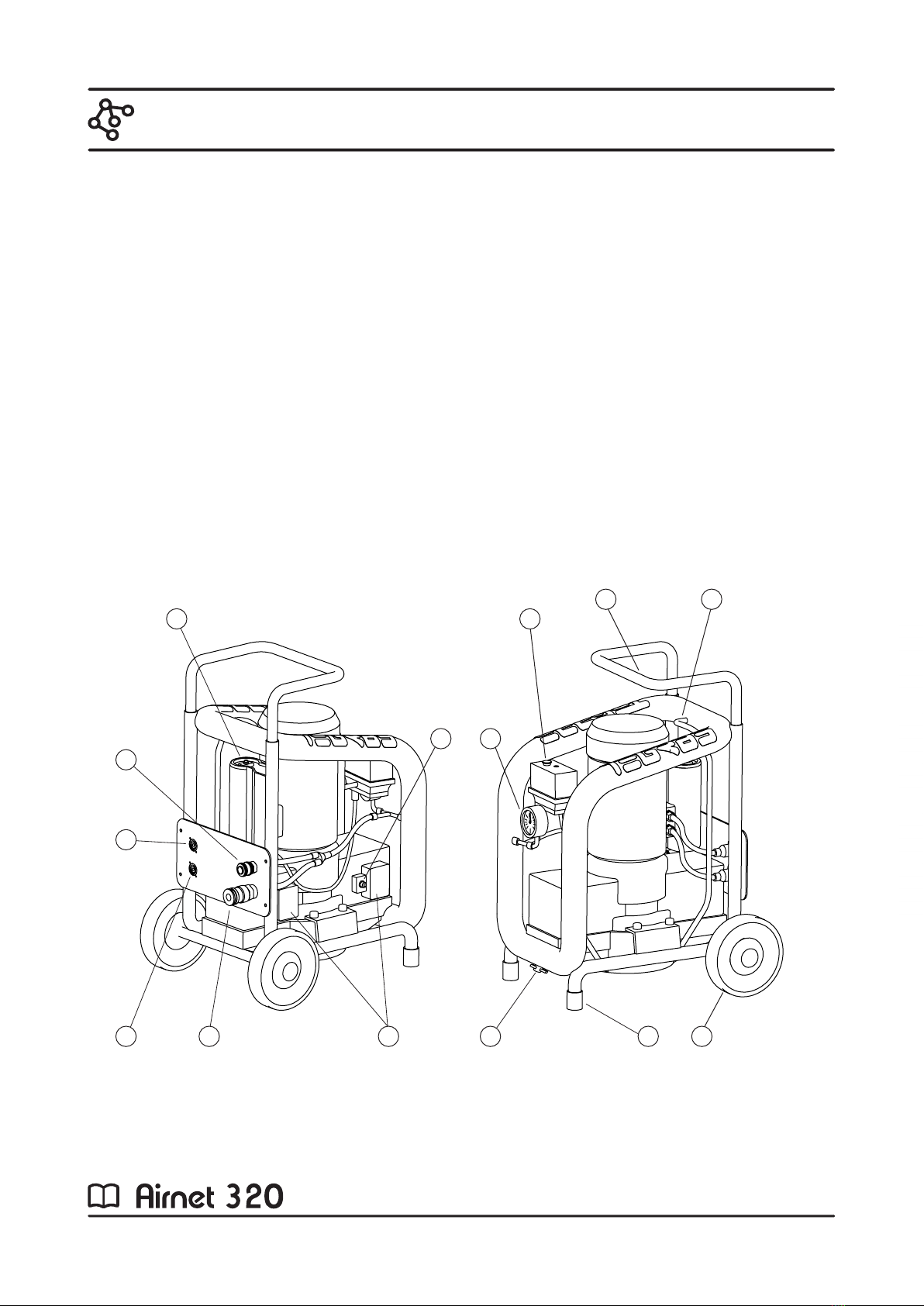

Components:
1- Resettable Fuse
2- Auxiliary outlet for compressed air
3- Electric power supply
4- Power outlet
5- Main compressed air outlet
6- Air filters
7- Filter fastening screw
8- Manual discharge valve
9- Front foot
10- Back wheel
11- Carrying handle
12- ON/OFF switch
13- Pressure gauge (for internal pressure)
14- One-way Internal Pressure Valve
get to know your machine
8-29
Compressed air generator

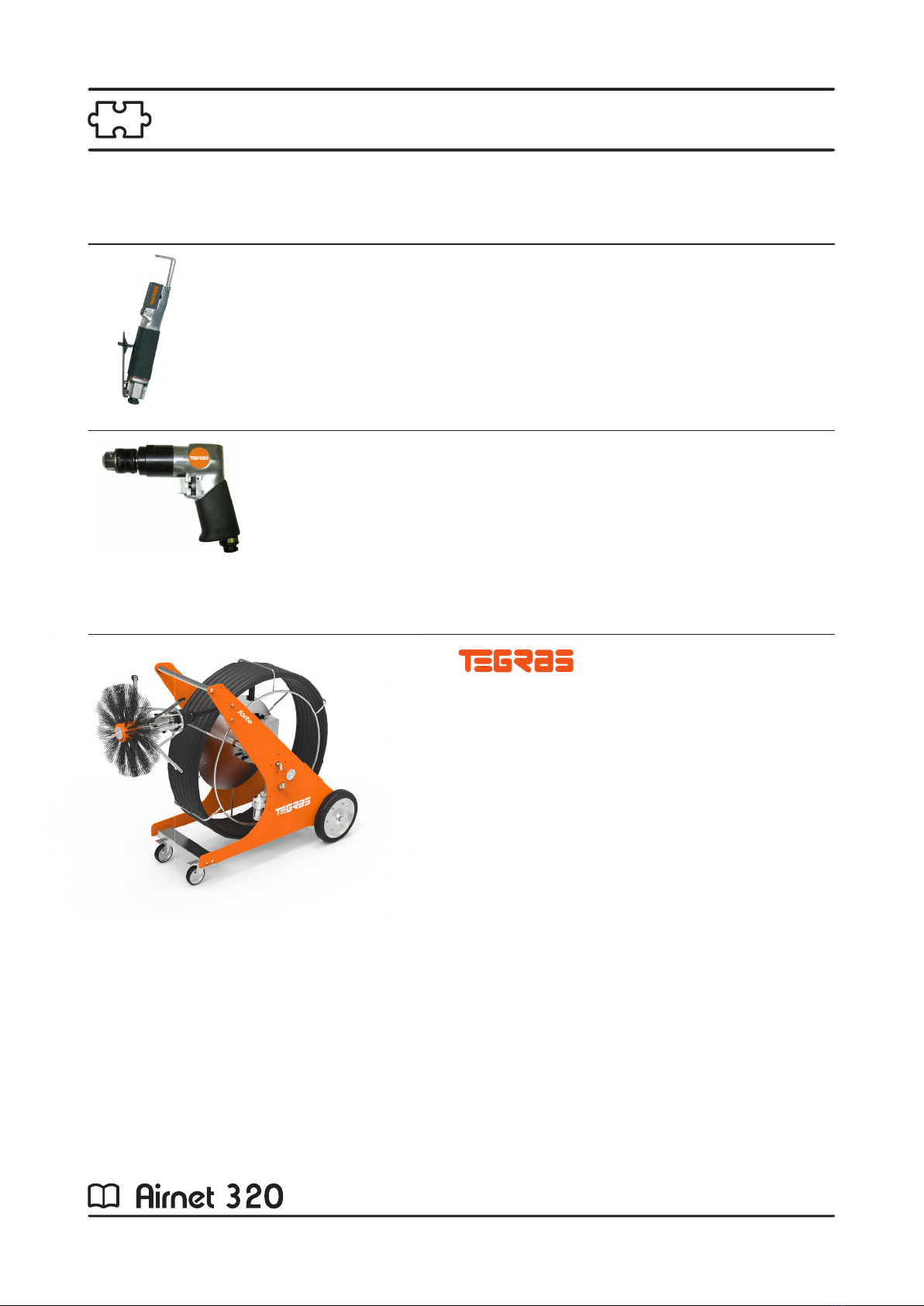

Pneumatic jigsaw capable of working at 10000 impacts per minute. With an
impact length of 3/8”.
Code: HE7100200
1/2HP pistol-type pneumatic drill with 2000rpm free rotation speed. Alumin-
ium tool with rubber handle.
Code: HE7100100
Pneumatic saw
Pneumatic drill
accessories and related equipment

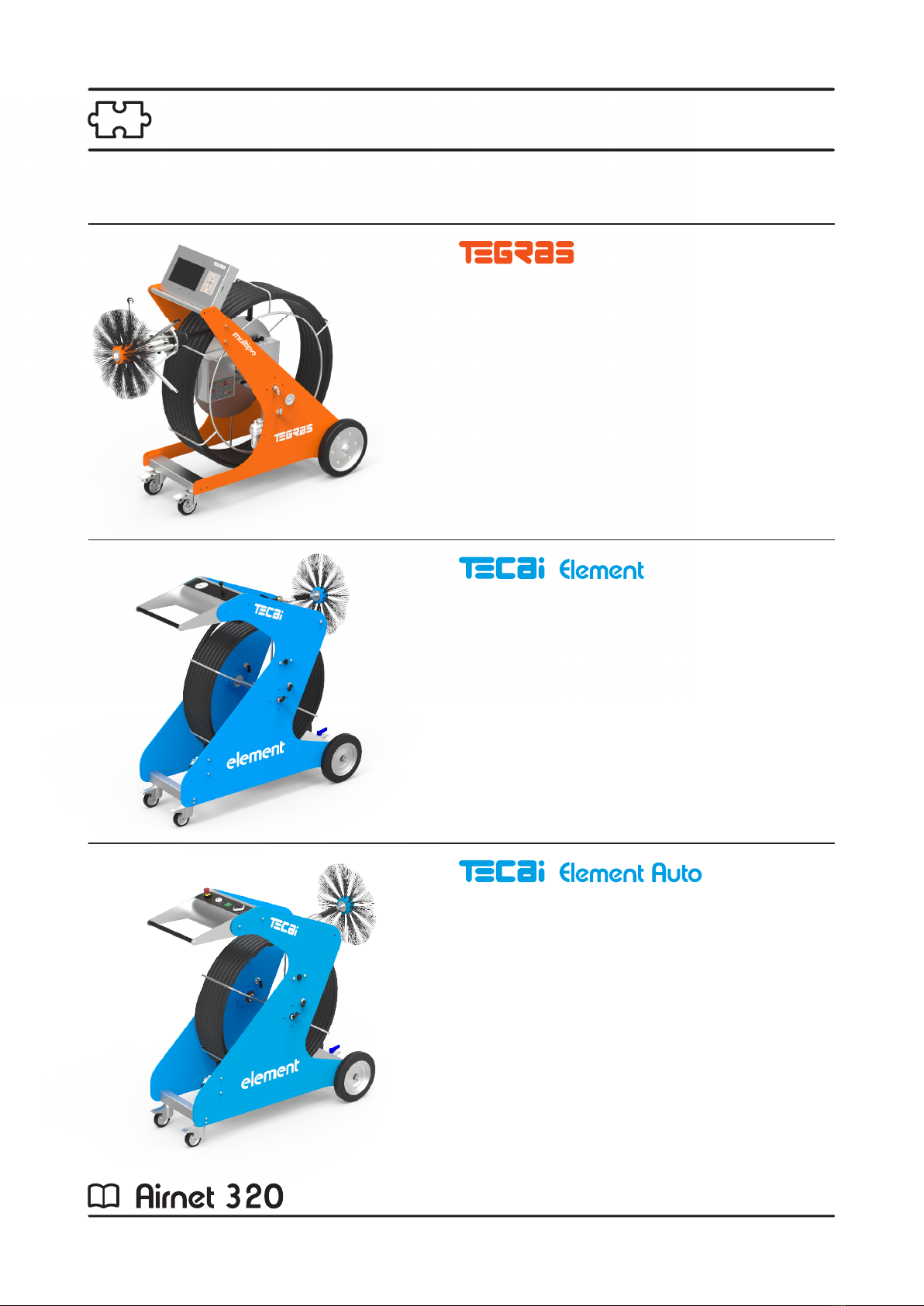

Related equipment:
9-29
Pneumatic brushing robot for cleaning ducts.
Code: TG3310102
forte
Compressed air generator
Pneumatic brushing robot for cleaning ducts.
Code: TG3310202
Pneumatic brushing robot for cleaning ducts.
Code:
Electric-pneumatic brushing robot for cleaning
ducts.
Code:
accessories and related equipment
multipro
10-29
