Tekmar 528 Bedienungsanleitung

tekmarNet®2 Thermostat 528

Q 528

12/11

Zoning

Replaces: 08/10

Quick Setup Guide

12 34

tN2 Manager, Module

or Wiring Center

tN2 tN2 Slab Sensor 079, or

Outdoor Sensor 070, or

Indoor Sensor 076, 077, 084

1234

tNt 528

528

One Stage Heat

Mmm YYYY

Lot # 12345

Meets Class B:

Canadian ICES

FCC Part 15

1023-02

tN2

Switch Settings:

For instructions see brochure

Use at least 65°C conductors

Sensor

Setback

Scene

Lock

Not used Not used

Unlock

Oﬀ

No Power

Location1. Remove Mounting Base2.

Install Mounting Base3. Wiring4.

Switch Settings5.

Switch

Position

Action

1ON SETBACK Allow thermostat to respond to

available schedule. Requires Timer 033.

OFF OFF No setback schedule response.

2ON SCENE Allow thermostat to respond to

scenes. Requires User Switch 479.

OFF OFF No scene response.

ON LOCK Locked to ‘User’ access level. Set

to Lock when installation completed.

OFF UNLOCK Unlock to access all settings.

Set to Unlock during installation.

4ON Not used

OFF Not used

Close Thermostat6.

pivot

tab

Thermostat

Base

Adaptor

Plate 007

Switch

Box

Thermostat

Base

Wall

Exterior

Wall

Interior

Wall

5 feet

1.5 m

Switch Setting Location

tekmar Control Systems Ltd. and tekmar Control Systems, Inc. 2 of 2 All specifications are subject to change without notice.

Printed in Canada. Q528 - 12/11.

tekmar Control Systems Ltd., Canada, tekmar Control Systems, Inc., U.S.A.

Head Ofﬁce: 5100 Silver Star Road,

Vernon, B.C. Canada V1B 3K4, 250-545-7749, Fax. 250-545-0650 Web Site: www.tekmarcontrols.com

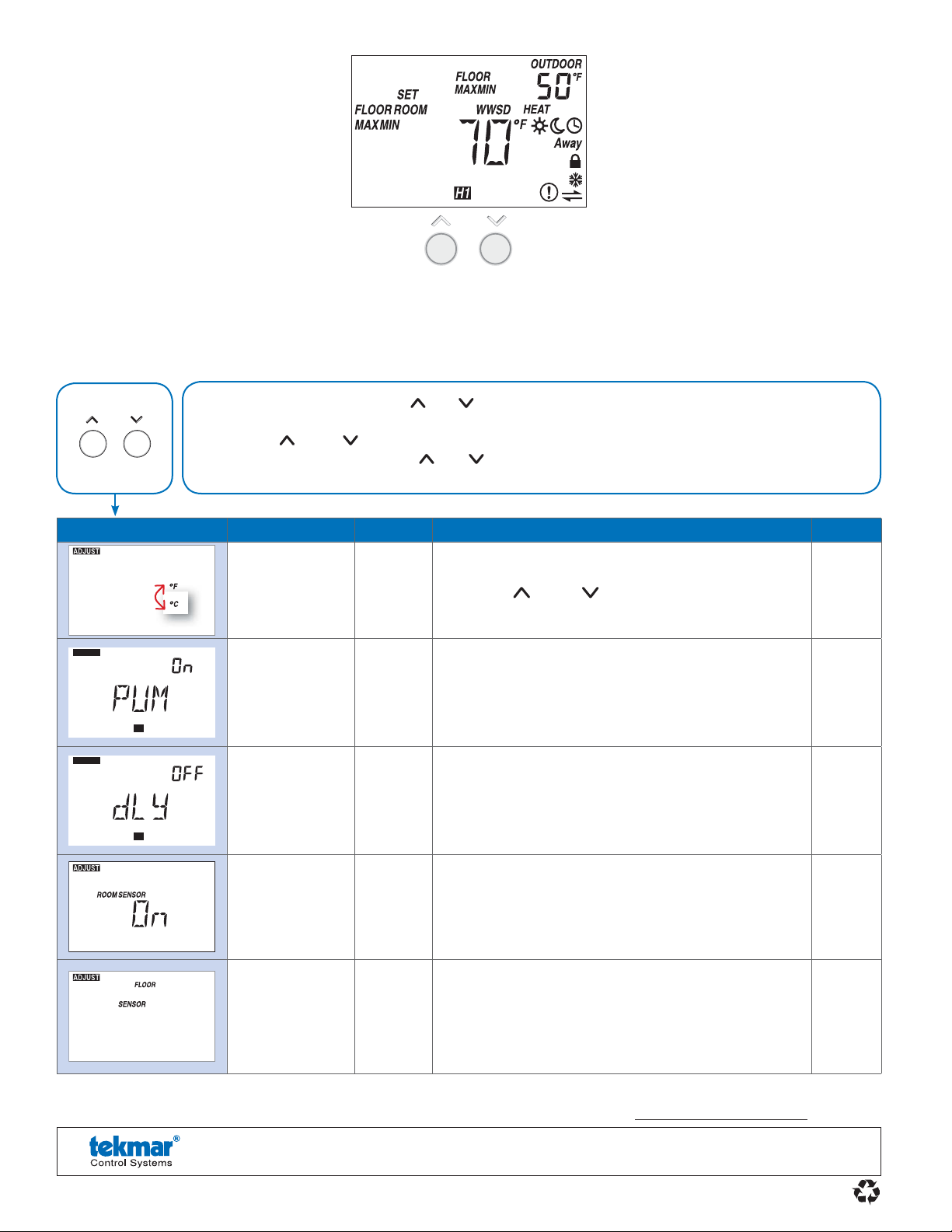

User Interface7.

Critical Settings8.

For a full list of settings and operational details, please refer to the thermostat Installation and Operation Manual

(D528) included with compatible tekmarNet®controls or download the brochure from www.tekmarcontrols.com

Display Range Access Description Set to

°F or °C

Default = °F

Installer

User

TEMPERATURE UNITS

Press the or the button to change from °F to

°C and vice versa.

ADJUST

SUPPLY

OFF or On

Default = On Installer

HEAT SUPPLY PUMP

During heating, select whether or not the system supply

pump should turn on or be off to allow a zone group

pump per manifold.

Available when:

A reset control is present on the tekmarNet®system.•

ADJUST

SUPPLY

OFF or On

Default = OFF Installer

HEAT SUPPLY PUMP DELAY

During heating, select whether or not the system supply

pump should be delayed by 3 minutes before coming

on (for thermal motor or wax actuator).

Available when:

A reset control is present on the tekmarNet®system.•

On or Off

Default = On Installer

ROOM SENSOR

Select whether the built-in air temperature sensor is

on or off.

Available when:

A floor sensor or room sensor is installed on the

auxiliary sensor input.

Off, Room,

Outdoor,

Floor, Floor

dSP

Installer

AUXILIARY SENSOR

Select the type of auxiliary sensor.

Floor dSP = Show floor sensor reading in upper

number field.

Available when:

Auxiliary sensor automatically detected.

• Press and hold down both the and buttons for 2 seconds to change from one step to the next.

• Release both buttons once the step has been reached.

• Press the or the button to change the setting, if available.

• Press and hold down both the and buttons for 2 seconds to go to the next step, OR

• After 10 seconds of no button activity, the display goes back to normal operation.

Press

Together

The following settings are essential to the successful operation of the system.

Important

Note: Set switch setting #3 and tekmarNet®system control to Unlock to change Access level to Installer. Return to Lock

setting once installation has been completed.
