A Watts Water Technologies Company

User Manual

tekmarNet®Thermostat 557

Zoning

557

08/12

Replaces: New

2 of 12

A Watts Water Technologies Company

This brochure will provide you with the information you need to benefit the most

from your tekmarNet®thermostat. Please visit www.tekmarControls.com for more

detailed information on this or any other tekmar product.

This thermostat provides heating and cooling for one zone in your building. It will

maintain your air temperature with an on board room sensor. Floor temperature

control may also be enabled in this thermostat when a floor sensor is installed.

This thermostat can lower its temperature setting at night or when you are away

from the house.

Display of the time, schedule and the away key on the Home screen is optional and

can be turned on or off in the programming menus.

To enter the programming menus, press and hold the Home button for 3

seconds.

Touchscreen Adjustments

The touchscreen of this thermostat makes it easy to change commonly used settings.

Touch any item to adjust it’s setting. You will hear a “tick” sound each time you touch

the display. When you are finished making changes, touching the Home button will

return to the Home screen. If you do not touch the screen for 3 seconds, the Home

screen is automatically displayed.

Adjust

the Time

Adjust the

Schedule

Away Key

Switch between

Auto, Heat,

Cool, Off &

Emergency Mode

Home Button.

Return to the ‘Home’

Screen from any menu.

Press and hold for 3

seconds to access the

programming menus.

Room

Temperature

Turn the Fan on

Home

Button

Adjust the

Temperature

Display Humidity, Heat &

Cool settings, Floor or

Outdoor temperature

3 of 12

A Watts Water Technologies Company

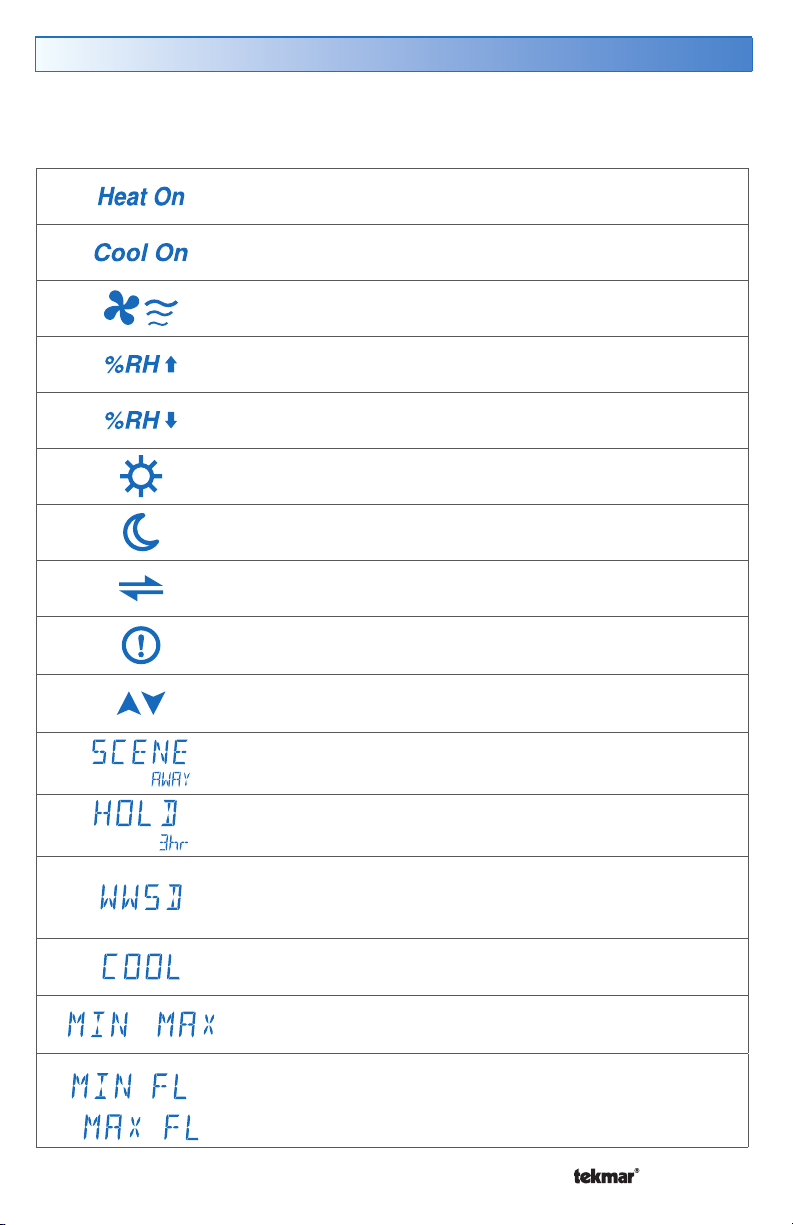

Display Symbols

This thermostat will display symbols on its screen in order to indicate what mode it

is in, what temperature it is operating at, or what equipment it is trying to turn on.

This section describes each of those symbols.

HEAT ON

Heat is turned on.

COOL ON

Cooling is turned on.

FAN

The fan is turned on.

%RH

Humidifying

%RH

Dehumidifying

SUN

Operating at the occupied (day) temperature.

MOON

Operating at the unoccupied (night) temperature.

tekmarNet

Communication is present.

WARNING SYMBOL

Indicates an error is present.

ARROWS

Adjust the displayed setting.

SCENE AWAY

Operating at Away temperature.

TEMPORARY HOLD

Hold for 3, 6, 9 or 12 hours.

WWSD

The outdoor air temperature is above the Warm Weather

Shut Down setting which shuts off the heating system.

COOL

Radiant floor cooling system is on.

or MIN or MAX

Reached the room minimum or maximum.

or MIN FL or MAX FL

Reached the floor minimum or maximum.

4 of 12

A Watts Water Technologies Company

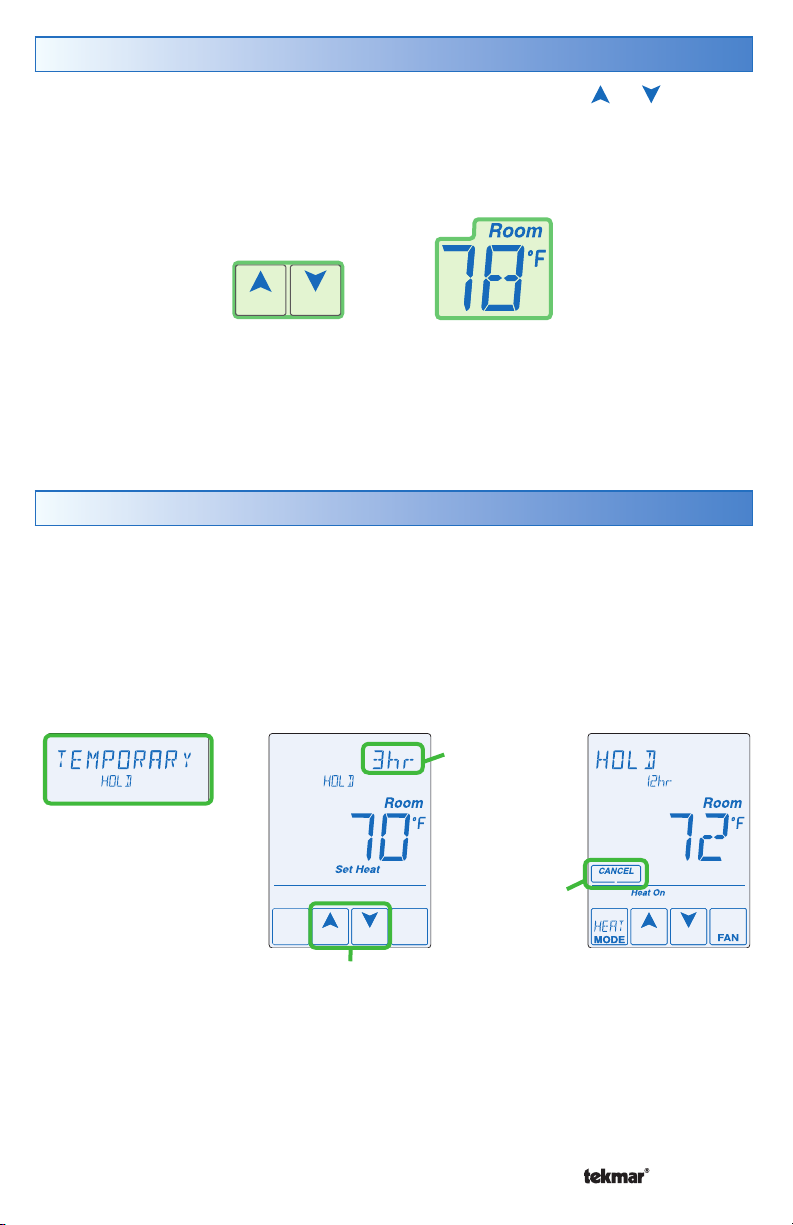

Adjust the Temperature - Temporary Hold

Temporary hold allows a user to change the temperature for a period of time and then

automatically return to the permanent temperature setting. This is especially useful

in commercial buildings that are in use for short amounts of time. When selected,

touching the up or down arrows changes the temperature for either 3, 6, 9 or 12

hours. If the thermostat is using a schedule, ‘Schd’ provides a temporary hold until

the next schedule event time. After the temporary hold time expires, the thermostat

returns to normal operation. By default, the temporary hold feature is off.

Adjust the Temperature

To change the heating or cooling set temperature, touch the or arrows to

select a preferred temperature setting. Press the home button to accept the setting

or leave the screen untouched for several seconds. To toggle between changing

the heating or cooling setting, press the H <> C key. This thermostat is capable of

controlling the floor or air temperature.

Note: The temperature is not adjustable if the thermostat is in the Away scene, the Off

mode or has been set to the “Limited” or “Secure” access level by the installer.

adjusts

When the temporary

hold feature is enabled,

touching the up or

down arrow displays

‘TEMPORARY HOLD’.

Use the Up or Down

arrow to select a

temperature.

Tap the hour

setting until

the preferred

length of time

is displayed.

Cancel the

temporary

hold.

‘HOLD’ is displayed while the

thermostat is operating at the

temporary hold temperature.

5 of 12

A Watts Water Technologies Company

Adjust the Time

Secondary Temperature Display

This thermostat can display the outdoor or floor temperature, relative humidity,

or the room heating and cooling temperature settings in the smaller number area

at the top right of the screen. To toggle the item currently displayed, touch the

secondary temperature. Display of the floor or outdoor temperature requires a

connection to an external floor or outdoor air sensor.

To change the current time, touch the clock on the display.

Use the or arrow to change the minutes, hour

and day.

Touch “NEXT ITEM” to advance to the next item or

“BACK” for the previous item.

To store the new time and date, press the home button,

or leave the screen untouched for several seconds.

Note: The time is not visible when the thermostat is in

the Away scene or if the clock display is turned off in the

Time menu.

•

Mode of Operation

This thermostat has 5 operating modes: Heat, Cool. Auto, Emer (emergency), and

Off. Touch the Mode key on the screen to select the desired mode of operation.

Auto mode will automatically switch between heating, cooling and the emergency

backup heat as required. Emergency mode is for heat pump installations whereby the

heat pump is forced off and the backup heat is manually turned on. The temperature

is not adjustable while the thermostat is off.

Note: If near freezing temperatures are detected the system will operate to maintain

40°F (4.5°C), even in the Off mode.

or or or or

or or or

6 of 12

A Watts Water Technologies Company

This thermostat is capable of running at a lower temperature setting when you are

asleep or out of the building. When the schedule setting is on, day and night

temperature settings will display on the screen. If you adjust the temperature while

the sun is displayed, the day setting changes. If you adjust the temperature while

the moon is displayed, the night setting changes.

To adjust the times when the day and night temperature start, touch the sun or

moon on the screen. “Schedule Menu” will display followed by the first adjustable

schedule event time.

Programmable Schedule - Day and Night

Use the or arrow to adjust the time for each event.

Touch ‘NEXT ITEM’ to advance to the next event or

‘BACK’ for the previous event.

To accept the settings, press the home button, or leave

the screen untouched for several seconds.

The thermostat schedule can be set to 2 or 4 events per

day repeating on a 24 hr or 7 day cycle. These schedule

settings are detailed later in this brochure.

•

Going Away Setting

This thermostat can save additional energy while you are

away by lowering the heating temperature and increasing

the cooling temperature. To enable this feature, touch “Going

Away” on the screen. This is only available when the Away

Key has been turned on in the Scene menu.

Select PERM (permanent) or a number of days using

the or arrow.

Press the home button to accept the setting or leave the

screen untouched for several seconds.

“Scene Away” is displayed on the home screen until the

number of days expires.

Touch “Cancel Away” to cancel at any time.

•

Access Levels

This thermostat has access levels. It will typically be installed and programmed by a

heating professional and then locked in a “User”, “Limited”, or “Secure” access level.

System critical settings will not be available for adjustment. For more information on

these settings, please consult your installing contractor or this product’s Installation

and Operation Manual. This brochure focuses on settings available to the “User”.

Note: The temperature is not adjustable while the thermostat is in Away.

7 of 12

A Watts Water Technologies Company

Program Menu Settings

To Enter the Programming Menus

----------------------------------

Press and hold the Home button for 3 seconds to enter the programming menus.

Select a Programming Menu

---------------------------------------

Touch “NEXT” to advance (clockwise in the illustration below) to the next menu.

Touch “BACK” to go backwards (counterclockwise in the illustration below) through

the menus.

Touch “ENTER” to enter a menu.

Setting Items

-------------------------------------------------------

Touch or arrow to adjust the setting if required.

Touch “NEXT ITEM” to advance to the next item within the menu.

Touch “BACK ITEM” to go backwards to the previous item within the menu.

To return to the parent menu after changing a setting, press and release the

home button.

To return to the home screen, press and release the home button twice or wait

30 seconds to automatically return to the home screen.

•

Press and

hold for 3

seconds to

access the

programming

menus.

8 of 12

A Watts Water Technologies Company

Screen Clean Menu

Entering the Screen Clean menu gives you 30 seconds to clean the thermostat and

display with a moist cloth. Do not use solvents to clean the thermostat.

Set Temp Menu

Entering the Set Temp menu allows you to permanently change both the day

and night temperature settings for both heating, cooling.

If your thermostat is being used for radiant floor heating, a floor sensor can be

connected and floor minimum day and night temperatures can be set. Radiant

floors heat the air by raising the floor temperature. Setting a floor temperature is a

way of enhancing the comfort of your living space.

Air Temperature Only

-----------------------------------------------

If there is only an air temperature sensor (no floor sensor), the thermostat operates

to control your desired air temperature.

Floor and Air Temperature

-----------------------------------------

If the air sensor is turned on and a floor sensor is connected, the thermostat will

maintain your desired air temperature as well as a minimum floor temperature.

This operation is recommended for areas with large windows that allow the sun to

shine into a room and keep it warm without the need for heat. This can allow the

floors to cool off during the afternoon. When the sun goes down, it can take a long

time for the floors to get warm again. This may cause the room to cool off too much in

the early evening. A floor minimum setting can help with this condition by maintaining

a floor minimum temperature. Keep in mind the floor minimum temperature will

override the air temperature, and if set too high, may overheat the room.

This operation is also recommended for rooms with hardwood floors. Setting floor

minimum and maximum temperatures is a way of enhancing the comfort of your

living space while protecting your floor coverings.

90°F (32°C)

Feels hot to the touch

80 to 85°F (26 to 30°C)

Feels warm to the touch

70°F (21°C)

Feels cool to the touch

40 to 45°F (5 to 7°C)

Feels cold to the touch

Suggested maximum for all floor

types other than wood.

Bathrooms and kitchens. Suggested

maximum for wood floors.

Rooms with large windows preventing

under heating in the evening.

Freeze protection for garages.

9 of 12

A Watts Water Technologies Company

Time Menu Settings

Set date, month and year

Required for daylight savings time.

Daylight Save

Automatic daylight saving time update for the spring and fall.

Time Mode

Select either 12 or 24 hour time format.

Clock

Select on to display the time clock in the Home menu (available when schedules

are not used).

Schedule Menu Settings

Energy savings can be acheived by lowering the heating temperature and increasing

the cooling temperature when the building is unoccupied or during the night.

When operating on a programmable schedule, a or a symbol is shown in the

home menu. The or indicates the current operating temperature.

All schedules are stored in permanent memory and are not affected by a

loss of power.

Display Action

Day temperature

Night temperature

This thermostat can operate on a programmable schedule in order to automatically

lower the heating temperature and increase the cooling temperature setting. Options

include:

Turning off the schedule (OFF)

Operate a schedule that applies only to this thermostat zone (ZONE)

The ability to operate one of the four system-wide schedules as a master (Schedule

Master 1 through 4*)

Join one of the four system-wide schedules as a member (Schedule Member

1 though 4*)

*Requires the thermostat to be connected to a tekmarNet®system.

Once the type of schedule has been selected, the thermostat can support schedules

that have either:

2 events per day

4 events per day

Schedules with four events per day are common for residential use while two events

per day are common for commercial installations.

•

10 of 12

A Watts Water Technologies Company

Scene Menu Settings

Scenes

Scenes provide system-wide overrides to save energy. Select whether scenes are

not used (none) or if the away scene is available.

Away Key

If scenes are available, select if the away key is available or not.

Note: When used in conjunction with a tekmarNet®system control to operate the

heating appliance, the domestic hot water tank is not heated while in away scene.

Display Menu Settings

Units

Select temperature units in degrees Fahrenheit or Celsius.

Backlight Options

Select how the display backlight operates.

ON = The display is always at full brightness.

DIM = When thermostat is not in use, the display is dim but is at full brightness

when touched.

DIM = When the thermostat is not in use, the display is dim while the schedule

or scene is . The display backlight is off when the schedule or scene is . The

thermostat display is at full brightness when touched.

ON = When the thermostat is not in use, the display is at full brightness when

the schedule or scene is . The display backlight is off when the schedule or

scene is . The thermostat display is at full brightness when touched.

OFF = The display backlight is always off.

Secondary Item

Select whether the outdoor or floor temperature, relative humidity, or the room

heating and cooling temperature settings is shown in the upper right hand corner

in the Home menu.

•

The schedules can be repeated every:

24 hours

7 days (week)

A 7 day schedule allows a unique time to be set to change the temperature for each

day of the week.

The schedule also includes a “SKIP” option that allows the programmable schedule to

skip a temperature change and remain at the previous temperature setting. The “SKIP”

setting can be found between 11:50 PM (23:50 hours) and 12:00 AM (0:00 hours).

When a programmable schedule is selected, there is a time delay for the room to

warm up or cool down from the temperature to the temperature. The thermostat

has the option to use Optimum Start to predict the heat up or cool down rate of

the room. When Optimum Start is set to On, the heating or cooling is started in

advance to allow the room to reach the Set Room temperature at the time set in

the programmable schedule.

•

Schedule Menu Settings (Continued)

Andere Handbücher für tekmarNet 557

Inhaltsverzeichnis

Andere Tekmar Thermostat Handbücher

Tekmar

Tekmar D 512 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 532 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 2 House Control 406 Bedienungsanleitung

Tekmar

Tekmar 518 Bedienungsanleitung

Tekmar

Tekmar 519 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 4 538 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 552 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 552 Bedienungsanleitung

Tekmar

Tekmar 540 Bedienungsanleitung

Tekmar

Tekmar 538 Bedienungsanleitung

Tekmar

Tekmar 510 Bedienungsanleitung

Tekmar

Tekmar 521 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 4 543 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 554 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 532 Bedienungsanleitung

Tekmar

Tekmar 511 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 4 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 552 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 554 Bedienungsanleitung

Tekmar

Tekmar D 508 Bedienungsanleitung

Tekmar

Tekmar tekmarNet 4 544 Bedienungsanleitung

Tekmar

Tekmar 527 Bedienungsanleitung

Tekmar

Tekmar 508 Bedienungsanleitung

Tekmar

Tekmar 561 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung

Tekmar tekmarNet 557 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken
