SMU Potentiostats and EC-UPGRADE Kit

Quick Start Guide

071347302 / March 2020 *P071347302* 1

Description

The Keithley Instruments SMU (source-measure unit) Potentiostats are designed to make electrochemical

measurements easily and accurately. Included with your Model 2450, 2460, or 2461 Interactive SourceMeterTM

Instrument and other hardware is a USB flash drive containing electrochemistry test scripts or applications.

When running, each application can be user-configured to meet your specific test requirements.

The EC-UPGRADE kit lets you use an existing Keithley Instruments 2450, 2460, or 2461 SourceMeter as a

potentiostat or galvanostat.

The following applications are installed on your instrument or on the supplied USB flash drive.

▪Cyclic Voltammetry: Potential is swept at a user-programmable scan rate between two to four defined

potential vertices, and the resulting current is measured.

▪Open Circuit Potential: Measures the cell potential difference between two electrodes with high-input

impedance as a function of time.

▪Potential Pulse and Square Wave: Sources potential at programmable peak and base levels while

current is recorded at the pulse peak level, and the resulting current is measured.

▪Current Pulse and Square Wave: Sources current at programmable peak and base levels, and the

potential is recorded at the pulse peak level.

▪Chronoamperometry: Potential is stepped to a programmed value, and the resulting current is measured

as a function of time.

▪Chronopotentiometry: Current is stepped to a programmed value, and the resulting potential is

measured as a function of time.

This kit is not intended to be used with a SMU interlock enabled. To prevent electric shock

and possible damage to the test cable assembly or test setup, do not activate the Keithley

Instruments 2450, 2460, or 2461 interlock.

When the interlock is not engaged on the 2450, 2460, or 2461 the nominal output is limited to

±42 V. However, review the Safety Precautions (on page 23) section of this document to

ensure responsible operation.

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

2 071347302 / March 2020

What you should have received

Below is a list of what you should have received. If you only ordered the EC-UPGRADE kit, a SMU instrument

is not included.

Model number

Quantity

2450, 2460, or 2461

01217440x

013042100

2450-800x

Description

Keithley Instruments 2450, 2460, or 2461

Interactive SourceMeter SMU Instrument

with power cable

1 m connectorized cable assembly

Insulated miniature alligator clips

Interactive Sourcemeter Electrochemistry

Kit USB Flash Drive and Instructions (not

pictured)

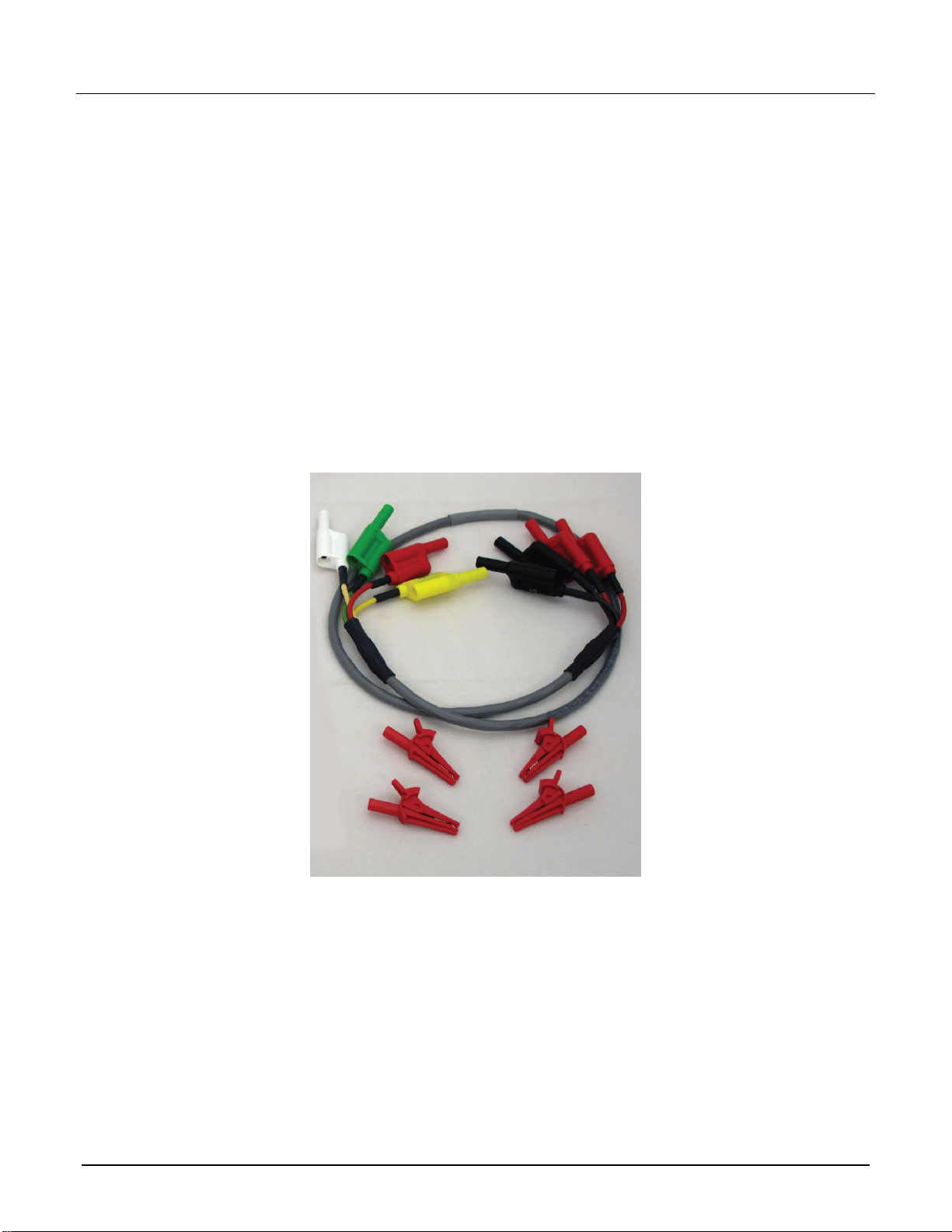

Figure 1: EC-UPGRADE kit shipping contents

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

071347302 / March 2020 3

Getting started

Before you can run an electrochemistry test, you will need to configure the instrument and make basic

connections. The following topics will explain how to set up and configure your instrument.

The 2450-EC or 2460-EC instrument must have firmware version 1.5.0 or later to run the

electrochemistry test applications. The 2461-EC must have firmware version 1.6.0 or later.

Scripts with version numbers lower than 189427 are compatible with firmware versions 1.5.0

(1.6.0 for 2461) to 1.6.7. Scripts with version numbers of 189427 and higher are compatible with

firmware versions 1.5.0 (1.6.0 for 2461) to 1.6.7 and version 1.7.2 and higher. The script version

number is displayed near the top right corner of an application's Home screen.

To view the firmware version, press the MENU key, then select Info/Manage under System.

The firmware version is at the upper-left of your display. The latest firmware is available from the

Keithley Instruments website (tek.com/keithley).

Power the instrument on or off

Follow the steps below to connect the SMU to line power and turn on the instrument. The SMU operates from a

line voltage of 100 V to 240 V at a frequency of 50 Hz or 60 Hz. It automatically senses line voltage and

frequency. Make sure the operating voltage in your area is compatible.

You must turn on the SMU and allow it to warm up for at least one hour to achieve rated accuracies.

Operating the instrument on an incorrect line voltage may cause damage to the instrument,

possibly voiding the warranty.

The power cord supplied with the 2450-EC, 2460-EC, and 2461-EC contains a separate

protective earth (safety ground) wire for use with grounded outlets. When proper connections

are made, the instrument chassis is connected to power-line ground through the ground wire

in the power cord. In addition, a redundant protective earth connection is provided through a

screw on the rear panel. This terminal should be connected to a known protective earth. In

the event of a failure, not using a properly grounded protective earth and grounded outlet

may result in personal injury or death due to electric shock.

Do not replace detachable mains supply cords with inadequately rated cords. Failure to use

properly rated cords may result in personal injury or death due to electric shock.

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

4 071347302 / March 2020

To connect the power cord:

1. Make sure that the front-panel POWER switch is in the off (O) position.

2. Connect the female end of the supplied power cord to the AC receptacle on the rear panel.

3. Connect the male end of the power cord to a grounded AC outlet.

To turn the instrument on or off:

1. Before turning the instrument on, disconnect any devices under test (DUTs) from the instrument.

2. To turn your instrument on, press the front-panel POWER switch to place it in the on (|) position. The

instrument displays a status bar as it powers on. The home screen is displayed when power on is

complete.

3. To turn your instrument off, press the front-panel POWER switch to place it in the off (O) position.

On some sensitive or easily damaged devices under test (DUTs), the instrument power-up and

power-down sequence can apply transient signals to the DUT that may affect or damage it. When

testing this type of DUT, do not make final connections to it until the instrument has completed its

power-up sequence and is in a known operating state. When testing this type of DUT, disconnect it

from the instrument before turning the instrument off.

To prevent any human contact with a live conductor, connections to the DUT must be fully insulated and the

final connections to the DUT must only use safety-rated safety jack socket connectors that do not allow bodily

contact.

Select the high-impedance, output-off state

Before making physical connections from the instrument to the test cell, set the output of the instrument to the

high-impedance, output-off state. When the high-impedance output-off state is selected, the output relay opens,

disconnecting the instrument from the load.

To set the output of your SMU to the high-impedance output-off state:

1. Press the MENU key.

2. Under Source, select Settings.

3. Select Output Off.

4. Choose High Z (high impedance).

You may receive a notification about making measurements with the output turned off. Select OK to

clear the message or select Details to see more information.

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

071347302 / March 2020 5

Copy a script to the instrument

Your SMU is shipped with all test applications and supporting scripts loaded into memory.

If you accidentally delete a test application or a supporting script (EC_Framework.tsp or

EC_Images.tsp), you can copy the files from the flash drive to your instrument.

If you are upgrading your SMU with the EC-UPGRADE kit, you can run the test applications from the flash drive

or copy the files from the flash drive to the instrument. If you choose to copy the applications, you must also

copy the support files (EC_Framework.tsp and EC_Images.tsp) to your SMU.

To copy a script to the SMU:

1. Insert the USB flash drive into the USB port on the front panel.

2. Press the MENU key.

3. Under Scripts, select Manage. The Manage Scripts menu opens. Your list of Internal Scripts may appear

different than the following figure.

Figure 2: Manage Scripts menu

4. In the USB Scripts list, select the test script you want to copy to the SMU. For this example, you will copy

the cyclic voltammetry test script.

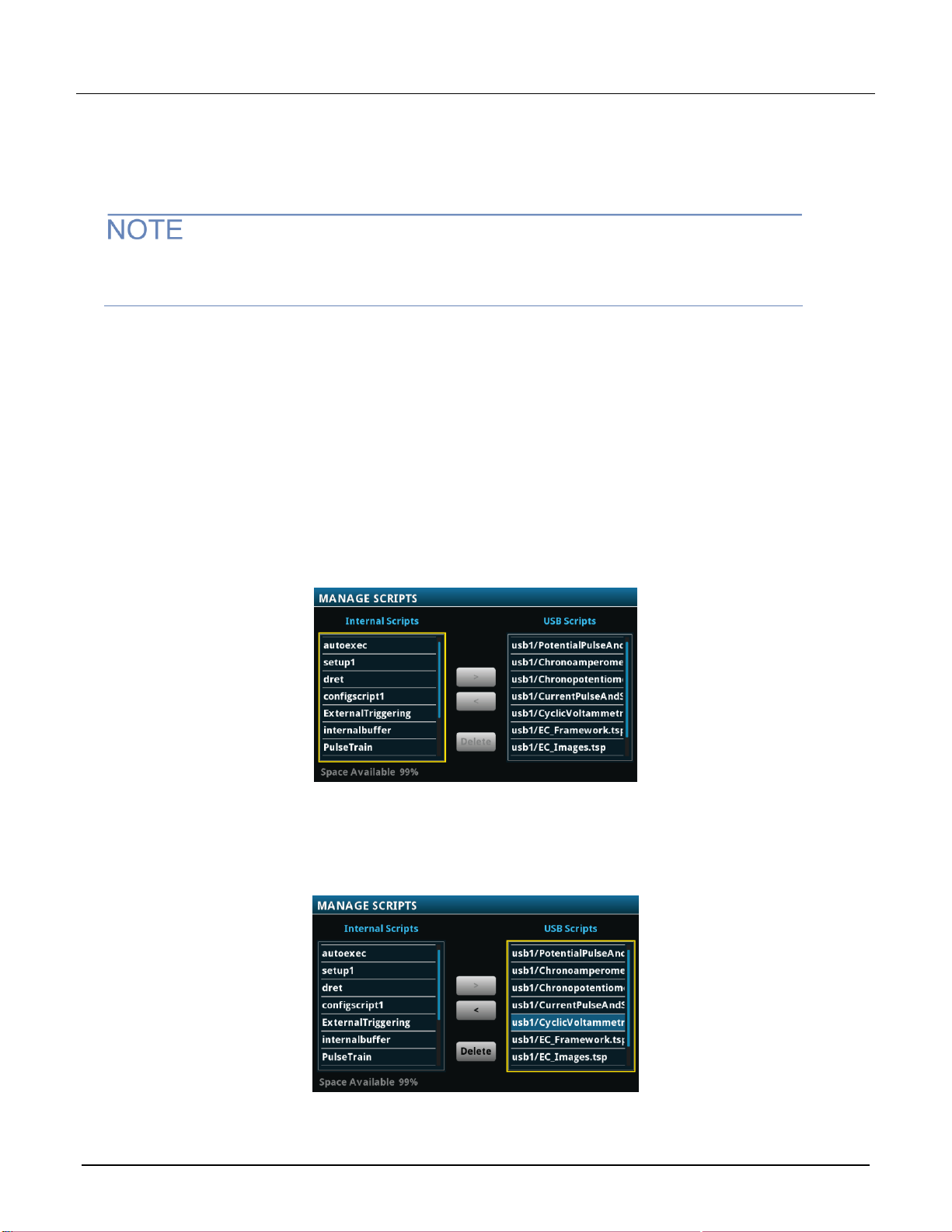

Figure 3: Selecting the test script to be copied

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

6 071347302 / March 2020

5. Select <. The test script is transferred to the instrument, and the corresponding filename is displayed in the

Internal Scripts list.

Figure 4: Copying the file to the instrument

Connections and usage

The cable assembly can be used with Keithley SMUs for electrochemistry applications. Each connector of the

assembly is labeled according to its function:

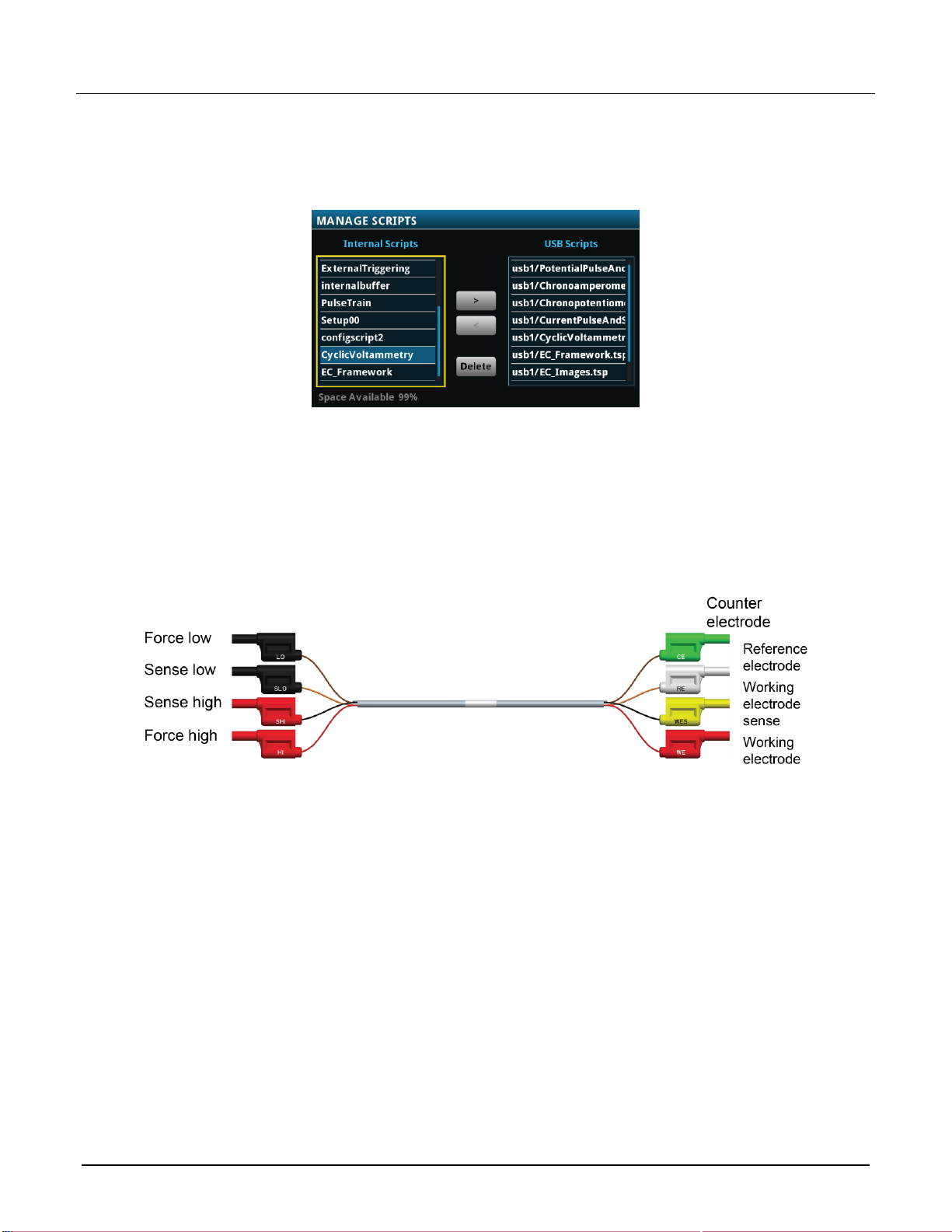

Figure 5: Cable assembly connector labels and definitions

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

071347302 / March 2020 7

Make the SMU connections

To connect to the instrument (all tests):

The front panel of your SMU has four banana-style input and output jacks. You use the supplied cable to

connect your electrochemical cell to these jacks.

The SENSE terminals are used to measure voltage at the device under test (DUT). When you use sense leads,

the voltage drop across the force leads is eliminated from a measurement. This produces more accurate

voltage sourcing and measurement at the DUT. Plug the SHI and SLO connectors into the SENSE terminals.

The FORCE terminals are used to source or sink voltage or current to or from a DUT. Plug the HI and LO

connectors into the FORCE terminals.

Plug the four SMU-side cable connectors into the front of your SMU instrument as shown in the below graphic.

Figure 6: Connecting SMU-side cable connectors to the SMU front-panel inputs

Make the device connections

The test cable lets you make connections to test cells with two, three, or four electrodes.

For two-electrode applications, the device-side cable connectors are used in stacked pairs. Connect the WE

and WES pair to the working electrode of your electrochemical cell, and connect the CE and RE pair to the

counter electrode of the cell.

Figure 7: Two-electrode cell testing cable connections

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

8 071347302 / March 2020

For three-electrode applications, the WE and WES connectors are stacked and attached to the working

electrode. The CE and RE connectors connect to the counter electrode and reference electrode, respectively.

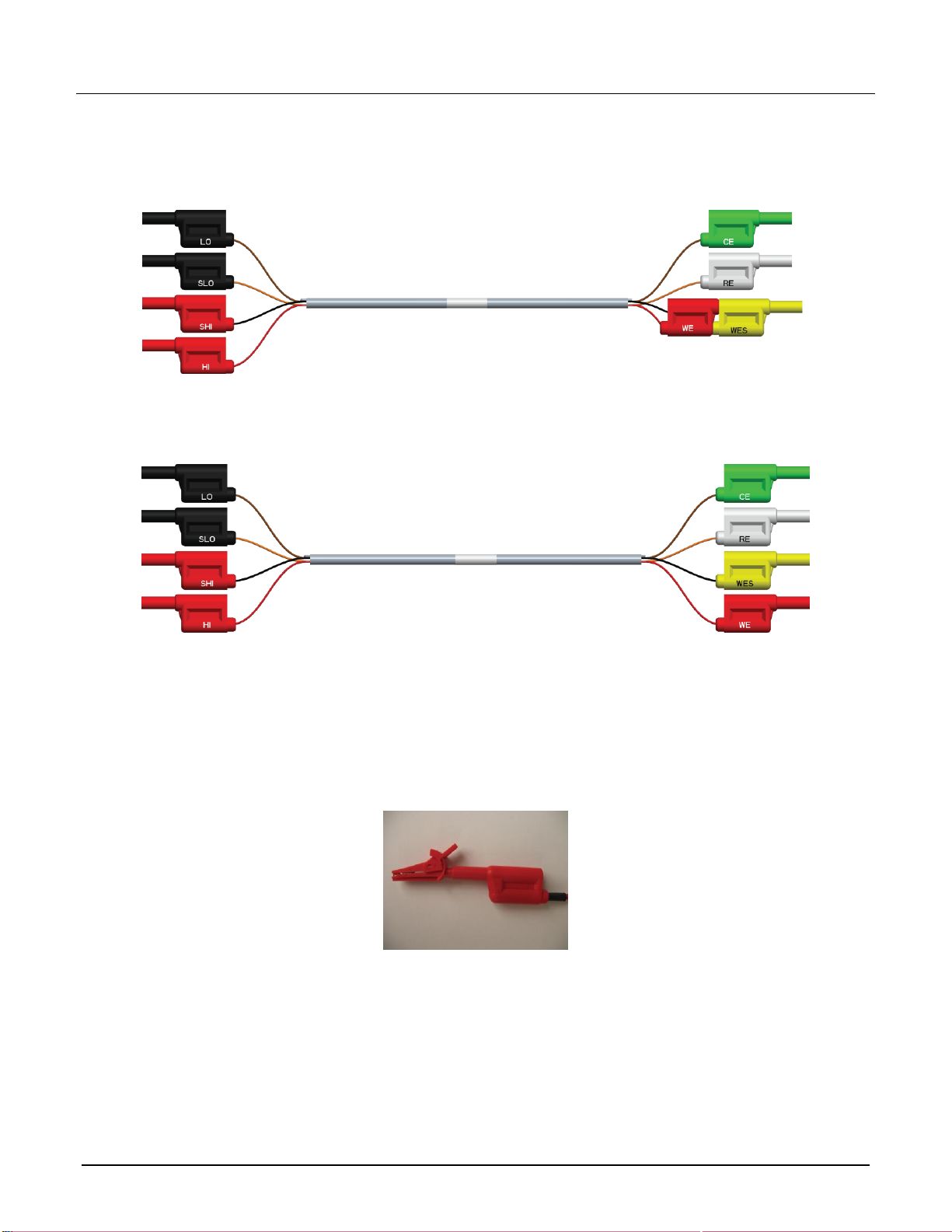

Figure 8: Three-electrode cell testing cable connections

For four-electrode applications, each device-side cable connector is used separately.

Figure 9: Four-electrode cell testing cable connections

Attach the alligator clips

Four insulated alligator clips are supplied. You can attach these clips to the ends of the device-side connectors,

as shown in the following graphic. The clips provide a safe, secure way to connect to your device.

Figure 10: Alligator clip attached to accessory cable connector

For small cells and electrodes, you can use commercially available banana-to-microclip connectors by plugging

them directly into the cable connectors.

Once the appropriate connectors or clips are attached, you are ready to connect to the test cell.

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

071347302 / March 2020 9

Prepare the analyte and assemble the test cell

Before connecting to the DUT, make sure to prepare the analyte and assemble the test cell for your test.

Connect to the DUT

The next figure shows the connections from a SMU to a three-electrode test cell.

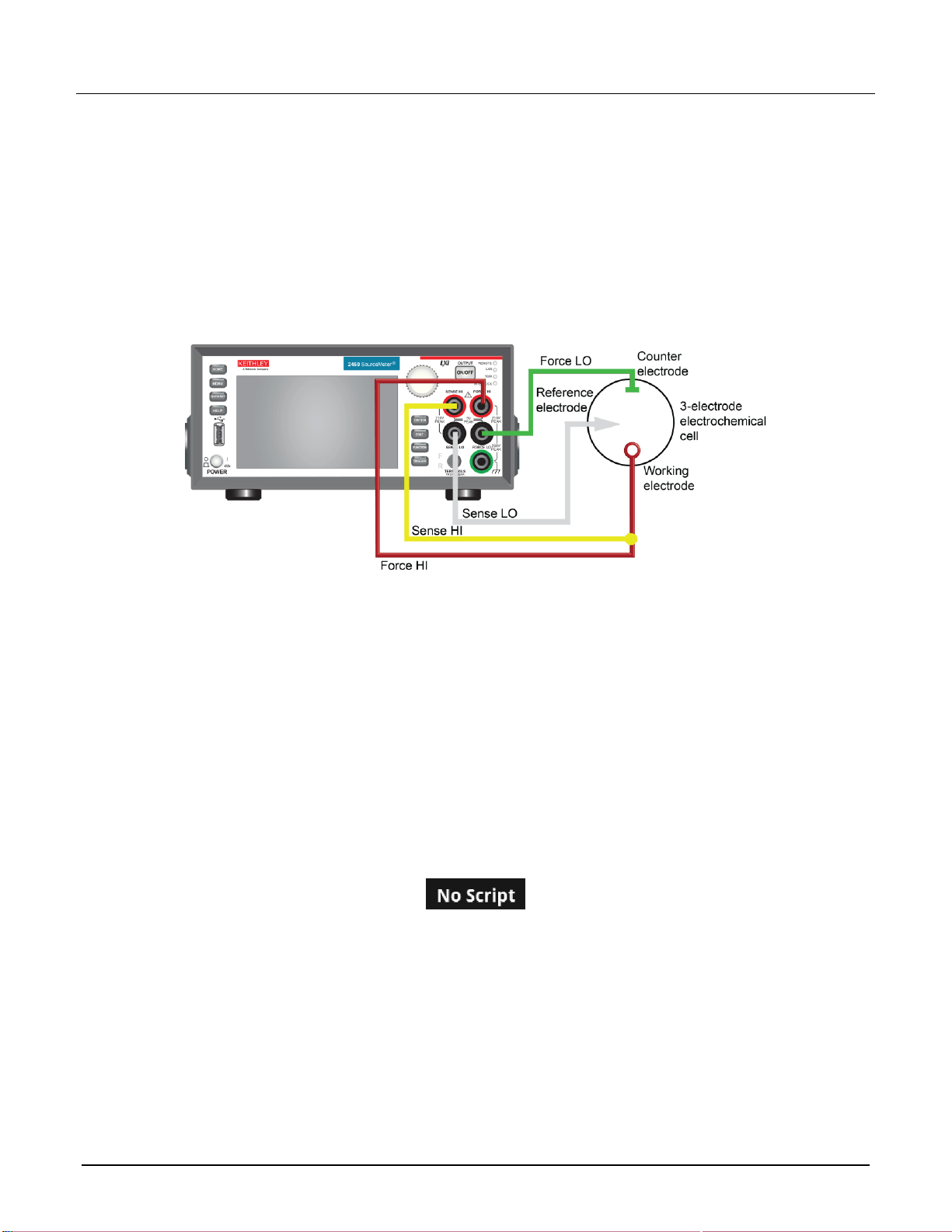

Figure 11: Front panel connections

Run a test

Once you have configured your SMU and connected a test cell, you are ready to run a test. For this example,

you will run the Cyclic Voltammetry test.

To run a test:

1. Press the HOME key.

2. Select the active script indicator at the top of your home screen. If there is no script activity, the indicator

displays "No Script."

Figure 12: Active script indicator

SMU Potentiostats and EC-UPGRADE Kit Quick Start Guide

10 071347302 / March 2020

3. Select the preloaded Cyclic Voltammetry test script or connect the supplied USB drive to your SMU

instrument to locate the included Cyclic Voltammetry test. If you connect the USB drive, scripts on the drive

are displayed with usb1/ before the script file name, which includes the .tsp file extension.

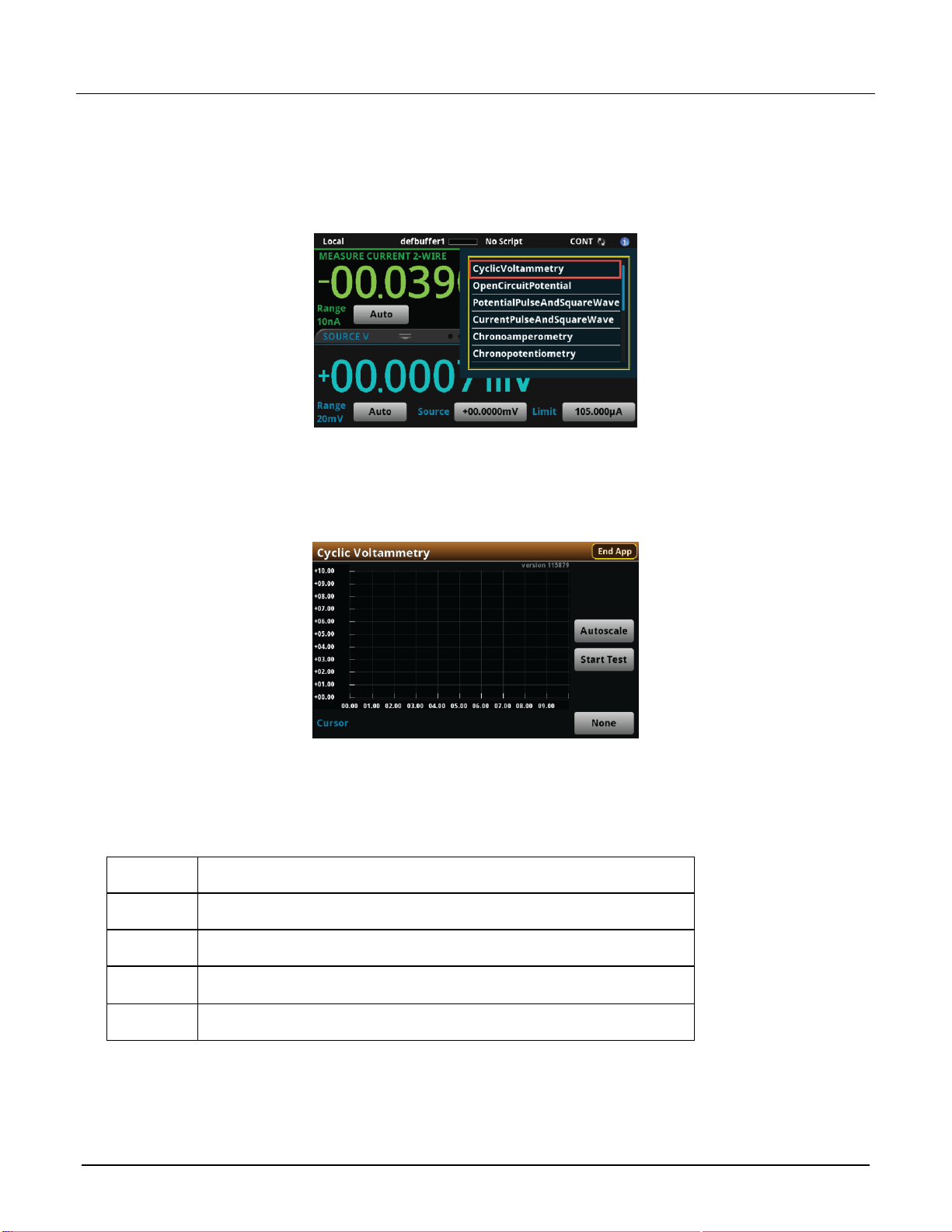

Figure 13: Available test scripts

4. Select CyclicVoltammetry. The test application runs and the Cyclic Voltammetry home screen is

displayed.

Figure 14: Cyclic voltammetry home screen

Review the test home screen controls

All test home screen controls include:

End App

Select this control to immediately stop the test and return to normal SMU

operation.

Autoscale

Select this control to define the graph based upon the plotted data. This is

useful for constraining all of the data to the screen's viewing size.

Start Test

Select this control to immediately begin the test. This option becomes Stop

Test when the test runs.

Save Data

Select this control to save the test data to a .csv file on a flash drive. This

option is only visible after the test runs.

Cursor

Select this control to cycle through the available cursor placements: None,

Vertical, Horizontal, and Both.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Tektronix Prüfgeräte Handbücher

Tektronix

Tektronix P5205 Bedienungsanleitung

Tektronix

Tektronix MSO2000B Series Handbuch

Tektronix

Tektronix 7854 Bedienungsanleitung

Tektronix

Tektronix PM 101 Bedienungsanleitung

Tektronix

Tektronix 2445A Bedienungsanleitung

Tektronix

Tektronix TDS 620A Bedienungsanleitung

Tektronix

Tektronix THDP0100 Bedienungsanleitung

Tektronix

Tektronix 7B85 Bedienungsanleitung

Tektronix

Tektronix Keithley 2380-500-30 Bedienungsanleitung

Tektronix

Tektronix DPO75902S Referenzhandbuch

Tektronix

Tektronix 5 Series Montage- und Wartungsanleitung

Tektronix

Tektronix MDO3000 Series Bedienungsanleitung

Tektronix

Tektronix 454A Service-Handbuch

Tektronix

Tektronix TSG 120 Bedienungsanleitung

Tektronix

Tektronix 432 Service-Handbuch

Tektronix

Tektronix TDS5000B Series Merkblatt

Tektronix

Tektronix 310A Bedienungsanleitung

Tektronix

Tektronix DPO70000C/DX Bedienungsanleitung

Tektronix

Tektronix TDS1001B Montage- und Wartungsanleitung

Tektronix

Tektronix NetTek YBT100 Bedienungsanleitung

Tektronix

Tektronix A605 Bedienungsanleitung

Tektronix

Tektronix DF2 Bedienungsanleitung

Tektronix

Tektronix TDS5000B Series Referenzhandbuch

Tektronix

Tektronix 7CT1N Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
