TAT240 First Start

TAT240 > TAT240 First Start

TAT240 is a device for asset tracking and additional protection against thefts of valuable

goods, as well as it could be used in wide range of applications from tools tracking to

container tracking.

Contents

1 Know your device

2 Set up your device

2.1 How to insert Micro SIM card and start the device

2.2 PC Connection (Windows)

2.3 How to install USB drivers (Windows)

2.4 Configuration (Windows)

2.5 Important configuration notes

2.6 Tracking scenarios

2.7 Mounting recommendations

2.8 Quick SMS configuration

3 Safety information

3.1 Precautions

Know your device

Set up your device

How to insert Micro SIM card and start the device

Remove the cover.1.

Insert Micro-SIM card as shown with PIN request disabled or read Security info how to2.

enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing

forward to slot and chip is facing USB port.

Flip the switch to ON.3.

Configure the device. When it is done, reattach the cover and push it in place.4.

Micro-SIM card insertion/removal must be performed when device is turned off. Otherwise

Micro-SIM card might be damaged or device will not detect it.

PC Connection (Windows)

1. Remove the cover.

2. Turn on your device by flipping the switch to ON.

3. Connect device to computer using Micro-USB cable. You will need to install USB drivers, see

“How to install USB drivers (Windows)” shown below.

4. You are now ready to use the device on your computer.

How to install USB drivers (Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button. Setup will continue installing the driver and

eventually the confirmation window will appear. Click Finish to complete the setup.

Configuration (Windows)

At first the device will have default factory settings unless you order pre-configured device. These

settings should be changed according to the user's needs.

Main configuration can be performed via Teltonika Configurator software. Configurator operates

on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the

correct version installed.

MS .NET requirements

Operating

system

MS .NET

Framework

version

Version Link

• Windows

Vista

• Windows

8.1

• Windows

MS .NET

Framework

4.6.2

32 and

64 bit

www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it and launch Configurator.exe.

After launch software language can be changed by clicking in the right bottom corner:

Configuration process begins by pressing on connected device:

After connection to Configurator Status window will be displayed:

Various Status info tabs display information about GNSS, GSM, I/O, Maintenance and etc.

TAT240 has one user editable profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to device using Save to device button.

Main buttons offer following functionality:

Load from device – loads configuration from device.1.

Save to device – saves configuration to device.2.

Load from file – loads configuration from file.3.

Save to file – saves configuration to file.4.

Update firmware – updates firmware on device.5.

Read records – read records from device.6.

Reboot device – restarts device.7.

Reset configuration – sets device configuration to default.8.

Most important configurator sections are GPRS – where all your server and GPRS settings can be

configured and Tracking – where data acquiring parameters can be configured. More details about

TAT240 configuration using Configurator can be found here.

Important configuration notes

We strongly recommend testing the network connection from device to the server before adjusting

TAT240 configuration to your needs.

Use the following steps to perform this test:

Configure these parameters: APN, server Domain and server Port

Save configuration to the device by clicking on a Save to device button;

Initiate connection by pressing the Test Connection button

At this point, TAT240 device will create one high-priority record and initiates connection to the

server immediately. If connection was not initiated, it can mean any of the following:

Improperly inserted SIM Card

Incorrect values are set to these fields: APN, Domain or Port

GPRS functionality disabled by GSM provider

No GSM coverage

Server cannot be reached

Try solving this problem before proceeding with further device configuration.

Please note:

• Why TAT240 is not sending data: Instructions

• Common configuration issues: Instructions

CAUTION! Device usage with USB cable.

In order to prevent device battery from running out of power, make sure USB cable is not connected, while

testing the device.

Continuous use of device, while connected to the USB cable will result in faster battery drain.

Tracking scenarios

Periodic: This mode is used to get positioning data at fixed intervals. Configuration range is from

360 to 259200 (in seconds).

Please note:

• Default tracking period (On Move/On stop) is set to 28800 seconds (8 hours)

• Frequent tracking period will reduce battery lifetime!

• For more information refer to: Tracking settings

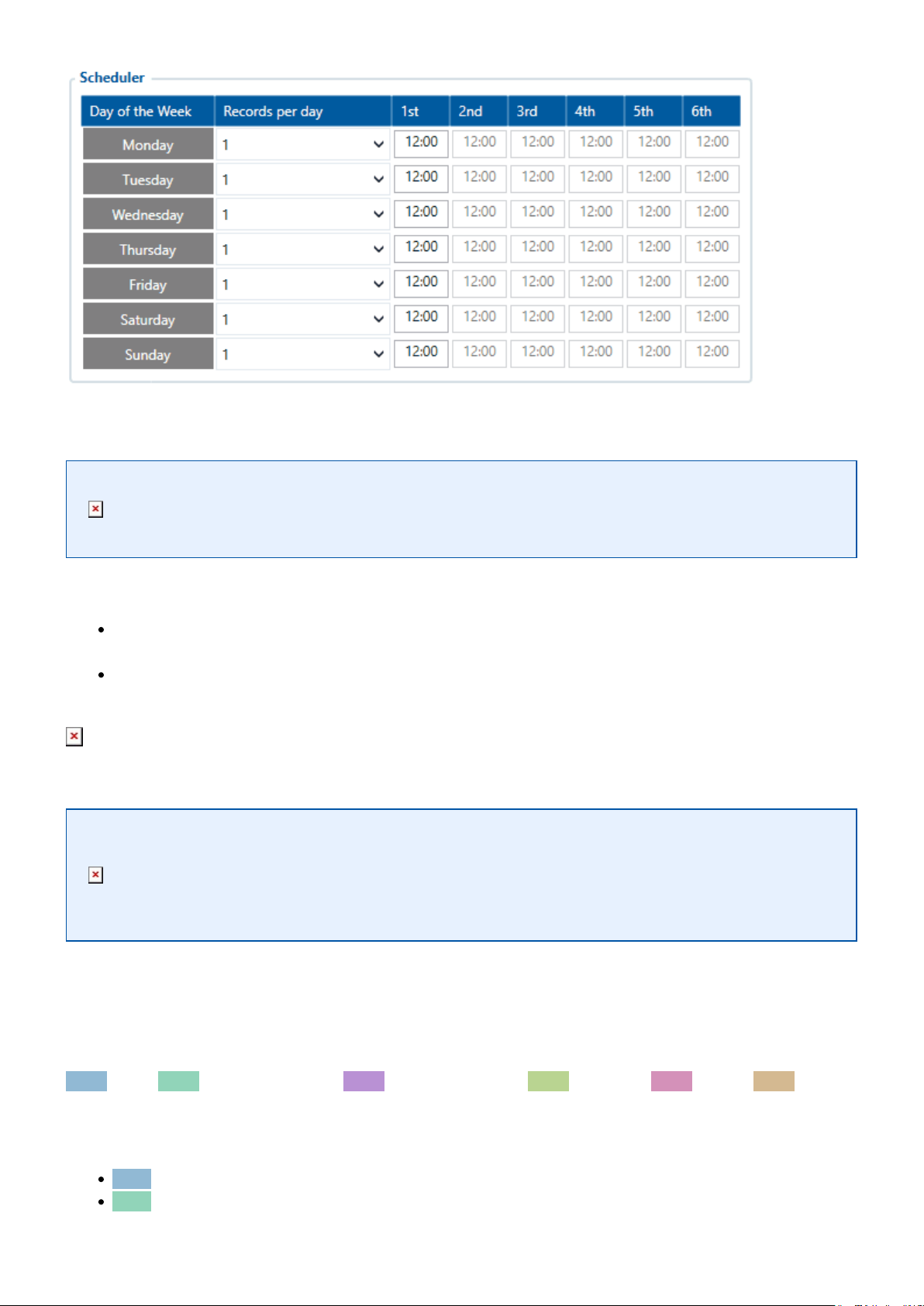

Scheduler: This mode is used to get positioning data at fixed schedule. Device can send positioning

data up to 6 times on set days.

Time Zone: Set tracking scenario time zone. Time zone can be set in range of -12h to +14h.

Main rules of Schedule setting:

Intervals between time must be at least 6 minutes.

Days of the week must be selected and highlighted for the device to send records according to

set schedule.

Please note:

Device has up to 3 min. hardcoded time to get fixed position while it's awake from a Sleep Mode.

If GNSS signal is poor - device will need more time to get fixed position. Battery usage is higher while device

is looking for GNSS positions than it stays in Sleep Mode.

Mounting recommendations

We recommend placing the device in such a way, that the GNSS antenna is facing upwards to

the sky.

We recommend to install the device in a place where the TAT240 line of sight to the sky is not

obstructed.

Quick SMS configuration

Please note:

• SMS message cannot be delivered until the device has woken up from Sleep Mode to deliver location data

to the server.

• During the period, when device is in Sleep Mode, SMS carrier holds SMS message delivery.

• We cannot control mobile provider's SMS deliveries or assure that your SMS message will be received

until next device wake up cycle, therefore we recommend to configure the device using the configurator.

Default configuration has optimal parameters present to ensure best performance of track quality

and data usage.

Quickly set up your device by sending this SMS command to it:

" setparam

2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0"

GPRS settings:

2001 – APN

2002 – APN username (if there are no APN username, empty field should be left)

2003 – APN password (if there are no APN password, empty field should be left)

Server settings:

2004 – Domain

2005 – Port

2006 – Data sending protocol (0 – TCP, 1 – UDP)

Note: Before SMS command, two space symbols must be inserted.

After successful SMS configuration, TAT240 device will synchronize time and update records to

configured server.

Safety information

This message contains information on how to operate TAT240 safely. By following these

requirements and recommendations, you will avoid dangerous situations. You must read these

instructions carefully and follow them strictly before operating the device!

Precautions

Operate the device in suitable conditions

Do not use the device where mobile connectivity is forbidden.

Road safety first

Comply with local traffic laws, always hold your hands on a steering wheel when using a device.

Your safety is of utmost importance when you drive.

Interference

All wireless devices are sensitive to electromagnetic interference, as a result wireless devices

affect the performance of each other.

Limit the use of device in hospitals

Please follow all restrictions. Turn off the device in the vicinity of medical devices when

required.

Limit the use of device in vehicles

Please follow all restrictions. Wireless devices can interfere with other electronic equipment in

vehicles.

Be cautious near flammable materials and liquids

Use only original batteries

Using uncertified manufacturer or different type batteries may cause an explosion.

Use batteries safely

Protect batteries from moisture. Avoid extensive operation at high temperatures. Batteries are

integrated, do not attempt to change or charge the batteries.

Remove device safely

Device must be disconnected from computer by unplugging the micro USB cable from the

device.

Other

In order to prevent device from mechanical damage it is advisable to transport it in a

shock–resistant packaging. If device stopped working properly regardless of the settings only a

qualified specialist can help. It is recommended to contact your local seller or your UAB

Teltonika manager in such a case.
