Teltonika WORKER BADGE PLUS Bedienungsanleitung

GH5200

WORKER BADGEPLUS

Quick Start Guide

Full product instructions

in diﬀerent languages

can be found under this

QR code

Manufacturer:

TELTONIKA TELEMATICS, UAB

Saltoniškių st. 9B-1, LT-08105,

Vilnius, Lithuania

GETTING STARTED

Micro-SIM

card insertion/

removal must

be performed

when device

is turned o.

Otherwise

Micro-SIM

card might be

damaged or

device will not

detect it.

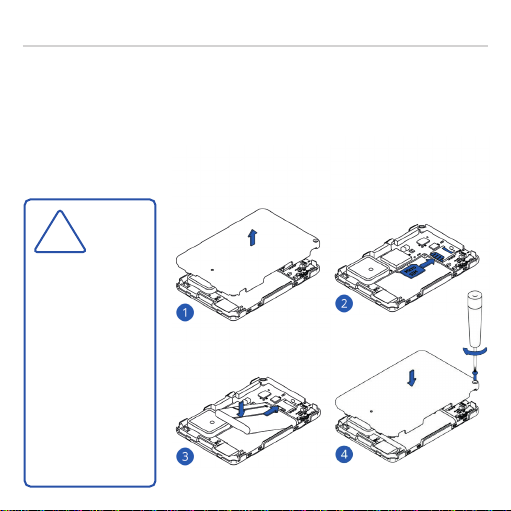

Preparing GH5200 for use:

1. Remove the cover.

2. Insert Micro-SIM card as shown with PIN request disabled. Make

sure that Micro-SIM card cut-o corner is pointing forward to slot.

3. Insert the battery as shown to device. Position the battery in place

where it does not obstruct other components.

4. Reattach the cover and tighten the screw.

CONFIGURE YOUR DEVICE

PC PREPARATION (WINDOWS)

1. Please download Teltonika COM port drivers from here:

https://wiki.teltonika-mobility.com/wikibase/images/d/d0/

TeltonikaCOMDriver.zip

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

5. Setup will continue installing the driver and eventually the

conrmation window will appear. Click Finish to complete the setup.

CONFIGURATOR (WINDOWS)

At rst the device will have default factory settings set unless you order

pre-congured device. These settings should be changed according to

the user’s needs. Main conguration can be performed via Teltonika

Congurator software:

https://wiki.teltonika-mobility.com/view/GH5200_Stable_rmware

Congurator operates on Microsoft Windows OS and uses prerequisite

MS .NET Framework. Make sure you have the correct version installed:

MS .NET Framework 4.6.2 or newer.

DEVICE CONNECTION AND CONFIGURATION (WINDOWS)

• Turn On device by connecting Micro-USB cable or pressing Power

On button for 2 sec. When device is turned on LED’s should start

blinking.

• For conguration can be used Bluetooth (Device Bluetooth is

enabled by default,

• default password 5555) connection:

• Connect device to Teltonika Congurator.

• Most important congurator section is GPRS – where all your server

and GPRS settings can be congured and Data Acquisition – where

data acquiring parameters can be congured. Detailed device

conguration instructions using Teltonika Congurator can be found

in the GH5200 conguration wiki page:

https://wiki.teltonika-mobility.com/view/GH5200_Conguration

• After you have nished conguring the device, press Save to device

button .

• When conguration is saved, then charge device battery to full.

• Disconnect device from USB cable and perform the testing.

GNSS

GPS, GLONASS,

GALILEO, BEIDOU,

SBAS, QZSS, DGPS

Receiver 33 channel

Tracking

sensitivity 165 dBM

Accuracy < 3 m

GNSS receiv-

er start

times

Hot < 1s, Warm <

25s, Cold < 35s

MODULE

Name Teltonika TM2500

Technology GSM/GPRS/GNSS/

Bluetooth

CELLULAR

Cellular

technology

GSM/GPRS Multi-

Slot Class 12 (85.6

kbps (DL) / 85.6

kbps (UL))/ GPRS

Mobile Station-

Class B

CHARACTERISTICS

2G bands

Quad-band GSM

850 / 900 / 1800 /

1900 MHz

Data

support SMS (text)

POWER

Internal

batteries

Li-Ion battery

internal battery

Operating

voltage +4.5.. +5.5V

Battery

voltage 3.7 V

Nominal

Capacity 1050 mAh

Power 3.885 Wh

Charging

temperature

range

0..+45°C

Discharge

Temperature

range

-20..+58°C

Temperature

Storage

range

-20 to +60°C for

1 month; -5 to

+30°C

for 6 months

Current

consumption

(operation/

idle)

GPRS: max

average95.57 mA;

Nominal: average

45.10 mA; GNSS

sleep: average

10.12 mA; Deep

Sleep: average

3.02 mA; Online

Deep Sleep:

average 3.78 mA;

Ultra Deep Sleep:

average 1.82 mA.

Humidity

(operation,

storage,

transport)

Relative

humidity:

≤85% (no

condensation)

CONNECTIVITY

Bluetooth

Compliant with

Bluetooth 4.0

version + LE

Supported

peripherals

Temperature,

humidity,

movement,

magnet sensors,

beacon

INTERFACE

GNSS, GSM

antenna Internal High Gain

USB 2.0 Micro-USB

SIM Micro-SIM, eSIM

possibility

Memory

Memory 128 MB

internal ash

memory (220‘000

records)

Button(s) 5 Congurable

buttons

SENSORS AND COMPONENTS

Gyroscope No

Accelerometer Yes

LED 3 Bi-Color LEDs

FEATURES

Conguration and

rmware update

FOTA WEB (Cloud-based rmware over the air

solution); Teltonika congurator (USB)

Scenarios

Tracking on Move/Stop, RealTime tracking,

Alarm button, Man-Down Detection, Home

Zone, Proximity Detection, Amber Alert, Inside

Tracking, Movement/No Movement Events,

Auto Geofence, Manual Geofence, Over Speed-

ing, Action On Call, Power On/O event, Event

on a Pressed Button, On Demand tracking via

button press, Beacon On Demand tracking,

Xiaomi Mi Band 2 heart rate measurement and

heart rate range exit alerts, Race Mode, Univer-

sal Beacons/Sensors support

Protocols UDP, TCP, SMS

Data sending Main, Duplicate, Backup servers

Security

Conguration password,

SMS login and password,

Authorized GSM numbers list, TLS/DTLS 1.2

Sleep Modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra

Deep Sleep, Low power mode

Time

Synchronization GNSS, NTP, NITZ

GPRS commands Conguration, Debug

PHYSICAL SPECIFICATION

Dimensions 95 x 64 x 11 mm (L x W x H)

Device + case + battery weight 80 g

Ingress Protection Rating IP30

This message contains information on how to operate GH5200 safely.

By following these requirements and recommendations, you will avoid

dangerous situations. Please read these instructions carefully and

follow them strictly before operating the device! Failure to comply with

the warning may result in serious injury or possible damage to property.

Limit the use of device in

vehicles

Please follow all restric-

tions. Wireless devices

can interfere with other

electronic equipment in

vehicles.

Interference

All wireless devices are

sensitive to electromagnet-

ic interference, as a result

wireless devices aect the

performance of each other.

SAFETY INFORMATION

Road safety rst

Comply with local trac

laws, always hold your

hands on a steering wheel

when using a device. Your

safety is of utmost impor-

tance when you drive.

Operate the device in

suitable conditions

Do not use the device

where mobile connectivity

is forbidden.

Limit the use of device in

hospitals

Please follow all restric-

tions. Turn o the device

in the vicinity of medical

devices when required.

Be cautious near amma-

ble materials and liquids

Charging precautions

SELV LPS chargers, personal

computers or laptops that

device will be connect-

ed to must comply with

the requirements of IEC

60950:2005 standard.

Use only original bat-

teries

Using uncertied manu-

facturer or dierent type

batteries may cause the

device to malfunction or

even explode.

Use batteries safely

Protect batteries from

moisture. Place them in a

cool and dry place when

storing. Avoid extensive

operation at high tem-

peratures. Do not attempt

charging battery directly

from the electrical mains.

All utilised batteries shall

comply with IEC 62133.

Power supplies

Power supply circuits used

to charge the device connec-

tion must have safeguards,

which prevent power

leakage, short circuits or in-

correct electrical grounding.

Any used switches ought

to be installed in a readily

accessible location. Power

must be uninterrupted and

the distance between the

contacts must be 3 mm or

larger.

Other

In order to prevent device

from mechanical damage it

is advisable to transport it in

a shock–resistant packaging.

If device stopped working

properly regardless of the

settings only a qualied

specialist can help. It is

recommended to contact

your local seller or your

UAB Teltonika manager in

such a case.

Use the right screwdriver

In order to prevent device’s

cover from mechanical

damage it is recommended

to use screwdriver, which

is included in the package.

Do not use electrical screw-

drivers.

Remove device safely

Device must be discon-

nected from computer or

charger by unplugging the

magnetic USB cable from

the device.

Do not short circuit the

battery or charging con-

tacts. Exposing the metal

strips of the battery to a

close contact with a metallic

object, such a coin, a clip

or a set of keys can cause

accidental short-circuiting

and damage battery and

other components.

To be able to disconnect

the charging cable from the

mains as quickly as possible

in the event of a failure, con-

nect the power supply unit

where it is easily accessible.

Charging precautions

Do not attempt to charge a

wet device.

If you notice any visible

damage to your GPS tracker

or charging cable, do not

use it.

Battery should not be

disposed of with general

household waste.

Bring damaged or worn-out

batteries to your local recy-

cling center or dispose them

to battery recycle bin found

in stores.

Never place the GPS tracker

near an open re or hot

surfaces.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Teltonika GPS Handbücher

Teltonika

Teltonika Telematics FMB150 Installationsanleitung

Teltonika

Teltonika FMB964 Installationsanleitung

Teltonika

Teltonika FMB965 Installationsanleitung

Teltonika

Teltonika FM6300 Bedienungsanleitung

Teltonika

Teltonika FM3620 Bedienungsanleitung

Teltonika

Teltonika FMB001 Bedienungsanleitung

Teltonika

Teltonika Telematics FMC150 Installationsanleitung

Teltonika

Teltonika Telematics FMC880 Installationsanleitung

Teltonika

Teltonika FMB900 Installations- und Benutzerhandbuch

Teltonika

Teltonika FMB125 Bedienungsanleitung

Teltonika

Teltonika FM5500 Bedienungsanleitung

Teltonika

Teltonika FMB225 Installationsanleitung

Teltonika

Teltonika FMB110 Installationsanleitung

Teltonika

Teltonika FM3622 Bedienungsanleitung

Teltonika

Teltonika Telematics FMC003 Installationsanleitung

Teltonika

Teltonika FMC920 Installationsanleitung

Teltonika

Teltonika FM1100 Bedienungsanleitung

Teltonika

Teltonika FMB202 Installationsanleitung

Teltonika

Teltonika GH3000 Montageanleitung

Teltonika

Teltonika FMC130+ETC Bedienungsanleitung

Teltonika

Teltonika FMB208 Installationsanleitung

Teltonika

Teltonika FMB125 Installationsanleitung

Teltonika

Teltonika GH4000 Bedienungsanleitung

Teltonika

Teltonika AT1000 Bedienungsanleitung

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
