Teradek Wave Bedienungsanleitung
Quick Start Guide
Live Streaming Encoder/Monitor
Wave

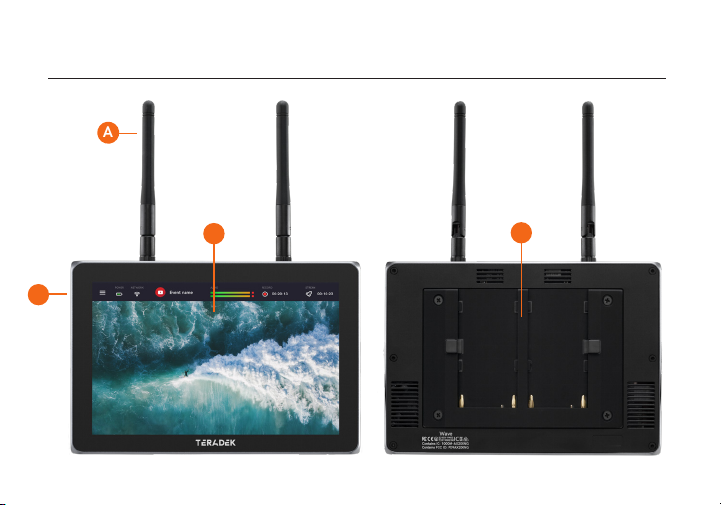

PHYSICAL PROPERTIES
A
B
CD
A: Wi-Fi antennas
B: Power button
C: Monitor display
D: Sony L-series dual battery plate
E: RP-SMA connectors
F: USB modem port
G: SD card slot
H: USB-C power input
I: Ethernet port
J: HDMI input
K: Mic/Line stereo input
L: Headphone output
I
EF
JKL
H
GE
F
TABLE OF CONTENTS
Smart Streaming Monitor .................... 2
Power and Connect ............................. 3
Mounting ............................................ 4
Get Started......................................... 6
UI Overview ....................................... 9
Network Conguration ...................... 12
Sharelink .......................................... 14
Wave App ........................................ 16
Recording ........................................ 17
2
WHAT’S INCLUDED
1x Wave Assembly
SMART STREAMING MONITOR
Teradek’s Wave is the only live streaming monitor that handles encoding, smart event
creation, network bonding, multistreaming, and recording – all on a 7” daylight-
viewable touchscreen display. Wave delivers high denition live streaming video
with the quality and reliability expected in traditional broadcasts and utilizes Wave’s
innovative project workow: FlowOS.
1x Wave Stand Kit
2x Wave Rosette w/Gaskets
2x Wave Thumbscrews
1x Ethernet Flat - Cable
1x Ultra Thin HDMI Male Type A (Full) - HDMI
Male Type A (Full) 18in Cable
1x Neoprene Sleeve for 7 in. Monitors
1x PSU 30W USB-C Power Adapter
2x WiFi Antenna
1
2
Turn on your video source then connect it to Wave’s HDMI input (J).
Connect power to Wave via the included USB-C adapter or attach one or both
Sony L-series batteries to the built-in dual-battery plate on the back (D).
POWER AND CONNECT
3
4
Once Wave has booted, the main screen will be displayed. From the main screen
you can create an event by tapping the Create a new Event tab or the + icon, or by
swiping left on the screen.
Use a hot shoe mount and a 1/4”-20 screw or any other mounting hardware to
mount Wave to your camera, if desired.
3
Press the Power button (B). Wave begins to boot as soon as the power is turned on.
5
NOTE: Wave encoders are hot swappable between USB-C and L-series batteries. Both power source
types can be connected together, but Wave will draw power from the USB-C power source by default.
6
Attach the two Wi-Fi antennas to the RP-SMA connectors (E).
Wave has a three 1/4”-20 threaded holes: one on the bottom to mount on a camera, and
two on each side to install the included stand kit.
MOUNTING
Wave can be
mounted vertically
on a camera.
MOUNT ON A CAMERA
1
2
Attach Wave to your camera’s arm
mount, then screw on to secure.
Orient the WiFi antennas so that
each one has clear line−of−sight.
4
• DO NOT OVERTIGHTEN SCREWS.
Doing so can damage Wave’s chassis
and internal components, voiding the warranty.
CAUTION:
1
2
Repeat steps 1-3 for the opposite side, then
tighten both thumbscrews.
Place a rosette disc over one of Wave’s side
mounting holes.
3
4
Ax one of the stands over the rosette disc
so that the both rosettes are facing each other
(1) and the feet are facing towards you (2).
Insert a thumbscrew through the stand and
rosette disc and into the mounting hole (3),
then slightly tighten the thumbscrew to secure
the arm against the device. Ensure that the
stand is loose enough in order to adjust the
stands to your preference.
STAND KIT INSTALLATION
5
1
2
3
6
1
2Create a name for your event (optional),
then select a thumbnail so that it’s easily
identiable. Tap Next.
From the main screen, tap the +icon to
enter the Personalize your new Event screen.
GET STARTED
3Select a method to connect to the internet:
• WIFI - Tap Setup, select a network, then
enter your password.
• ETHERNET - Plug an Ethernet cable
from an Ethernet switch or router.
• MODEM - Insert a compatible
3G/4G/5G USB modem.
Tap Next when done.
For more details on how to connect to a network, see page 12.
