TESA SMART POWER STRIP PS300 Bedienungsanleitung
1
USER MANUAL
TESLA SMART
POWER STRIP PS300
EN
SK
SL
DE
PL
CZ
HU
TESLA SMART
EN
SK
DE
PL
CZ
HU
2
Thank you!
Thank you for purchasing this Smart power strip.
We want to provide our customers with high-qu-
ality products which help them to enjoy a smarter
and better life.
Function Diagram
1. On/Off button
2. USB ports
3. USB-C port
4. LED indicators
5. Sockets
6. Plug
3
SPECIFICATION
Maximum current 16 A
Input voltage 220-240 V AC
Maximum load 3680 W
USB - C output max 5 V, 3 A
Total USB output 15 W
Dimensions 295 x 57 x 41 mm
Connectivity Wi-Fi 2.4 GHz
Operating tempe-
rature -20 °C +50 °C
Operating humidity 0 - 95 % RH, non-con-
densing
4
SAFETY INFORMATION
IMPORTANT: Before using for the first time, please
read the user manual and follow all instructions and
warnings given. Failure to follow these instructions and
warnings may result in incorrect operation or damage
to the product.
WARNINGS:
DO NOT connect equipment that exceeds the specified
power for that power strip. This could lead to overheating
and damage to the power strip or the connected devices.
DO NOT use the power strip if it is damaged in any way.
DO NOT attempt to disassemble or modify the power
strip; it could result in damage to the unit, cause an
electric shock or other injuries.
DO NOT leave or use the power strip near any heat
source or exposed to direct sunlight.
DO NOT leave the power strip in an environment with
increased humidity.
DO NOT use the power strip if you smell a strange odour
or feel increased heat coming from the power strip itself
or any device connected to it. Immediately contact
customer support.
DO NOT touch any electrical appliances with wet hands
or use them near liquids.
DO NOT use unnecessary force when handling the
power strip.
Keep the power strip clean and dry during use.
DO NOT use any solvents or cleaning solutions to clean
the power strip. To clean use a soft dry cloth. Never
overload electrical circuits, as this may result in electric
shock or fire.
5
WI-FI CONNECTION
Step 1: Downloading the app and registration
• Scan the QR code or search for the Tesla Smart app
in the Apple Store or Google Play Store and start the
installation.
• Open the Tesla Smart app, click Register, and use your
email or phone number to create an account. Then log
in to the app.
6
Step 2: Add device in simple mode (recommended)
• Make sure the Smart power strip is switched on.
• Make sure your phone is connected to Wi-Fi.
• Press and hold the power button for about 5 seconds
until the light on the main switch goes off.
• Let go of the button and after 1 second press it again. It
will start to flash
• This means the device is ready to be set up.

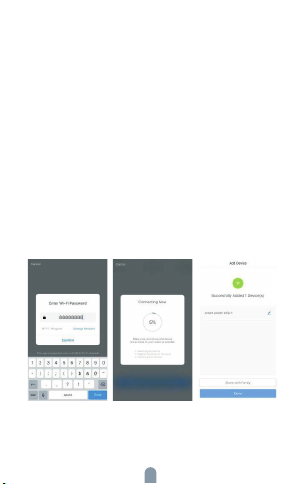

• Open the Tesla Smart app and click the + button at
the top right.
• Select the device type from the list. The password of
the Wi-Fi to which your phone is connected will now
be retrieved.
• After the device has been connected click the confirm
button. When the message 1 device successfully added
appears, the connection is complete and your device will
be listed in the app.
7
INFORMATION ABOUT DISPOSAL AND
RECYCLING
This product is marked with the symbol for separate
collection. The product must be disposed of in accordance
with the regulations for disposal of electrical and electronic
equipment (Directive 2012/19/EU on waste electrical
and electronic equipment). Disposal together with regular
municipal waste is prohibited. Dispose of all electrical
and electronic products in accordance with all local and
European regulations at the designated collection points
which hold the appropriate authorisation and certification
in line with the local and legislative regulations. Correct
disposal and recycling help to minimise impacts on the
environment and human health. Further information regar-
ding disposal can be obtained from the vendor, authorised
service centre or local authorities.
Connectivity: Bluetooth, Wi-Fi 2.4 GHz
Frequency band: 2.412 - 2.484 GHz
EU DECLARATION OF CONFORMITY
Tesla Global Limited hereby declares that the radio device
type TSL-SPL-SPS300 complies with Directive EU. The full
text of the EU Declaration of Conformity is available on
the following website: tsl.sh/doc.
Manufacturer
Tesla Global Limited
Far East Consortium Building,
121 Des Voeux Road Central
Hong Kong
www.teslasmart.com
8
9
BENUTZERHANDBUCH
EN
SK
SL
DE
PL
CZ
HU
TESLA SMART
POWER STRIP PS300
EN
SK
DE
PL
CZ
HU
TESLA SMART
10
Vielen Dank!
Vielen Dank, dass Sie sich für diese Intelligente
Steckdosenleiste entschieden haben. Wir möchten
unseren Kunden qualitativ hochwertige Produkte
anbieten, die ihnen helfen, ein besseres Leben mit
mehr Hightech zu genießen.
BESCHREIBUNG DES GERÄTES
1. Ein/Aus-Taste
2. USB-Anschlüsse
3. USB-C-Anschluss
4. LED-Anzeigen
5. Steckdosen
6. Anschlußstecker
