EVM User's Guide: DS320-SLIMSAS-EVM

DS320-SLIMSAS-EVM User's Guide

ABSTRACT

The DS320-SLIMSAS-EVM together with the DS320PR810-RSC-EVM, or other Texas Instrument's riser-card

style PCI-Express™ 5.0 redriver evaluation module, provides a complete high-bandwidth platform for evaluating

the signal conditioning features of the Texas Instruments PCI-Express 5.0 linear redrivers. These evaluation

boards can be used for performance evaluation and initial system prototyping.

Figure 1-1. DS320-SLIMSAS-EVM – Top Side View

Table of Contents

1 Introduction.............................................................................................................................................................................3

1.1 Features............................................................................................................................................................................. 3

1.2 Applications........................................................................................................................................................................3

1.3 Description......................................................................................................................................................................... 3

1.4 Quick-Start Guide...............................................................................................................................................................5

2 Typical Test Setup...................................................................................................................................................................5

3 Board Layout...........................................................................................................................................................................6

4 Schematic................................................................................................................................................................................7

5 Bill of Materials..................................................................................................................................................................... 12

List of Figures

Figure 1-1. DS320-SLIMSAS-EVM – Top Side View...................................................................................................................1

Figure 2-1. Example Test Setup.................................................................................................................................................. 5

Figure 3-1. Top Layer...................................................................................................................................................................6

Figure 3-2. Bottom Layer............................................................................................................................................................. 6

Figure 4-1. Controls Schematic Page..........................................................................................................................................7

Figure 4-2. Clock Distribution Schematic Page........................................................................................................................... 8

Figure 4-3. Goldfinger Connector Schematic Page..................................................................................................................... 9

Figure 4-4. SlimSAS Connector 1 Schematic Page.................................................................................................................. 10

Figure 4-5. SlimSAS Connector 2 Schematic Page...................................................................................................................11

www.ti.com Table of Contents

SNLU299 – NOVEMBER 2022

Submit Document Feedback

DS320-SLIMSAS-EVM User's Guide 1

List of Tables

Table 1-1. Main Connectors and Access Points.......................................................................................................................... 3

Table 1-2. PCIe Side Band Signal Controls................................................................................................................................. 3

Table 1-3. PCIe Reference Clock Controls and Access Points................................................................................................... 4

Table 5-1. Bill of Materials..........................................................................................................................................................12

Trademarks

PCI-Express™ is a trademark of PCI SIG.

All trademarks are the property of their respective owners.

Trademarks www.ti.com

2DS320-SLIMSAS-EVM User's Guide SNLU299 – NOVEMBER 2022

Submit Document Feedback

1 Introduction

DS320-SLIMSAS-EVM is a PCI-Express 5.0 x16 to two x8 SlimSAS (SFF-8654) adapter, which enables

DS320PR810-RSC-EVM and other Texas Instruments PCI-Express 5.0 redriver riser card evaluation modules to

interface with up to four U.2 solid state drives (SSDs) using commercially available SlimSAS (SFF-8654) to U.2

(SFF-8639) cable assemblies (not included). Interface to M.2 SSDs is also possible using commercially available

U.2 to M.2 adapter cards (not included).

DS320-SLIMSAS-EVM features Texas instruments LMK00334 PCI-Express clock buffer for distributing the PCI-

Express 100 MHz reference clock to downstream SSDs. It also allows flexible assignment of the PCI-Express

side band signals using jumpers.

1.1 Features

• PCIe-Express CEM 5.0 compliant Goldfinger connector

• Two x8 SlimSAS (SFF-8654) connectors

• LMK00334 PCI-Express clock buffer

• Flexible assignment of PCI-Express side band signals

• Supports PCI-Express 1 x4, 2 x4, and 4 x4 bifurcation

1.2 Applications

• PCI Express Gen-1, 2, 3, 4 and 5

• Enterprise storage

1.3 Description

1.3.1 Connectors and Access Points

Table 1-1 shows DS320-SLIMSAS-EVM main connectors and access points.

Table 1-1. Main Connectors and Access Points

COMPONENT NAME FUNCTION / DESCRIPTION

P2 PCIe 4.0 x8 SlimSAS

Connector 1

Access points to PCIe lanes 0 - 7.

Use a SlimSAS (SFF-8654) to U.2 (SFF-8639) cable assembly (not included) to

interface to SSDs with U.2 form factor.

P3 PCIe 4.0 x8 SlimSAS

Connector 1

Access points to PCIe lanes 8 - 15.

Use a SlimSAS (SFF-8654) to U.2 (SFF-8639) cable assembly (not included) to

interface to SSDs with U.2 form factor.

P1 PCIe CEM 5.0 x16

Goldfinger Connector

Access points to PCIe lanes 0 - 15.

Plug into a PCIe x16 CEM slot.

J7 3x1 Header I2C bus access point.

J1 2x1 Header Access point to WAKE and CLKREQ pins on the CEM connector.

Table 1-2 shows PCIe side band signal controls and access points.

Table 1-2. PCIe Side Band Signal Controls

COMPONENT NAME FUNCTION / DESCRIPTION

J8 3x1 Header

Provision for connecting PERST# signal from the CEM connector to B11 or B12 pin

of SlimSAS connector P2.

Shunt installed across pins 1-2: PERST# signal routed to B11 pin of SlimSAS

connector P2.

Shunt installed across pins 2-3: PERST# signal routed to B12 pin of SlimSAS

connector P2 (default).

J10 3x1 Header

Provision for connecting PERST# signal from the CEM connector to B29 or B30 pin

of SlimSAS connector P2.

Shunt installed across pins 1-2: PERST# signal routed to B29 pin of SlimSAS

connector P2.

Shunt installed across pins 2-3: PERST# signal routed to B30 pin of SlimSAS

connector P2 (default).

www.ti.com Introduction

SNLU299 – NOVEMBER 2022

Submit Document Feedback

DS320-SLIMSAS-EVM User's Guide 3

Table 1-2. PCIe Side Band Signal Controls (continued)

COMPONENT NAME FUNCTION / DESCRIPTION

J9 3x1 Header

Provision for connecting PERST# signal from the CEM connector to B11 or B12 pin

of SlimSAS connector P3.

Shunt installed across pins 1-2: PERST# signal routed to B11 pin of SlimSAS

connector P3.

Shunt installed across pins 2-3: PERST# signal routed to B12 pin of SlimSAS

connector P3 (default).

J11 3x1 Header

Provision for connecting PERST# signal from the CEM connector to B29 or B30 pin

of SlimSAS connector P3.

Shunt installed across pins 1-2: PERST# signal routed to B29 pin of SlimSAS

connector P3.

Shunt installed across pins 2-3: PERST# signal routed to B30 pin of SlimSAS

connector P3 (default).

J16 4x2 Header

Provision for connecting PRSNT1 signal to PRSNT2_1, PRSNT2_2, PRSNT2_3

and PRSNT2_4 pins on the CEM connector.

Shunt installed across pins 1-2: PRSNT1 signal routed to PRSNT2_1 pin on the

CEM connector (default).

Shunt installed across pins 3-4: PRSNT1 signal routed to PRSNT2_2 pin on the

CEM connector (default).

Shunt installed across pins 5-6: PRSNT1 signal routed to PRSNT2_3 pin on the

CEM connector (default).

Shunt installed across pins 7-8: PRSNT1 signal routed to PRSNT2_4 pin on the

CEM connector (default).

J5 4x1 Header Access point to the pins A8, A9, A26, and A27 of SlimSAS connector P2.

J6 4x1 Header Access point to the pins A8, A9, A26, and A27 of SlimSAS connector P3.

J12 3x1 Header Provision for connecting PRSNT2_2 pin on the CEM connector to B11 or B12 pin

of SlimSAS connector P2.

J14 3x1 Header Provision for connecting PRSNT2_1 pin on the CEM connector to B29 or B30 pin

of SlimSAS connector P2.

J13 3x1 Header Provision for connecting PRSNT2_4 pin on the CEM connector to B11 or B12 pin

of SlimSAS connector P3.

J15 3x1 Header Provision for connecting PRSNT2_3 pin on the CEM connector to B29 or B30 pin

of SlimSAS connector P3.

Table 1-2 shows PCIe reference clock controls and access points.

Table 1-3. PCIe Reference Clock Controls and Access Points

COMPONENT NAME FUNCTION / DESCRIPTION

JMP2 3x1 Header

Clock distributor (LMK00334) output enable

Shunt installed across pins 1-2: outputs disabled.

Shunt installed across pins 2-3: outputs enabled (default).

JMP1 3x1 Header

Clock distributor (LMK00334) input select

Shunt installed across pins 1-2: CLKIN1 (An external clock source coming from the

SMP connectors) selected.

Shunt installed across pins 2-3: CLKIN0 (PCIe system clock coming from the CEM

connector) selected (default).

J2 - J3 SMP Connectors Provision for connecting an external clock source to the LMK00334 CLK1 input

Plug into a PCIe x16 CEM slot.

JMP3 3x1 Header

Clock distributor (LMK00334) LVCMOS reference output enable

Shunt installed across pins 1-2: reference output enabled.

Shunt installed across pins 2-3: reference output disabled (default).

J4 SMP Connector Access point to the LMK00334 reference output.

Introduction www.ti.com

4DS320-SLIMSAS-EVM User's Guide SNLU299 – NOVEMBER 2022

Submit Document Feedback

1.4 Quick-Start Guide

1. Check that the shunts are at the following default positions as shown in Figure 1-1.

• J8: Shunt installed across pins 2-3: PERST# signal routed to B12 pin of SlimSAS connector P2.

• J10: Shunt installed across pins 2-3: PERST# signal routed to B30 pin of SlimSAS connector P2.

• J9: Shunt installed across pins 2-3: PERST# signal routed to B12 pin of SlimSAS connector P3.

• J11: Shunt installed across pins 2-3: PERST# signal routed to B30 pin of SlimSAS connector P3.

• J16: Shunts installed across pins 1-2, 3-4, 5-6, and 7-8: PRSNT1 signal routed to PRSNT2_1,

PRSNT2_2, PRSNT2_3, and PRSNT2_4 pins on the CEM connector.

• JMP2: Shunt installed across pins 2-3: LMK00334 outputs enabled.

• JMP1: Shunt installed across pins 2-3: PCIe system clock selected as an input to the LMK00334.

• JMP3: Shunt installed across pins 2-3: LMK00334 reference output disabled.

2. Plug DS320PR810-RSC-EVM, or other riser card style TI evaluation board into a PCIe x16 CEM slot on a

motherboard. Ensure that the motherboard is powered down prior to installing the riser card.

3. Install DS320-SLIMSAS-EVM into the straddle connector on the riser card selected in the prior step.

4. Connect a SlimSAS (SFF-8654) to U.2 (SFF-8639) cable assembly (not included) into the SlimSAS

connector P2 of the DS320-SLIMSAS-EVM. Alternatively, connect the second cable assembly into the

SlimSAS connector P3 of the DS320-SLIMSAS-EVM.

5. Attached an endpoint or endpoints on the other side of the cable. Ensure that the power is also provided to

one or more of the endpoints prior to powering up the motherboard.

6. Power-up the motherboard.

7. Observe a successful linkup of one or more of the endpoints using system BIOS or other available system

utility.

2 Typical Test Setup

Figure 2-1 shows a typical system test setup with the DS3200PR810-RSC-EVM and DS320-SLIMSAS-EVM

placed between a CPU on a server motherboard and PCIe 5.0 endpoints. The endpoints are SSDs with M.2

form factor mounted on U.2 to M.2 adapters.

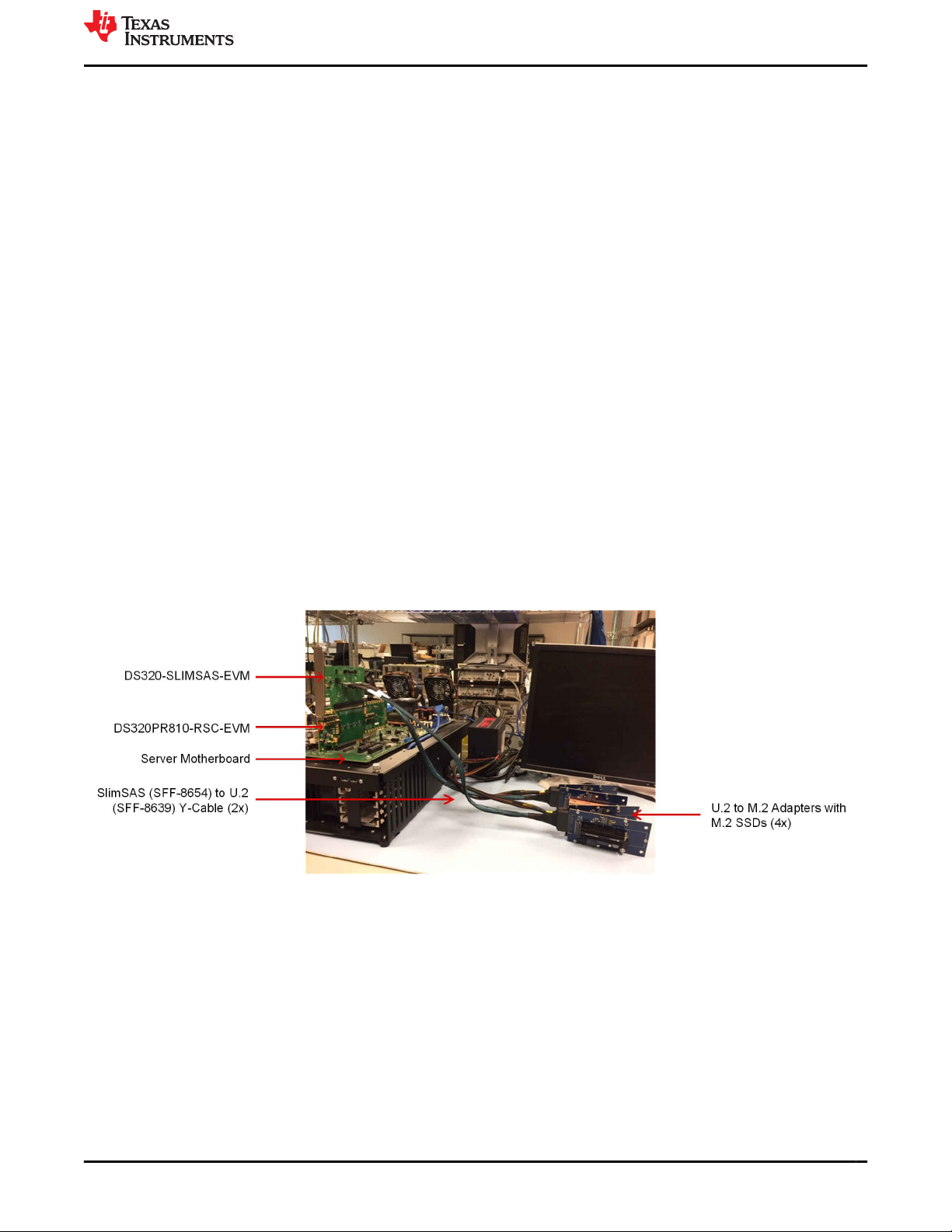

Figure 2-1. Example Test Setup

The test setup features the following items not included in the DS320-SLIMSAS-EVM:

• SlimSAS x8 (SFF-8654) to 2x PCIe Drive Receptacle (SFF-8639) Cable (for U.2, 1×4 only), Part #:

SLSP-8X-39X2F4-0.5M. More information about this item is available here.

• PCIe 4.0 U.2 to M.2 Adapter, Part #: PCI-AD-U2M2-04-G4. More information about this item is available here.

www.ti.com Introduction

SNLU299 – NOVEMBER 2022

Submit Document Feedback

DS320-SLIMSAS-EVM User's Guide 5

3 Board Layout

Figure 3-1. Top Layer

Figure 3-2. Bottom Layer

Board Layout www.ti.com

6DS320-SLIMSAS-EVM User's Guide SNLU299 – NOVEMBER 2022

Submit Document Feedback

4 Schematic

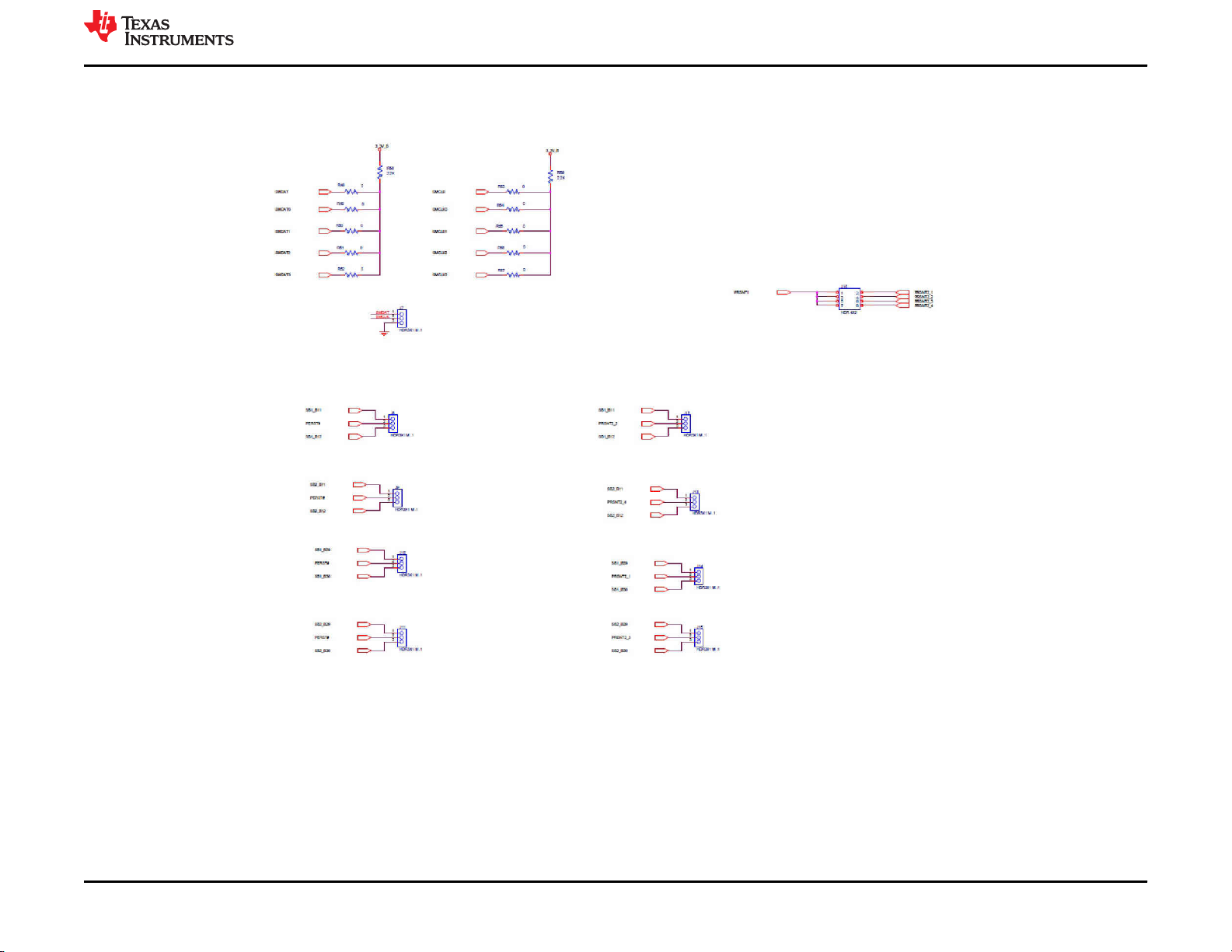

Figure 4-1. Controls Schematic Page

www.ti.com Schematic

SNLU299 – NOVEMBER 2022

Submit Document Feedback

DS320-SLIMSAS-EVM User's Guide 7

Figure 4-2. Clock Distribution Schematic Page

Schematic www.ti.com

8DS320-SLIMSAS-EVM User's Guide SNLU299 – NOVEMBER 2022

Submit Document Feedback

Figure 4-3. Goldfinger Connector Schematic Page

www.ti.com Schematic

SNLU299 – NOVEMBER 2022

Submit Document Feedback

DS320-SLIMSAS-EVM User's Guide 9

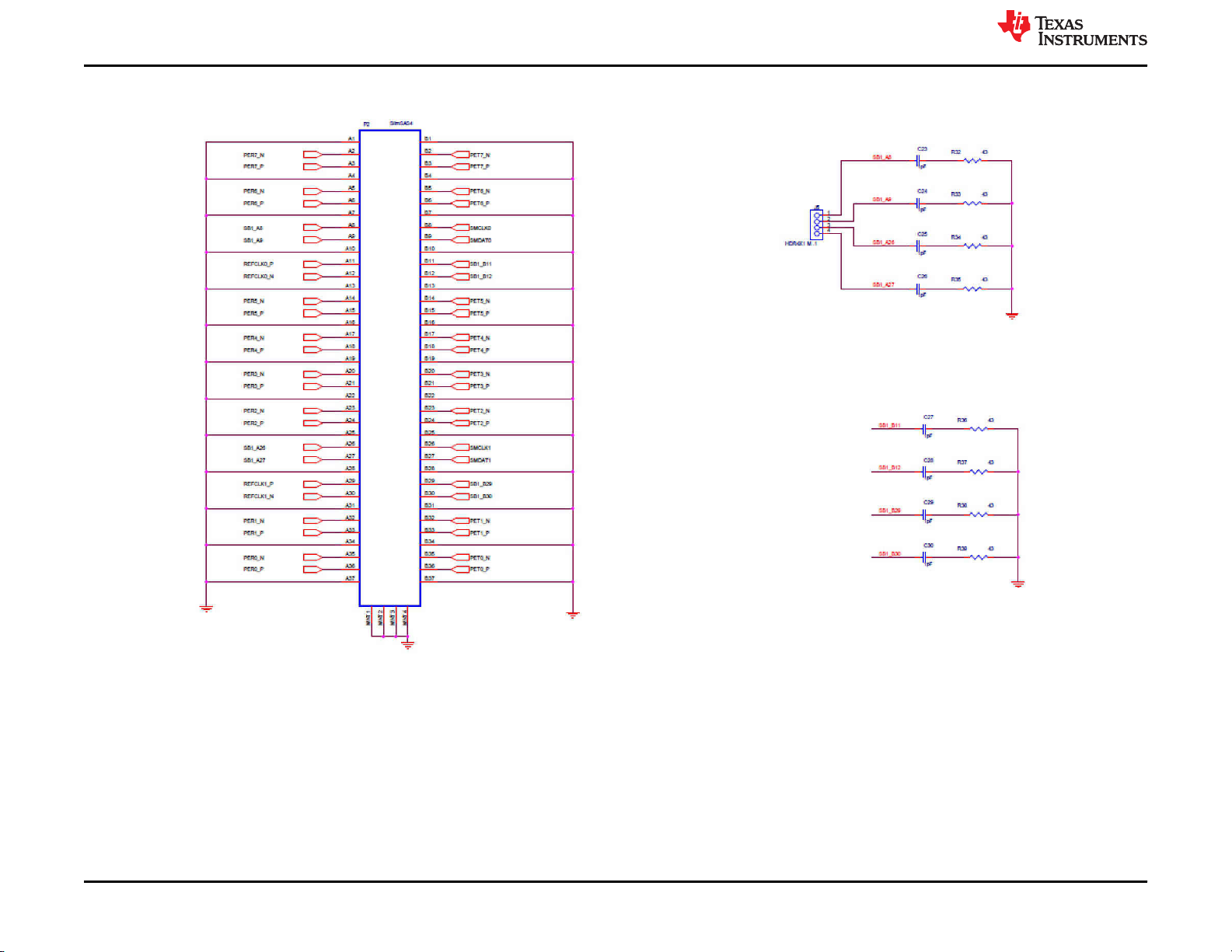

Figure 4-4. SlimSAS Connector 1 Schematic Page

Schematic www.ti.com

10 DS320-SLIMSAS-EVM User's Guide SNLU299 – NOVEMBER 2022

Submit Document Feedback

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments TPS25940XEVM-635 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS53129EVM-621 Bedienungsanleitung

Texas Instruments

Texas Instruments LMR36015FSCEVM Bedienungsanleitung

Texas Instruments

Texas Instruments bq77908AEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS548B28EVM-023 Bedienungsanleitung

Texas Instruments

Texas Instruments TUSS44 0 Series Bedienungsanleitung

Texas Instruments

Texas Instruments INA220EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS8125 EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8028EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments TL16C750EEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5825P Bedienungsanleitung

Texas Instruments

Texas Instruments THS4131 Bedienungsanleitung

Texas Instruments

Texas Instruments LMG352XEVM-04X Bedienungsanleitung

Texas Instruments

Texas Instruments LMK5C33216EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMP102EVM Bedienungsanleitung

Texas Instruments

Texas Instruments SN65LVCP22 Bedienungsanleitung

Texas Instruments

Texas Instruments DRV8818EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS61050EVM-215 Bedienungsanleitung

Texas Instruments

Texas Instruments TUSB217EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS7861EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS552882EVM-2MHz Bedienungsanleitung

Texas Instruments

Texas Instruments TLV3811EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320C66 Series Bedienungsanleitung

Texas Instruments

Texas Instruments bq24650EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
