User’s Guide

ISO154xEVM Low-Power Bidirectional I2C Isolators

Evaluation Module

Mahit Warhadpande Industrial Interface

Table of Contents

1 Introduction.............................................................................................................................................................................2

1.1 Overview............................................................................................................................................................................ 2

1.2 ISO154xEVM Kit Contents.................................................................................................................................................2

1.3 Functional Configuration.................................................................................................................................................... 2

1.4 EVM Schematic..................................................................................................................................................................3

2 EVM Setup and Operation......................................................................................................................................................6

2.1 Overview............................................................................................................................................................................ 6

2.2 Input/Output Signal Characteristics....................................................................................................................................6

3 Bill of Materials....................................................................................................................................................................... 9

4 ISO154xEVM Layout............................................................................................................................................................. 10

5 Revision History....................................................................................................................................................................11

List of Figures

Figure 1-1. ISO1540 and ISO1541 Pinout...................................................................................................................................3

Figure 1-2. ISO154xEVM Top Photograph.................................................................................................................................. 3

Figure 1-3. ISO154xEVM Schematic...........................................................................................................................................4

Figure 2-1. Basic EVM Operation................................................................................................................................................ 6

Figure 2-2. Typical Waveforms, Inputs on Side 1........................................................................................................................ 7

Figure 2-3. Typical Waveforms, Inputs on Side 2........................................................................................................................ 8

Figure 4-1. ISO154xEVM Top-layer Routing............................................................................................................................. 10

Figure 4-2. ISO154xEVM Bottom-layer Ground Planes.............................................................................................................11

List of Tables

Table 1-1. ISO154xEVM Description........................................................................................................................................... 4

Table 3-1. ISO154x EVM Bill of Materials....................................................................................................................................9

www.ti.com Table of Contents

SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module 1

1 Introduction

This User’s Guide details the ISO154x Evaluation Module (EVM) operation of the factory-installed ISO1540 and

ISO1541 I2C-compatible bidirectional isolators. The EVM may be reconfigured for use with two ISO1540 or two

ISO1541 instead of one of each.

This Guide presents a typical laboratory setup used with this EVM.

CAUTION

This Evaluation Module (EVM) is made available for isolator parameter performance evaluation

only and is not intended for isolation voltage testing. To prevent damage to the EVM, any voltage

applied as a supply or digital input/output must be maintained within the 0 V to 5.5 V recommended

operating range.

Exceeding the specified input voltage range may cause unexpected operation and irreversible damage to

the EVM. If there are questions concerning the input voltage range, contact a TI field representative prior to

connecting power.

Applying loads outside the specified output range may result in unintended operation and possible permanent

damage to the EVM. If there is uncertainty as to the load specification, contact a TI field representative.

1.1 Overview

The ISO154x devices are low-power, bidirectional isolators that are compatible with I2C interfaces. The logic

input and output buffers on these devices are separated by TI’s Isolation technology utilizing a silicon dioxide

(SiO2) barrier. When used in conjunction with isolated power supplies, these devices block high voltages, isolate

grounds and prevent noise currents from entering the local ground and interfering with or damaging sensitive

circuitry.

The ISO1540 has two isolated bidirectional channels for clock and data lines and is fit for multi-master

applications. The ISO1541 has a bidirectional data and a unidirectional clock channel and is useful in

applications that have a single master.

These devices achieve isolated bidirectional communication by introducing an offset, making the side 1 low-level

output greater than the side 1 low-level input and thus preventing an internal logic latch that otherwise would

occur with standard digital isolators.

1.2 ISO154xEVM Kit Contents

1. ISO154xEVM Circuit Board (PWB P/N 6547206)

2. ISO154xEVM User’s Guide (SLLU166 - this document)

3. ISO154x Datasheet (SLLSEB6)

1.3 Functional Configuration

The pinouts of ISO1540 and ISO1541 are displayed in Figure 1-1. These devices have an input noise-filter that

prevents transient pulses of up to 5 ns from being passed to the output of the device.

Introduction www.ti.com

2ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO1540

GND2

SCL1

VCC2

VCC1

SCL2

Side 1

SDA1 SDA2

Isolation

ISO1541

GND2

SCL1

VCC2

VCC1

SCL2

GND1

SDA1 SDA2

Isolation

Side 2 Side 1 Side 2

GND1

Figure 1-1. ISO1540 and ISO1541 Pinout

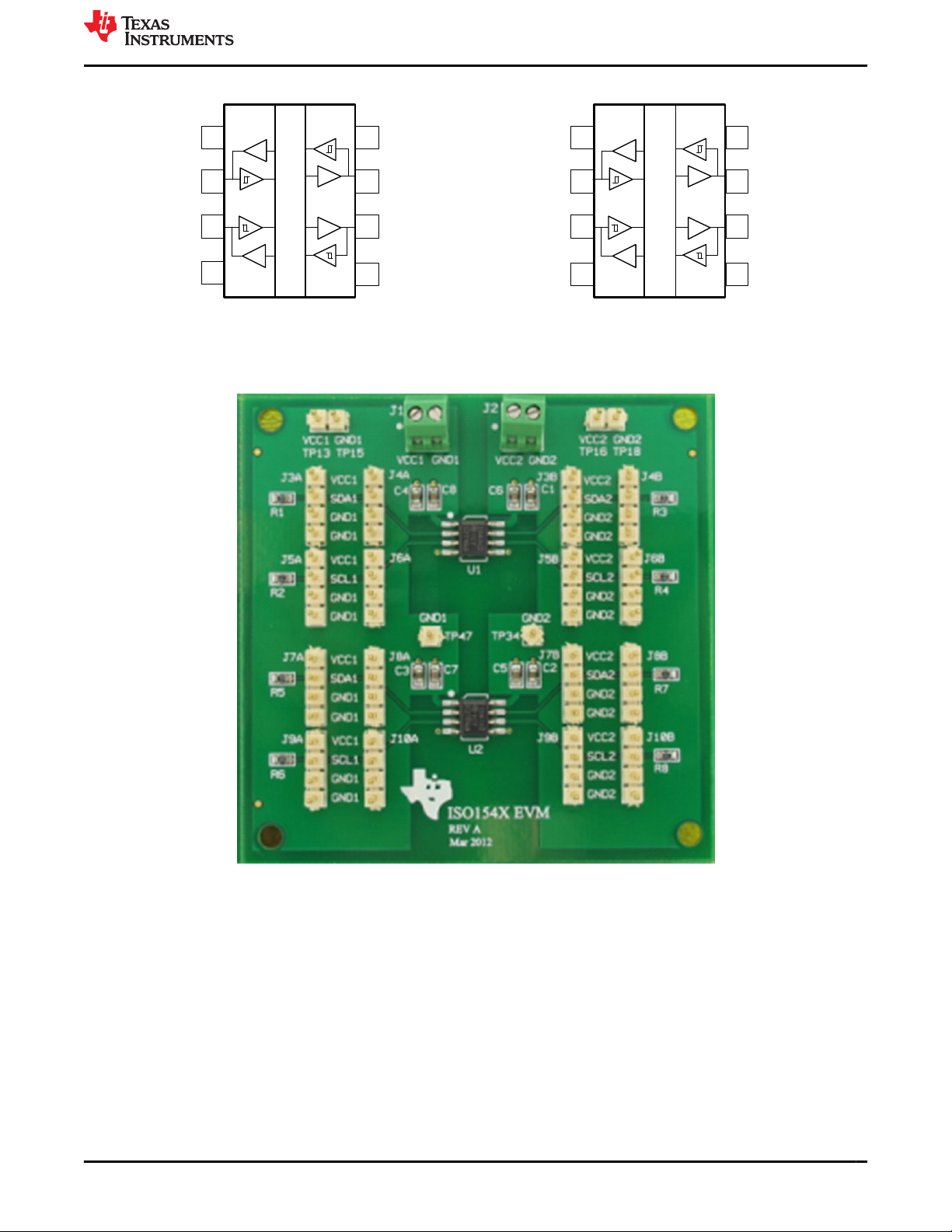

The EVM is shown in Figure 1-2, it comes with an ISO1540 and an ISO1541 installed in place of U1 and U2

respectively. However, this EVM can be configured for use with two ISO1540s or two ISO1541s.

Figure 1-2. ISO154xEVM Top Photograph

An input or output pin can be tied either to supply voltage (VCCx) or Ground (GNDx) using the 4-pin jumpers on

the EVM (J3A to J10A on side 1 and J3B to J10B on side 2). These jumpers also provide scope-probe access to

each pin.

Each signal line (SDAx, SCLx) is configured with a 1-kΩ pull-up resistor (R1 to R8) to the corresponding power

supply (VCCx). Reconfigure the value of this pull-up resistor as per the application requirement.

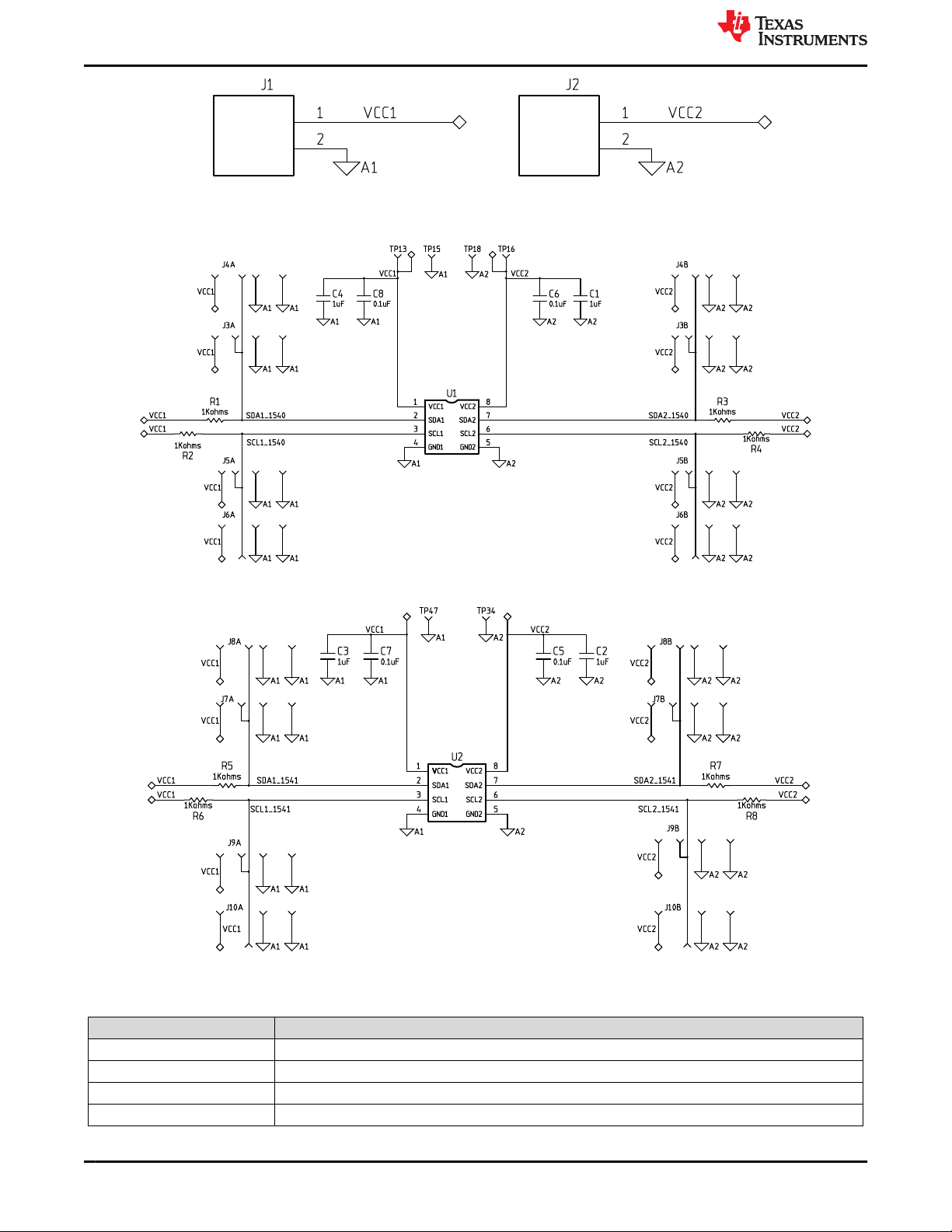

1.4 EVM Schematic

A schematic diagram for this EVM is presented in Figure 1-3.

www.ti.com Introduction

SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module 3

Figure 1-3. ISO154xEVM Schematic

Table 1-1. ISO154xEVM Description

Label Description

U1 ISO154x, by default populated as ISO1540

U2 ISO154x, by default populated as ISO1541

J1 Side 1 power supply terminal block (VCC1)

J2 Side 2 power supply terminal block (VCC2)

Introduction www.ti.com

4ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

Table 1-1. ISO154xEVM Description (continued)

Label Description

TP15, TP47 Side 1 GND test point (GND1)

TP18, TP34 Side 2 GND test point (GND2)

TP13 VCC1 test point

TP16 VCC2 test point

J3A, J4A 4-pin jumper to VCC1, SDA1, GND1 for U1

J5A, J6A 4-pin jumper to VCC1, SCL1, GND1 for U1

J3B, J4B 4-pin jumper to VCC2, SDA2, GND2 for U1

J5B, J6B 4-pin jumper to VCC2, SCL2, GND2 for U1

J7A, J8A 4-pin jumper to VCC1, SDA1, GND1 for U2

J9A, J10A 4-pin jumper to VCC1, SCL1, GND1 for U2

J7B, J8B 4-pin jumper to VCC2, SDA2, GND2 for U2

J9B, J10B 4-pin jumper to VCC2, SCL2, GND2 for U2

C1, C2, C3, C4 1.0 µF filter capacitor

C5, C6, C7, C8 0.1 µF filter capacitor

R1, R2, R5, R6 1-kΩ 0603 footprint pull-up resistor to VCC1

R3, R4, R7, R8 1-kΩ 0603 footprint pull-up resistor to VCC2

www.ti.com Introduction

SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module 5

2 EVM Setup and Operation

This section includes the setup and operation of the EVM for parameter performance evaluation. Typical input

and output waveforms are included.

2.1 Overview

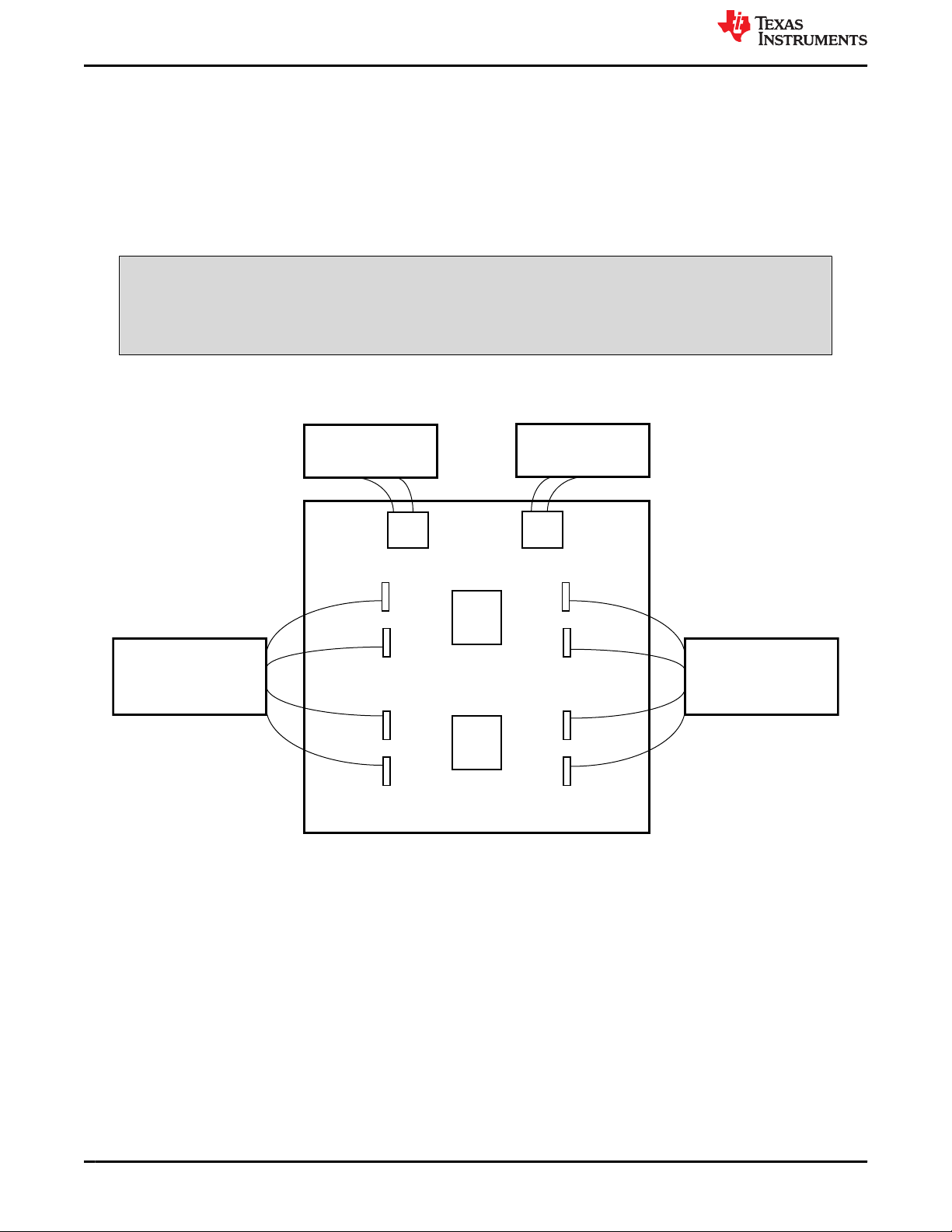

The basic setup in Figure 2-1 has the two power supplies required to evaluate isolator performance with any

combination of 3.3 V or 5 V on either side. If both sides are evaluated at the same supply voltage, only one

power supply is required and can be used to power both sides of the EVM.

CAUTION

Note that this EVM is for operating parameter performance evaluation only and not designed for

isolation voltage testing. Any voltage applied above the 5.5-V maximum recommended operating

voltage of the isolators may damage the EVM.

Please note that if the ISO1541 is used, providing an input signal on the SCL2 pin does not yield any output on

SCL1, SCL1 remains pulled up to VCC1.

J1 J2

J3A/J4A

J5A/J6A

J3B/J4B

J5B/J6B

J7A/J8A

J9A/J10A

J7B/J8B

J9B/J10B

Power Supply

VCC1

Power Supply

VCC2

I C Transmitter

Oscilloscope I C Transmitter

Oscilloscope

Figure 2-1. Basic EVM Operation

2.2 Input/Output Signal Characteristics

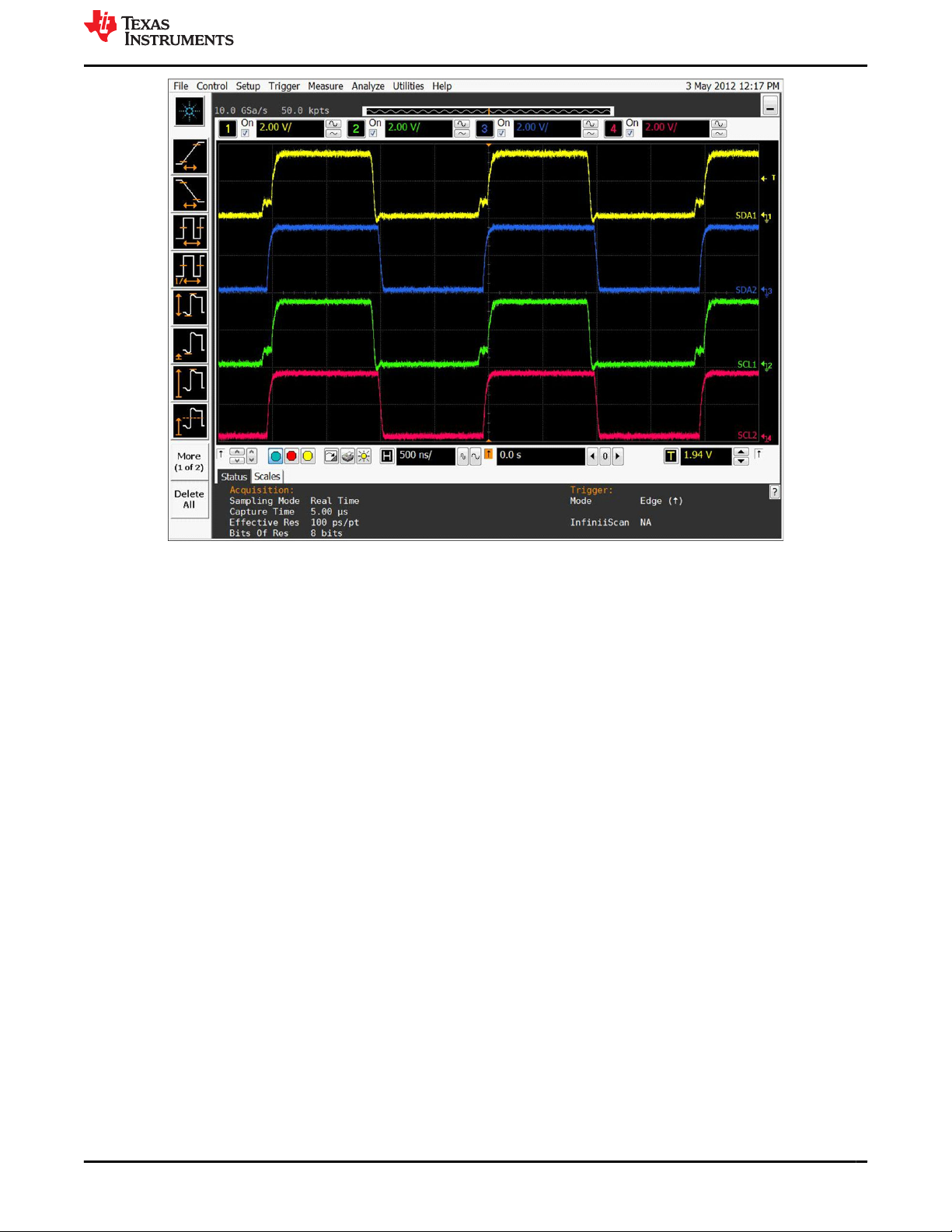

Figure 2-2 illustrates SDA1 and SCL1 of U1 being treated as inputs and driven by an I2C transmitter connected

to J3A/J4A (for SDA1) and J5A/J6A (for SCL1). The output waveforms at SDA2 and SCL2 are captured on the

oscilloscope at J3B/J4B and J5B/J6B respectively. Note the step in the rising edge of the input waveforms at

SDA1 and SCL1 indicative of the tLOOP parameter of the device and demonstrating the effect of the difference

in the low levels for the side 1 output and input enabling the device to avoid a latch-up state.

EVM Setup and Operation www.ti.com

6ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

Note the tLOOP effect on the rising edge of the input waveforms on SDA1 and SCL1.

Figure 2-2. Typical Waveforms, Inputs on Side 1

Figure 2-3 illustrates SDA2 and SCL2 of U1 being treated as inputs and driven by an I2C transmitter connected

to J3B/J4B (for SDA2) and J5B/J6B (for SCL2). The output waveforms for SDA1 and SCL1 are captured on the

oscilloscope at J3A/J4A and J5A/J6A respectively. Note the low level of the SDA1 and SCL1 outputs offset from

the ground level. This is due to the high output low level on side 1 designed to prevent a latch-up state.

www.ti.com EVM Setup and Operation

SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module 7

Note the offset of the output low level voltage from ground on SDA1 and SCL1.

Figure 2-3. Typical Waveforms, Inputs on Side 2

In addition to the cases shown here, the SDA and SCL signals also propagate in mutually opposing directions.

However, if using ISO1541, the SCL line is unidirectional and only allows the signal to propagate from SCL1 to

SCL2 and not vice-versa.

EVM Setup and Operation www.ti.com

8ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

3 Bill of Materials

The parts list for the ISO154xEVM is shown in Table 3-1.

Table 3-1. ISO154x EVM Bill of Materials

Item Qty. References Part Manufacturer

1 4 C1,C2,C3,C4 CAPACITOR, SMT, 0603, CERAMIC, 1.0 µF, 25 V, 10%,

X5R TAIYO_YUDEN/ANY

2 4 C5,C6,C7,C8 CAPACITOR, SMT, 0603, CERAMIC, 1.0 µF, 25 V, 10%,

X5R TAIYO_YUDEN/ANY

3 2 J1,J2 CONNECTOR, THU, TERMINAL BLOCK, 2.54 mm LS, 2P TYCO/ANY

4 8 R1,R2,R3,R4,R5,R6,R7,R8 RESISTOR, SMT, 0603, 1.0 kΩ, 0.1%, 1/10W PANASONIC/ANY

5 70

TP1,TP2,TP3,TP4,TP5,TP6,TP7,TP8,TP9,

TP10,TP11,TP12,TP13,TP14,TP15,TP16,

TP17,TP18,TP19,TP20,TP21,TP22,TP23,

TP24,TP25,TP26,TP27,TP28,TP29,TP30,

TP31,TP32,TP33,TP34,TP35,TP36,TP37,

TP38,TP39,TP40,TP41,TP42,TP43, TP44,

TP45,TP46,TP47,TP48,TP49,TP50,TP51,

TP52,TP53,TP54,TP55,TP56,TP57,TP58,

TP59,TP60,TP61,TP62,TP63,TP64,TP65,

TP66,TP67,TP68,TP69,TP70

HEADER, THU, 1P, MALE, SINGLE ROW SAMTEC/ANY

6 1 U1 IC, ISO1540, SMT, SOIC8D TI

7 1 U2 IC, ISO1541, SMT, SOIC8D TI

8 4 Rubber feet, SJ5303, Bumpon hemisphere 2M

Notes: 1. J3A on EVM silkscreen is TP30, TP63, TP33, TP32 grouped as single row 4-pin jumper.

2. J4A on EVM silkscreen is TP23, TP5, TP17, TP25 grouped as single row 4-pin jumper.

3. J5A on EVM silkscreen is TP36, TP65, TP39, TP38 grouped as single row 4-pin jumper

4. J6A on EVM silkscreen is TP27, TP6, TP20, TP24 grouped as single row 4-pin jumper.

5. J3B on EVM silkscreen is TP35, TP66, TP34, TP37 grouped as single row 4-pin jumper.

6. J4B on EVM silkscreen is TP29, TP7, TP2, TP26 grouped as single row 4-pin jumper.

7. J5B on EVM silkscreen is TP41, TP64, TP40, TP43 grouped as single row 4-pin jumper.

8. J6B on EVM silkscreen is TP31, TP8, TP4, TP28 grouped as single row 4-pin jumper

9. J7A on EVM silkscreen is TP44, TP68, TP47, TP46 grouped as single row 4-pin jumper.

10. J8A on EVM silkscreen is TP42, TP9, TP19, TP45 grouped as single row 4-pin jumper.

11. J9A on EVM silkscreen is TP49, TP69, TP51, TP50 grouped as single row 4-pin jumper.

12. J10A on EVM silkscreen is TP48, TP10, TP22, TP53 grouped as single row 4-pin jumper.

13. J7B on EVM silkscreen is TP54, TP70, TP57, TP56 grouped as single row 4-pin jumper.

14. J8B on EVM silkscreen is TP52, TP11, TP3, TP55 grouped as single row 4-pin jumper.

15. J9B on EVM silkscreen is TP61, TP67, TP60, TP62 grouped as single row 4-pin jumper.

16. J10B on EVM silkscreen is TP58, TP12, TP1, TP59 grouped as single row 4-pin jumper.

17. SJ5303 Bumpon Hemisphere: one each to be assembled at every corner of the board on the bottom side.

www.ti.com Bill of Materials

SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module 9

4 ISO154xEVM Layout

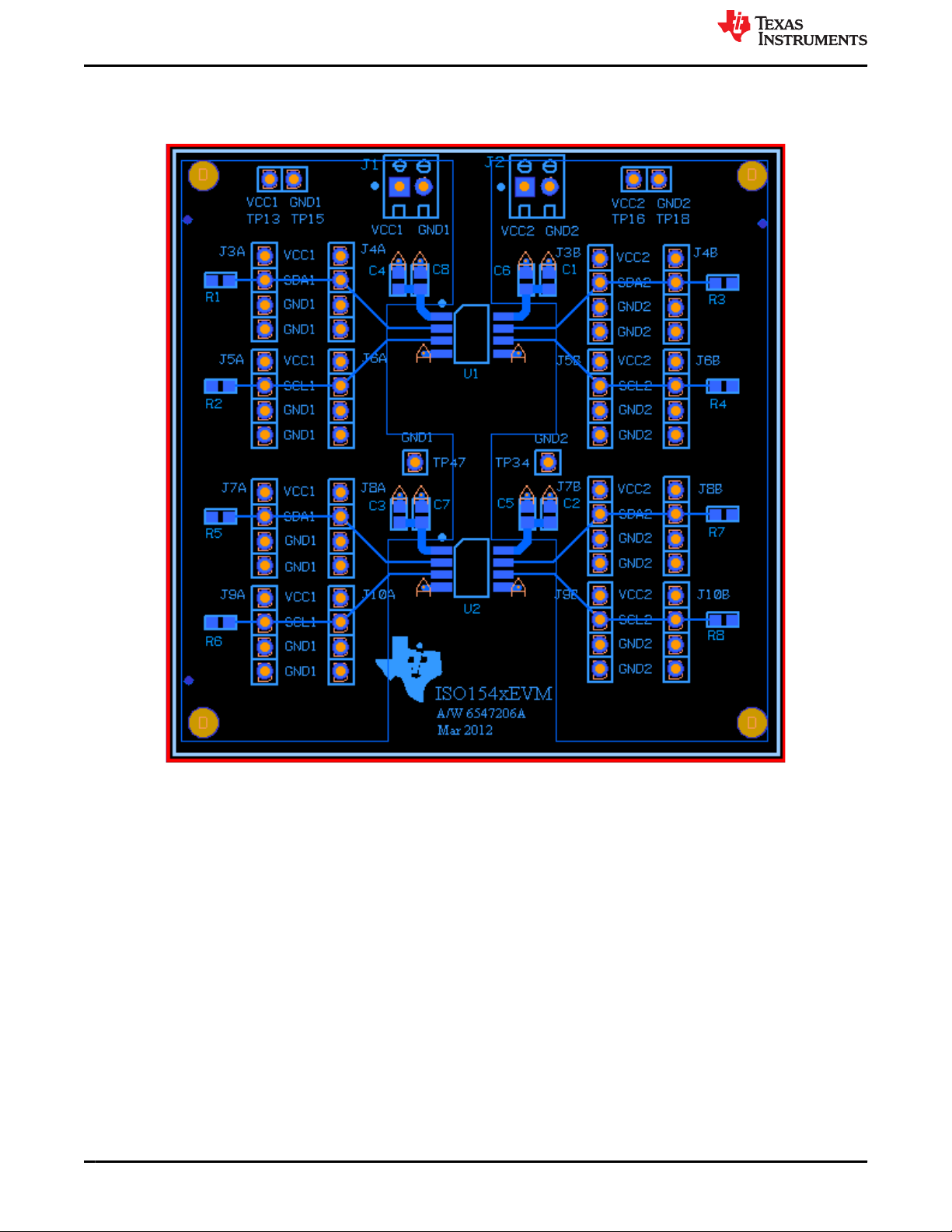

Figure 4-1 shows the top-layer routing of the ISO154xEVM.

Figure 4-1. ISO154xEVM Top-layer Routing

ISO154xEVM Layout www.ti.com

10 ISO154xEVM Low-Power Bidirectional I2C Isolators Evaluation Module SLLU166A – JUNE 2012 – REVISED SEPTEMBER 2022

Submit Document Feedback

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments TPS26624 Bedienungsanleitung

Texas Instruments

Texas Instruments LP876242-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS62PXXEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2373-4EVM-758 Bedienungsanleitung

Texas Instruments

Texas Instruments DP83826EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DAC8881 Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320C6472 Bedienungsanleitung

Texas Instruments

Texas Instruments TAS5441-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC12KEVM-K Bedienungsanleitung

Texas Instruments

Texas Instruments DS100BR410EVK-4 Bedienungsanleitung

Texas Instruments

Texas Instruments LMG34BB-EVM Series Bedienungsanleitung

Texas Instruments

Texas Instruments PCI2250 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS631012/3 Bedienungsanleitung

Texas Instruments

Texas Instruments BP-DAC11001EVM Bedienungsanleitung

Texas Instruments

Texas Instruments MSOP-8EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments LM8365EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LAUNCHXL-CC1352P-2 Kurzanleitung

Texas Instruments

Texas Instruments TVP7000EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A26EVM-021 Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5273 Bedienungsanleitung

Texas Instruments

Texas Instruments PGA411-Q1 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments UCD3138A64CEVM-660 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8920BEVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC34EVM-K Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
