LM8365EVM User Guide

User's Guide

Literature Number: SNVU493

October 2015

SNVU493–October 2015

Introduction

The Texas Instruments LM8365EVM evaluation module (EVM) helps designers evaluate the operation

and performance of the LM8365 Micropower Undervoltage Supervisor with Programmable Output Delay.

For this EVM, the 2.7 V reset threshold LM8365 will be used. The EVM demonstrates proper functionality

of the LM8365 via selection of 3 distinct capacitors corresponding to programmable delay times. For more

information about the LM8365 functional and electrical characteristics, consult the LM8365 datasheet

(SNVS233).

The EVM contains one LM8365 Micropower Undervoltage Supervisor (See Table 1).

Table 1. Device and Package Configurations

REF DES IC PACKAGE

U1 LM8365BALMF27/NOPB SOT-23

1 Features

• INPUT Voltage Range: 1 V to 6 V

• Extremely Low Quiescent Current: 0.65 µA, at VIN = 2.87 V

• Threshold Voltage of 2.7 V

• High Accuracy Threshold Voltage (± 2.5%)

• Active Low, Open Drain Output

• Surface Mount Package (5-Pin SOT-23)

• Programmable Output Delay

– o 3 capacitor options for programmable delay

• Board Size: 1.50” x 1.15”

2Introduction SNVU493–October 2015

Submit Documentation Feedback

SNVU493–October 2015

Setup

This section describes the connectors on the EVM as well as how to properly connect, set up, and use the

LM8365EVM. Ensure the external power supply is turned off while making connections on the board.

1 Input/Output Connector Description

• TP1 – VIN is the input power supply.

• TP2 – RST is the RESEToutput.

• TP3 – DLY is the positive side of the delay capacitor(s). This can be monitored to observe capacitor

behavior during delay charging/discharging.

• TP4 – GND is the ground.

2 Header Description

• J1 is the header that selects the 0.01 µF capacitor for programmable delay.

• J2 is the header that selects the 0.1 µF capacitor for programmable delay.

• J3 is the header that selects the 1 µF capacitor for programmable delay.

3 Board Setup

Before applying power to the LM8365EVM, all external connections should be verified. An external power

supply should be turned off and connected with proper polarity to the VIN (TP1) and GND (TP4)

connectors. The input voltage range for the EVM is 1 V to 6 V. The RST (TP2) pin can be used to monitor

the RESET output of the LM8365 in response to various input voltages. The DLY (TP3) terminal provides

a means for observation of the capacitor charging/discharging behavior.

Furthermore, the LM8365EVM allows for programming of the RESET output time delay by selecting from

3 different sized capacitors through the use of headers J1, J2, and J3. These capacitors, labeled C1, C2,

and C3 are 0.01 µF, 0.1 µF, and 1 µF respectively. To select a capacitor, the provided jumper should be

connected to the respective header. If the jumpers are left unpopulated, the EVM will be programmed with

the minimum amount of delay. Multiple capacitors can also be connected in parallel by placing multiple

jumpers.

Once all the connections to the LM8365EVM have been verified, power can be applied to VIN, and

evaluation can begin.

SNVU493–October 2015 Setup

SNVU493–October 2015

Applications

For the following operation examples, we will use an LM8365 with a typical voltage threshold of 2.7 V.

1 RST Response to VIN Undervoltage

In a typical application, the RESET output can order a microprocessor to enter reset when VCC drops

below its minimum operating voltage. Jumpers J1, J2, and J3 are left unpopulated resulting in the

minimum programmed output delay. As shown in Figure 1, the RST voltage follows VIN as long as the

VIN voltage is above the RESET threshold. When VIN falls below this threshold, the RESET pin outputs

low. When VIN rises above the threshold, the RST voltage is pulled back up to VIN, corresponding to the

RESET pin outputting high. The LM8365 provides proper voltage supervision in critical situations like

undervoltage input to a microprocessor.

Figure 1. RST Response to Low VIN

4Applications SNVU493–October 2015

Submit Documentation Feedback

www.ti.com

RST Hysteresis Behavior

2 RST Hysteresis Behavior

One valuable piece of information to understand is the hysteresis around the RESET threshold. J1, J2,

and J3 are unpopulated resulting in the minimum programmed output delay. The RESET pin outputs high

only when VIN rises above the RESET threshold plus a certain amount of hysteresis. Figure 2 shows the

observed hysteresis, which can eliminate erratic reset responses in certain situations, for example, when

the input voltage is hovering very close to the threshold voltage.

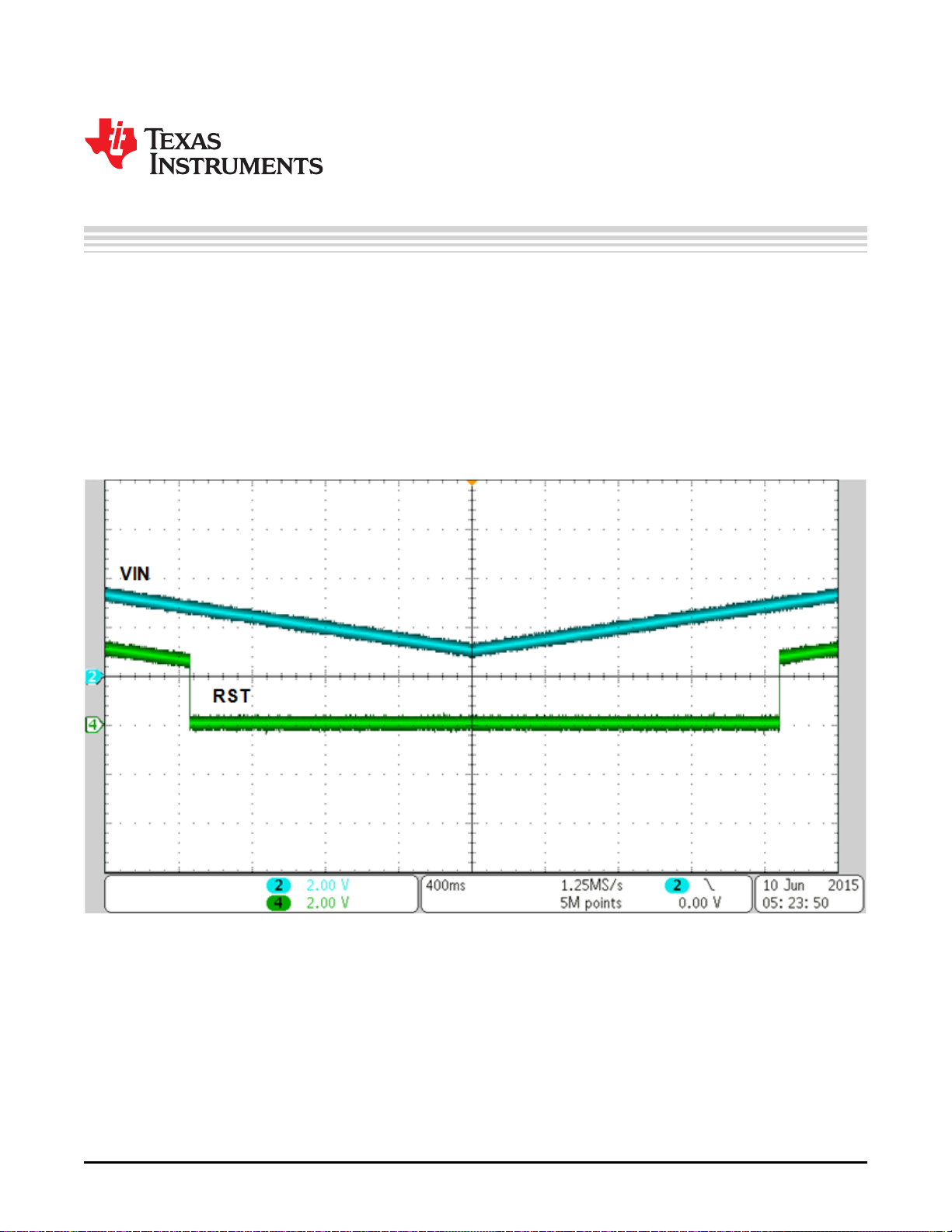

Figure 2. RST Response to Threshold VIN

SNVU493–October 2015 Applications

Programmed Delay with 0.1 µF Capacitor

www.ti.com

3 Programmed Delay with 0.1 µF Capacitor

A typical application usually requires a certain delay before the microprocessor is pulled out of reset once

the VCC rises above its minimum operating voltage. This is to allow some time for the VCC to settle to a

stable voltage before the microprocessor begins running. Figure 3 shows this delay, which is programmed

by populating J2. This corresponds to a CD capacitor of 0.1 µF. In an application, this provides the user

confidence that the microprocessor will exit its reset state when its VCC has stabilized above the minimum

operating voltage.

Figure 3. 0.1 µF Capacitor Programmed Delay

6Applications SNVU493–October 2015

Submit Documentation Feedback

www.ti.com

Programmed Delay with 1 µF Capacitor

4 Programmed Delay with 1 µF Capacitor

In some supervising applications, a long output delay is necessary. This provides some time for VCC to

stabilize above the RESET threshold before the supervised device can exit reset state. Using the exact

same setup as in Section 3 Programmed Delay with 0.1 µF Capacitor, we populate J3 instead. This

corresponds to a CD capacitor of 1 µF.

Figure 4. 1 µF Capacitor Programmed Delay

SNVU493–October 2015 Applications

CD Voltage Behavior

www.ti.com

5 CD Voltage Behavior

Aside from observing the programmed output delay, the LM8365EVM provides the option to observe the

behavior of the selected capacitor(s). For this example, we use the same setup as Section 4 Programmed

Delay with 1 µF Capacitor. The behavior of the 1 µF CD capacitor is shown in Figure 5.

It should be noted that when the DLY terminal voltage is measured using an oscilloscope probe, the CD

capacitor may exhibit some leakage current into the oscilloscope probe. As a result, the RESET pin may

output with a slightly longer delay.

Figure 5. 1 µF Capacitor Delay Behavior

8Applications SNVU493–October 2015

Submit Documentation Feedback

www.ti.com

Fast RST Response to Falling VIN

6 Fast RST Response to Falling VIN

In an application, it is beneficial to have flexibility in time delay for exiting reset state, but when entering

reset state we need extremely fast response. For example, if we have a microprocessor running code, it is

crucial that this device does not operate below its specified operating voltage. This could potentially lead

to disastrous results. Figure 6 shows the reaction time of the RESET output when VIN falls below the

RESET threshold.

Figure 6. RST Output Low Response

SNVU493–October 2015 Applications

SNVU493–October 2015

Board Layout

Figure 7 shows the board layout for the LM8365EVM. Please note that we have provided an unpopulated

footprint for C4 which allows room for an input capacitor.

Figure 7. Top Layer Layout

10 Board Layout SNVU493–October 2015

Submit Documentation Feedback
