User’s Guide

THVD1424 Evaluation Module (EVM) User Guide

ABSTRACT

This document is the EVM User’s guide for the THVD1424EVM which provides a quick way to evaluate TI’s

THVD1424, a full duplex RS-485 traceiver with selectable data rate and switchable integrated termination

resistors, in the VSON (DRC) package.

Table of Contents

1 Introduction.............................................................................................................................................................................2

2 Information on Cautions and Warnings................................................................................................................................4

3 Board Description...................................................................................................................................................................5

3.1 Board Component Overview.............................................................................................................................................. 5

3.1.1 Powering the Boarde................................................................................................................................................... 7

3.1.1.1 Single Supply Operation....................................................................................................................................... 7

3.1.1.2 Dual Supply Operation (Separate Digital Logic and Driver supplies)................................................................... 8

3.1.1.3 Default Operation Mode........................................................................................................................................8

3.1.1.4 Single Ended Bus Modification Operational Modes............................................................................................10

4 Design Documents................................................................................................................................................................11

4.1 Schematics.......................................................................................................................................................................11

4.2 Board Layout....................................................................................................................................................................13

4.3 Bill Of Materials................................................................................................................................................................ 14

5 Revision History................................................................................................................................................................... 14

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SLLU356 – SEPTEMBER 2022

Submit Document Feedback

THVD1424 Evaluation Module (EVM) User Guide 1

1 Introduction

About This Manual

This User’s guide describes the THVD1424EVM and its intended use.

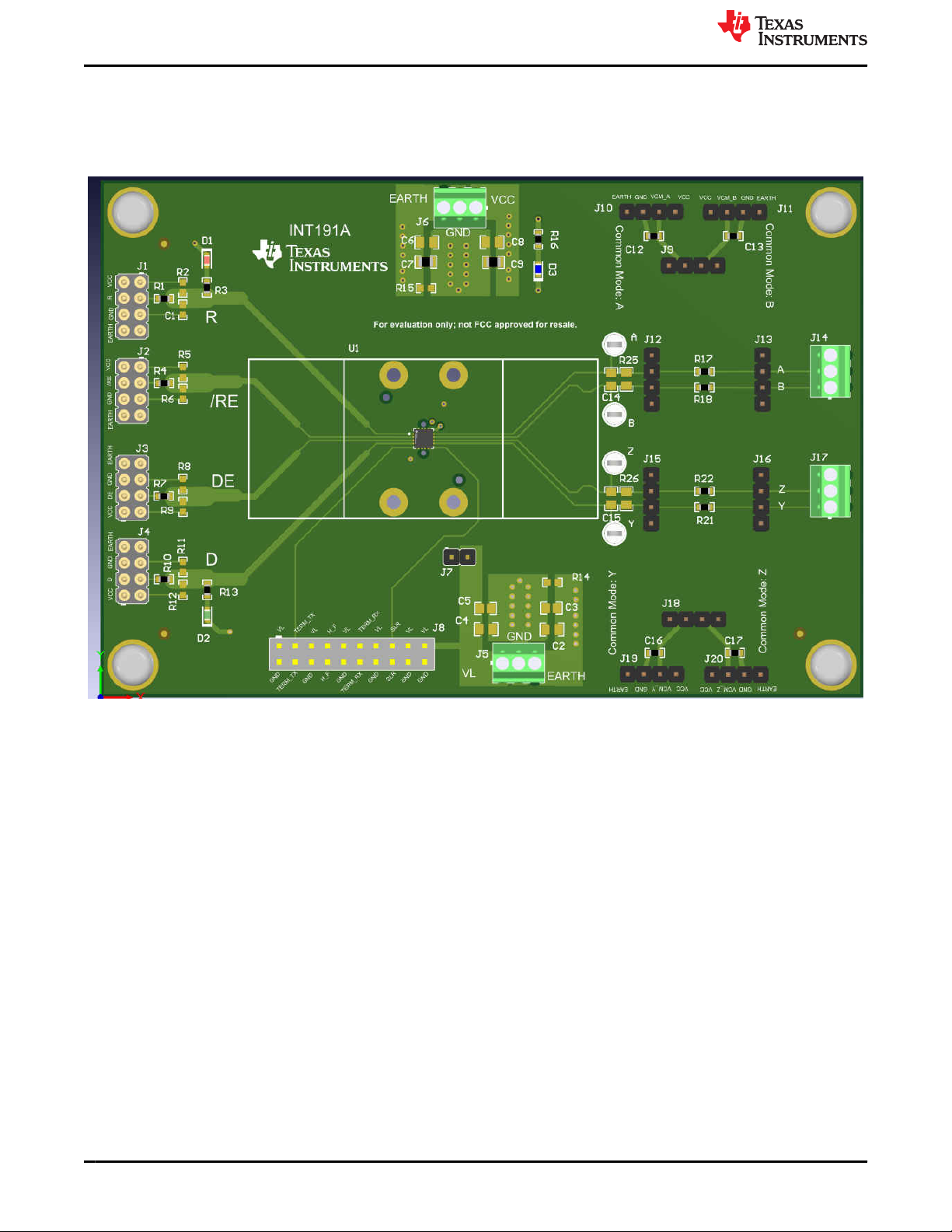

Figure 1-1. Top Side View of THVD1424EVM

Introduction www.ti.com

2THVD1424 Evaluation Module (EVM) User Guide SLLU356 – SEPTEMBER 2022

Submit Document Feedback

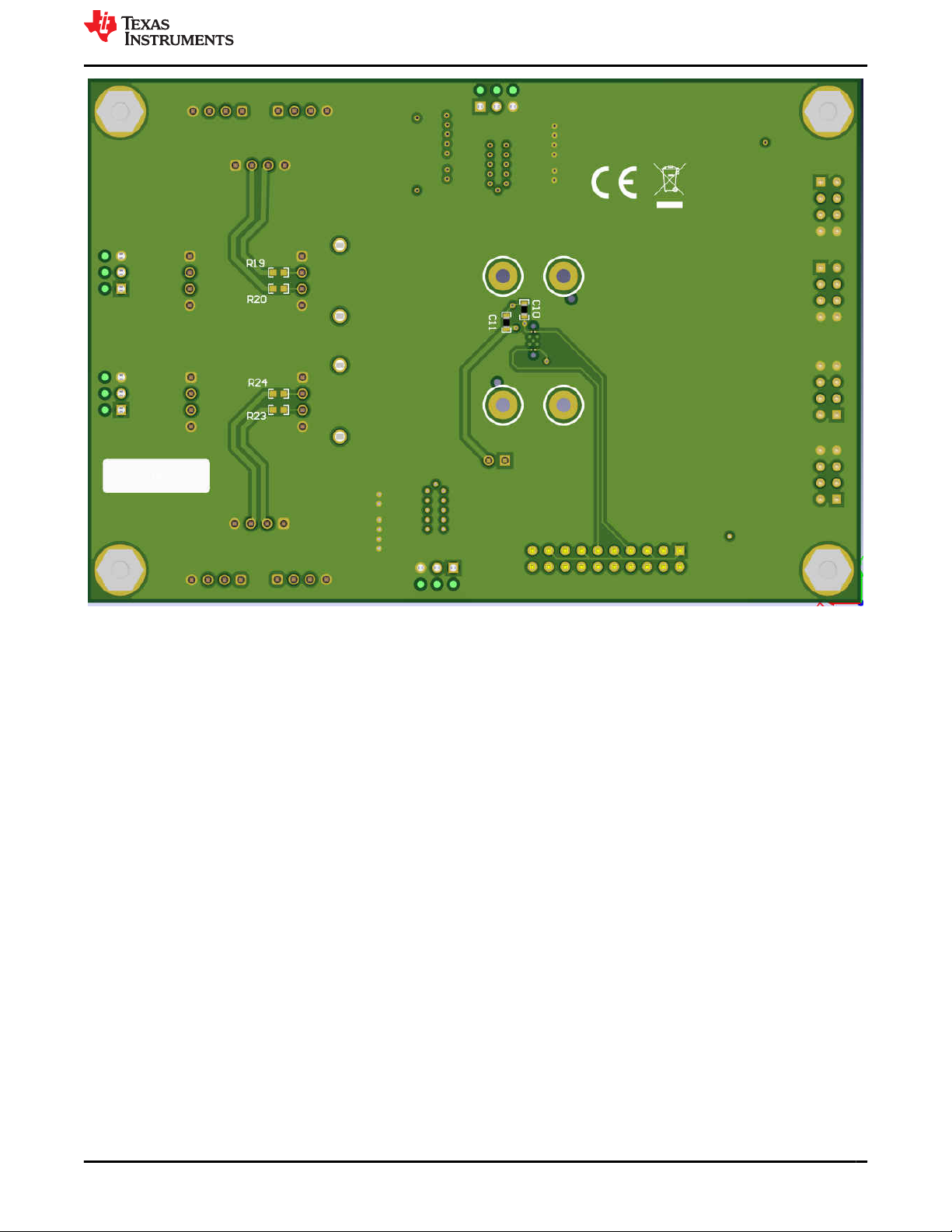

Figure 1-2. Bottom Side View of THVD1424EVM

www.ti.com Introduction

SLLU356 – SEPTEMBER 2022

Submit Document Feedback

THVD1424 Evaluation Module (EVM) User Guide 3

2 Information on Cautions and Warnings

The information in the warning statement is provided for personal protection and the information in the caution

statement is provided to protect the equipment from damage. Read each caution and warning statement

carefully.

This EVM contains components that can potentially be damaged by electrostatic discharge. Always transport

and store the EVM in its supplied ESD bag when not in use. Handle using an antistatic wristband. Operate on an

antistatic work surface. For more information on proper handling, see Electrostatic Discharge (ESD).

Information on Cautions and Warnings www.ti.com

4THVD1424 Evaluation Module (EVM) User Guide SLLU356 – SEPTEMBER 2022

Submit Document Feedback

3 Board Description

Features

• Ready to Use out of Box with THVD1424DRC Pre-Installed

• Separate Logic Voltage Supply Connection (J5) with Option to Short to VCC (J6) Through Jumper J7

• Two 10uF Decoupling Caps Pre-Installed on VCC to GND and GND to EARTH Connections

• Six 0603 Capacitor Pads for additional decoupling on VCC or VL Supplies.

• Two Resistor Pads to create resistive link between GND and EARTH

• One 10x2 Header Connection for Feature Control Signals

• External Termination Resistor and Capacitor Pads on TX and RX bus.

• Common mode Voltage connections on TX and RX Bus.

3.1 Board Component Overview

The THVD1424EVM is ready to operate directly out of Box with a THVD1424EVM installed at U1. All the Signal

and Power Jumpers/Inputs (J1 – J20) come pre-installed on board. See Table 3-1 for description for every pad

on the board and if it comes pre-installed by default.

Table 3-1. Component Overview

Jumper ID Function Package Comment Installed?

J1 “R” Pin output 4x2 Header N/A Y

J2 “/RE” Pin Input 4x2 Header N/A Y

J3 “DE” Pin Input 4x2 Header N/A Y

J4 “D” Pin Input 4x2 Header N/A Y

J5 VL Terminal Terminal Block N/A Y

J6 VCC Terminal Terminal Block N/A Y

J7 VL to VCC Jumper 2x1 Header N/A Y

J8 Control Signal Jumper 10x2 Header N/A Y

J9 RX Common Mode Input 4x1 Header N/A Y

J10 “A” Line Common Mode

Input

4x1 Header N/A Y

J11 “B” Line Common Mode

Input

4x1 Header N/A Y

J12 RX Header #1 4x1 Header Between Series Resistor

and IC

J13 RX Header #2 4x1 Header Between Series Resistor

and Terminal

J14 RX Terminal Terminal Block N/A Y

J15 TX Header #1 4x1 Header Between Series Resistor

and IC

J16 TX Header #2 4x1 Header Between Series Resistor

and Terminal

J17 TX Terminal Terminal Block N/A Y

J18 TX Common Mode Input 4x1 Header N/A Y

J19 “Y” Line Common Mode

Input

4x1 Header N/A Y

J20 “Z” Line Common Mode

Input

4x1 Header N/A Y

Resistor ID Function Package Comment Installed?

R1 0 Ohm Series Resistor 0603 N/A Y

R2 Pull-Up Resistor 0603 N/A N

R3 LED Current Limiting

Resistor

0603 N/A Y

R4 0 Ohm Series Resistor 0603 N/A Y

www.ti.com Board Description

SLLU356 – SEPTEMBER 2022

Submit Document Feedback

THVD1424 Evaluation Module (EVM) User Guide 5

Table 3-1. Component Overview (continued)

Jumper ID Function Package Comment Installed?

R5 Pull-Up Resistor 0603 N/A N

R6 Pull-Down Resistor 0603 N/A N

R7 0 Ohm Series Resistor 0603 N/A Y

R8 Pull-Up Resistor 0603 N/A N

R9 Pull-Down Resistor 0603 N/A N

R10 0 Ohm Series Resistor 0603 N/A Y

R11 Pull-Up Resistor 0603 N/A N

R12 Pull-Down Resistor 0603 N/A N

R13 LED Current Limiting

Resistor

0603 N/A Y

R14 GND to EARTH Resistor 0603 N/A N

R15 GND to EARTH Resistor 0603 N/A N

R16 LED Current Limiting

Resistor

0603 N/A Y

R17 0 Ohm Series Resistor 0603 N/A Y

R18 0 Ohm Series Resistor 0603 N/A Y

R19 “A” Common Mode

Resistor

0603 Must be >= 375 Ohms if

Installed

R20 “B” Common Mode

Resistor

0603 Must be >= 375 Ohms if

Installed

R21 0 Ohm Series Resistor 0603 N/A Y

R22 0 Ohm Series Resistor 0603 N/A Y

R23 “Y” Common Mode

Resistor

0603 Must be >= 375 Ohms if

Installed

R24 “Z” Common Mode

Resistor

0603 Must be >= 375 Ohms if

Installed

R25 External RX Termination 0805 Used for Short Bus Power

Consumption Test

R26 External TX Termination 0805 Used for Short Bus Power

Consumption Test

Capacitor ID Function Package Comment Installed?

C1 Capacitive Loading for “R”

0603 N/A N

C2 VL Supply Decoupling

Cap

0805 N/A N

C3 VL Supply Decoupling

Cap

0805 N/A N

C4 VL Supply Decoupling

Cap

0805 N/A N

C5 VL Supply Decoupling

Cap

0805 N/A N

C6 VCC Supply Decoupling

Cap

0805 N/A N

C7 VCC Supply Decoupling

Cap

0805 N/A Y

C8 VCC Supply Decoupling

Cap

0805 N/A N

C9 VCC Supply Decoupling

Cap

0805 N/A Y

C10 VCC Supply Decoupling

Cap

0603 HF Decoupling – Close to

IC Package

Board Description www.ti.com

6THVD1424 Evaluation Module (EVM) User Guide SLLU356 – SEPTEMBER 2022

Submit Document Feedback

Table 3-1. Component Overview (continued)

Jumper ID Function Package Comment Installed?

C11 VL Supply Decoupling

Cap

0603 HF Decoupling – Close to

IC Package

C12 Common Mode

Decoupling Cap “A” Line

0805 N/A N

C13 Common Mode

Decoupling Cap “B” Line

0805 N/A N

C14 Termination Capacitor RX 0805 N/A N

C15 Termination Capacitor TX 0805 N/A N

C16 Common Mode

Decoupling Cap “Y” Line

0805 N/A N

C17 Common Mode

Decoupling Cap “Z” Line

0805 N/A N

LED ID Function Package Comment Installed?

D1 “R” Line LED – Red Non-Standard N/A Y

D2 “D” Line LED – Green Non-Standard N/A Y

D3 “VCC” LED – Blue Non-Standard N/A Y

IC ID Function Package Comment Installed?

U1 RS-485 Transceiver VSON (DRC) THVD1424 Y

The default setup is optimized to work with the THVD1424. Operating in a single supply mode without a common

mode voltage. By shorting header J7 (VL = VCC), with control signals being applied externally at J2-J4 and J8 or

by using the headers J2-J4 and J8 to shunt to associated pin to GND or VCC/VL. The board is ready to operate

in its default state. See Single Supply Operation and Dual Supply Operation for information on power supplies

and operational modes of the board respectively.

3.1.1 Powering the Boarde

3.1.1.1 Single Supply Operation

The THVD1424 has both a VCC pin (used for the RS-485 bus pins) and VL pin (Used for console facing pins). In

single supply operation mode for the THVD1424 the VL pin should be shorted to VCC by shorting the J7 header

pins, so that the digital logic circuits connected to the Logic supply are properly powered.

Table 3-2. Single Supply Operation Configuration Table

Component ID Comment

J5 Leave VL terminal Open

J6 Attach VCC (3 V to 5.5 V) to Terminal

J7 Short Jumper to make sure VL = VCC

C2, C3, C4, and C5 Leave Uninstalled

C6 and C8 If More Decoupling Capacitance is Desired Attach Capacitors to C6

and C8

R15 Install Resistor if Low impedance pathway between GND and

EARTH is desired

To apply power onto the board, VCC is applied through the J6 terminal. With the board oriented with J6 on

the top of the board, as shown in figure 1.1, the signals are, from right to left, EARTH, GND, and VCC. The

EARTH and GND distinction are used to help the end user determine operational qualities w.r.t. ground potential

differences. If testing methods on reducing ground loop current install a resistor on pad R15. Check data sheet

for proper powering considerations as this will either recommend 3.3V, 5V or 3.3V to 5V.

www.ti.com Board Description

SLLU356 – SEPTEMBER 2022

Submit Document Feedback

THVD1424 Evaluation Module (EVM) User Guide 7

3.1.1.2 Dual Supply Operation (Separate Digital Logic and Driver supplies)

In Dual Supply operation the digital circuit supply, the supply which supplies the R, D, /RE, DE, H/F, SLR,

TERM_RX, and TERM_TX, can be held at a lower level than the VCC voltage of 3 V to 5.5 V as it can go down

to 1.65V. Allowing a 3.3V - 5V RS-485 bus to interface with devices operating at 1.8 V or 2.5 V logic. See Table

3-3 for information on power supply components in dual operation mode.

The VL supply is located at J6 on the bottom of the board and VCC is J5 located at the top of the board.

Table 3-3. Dual Supply Operation Configuration Table

Component ID Comment

J5 Connect to VL source (1.65V to 5.5V) for Logic Supply

J6 Connect to VCC Source (3V to 5.5V)

J7 Leave Open

C2, C3, C4, and/or C5 Have Minimum of 1uF of Decoupling Capacitance on VL

C6 and/or C8 If More Decoupling Capacitance is Desired Attach Capacitors to C6

and C8

R14 and/or R15 Install Resistor if Low impedance pathway between GND and

EARTH is desired

3.1.1.3 Default Operation Mode

With an understanding of how the board is setup and how to power the board for both supply situations the next

topic is how to operate the board. Out of the box the board, when powered, can operate the THVD1424 as a

full or half duplex RS-485 transceiver. The devices pins can be broken down into 4 distinct groups: single ended

communication pins, differential communication pins, power pins, and control pins. Power pins are discussed

above in the previous section, section 3.3, details below for the other 3 categories.

The single ended communication pins are to be connected directly, through their respective jumpers, to a single

ended bus – these pins are the “R” and “D” pins and represent RX and TX single ended data respectively. R is

connected to J1 and D is connected to J4 – these are the console side signal connection points for the EVM.

The THVD1424 has six control pins that vary in function. Two signals are enable signals for the driver (DE –

active high) and receiver (/RE – active low) that are accessed through J3 and J2 respectively. The other four

control signals are TERM_TX, H/F, TERM_RX, and the SLR pins which can be accessed through J8 and have

internal pull-downs leaving a default state as logic low on these four pins. A jumper configuration for J1 – J4 and

J8 are shown in Figure 3-1 with board orientation having jumper J1 at the top left corner of the board. A function

table for the control signals are shown in Table 3-4

Board Description www.ti.com

8THVD1424 Evaluation Module (EVM) User Guide SLLU356 – SEPTEMBER 2022

Submit Document Feedback

Figure 3-1. Control Signal Jumper Configuration

Table 3-4. THVD1424EVM Control Signal Function Table

Pin Associated Jumper - Pin Input Level Function

RE J2-3 and J2-8 Hi Receiver Disabled

RE J2-3 and J2-8 Low Receiver Enabled

DE J3-4 and J3-7 Hi Driver Enabled

DE J3-4 and J3-7 Low Driver Disabled

TERM-TX J8-3 and J8-4 Hi Y-Z Termination Enabled

TERM-TX J8-3 and J8-4 Low Y-Z Termination Disabled

H/F J8-7 and J8-8 Hi Half Duplex Mode

H/F J8-7 and J8-8 Low Full Duplex Mode

TERM-RX J8-11 and J8-12 Hi A-B Termination Enabled

TERM-RX J8-11 and J8-12 Low A-B Termination Disabled

SLR J8-15 and J8-16 Hi 500Kbps Mode

SLR J8-15 and J8-16 Low 20Mbps Mode

Finally, the last group of signals are the differential bus pins A, B, Y, and Z. A and B are connected at terminal

J14 with Y and Z at terminal J17. In Half Duplex Mode Y and Z are both the TX and RX connections, in full

duplex mode A and B are receiver pins and Y and Z are transmission pins.

www.ti.com Board Description

SLLU356 – SEPTEMBER 2022

Submit Document Feedback

THVD1424 Evaluation Module (EVM) User Guide 9

3.1.1.4 Single Ended Bus Modification Operational Modes

There are a few options with respect to the single ended data and control signals for modification on this EVM.

Jumpers J1 through J4 all contain pads that are blank by default. For D, DE, and /RE signals there are 0603

sized pads for either pull-up or pull-down resistors to have a default logic on these pins with the added benefit of

still being able to external signals to this pin. The R pin also contains a pull-up resistor 0603 sized, as is common

in UART based applications, as well as a 0603 sized pad to ground for a capacitive load in case testing requires

capacitive loading on the R pin. A summary of possible single ended signal pathway modifications on the EVM

are in Table 3-5.

Table 3-5. Single Ended Pins Modification Table

Associated Jumper / Signal Pad ID Comment

J1 / R R2 Pull Up Resistor Pad

J1 / R C1 Capacitive Load Pad

J2 / /RE R5 Pull Up Resistor Pad

J2 / /RE R6 Pull Down Resistor Pad

J3 / DE R8 Pull Up Resistor Pad

J3 / DE R9 Pull Down Resistor Pad

J4 / D R11 Pull Up Resistor Pad

J4 / D R12 Pull Down Resistor Pad

Board Description www.ti.com

10 THVD1424 Evaluation Module (EVM) User Guide SLLU356 – SEPTEMBER 2022

Submit Document Feedback

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments BQ25756EEVM Bedienungsanleitung

Texas Instruments

Texas Instruments CC112 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS2640EVM Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25170EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC12KEVMB Bedienungsanleitung

Texas Instruments

Texas Instruments Peripheral Explorer Kit Bedienungsanleitung

Texas Instruments

Texas Instruments TSW4806EVM Bedienungsanleitung

Texas Instruments

Texas Instruments PGA308EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRV3946-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS794xEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS25980EVM Bedienungsanleitung

Texas Instruments

Texas Instruments MMWAVE-DEVPACK Bedienungsanleitung

Texas Instruments

Texas Instruments LMK5C33216EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS92682EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADC14X250EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS5XJ6XEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5115 Bedienungsanleitung

Texas Instruments

Texas Instruments BoosterPack AM2 BLDC Series Bedienungsanleitung

Texas Instruments

Texas Instruments TLV1544EVM Bedienungsanleitung

Texas Instruments

Texas Instruments bq24261M Bedienungsanleitung

Texas Instruments

Texas Instruments eInfochips TMDXEVM6657L Produkthandbuch

Texas Instruments

Texas Instruments TUSB3410 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS51220EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADC161S626BEB Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
