Texas Instruments TMAG5123EVM Bedienungsanleitung

SLYU056–June 2020

TMAG5123EVM

User's Guide

SLYU056–June 2020

TMAG5123EVM

This user’s guide describes the characteristics, operation, and use of the TMAG5123 high-precision, in-

plane switch evaluation module (EVM). This EVM is designed to evaluate the performance of the

TMAG5123. This document includes a schematic, printed-circuit board (PCB) layouts, and a complete bill

of materials (BOM).

www.ti.com

2SLYU056–June 2020

Submit Documentation Feedback

TMAG5123EVM

Contents

1 Overview...................................................................................................................... 3

2 TMAG5123EVM Hardware ................................................................................................. 3

3 Quick Start Setup and Use ................................................................................................. 4

4 TMAG5123EVM Circuit ..................................................................................................... 5

5 TMAG5123EVM Schematic and PCB Layout............................................................................ 6

6 Bill of Materials............................................................................................................... 8

List of Figures

1 TMAG5123EVM Schematic ................................................................................................ 6

2 TMAG5123EVM Top Overlay.............................................................................................. 7

3 TMAG5123EVM Top Copper .............................................................................................. 7

4 TMAG5123EVM Bottom Copper .......................................................................................... 7

5 TMAG5123EVM Bottom Overlay ......................................................................................... 7

List of Tables

1 Device Variants ............................................................................................................. 3

2 TMAG5123EVM Kit Contents.............................................................................................. 3

3 Related Documentation..................................................................................................... 3

4 TMAG5123EVM Bill of Materials .......................................................................................... 8

Trademarks

All trademarks are the property of their respective owners.

www.ti.com

Overview

SLYU056–June 2020

TMAG5123EVM

1 Overview

The TMAG5123 is a family of high-precision, wide input voltage, in-plane Hall effect sensors designed for

system challenges where higher magnetic precision is needed for more flexibility in design. The

TMAG5123 evaluation module is populated with a Sensata 499-P36-20 test socket, which allows for

convenient testing of all variants of the TMAG5123 family. Each device variant exhibits a different

magnetic sensitivity, allowing utility for distance measurement in application. When the applied magnetic

flux density exceeds the magnetic operating point (BOP) threshold, the device output drives into low voltage

state. When the magnetic flux density returns to a value below the magnetic release point (BRP), the

device output returns itself to a high voltage state. The TMAG5123EVM comes prepopulated with a

TMAG5123B1 variant for out of the box evaluation. Additional variants can be sampled from www.ti.com.

Table 1 lists the different device variants available.

Table 1. Device Variants

DEVICE BOP SENSITIVITY (MIN) BOP SENSITIVITY (MAX)

TMAG5123A1 1 mT 3 mT

TMAG5123B1 2.5 mT 4.5 mT

TMAG5123C1 6 mT 8 mT

TMAG5123D1 9 mT 11 mT

The device operates from a VCC range of 2.5 V to 38 V, and is available in a standard SOT-23 package.

1.1 TMAG5123EVM Kit Contents

Table 2 lists the contents of the TMAG5123EVM kit. Contact the nearest Texas Instruments Product

Information Center if any component is missing. TI highly recommends checking the TMAG5123 family

product folder on the TI website at www.ti.com for further information regarding this product.

Table 2. TMAG5123EVM Kit Contents

ITEM QUANTITY

TMAG5123EVM test board 1

Handheld magnet (D3X8) 1

USB-Micro Cable 1

1.2 Related Documentation From Texas Instruments

The following document provides information regarding TI's integrated circuits used in the assembly of the

TMAG5123EVM. This user's guide is available from the TI website under literature number SLYU056. Any

letter appended to the literature number corresponds to the document revision that is current at the time of

the writing of this document. Newer revisions are available from www.ti.com or the Texas Instruments'

Literature Response Center at (800) 477-8924 or the Product Information Center at (972) 644-5580. When

ordering, identify the document by both title and literature number.

Table 3. Related Documentation

DOCUMENT LITERATURE NUMBER

TMAG5123 product data sheet SLYS030

2 TMAG5123EVM Hardware

The TMAG5123EVM is a simple-to-use platform for evaluating the main features and performance of the

TMAG5123 across a wide voltage range. The EVM provides quick visual feedback to the user in the form

of LED indication when the device under test's BOP or BRP thresholds are crossed.

TMAG5123EVM Hardware

www.ti.com

4SLYU056–June 2020

Submit Documentation Feedback

TMAG5123EVM

2.1 Features

The layout of the TMAG5123EVM printed-circuit board (PCB) is designed to provide the following

features:

• Burn-in test socket and precision 3D printed cradle for precise distance evaluation of in-plane sensors

• Provides LED feedback to the user to quickly determine output state from the TMAG5123

• Conveniently powered from a common micro-USB connector for quick prototyping

3 Quick Start Setup and Use

The following instructions are to set up and use the TMAG5123EVM:

1. Power up the EVM using either of the following methods:

a. USB power:

i. Insert the micro USB cable into the EVM onboard USB receptacle J1.

ii. Plug the USB cable into any USB power source (for example: laptop, desktop, power bank,

and so forth).

b. Variable power supply

i. Set the power supply voltage to desired setting between 2.5 V and 38 V. Do not turn on the

power yet.

ii. Connect the power supply V– terminal to the black GND test point on the EVM.

iii. Connect the power supply V+ terminal to the red VCC test point on the EVM.

iv. Turn on the power supply.

3.1 Measurements

The TMAG5123EVM enables the user to evaluate the functionality of the TMAG5123 Hall-effect sensor

using either a common USB-micro connector or external power supply, which must first be setup as

described in Section 3.

The following test procedures are to be used for both USB and external power options.

Step 1. Trigger the TMAG5123 device output: Slide either the north or south pole of the included

D3X8 magnet along the measurement channel of the TMAG5123 Hall-effect sensor.

Step 2. Observe the output: If using the onboard hardware, observe the indicator light D1 illuminate

when the magnet gets close to the Hall-effect sensor. Alternatively, measurement can also be

made through a voltage drop using an external voltage measuring device, such as an

oscilloscope or digital multimeter (DMM).

www.ti.com

TMAG5123EVM Circuit

SLYU056–June 2020

TMAG5123EVM

4 TMAG5123EVM Circuit

This section summarizes the TMAG5123EVM components.

4.1 Micro-USB Receptacle

J1 is standard micro-USB receptacle. This receptacle provides 5-V power to the board if being used.

4.2 Test Socket

XU1 is a 499-P36-20 Sensata test socket, which is made for devices in a SOT-23 package, such as the

TMAG5123. This socket allows for quick and easy transition between variants of the TMAG5123.

4.3 LED Control

R1 functions as a pullup resistor for the open-drain output of the TMAG5123.

R2 is a current-limiting resistor to control the output intensity of the signal diode D1.

While not normally populated, C3 is an optional SMT pad for capacitor placement, forming a first-order low

pass filter with the pullup resistor.

XU1

499-P36-20

VBUS 1

D- 2

D+ 3

ID 4

GND 5

11 10

VCC

GND

2.00k

10.0k

100nF

50V

GND

100nF

50V

VCC

GND

VCC

GND

VCC

OUT

GND

100V

100pF

DNP

TMAG5123EVM Schematic and PCB Layout

www.ti.com

6SLYU056–June 2020

Submit Documentation Feedback

TMAG5123EVM

5 TMAG5123EVM Schematic and PCB Layout

NOTE: Board layouts are not to scale. These figures are intended to show the board layout. The

figures are not intended to be used for manufacturing TMAG5123EVM PCBs.

5.1 Schematic

Figure 1 shows the schematic for the TMAG5123EVM PCB.

Figure 1. TMAG5123EVM Schematic

www.ti.com

TMAG5123EVM Schematic and PCB Layout

SLYU056–June 2020

TMAG5123EVM

5.2 PCB Layout

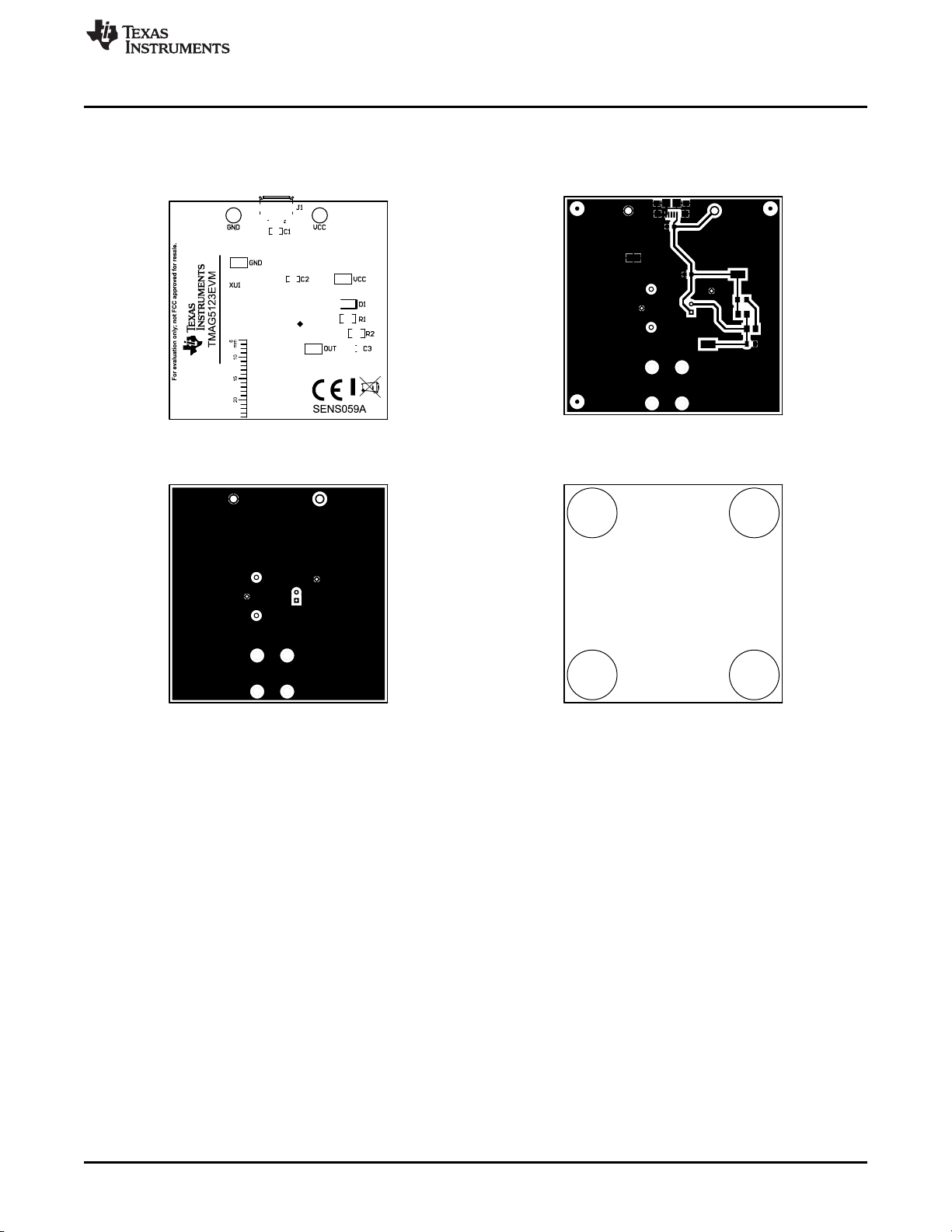

Figure 2 through Figure 5 illustrate the PCB layout for the TMAG5123EVM.

Figure 2. TMAG5123EVM Top Overlay Figure 3. TMAG5123EVM Top Copper

Figure 4. TMAG5123EVM Bottom Copper Figure 5. TMAG5123EVM Bottom Overlay

Bill of Materials

www.ti.com

8SLYU056–June 2020

Submit Documentation Feedback

TMAG5123EVM

6 Bill of Materials

Table 4 provides the parts list for the TMAG5123EVM.

Table 4. TMAG5123EVM Bill of Materials

DESIGNATOR QTY VALUE DESCRIPTION PACKAGE

REFERENCE PART NUMBER MANUFACTURER ALTERNATE PART

NUMBER ALTERNATE

MANUFACTURER

C1, C2 2 0.1uF CAP, CERM, 0.1 uF, 50 V, +/- 10%, X7R, 0603 0603 C1608X7R1H104K080AA TDK

D1 1 Blue LED, Blue, SMD LED_0805 150080BS75000 Wurth Elektronik

H9,H10,H11,H12 4 Bumpon, Hemisphere, 0.44 X 0.20, Clear Transparent Bumpon SJ-5303 (CLEAR) 3M

J1 1 Connector, Receptacle, Micro-USB Type B, R/A,

Bottom Mount SMT MICRO USB CONN,

R/A 1981568-1 TE Connectivity

MAG1 1 Magnet, N42, 3/16" Diameter, 1.5" Thickness D3X8 KJMagnetics

R1 1 10.0k RES, 10.0 k, 1%, 0.125 W, AEC-Q200 Grade 0,

0805 0805 CRCW080510K0FKEA Vishay-Dale

R2 1 2.00k RES, 2.00 k, 1%, 0.125 W, AEC-Q200 Grade 0,

0805 0805 CRCW08052K00FKEA Vishay-Dale

TP1 1 Test Point, Compact, Red, TH Red Compact Testpoint 5005 Keystone

TP2 1 Test Point, Compact, Black, TH Black Compact

Testpoint 5006 Keystone

TP3, TP4, TP5 3 Test Point, Miniature, SMT Testpoint_Keystone_Mi

niature 5015 Keystone

U1 1 Precision In-Plane Digital-Switch Hall-effect Sensor,

DBZ0003A DBZ0003A TMAG5123B1 Texas Instruments

XU1 1 Socket, SOT23-3 Socket, 910x520x450

mil 499-P36-20 Sensata/Wells-CTI

C3 0 100pF ±10% 100V Ceramic Capacitor X7R 0805

(2012 Metric) 0805 885012207110 Wurth Electronics

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Andere Handbücher für TMAG5123EVM

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments ADS8354EVM-PDK Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A87 Bedienungsanleitung

Texas Instruments

Texas Instruments eFuse TPS25983EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TUSB217AEVM-BC Bedienungsanleitung

Texas Instruments

Texas Instruments EVM430-FR6043 Bedienungsanleitung

Texas Instruments

Texas Instruments LMK04906 Series Bedienungsanleitung

Texas Instruments

Texas Instruments bq77905 Bedienungsanleitung

Texas Instruments

Texas Instruments TSW3000 Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25756 Bedienungsanleitung

Texas Instruments

Texas Instruments DAC53701EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1281EVM Bedienungsanleitung

Texas Instruments

Texas Instruments MCT8329EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DAC80501EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV320AIC12KEVM-K Bedienungsanleitung

Texas Instruments

Texas Instruments TVS 0 Series Bedienungsanleitung

Texas Instruments

Texas Instruments DUAL-DIYAMP-EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TIDA-050038 Leitfaden

Texas Instruments

Texas Instruments DS90UH949A-Q1EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS65217CEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS62851 EVM-139 Series Bedienungsanleitung

Texas Instruments

Texas Instruments THS3491RGT EVM Bedienungsanleitung

Texas Instruments

Texas Instruments DRV88 Series Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A94EVM-046 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS7A53EVM-031 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
