User’s Guide

TUSB217AEVM-BC Evaluation Module

ABSTRACT

This user guide is for the evaluation module (EVM) of the TUSB217A devices is available to provide an easy

evaluation process of TI's TUSB217A USB High-Speed signal conditioners. It provides an overview of the EVM,

which highlights key features, operating conditions, and how to set up for use in system-level evaluation. The

construction of the EVM also serves as a reference design that is easily modified for any intended application.

Target applications include cell phones, desktop or notebook computers, docking stations, televisions, and active

cables. Additional schematic and layout information is available on TI.com.

Table of Contents

1 TUSB217AEVM-BC................................................................................................................................................................. 2

2 TUSB217AEVM-BC Board Description................................................................................................................................. 2

3 TUSB217AEVM-BC Kit Contents...........................................................................................................................................3

4 EVM Configuration..................................................................................................................................................................3

4.1 Setting EVM Jumpers........................................................................................................................................................ 3

4.2 Selecting Configuration Levels...........................................................................................................................................4

4.3 Battery Charging Functions of TUSB217A.........................................................................................................................4

5 EVM Operation........................................................................................................................................................................ 5

6 TUSB217AEVM-BC Schematics............................................................................................................................................ 6

7 TUSB217AEVM-BC Bill of Materials (BOM)........................................................................................................................10

List of Figures

Figure 2-1. TUSB217AEVM-BC.................................................................................................................................................. 2

Figure 6-1. TUSB217AEVM-BC Block Diagram.......................................................................................................................... 6

Figure 6-2. TUSB217AEVM-BC Mini-B Receptacle Section....................................................................................................... 7

Figure 6-3. TUSB217AEVM-BC Type-B Receptacle Section...................................................................................................... 8

Figure 6-4. TUSB217AEVM-BC Type-A Plug Section.................................................................................................................9

List of Tables

Table 4-1. 6 × 2 Configuration Header Pinout..............................................................................................................................3

Table 4-2. 3 × 3 Boost Header..................................................................................................................................................... 3

Table 4-3. 3 × 3 RX_SEN Header................................................................................................................................................4

Table 4-4. RX_SEN, BOOST Setting Based on Cable Length.................................................................................................... 4

Table 7-1. TUSB217AEVM-BC BOM.........................................................................................................................................10

Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SLLU327 – MAY 2020

Submit Document Feedback

TUSB217AEVM-BC Evaluation Module 1

1 TUSB217AEVM-BC

The TUSB217A is a USB High-Speed signal conditioner designed to compensate both AC loss (due to

capacitive load) and DC loss (due to resistive loss) in the transmission channel.

The TUSB217A speeds up the transition edges of a USB 2.0 high-speed signal with an edge booster and

increases static levels with a DC boost function. The TUSB217A includes a pre-equalization function to improve

the receiver sensitivity and compensate the inter-symbol interference (ISI) jitter. USB 2.0 low-speed and full-

speed signal characteristics are unaffected by the TUSB217A.

The integrated Charging Downstream Port (CDP) mode and Dedicated Charging Port (DCP) mode BC 1.2

battery charging controller can be controlled via the DCP/CDP pin.

The TUSB217AEVM-BC was designed to be used as a path connection between a USB 2.0 host and a USB 2.0

device. The EVM is designed to provide multiple connector options to help eliminate the use of adapters. The

upstream interface to the EVM consists of three possible input connectors: a USB 2.0 Mini-B Receptacle, a USB

3.1 Type B Receptacle, and a USB 3.1 Type-A Plug. The downstream interface to the EVM consists of three

USB 3.1 Type-A Receptacle output connectors. Each section of the EVM is detachable from the main board

along the board perforations. The EVM can be connected to the system using various cable lengths to verify

system operation under different conditions.

2 TUSB217AEVM-BC Board Description

The TUSB217AEVM-BC (see Figure 2-1) is designed to provide easy evaluation of the TUSB217A device.

It is also meant to serve as a reference design to show a practical example of how to use the device in a

mass-production system.

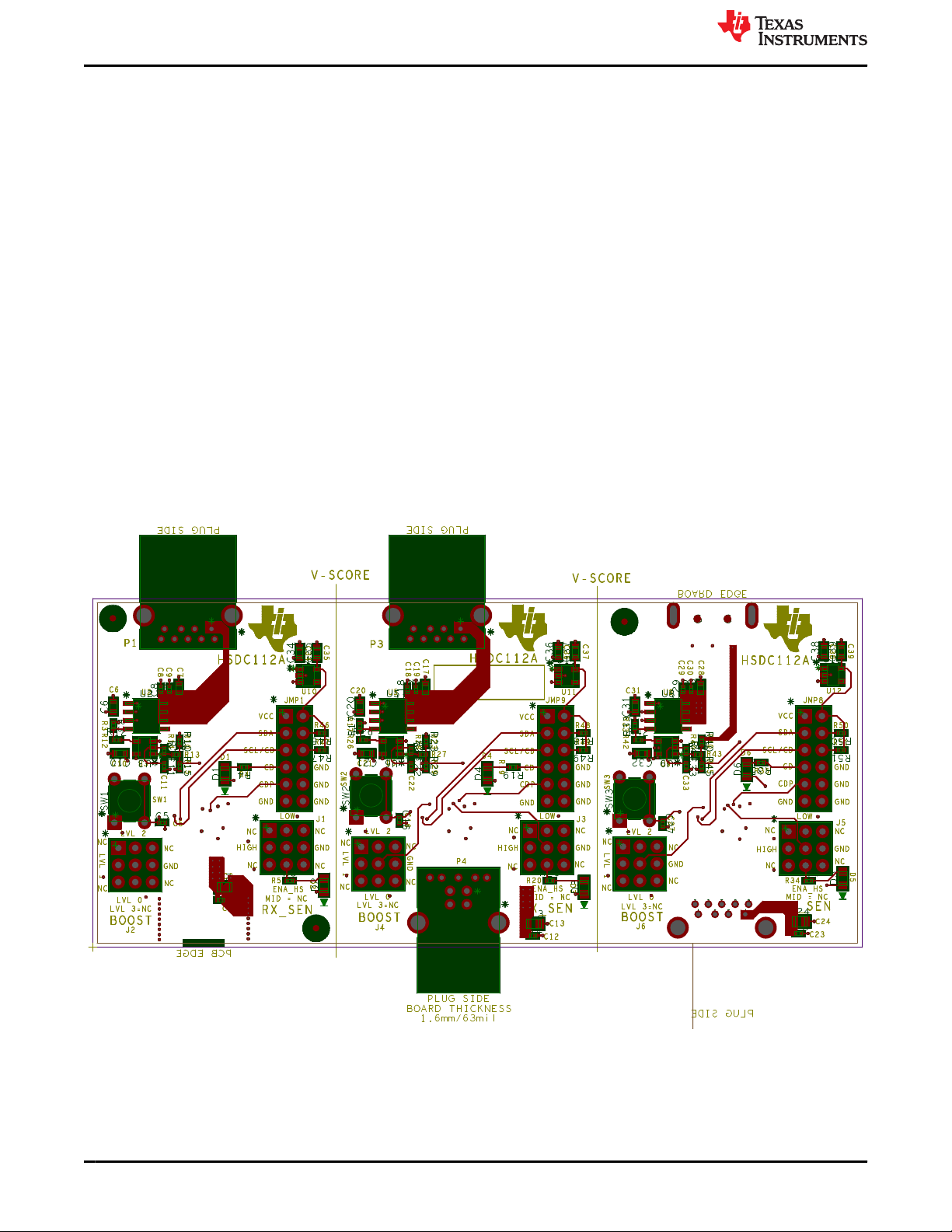

Figure 2-1. TUSB217AEVM-BC

TUSB217AEVM-BC www.ti.com

2TUSB217AEVM-BC Evaluation Module SLLU327 – MAY 2020

Submit Document Feedback

3 TUSB217AEVM-BC Kit Contents

This EVM kit should contain the following items:

• TUSB217AEVM-BC board

• This user’s manual

4 EVM Configuration

4.1 Setting EVM Jumpers

The TUSB217AEVM-BC has two 3 × 3 headers and a 6 × 2 header in each board partition to facilitate

configuration changes.

The BOOST and RX_SEN 3 × 3 headers are arranged to allow for all possible device configurations, including

connecting RX_SEN to an LED so that the ENA_HS status output can be viewed easily. The corner pins of the 3

× 3 headers are not connected.

The 6 × 2 header adds the ability to connect onboard pullups to the SDA and SCL pins to support I2C operation.

If I2C mode is not needed, the SCL/CD pin can be connected to an LED so the CD status can be easily checked.

Also, the 6 × 2 header provides connections for ground and to supply power manually to the EVM. In addition,

the header adds the ability to enable CDP and DCP modes on the TUSB217A.

Table 4-1. 6 × 2 Configuration Header Pinout

Row 1 Row 2

VCC_EXT_Px -EVM External Power Input

If used, the onboard 0-Ω resistor between VCC_US_Px and

VCC_EXT_Px must be removed.

SW_VCC_Px - 3.3-V Power for I2C Interface.

Provided by an onboard regulator.

SDA_Px - I2C Serial Data to TUSB217A

4.7-kΩ I2C pullup - can be jumpered to SDA_Px. To enable I2C

mode, the pullups on both SDA and SCL must be connected at

power on or after a reset.

SCL/CD_Px - I2C Serial Clock or Connect Detect Output to

TUSB217A

4.7-kΩ I2C pullup - can be jumpered to SCL/CD_Px.

To enable I2C mode, the pullups on both SDA and SCL must be

connected at power on or after a reset.

CD_Px - Connect Detect LED. The LED can be jumpered to SCL/

CD_Px so USB connection status can be easily determined.

GND

CDP_DCP- BC 1.2 Mode configuration to TUSB217A.

Jumpering this pin to GND enables DCP mode. CDP is enabled by

internal pullup.

GND

GND GND

Changing jumper settings without a complete understanding of the result is not recommended. Configuration

inputs are only read by the TUSB217A during power on reset or after de-asserting the RSTN pin by pressing

the provided onboard reset button (SW1, SW2, SW3). Changing settings while the EVM is powered on has no

effect. Refer to the device data sheet for detailed pin descriptions and functionality along with EVM schematic for

additional information.

Table 4-2. 3 × 3 Boost Header

No Connect 3.6 kΩ to GND No Connect

1.8 kΩ to GND BOOST to TUSB217A GND

No Connect 0 Ω to GND No Connect

BOOST jumper settings as defined in Table 4-2.

1. Center pin to the bottom position sets BOOST Level 0

2. Center pin to the left position sets BOOST Level 1

3. Center pin to the top position sets BOOST Level 2

4. No connect of the center pin sets BOOST Level 3

The right position of the BOOST jumper is short to GND.

www.ti.com TUSB217AEVM-BC Kit Contents

SLLU327 – MAY 2020

Submit Document Feedback

TUSB217AEVM-BC Evaluation Module 3

Table 4-3. 3 × 3 RX_SEN Header

No Connect 27 kΩ to GND No Connect

13 kΩ, 39-kΩ divider RX_SEN to TUSB217A GND

No Connect ENA_HS LED No Connect

RX_SEN jumper settings as defined in Table 4-3.

1. The top position sets low RX sensitivity.

2. No connect of the center pin sets mid RX sensitivity.

3. The center pin to the left position sets high RX sensitivity.

4. The center pin to the bottom position enables the ENA_HS status LED.

Right Position of RX_SEN jumper is short to GND.

4.2 Selecting Configuration Levels

The primary purpose of the USB 2.0 signal conditioner is to restore the signal integrity of a USB High-Speed

channel to USB 2.0 compliant levels. The platform goal is to pass the USB Near-End or Far-End Eye Mask with

the device in the best location.

A typical use case is to place the USB 2.0 signal conditioner close to the USB connector on a host platform to

pass Near-End Eye Mask testing. This includes systems where the USB connector may be placed at the far-end

of a cable.

Typical RX sensitivity and boost recommendations based on cable length (28 AWG USB cable) are shown in

Table 4-4. TI recommends starting with the lower settings first

Table 4-4. RX_SEN, BOOST Setting Based on Cable Length

Cable Length BOOST RX_SEN

0 m - 2 m Level 0 MID

3 m - 5 m Level 1 MID, HIGH

4.3 Battery Charging Functions of TUSB217A

The DCP/CDP pin of the TUSB217A is a battery charging 1.2 Dedicated Charging Port (DCP) and Charging

Downstream Port (CDP) function enable. In the shared TUSB216IEVM and TUSB217AEVM-BC schematic, this

pin is listed as CDP_ENZ. By default, the TUSB217A has the battery charging 1.2 CDP function enabled with a

500-kΩ internal pullup.

When TUSB217A is disconnected from the USB 2.0 data stream, the DCP mode of the TUSB217A can then be

enabled to allow the DCP handshake to be performed. It is recommended that when the TUSB217A switches

from CDP to DCP mode or back, that downstream VBUS is toggled so any downstream devices reconnect.

4.3.1 Automatic DCP/CDP Test Setup

To test these features on the TUSB217AEVM-BC:

1. Remove the 0-Ω resistor connecting the upstream VBUS and the EVM power (R1, R16, R31).

2. Externally power the EVM, by providing power to pin 1 of the 6 × 2 header (VCC_EXT_Px). This power

source should be able to provide up to 1.5 A at 5 V DC. TI recommends setting the voltage slightly above 5

V to prevent droop issues.

3. There is an VBUS toggle circuit on the EVM that should provide an adequate VBUS toggle to force

connected downstream devices to disconnect and reconnect when transitioning between CDP and DCP

mode in most cases. This toggle length will vary depending on the voltage and bulk capacitance of the

system, and may not work for all applications. If it does not, see Manual DCP/CDP Test Setup.

4. Verify that the charging device power consumption is as expected.

EVM Configuration www.ti.com

4TUSB217AEVM-BC Evaluation Module SLLU327 – MAY 2020

Submit Document Feedback

4.3.2 Manual DCP/CDP Test Setup

To manually test DCP/CDP features on the TUSB217AEVM-BC:

If the downstream device is not getting adequate VBUS toggle, to force a reconnect event the downstream

device can be disconnected and reconnected or the external EVM power manually toggled:

Entering CDP mode from DCP mode:

• No jumper on Header 6 × 2, pin 9 (CDP_ENZ in the schematic)

• Power cycle the VCC_EXT_Px to the EVM or disconnect and reconnect the downstream device

Entering DCP mode from CDP mode:

• Jumper on header 6 × 2, pin 9 (CDP_ENZ in the schematic) to GND (pin 10 or 11).

• Power cycle the VCC_EXT_Px to the EVM or disconnect and reconnect the downstream device

Note

The VBUS toggle circuit on the TUSB217AEVM-BC should not be used as a reference design. The

resistor divider used to sense upstream VBUS will back drive voltage on upstream VBUS due to the

internal pullup on DCP/CDP. A design with a comparator is recommended.

5 EVM Operation

To install the EVM, perform the following steps:

1. Upstream connection: attach a USB cable from a host PC Type A connector to the Type B connector (P2 or

P4) of the EVM or connect P6 directly to the host PC.

2. Downstream connection: attach a USB device directly or via a USB cable plugged into the Type A receptacle

connector (P1, P3 or P5) on the EVM.

3. The upstream connection and downstream connections must be on the same board section of the EVM.

The TUSB217A will only re-drive USB 2.0 high-speed signals.

www.ti.com EVM Configuration

SLLU327 – MAY 2020

Submit Document Feedback

TUSB217AEVM-BC Evaluation Module 5

6 TUSB217AEVM-BC Schematics

Figure 6-1 through Figure 6-4 show the EVM schematics.

Figure 6-1. TUSB217AEVM-BC Block Diagram

TUSB217AEVM-BC Schematics www.ti.com

6TUSB217AEVM-BC Evaluation Module SLLU327 – MAY 2020

Submit Document Feedback

Figure 6-2. TUSB217AEVM-BC Mini-B Receptacle Section

www.ti.com TUSB217AEVM-BC Schematics

SLLU327 – MAY 2020

Submit Document Feedback

TUSB217AEVM-BC Evaluation Module 7

Figure 6-3. TUSB217AEVM-BC Type-B Receptacle Section

TUSB217AEVM-BC Schematics www.ti.com

8TUSB217AEVM-BC Evaluation Module SLLU327 – MAY 2020

Submit Document Feedback

Figure 6-4. TUSB217AEVM-BC Type-A Plug Section

www.ti.com TUSB217AEVM-BC Schematics

SLLU327 – MAY 2020

Submit Document Feedback

TUSB217AEVM-BC Evaluation Module 9

7 TUSB217AEVM-BC Bill of Materials (BOM)

Table 7-1 displays the EVM BOM.

Table 7-1. TUSB217AEVM-BC BOM

Item Quantity Reference Part

1 15 C1, C4, C5, C8, C9, C12, C15, C16, C18, C19, C23, C26, C27, C29,

C30 0.1uF

2 3 C2, C13, C24 10uF

3 12 C3, C6, C10, C14, C20, C21, C25, C31, C32, C34, C36, C38 1uF

4 6 C7, C17, C28, C35, C37, C39 2.2uF

5 3 C11, C22, C33 4.7uF

6 6 D1, D2, D3, D4, D5, D6 LED

7 3 JMP1, JMP8, JMP9 Header 6x2

8 6 J1, J2, J3, J4, J5, J6 Header 3x3

9 1 LBL1 THT-14-423-10

10 3 L1, L2, L3 100 Ohms Ferrite Bead

11 1 PCB1 HSDC112

12 2 P1, P3, P5 USB3.0 Type A Receptacle

13 1 P2 Mini USB B

14 1 P4 USB3.0 Type B Receptacle

15 1 P6 USB 3.0 Type A

16 6 R1, R7, R16, R22, R31, R37 0

17 3 R2, R18, R32 27K

18 3 R3, R17, R33 1K

19 6 R4, R5, R19, R20, R34, R35 75

20 3 R6, R21, R36 3.6K

21 3 R8, R24, R38 1.8K

22 3 R9, R25, R39 39K

23 3 R10, R23, R40 10K 1%

24 3 R11, R30, R41 13K

25 6 R12, R13, R26, R27, R42, R43 0

26 3 R14, R28, R44 22K

27 3 R15, R29, R45 75K 1%

28 6 R46, R47, R48, R49, R50, R51 4.7k

29 6 SHNT1, SHNT2, SHNT3, SHNT4, SHNT5, SHNT6 QPC02SXGN-RC

30 3 SW1, SW2, SW3 Switch - Push Button

31 3 U1, U4, U7 TUSB217ARWB

32 3 U2, U5, U8 TPS2024D

33 3 U3, U6, U9 SN74AHC1G86DBV

34 3 U10, U11, U12 TPS70633

TUSB217AEVM-BC Bill of Materials (BOM) www.ti.com

10 TUSB217AEVM-BC Evaluation Module SLLU327 – MAY 2020

Submit Document Feedback

Andere Handbücher für TUSB217AEVM-BC

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments BOOSTXL-DRV8320 Series Bedienungsanleitung

Texas Instruments

Texas Instruments BOOST-DAC8730-HART Bedienungsanleitung

Texas Instruments

Texas Instruments XTR300EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LM7480-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments BQ25792EVM Bedienungsanleitung

Texas Instruments

Texas Instruments bq27421 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments EVMK2E Bedienungsanleitung

Texas Instruments

Texas Instruments CC2564MODN Bedienungsanleitung

Texas Instruments

Texas Instruments BQ24702/03 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments CDCLVP111EVM-CVAL Bedienungsanleitung

Texas Instruments

Texas Instruments TMP102EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS563211 Bedienungsanleitung

Texas Instruments

Texas Instruments DRV425 Bedienungsanleitung

Texas Instruments

Texas Instruments TMAG5170UEVM Bedienungsanleitung

Texas Instruments

Texas Instruments LP8557IEVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS58J64 EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS7861EVM Bedienungsanleitung

Texas Instruments

Texas Instruments OPA455EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1110EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LMK04832EVM-CVAL Bedienungsanleitung

Texas Instruments

Texas Instruments TPS54326EVM-540 Bedienungsanleitung

Texas Instruments

Texas Instruments SN65LVCP114 Bedienungsanleitung

Texas Instruments

Texas Instruments DP83TC812EVM-MC Bedienungsanleitung

Texas Instruments

Texas Instruments IWR1443BOOST Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
