Using the TPS65910 EVM, A Multichannel

Power-management IC, 3 Buck, 1 Boost, and 8

LDOs

User's Guide

Literature Number: SWCU065E

March 2010–Revised May 2011

User's Guide

SWCU065E–March 2010–Revised May 2011

Introduction

1 Description

Device Description:

The TPS65910 device is an integrated power-management IC available in 48-QFN package and is

dedicated to applications powered by one Li-Ion or Li-Ion polymer battery cell, 3-series Ni-MH cells, or a 5

V input, and which requires multiple power rails. The device provides three step-down converters, one

step-up converter, and eight low dropout voltage regulators (LDOs) and is designed to support the specific

power requirements of OMAP™processors.

Two of the step-down converters provide power for dual processor cores and are controllable by a

dedicated class-3 SmartReflex™interface for optimum power savings. The third converter provides power

for the I/Os and memory in the system. The device includes eight general-purpose LDOs providing a wide

range of voltages and current capabilities. These LDOs can be controlled by the inter-integrated circuit

(I2C™) interface.

In addition to the power resources, the device contains an embedded power controller (EPC) to manage

the power sequencing requirements of OMAP processor and a real-time clock (RTC).

EVM Kit Description:

The TPS65910 evaluation module (EVM) is a stand-alone module that demonstrates the functions of the

integrated power management IC. It uses a USB-to-GPIO interface card (not included in the kit) to control

the standard I2C interfaces in the TPS65910 device. It includes Windows™-compatible software to

interface with the device. The sofware is a simple graphical user interface (GUI) that simplifies registers

access for the IC.

EPROM Power-Up Sequence Description:

This user guide is common for all TPS65910x parts. The only difference in these parts is the EEPROM

sequence for power-up. Each part has a unique EEPROM sequence to satisfy the attached application

processor. For details of the EEPROM sequence please refer to the corresponding user guide in the

“Application Notes”section on the TPS65910x folder page.

1.1 Applications

•Embedded application processor power

•Handheld/portable systems

2Introduction SWCU065E–March 2010–Revised May 2011

Submit Documentation Feedback

www.ti.com

TPS65910 EVM Power Capabilities

1.2 Features

•An EPC

•Two efficient step-down DCDC converters for processor cores

•One efficient step-down DCDC converter for I/O power

•One efficient step-up 5-V DCDC converter

•SmartReflex-compliant dynamic voltage management for processor cores

•Eight LDO voltage regulators and one RTC LDO (internal purpose)

•One high-speed I2C interface for general-purpose control command

•One high-speed I2C interface for SmartReflex (SR) class-3 control command

•Two enable signals multiplexed with SR-I2C, configurable to control any supply state and processor

cores supply voltage

•Thermal shutdown protection and hot-die detection

•An RTC resource with:

–Oscillator for 32.768-kHz crystal or 32-kHz built-in RC oscillator

–Complete calendar capability

–Alarm capability

•One configurable general-purpose input/output (GPIO)

•DCDCs switching synchronization through internal or external 3-MHz clock

•Backup battery charger

2 TPS65910 EVM Power Capabilities

Table 1. TPS65910 EVM Resources Summary

POWER RESOURCE TYPE VOLTAGE RANGE (V) Imax (mA)

VIO SMPS (buck) 1.5, 1.8, 2.5, 3.3 1000

VDD1 SMPS (buck) 0.6, 1.1, 1.5, 2.2, 3.2 1500

VDD2 SMPS (buck) 0.6, 1.1, 1.5, 2.2, 3.2 1500

VDD3 SMPS (boost) 5 100

VDIG1 LDO 1.2, 1.5, 1.8, 2.7 300

VDIG2 LDO 1.0, 1.1, 1.2, 1.8 300

VAUX33 LDO 1.8, 2.0, 2.8, 3.3 150

VMMC LDO 1.8, 2.8, 3.0, 3.3 300

VAUX1 LDO 1.8, 2.5, 2.8, 2.85 300

VAUX2 LDO 1.8, 2.8, 2.9, 3.3 150

VDAC LDO 1.8, 2.6, 2.8, 2.85 150

VPLL LDO 1.0, 1.1, 1.8, 2.5 50

For detailed electrical characteristics of SMPS and LDO supplies, refer to the product data sheet.

3 Schematic

Figure 1 shows the TPS65910 EVM schematic.

SWCU065E–March 2010–Revised May 2011 Introduction

SWCU065-001

Schematic

www.ti.com

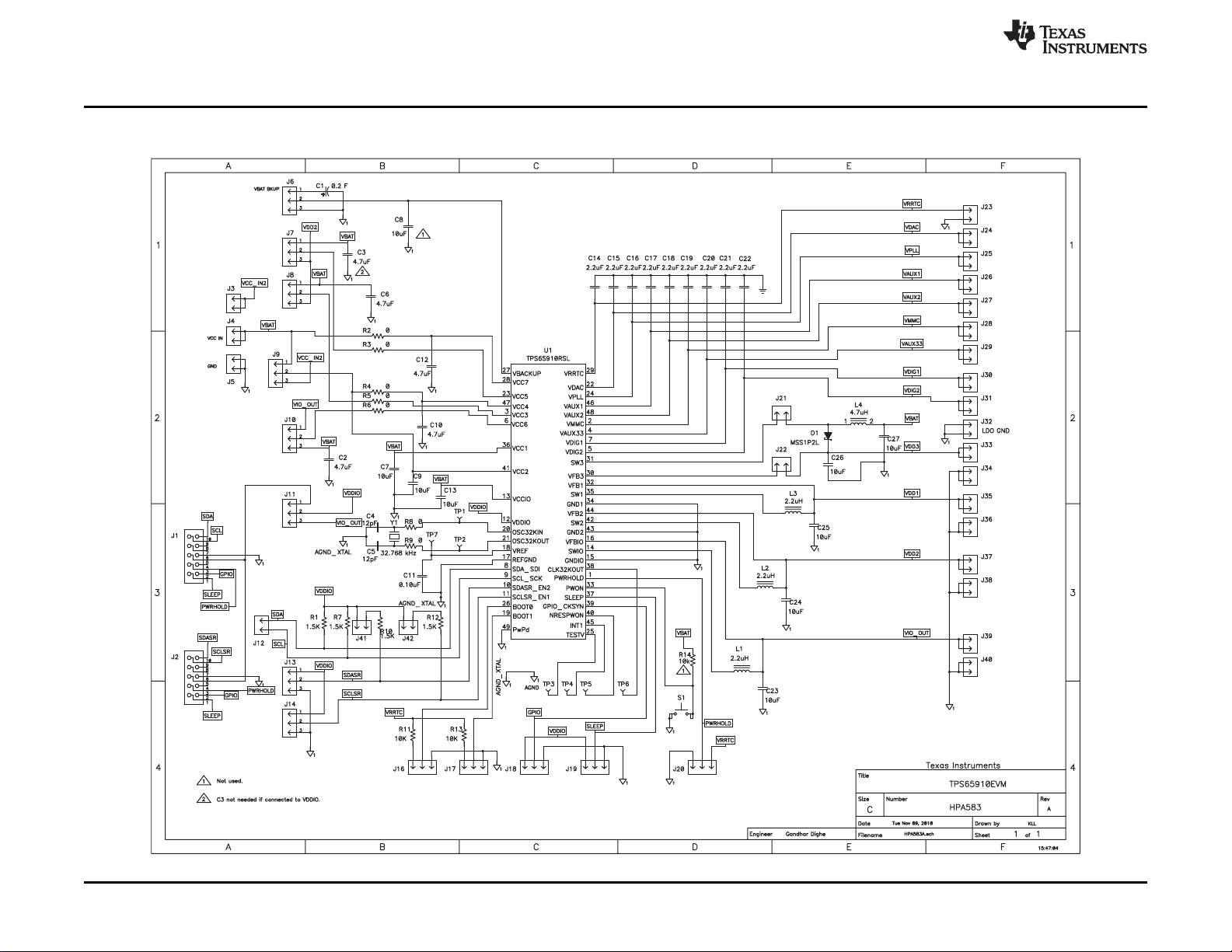

Figure 1. TPS65910 EVM Schematic

4Introduction SWCU065E–March 2010–Revised May 2011

Submit Documentation Feedback

www.ti.com

Connector and Test Point Descriptions

4 Connector and Test Point Descriptions

4.1 Connector Descriptions

4.1.1 Boot Pins

J16 and J17 are used to select the boot pin configuration for proper booting of the device. Table 2 shows

the possible boot options.

Table 2. Boot Configuration

BOOT 0 BOOT 1 POWER UP OPTION

0 0 AM35xx

0 1 EEPROM boot mode

1 0 OMAP3x

1 1 Test mode only

4.1.2 Backup Battery

J6 is used for the backup battery connection. The user can connect a backup battery between J6-2 and

J6-3 or alternatively can use the onboard 0.2 F, 3.3 V capacitor by shorting J6-1 and J6-2.

4.1.3 VBAT

VBAT (J4) is the main input source to the device. Table 3 lists the minimum and maximum levels that can

be applied to these pins. Use J5 for ground.

Table 3. VBAT Minimum and Maximum Levels

MIN (V) TYP (V) MAX (V)

VBAT 2.7 3.6 5.5

Ensure that the jumper settings for the jumpers listed in Table 4 are correct so the device is supplied by

VBAT.

Table 4. VBAT Input Jumper Settings

JUMPER CONNECTION DEVICE INPUT PIN USE

J7 (1-2) VCC5 Selects VBAT as power source

J8 (1-2) VCC3 Selects VBAT as power source

J9 (1-2) VCC2, VCC4 Selects VBAT as power source

J10 (2-3) VCC6 Selects VBAT as power source

4.1.4 Default Jumper Settings for the Boost Converter

Table 5. Boost Converter Jumper Settings

JUMPER ID LABEL USE

J21 SW3 Short jumper to use boost converter

J22 VFB3 Short jumper to use boost converter

For correct functioning of VDD3, first VAUX33 must be enabled at 3.3V and then VDD3 should be enabled

using the appropriate register settings.

4.1.5 I2C connector

TPS65910 has two slave I2C interfaces: one is a general-purpose interface to control the internal

configuration registers, the second is dedicated to SmartReflex applications such as dynamic voltage

frequency scaling (DVFS) or adaptive voltage scaling (AVS).

SWCU065E–March 2010–Revised May 2011 Introduction

Connector and Test Point Descriptions

www.ti.com

These interfaces support the standard slave mode (100 kbps), fast mode (400 kbps), and high-speed

mode (3.4 Mbps).

Table 6. I2C Connector

CONNECTOR NUMBER PIN DESCRIPTION

General purpose I2C interface for register

J1 9, 10 configuration

J2 9,10 Dedicated I2C interface for SmartReflex

J1 and J2 also have GPIO, SLEEP, and PWRHOLD signals that can be controlled from the GUI and

USB-to-GPIO interface.

The SmartReflex can be programmed as enable signals of one or several supplies when the device is on.

A resource assigned to either SmartReflex signal (SDASR_EN2 or SCLSR_EN1) automatically disables

the serial control interface.

Connectors J1 and J2 are used for the USB adapter. Table 7 lists the signal mapping to control the

signals on the EVM. The GPIO field on the GUI can be toggled to drive the following signals on the EVM.

Table 7. GPIO Mapping For GUI

PIN NUMBER FOR J1 and J2 GPIO ON GUI TPS65910x SINGAL

Pin 1 GPIO7 SLEEP

Pin 2 GPIO6 GPIO

Pin 3 GPIO5 PWRHOLD

4.1.6 3.3-V I/O for VDDIO

The USB-to-GPIO interface is on connectors J1 and J2. The USB-to-GPIO module generates 3.3 V, which

is used as the I/O for the EVM. The following jumper configuration must be done for the I/O supply.

Table 8. Jumper for I/O Input Setting

JUMPER CONNECTION DEVICE INPUT PIN USE

Connects J1-5 (or J2-5) to VDDIO for

J11 (1-2) VDDIO 3.3-V I/O input

4.1.7 Control Jumper Settings

TPS65910 has some control signals that can be configured using the on-board jumpers or by using the

USB-to-GPIO connector.

Table 9. Control Signals

Jumper connection Signal Name Use

J18 GPIO Jumper the three pin connector as

required

J19 SLEEP Jumper the three pin connector as

required

J20 PWRHOLD If PWRHOLD is low then the device will

not power-up. So, connect this to HI side

of the jumper. See important description

below.

J13 SDASR_EN2 Both these signals can be used to control

the LDO and SMPS power supplies.

J14 SCLSR_EN1 Please refer details on programming the

internal register to achieve this function.

6Introduction SWCU065E–March 2010–Revised May 2011

Submit Documentation Feedback

www.ti.com

Test Set Up

If USB-to-GPIO connector is connected on J1 or J2 then the above signals can be controlled using the

GPIO writes from the GUI. In this case the above jumpers should not be connected. Jumpers should be

left open. In case of SLEEP and GPIO signals there will be contention for VDDIO supply. In case of

PWRHOLD, the device will be damaged. This is because the PWRHOLD signal from USB-to-GPIO is at

3.3V. The HI side of J20 jumper is connected to VRRTC. If VRRTC is shorted to 3.3V then this will

damage the device. When the adapter is connected all IOs should be at 3.3V, so ensure J11 is connected

between VDDIO and 3.3V.

4.2 Test Point Descriptions

Table 10. Test Point Descriptions

Power Domain/Control TP Label Use

VIO J39 VIO_OUT Monitor VIO output voltage

VDD1 J35 VDD1 Monitor VDD1 output voltage

VDD2 J37 VDD2 Monitor VDD2 output voltage

VDD3 J33 VDD3 Monitor VDD3 output voltage

VPLL J25 VPLL Monitor VPLL output voltage

VDAC J24 VDAC Monitor VDAC output voltage

VAUX1 J26 VAUX1 Monitor VAUX1 output voltage

VAUX2 J27 VAUX2 Monitor VAUX2 output voltage

VMMC J28 VMMC Monitor VMMC output voltage

VAUX33 J29 VAUX33 Monitor VAUX33 output voltage

VDIG1 J30 VDIG1 Monitor VDIG1 output voltage

VDIG2 J31 VDIG2 Monitor VDIG2 output voltage

VREF J15 VREF Monitor VREF output voltage

VRRTC J23 VRRTC Monitor VRRTC output voltage

PWRHOLD J20-2 PWRHOLD Monitor PWRHOLD level

PWON S1 POWER ON Power-on switch

SLEEP J19-2 SLEEP Control device status

GPIO/CKSYN J18-2 GPIO/CKSYNC GPIO test point

NRESPWRON TP5 NRESPWON Reset to processor

INT1 TP4 INT1 Interrupt to processor

CLK32KOUT TP6 CLK32KOUT 32KHz to processor

Use J32 for all GND connections for measuring the LDO power supplies. J34, J36, J38, and J40 can be

used for ground connections for measuring DCDC power supplies.

5 Test Set Up

5.1 Equipment

Recommended test equipments:

•Variable 6-V power supply capable of supplying 6 A current

•Voltmeter

•Oscilloscope

•Windows PC with a universal serial bus (USB) port

•USB-to-GPIO converter

SWCU065E–March 2010–Revised May 2011 Introduction

GUI Information

www.ti.com

6 GUI Information

The GUI accompanying this device is fairly simple. It runs on a Windows PC. Ensure that your machine

supports Microsoft .NET Framework 3.5.

6.1 Installation Instructions:

To install the GUI follow these steps:

1. Download from site/Insert CD (based on how we package the GUI).

2. Create a new folder or unzip into any appropriate windows folder. If it is an exe, then select the

location. The default is C:/xyz/.

6.2 Know the Files

GUI software consists of the following files:

•DLL

•EXE

•XML

The GUI can be opened by clicking the MS Installer, TPS65910.msi file. The .xml file is the main file that

contains all the device registers. The registers in this file are categorized in blocks according to the

functions. The .xml file also specifies the slave I2C address for the device.

6.3 GUI Description

GUI windows are divided into the following sections:

6.3.1 Register Properties

The following blocks are on the GUI on the left-side pane under Register Properties:

•Time and Calendar Registers

•RTC Registers

•Back-up Registers

•DCDC Control Registers

•LDO Control Registers

•Device Control Registers

•Interrupts and GPIO Registers

Figure 2 shows a sample snapshot of the GUI.

Each block can be selected independently so that it appears on the main GUI window. Each register

instance appears in a separate block. See Figure 3.

The user can write to the registers through the I2C bus. Each bit in the 8-bit register can be written

independently or the complete register can be written using an 8-bit hexadecimal value in the Value field.

Individual bits can be toggled either by selecting the drop-down menu or by double-clicking the field.

8Introduction SWCU065E–March 2010–Revised May 2011

Submit Documentation Feedback

www.ti.com

GUI Information

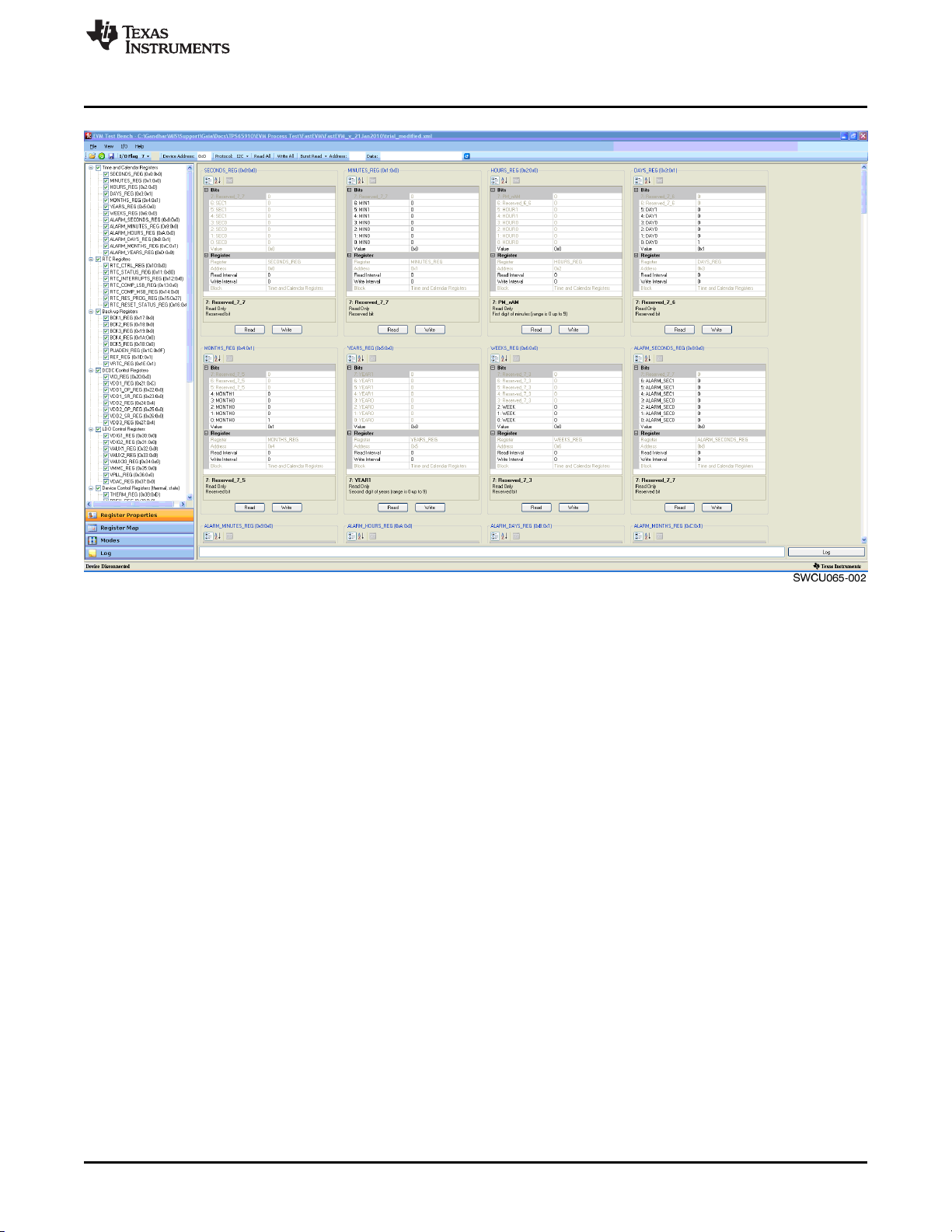

Figure 2. GUI Snapshot –Register Properties

SWCU065E–March 2010–Revised May 2011 Introduction

GUI Information

www.ti.com

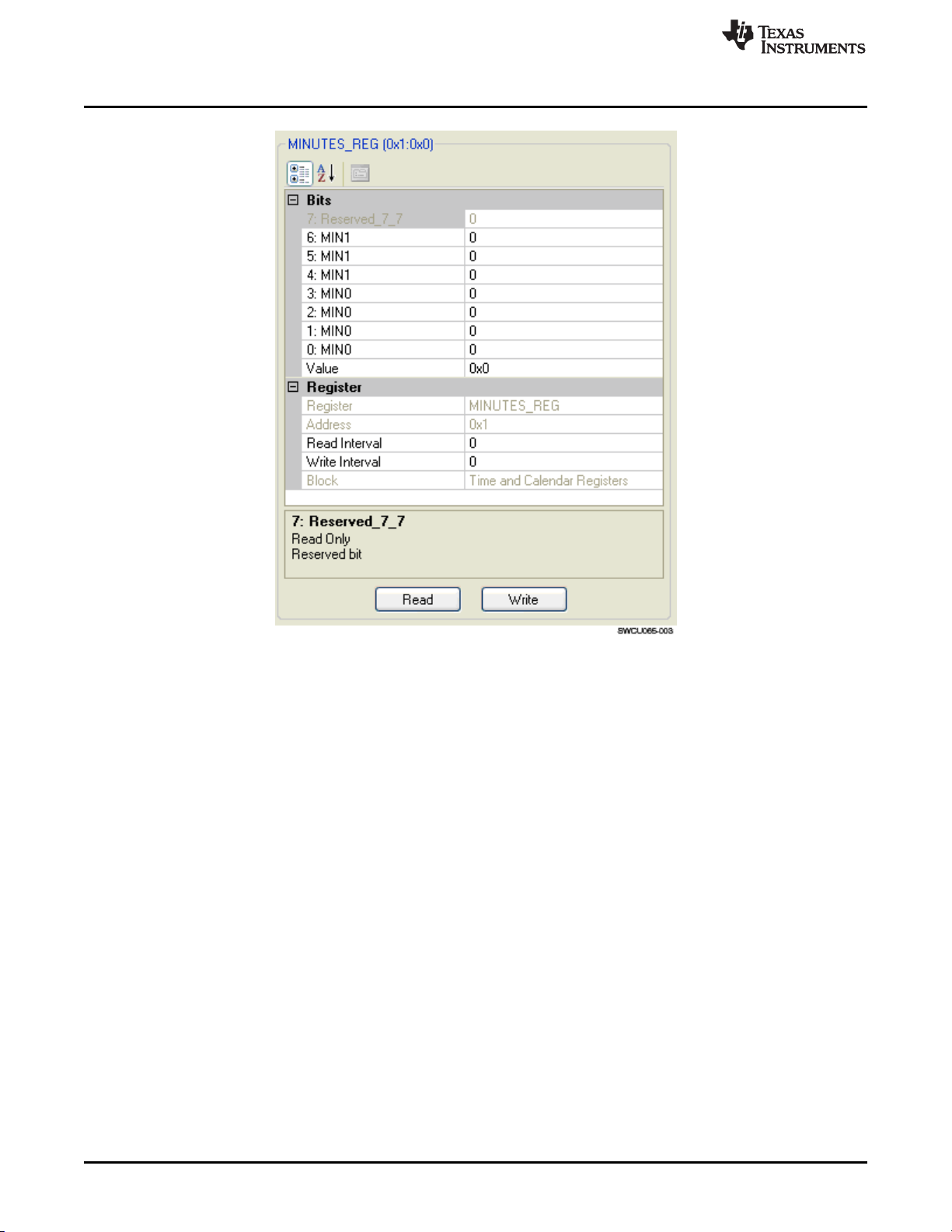

Figure 3. Single Register Instance

6.3.2 Register Map

Figure 4 shows the register map view. The Register Map tab provides an alternative way to access the

device registers. Also in this view, the bits and complete words can be read or written through the I2C bus.

10 Introduction SWCU065E–March 2010–Revised May 2011

Submit Documentation Feedback

Andere Handbücher für TPS65910 EVM

Inhaltsverzeichnis

Andere Texas Instruments Hauptplatine Handbücher

Texas Instruments

Texas Instruments CC2540 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS54J20EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLIN1431EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV1544EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPS59650EVM-753 Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1x9xECG-FE Bedienungsanleitung

Texas Instruments

Texas Instruments TLC5929 Bedienungsanleitung

Texas Instruments

Texas Instruments TMDSEVM6474LE Bedienungsanleitung

Texas Instruments

Texas Instruments DP83TC812EVM-MC Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon CC2400DBK Bedienungsanleitung

Texas Instruments

Texas Instruments TPA3129D2EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLV3601EVM Bedienungsanleitung

Texas Instruments

Texas Instruments AM3517 Bedienungsanleitung

Texas Instruments

Texas Instruments DAC5668 Bedienungsanleitung

Texas Instruments

Texas Instruments LMR43620RQ5EVM-400 Bedienungsanleitung

Texas Instruments

Texas Instruments LMG342XEVM-04X Bedienungsanleitung

Texas Instruments

Texas Instruments LMX2594EVM Bedienungsanleitung

Texas Instruments

Texas Instruments ADS1232REF Bedienungsanleitung

Texas Instruments

Texas Instruments TL16C750EEVM Bedienungsanleitung

Texas Instruments

Texas Instruments TPA3139D2EVM Bedienungsanleitung

Texas Instruments

Texas Instruments LM3269 Bedienungsanleitung

Texas Instruments

Texas Instruments TPS23882EVM Bedienungsanleitung

Texas Instruments

Texas Instruments TLC6C5716-Q1 Bedienungsanleitung

Texas Instruments

Texas Instruments ISO5500EVM Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
