Textron RANSOMES 933506 Bedienungsanleitung

WARNING: If incorrectly used this machine can cause severe injury. Those who use

and maintain this machine should be trained in its proper use, warned of its dangers

and should read the entire manual before attempting to set up, operate, adjust or

service the machine.

SETUP, PARTS & MAINTENANCE

MANUAL EC CUTTERDECKS

4115263 REV B

Cutting Unit Models:

933506 Cutterdeck-36 Rear Discharge EC

933407 Cutterdeck-36 Side Discharge EC

(Operation & Safety Manual: 4115264, 4115265)

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some of

its constituents are known to the State

of California to cause cancer, birth

defects and other reproductive harm.

Californie Proposition 65

Avertissement

Les échappements des moteurs diesel

et certains de leurs composés sont

reconnus par l’Etat de Californie pour

être cancérigènes, provoquer des

défauts congénitaux et d’autres dangers

en matière de reproduction.

ADVERTENCIA

AVERTISSEMENT

WARNING

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects or other reproductive harm.

California Advertencia

de la Proposicion 65

El estado de California hace saber que

los gases de escape de los motores

diesel y algunos de sus componentes

producen cáncer, defectos de

nacimiento y otros daños en el

proceso de reproducción humana.

L’

mission du moteur de ce mat

riel

contient des produits chimiques que

l’Etat de Californie consid

tre

canc

rig

nes, provoquer des d

fauts

cong

nitaux et d’autres dangers en

mati

re de reproduction.

El estado de California hace saber

que los gases de escape de este

producto contienen productos

quÍmicos que producen cáncer,

defectos de nacimiento y otros daños

en el proceso de reproducción

humana.

Midsize

Decks

1-2003-TGTSP

IMPORTANT MESSAGE

Thank you for purchasing this Ransomes product. You have purchased a world class mowing product, one of the

best designed and built anywhere.

This machine comes with an Operation and Safety Manual and a separate Setup, Parts and Maintenance Manual.

The useful life and good service you receive from this machine depends to a large extent on how well you read

and understand these manuals. Treat your machine properly, lubricate and adjust it as instructed, and it will give

you many years of reliable service.

Your safe use of this Ransomes product is one of our prime design objectives. Many safety features are built in,

but we also rely on your good sense and care to achieve accident-free operation. For best protection, study the

manuals thoroughly. Learn the proper operation of all controls. Observe all safety precautions. Follow all

instructions and warnings completely. Do not remove or defeat any safety features. Make sure those who operate

this machine are as well informed and careful in its use as you are.

See a Ransomes dealer for any service or parts needed. Ransomes service ensures that you continue to receive

the best results possible from Ransomesí products. You can trust Ransomes replacement parts because they

are manufactured with the same high precision and quality as the original parts.

Ransomes designs and builds its equipment to serve many years in a safe and productive manner. For longest

life, use this machine only as directed in the manuals, keep it in good repair and follow safety warnings and

instructions. You'll always be glad you did.

Textron Golf, Turf & Specialty Products

One Bob Cat Lane

Johnson Creek, WI 53038-0469

TABLE OF CONTENTS FIGURES PAGE

SAFETY ......................................................................................................................................................... 2

ASSEMBLY/SET-UP INSTRUCTIONS ...................................................................................................... 3, 4

PARTS SECTION .......................................................................................................................................... 5

36" EC SIDE DISCHARGE DECK ..................... FIGURE 1 ..................................................................... 6, 7

MOUNTING-36" EC SD DECK .......................... FIGURE 2 ..................................................................... 8, 9

36" EC REAR DICHARGE DECK ...................... FIGURE 3 ..................................................................10, 11

CASTER ASSY-FIXED DECKS ......................... FIGURE 4 ................................................................. 12, 13

SPINDLE ASSEMBLY ........................................ FIGURE 5 ................................................................. 14, 15

DECALS ............................................................. FIGURE 6 ................................................................. 16, 17

Midsize

Decks

MODEL NUMBER: This number appears on

sales literature, technical manuals and price lists.

SERIAL NUMBER: This number appears only on

your mower. It contains the model number

followed consecutively by the serial number. Use

this number when ordering parts or seeking

warranty information.

NOTICE !!!

Unauthorized modifications may present extreme

safety hazards to operators and bystanders and

could also result in product damage.

Textron Golf, Turf & Specialty Products strongly

warns against, rejects and disclaims any

modifications, add-on accessories or product

alterations that are not designed, developed, tested

and approved by Textron Golf, Turf & Specialty

Products Engineering Department. Any Textron

Golf, Turf & Specialty Products product that is

altered, modified or changed in any manner not

specifically authorized after original manufactureñ

including the addition of ìafter-marketî accessories

or component parts not specifically approved by

Textron Golf, Turf & Specialty Productsñwill result

in the Textron Golf, Turf & Specialty Products

Warranty being voided.

Any and all liability for personal injury and/or property

damage caused by any unauthorized modifications,

add-on accessories or products not approved by

Textron Golf, Turf & Specialty Products will be

considered the responsibility of the individual(s) or

company designing and/or making such changes.

Textron Golf, Turf & Specialty Products will

vigorously pursue full indemnification and costs

from any party responsible for such unauthorized

post-manufacture modifications and/or accessories

should personal injury and/or property damage

result.

This symbol means:

ATTENTION!

BECOME ALERT!

Your safety and the safety of others is involved.

Signal word definitions:

The signal words below are used to identify levels of

hazard seriousness. These words appear in this

manual and on the safety labels attached to Textron

Golf, Turf & Specialty Products machines. For your

safety and the safety of others, read and follow the

information given with these signal words and/or the

symbol shown above.

DANGER indicates an imminently hazardous

situation which, if not avoided, WILL result in death

or serious injury.

WARNINGindicates apotentially hazardous situation

which, if not avoided, COULD result in death or

serious injury.

CAUTION indicates a potentially hazardous situation

which, if not avoided, MAY result in minor or moderate

injury. It may also be used to alert against unsafe

practices or property damage.

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, MAY result in property damage

SAFETY

Midsize

Decks

ASSEMBLY/SET-UP INSTRUCTIONS

FIXED CUTTERDECK ATTACHMENT

1. Remove the cutterdeck from the crate.

2. Unbolt the caster wheels and the shipping

brackets from the crate.

3. Remove the shipping bracket from the caster

wheel by loosening the caster bolt and sliding the

shipping bracket off and retighten caster bolt.

4. Remove quick pin and remove the appropriate

number of spacers for the desired height of cut.

See height of cut chart below.

NOTE: Height of cut chart is also located on

bottom of belt cover or in the Operation & Safety

Manual.

5. Repeat for other caster wheel assembly.

Midsize

Decks

ASSEMBLY/SET-UP INSTRUCTIONS

GNITTUC

THGIEH

ELOH

NONOITISOP

ENIGNE

*KCED

KCOLB

TATHGIEH

FORAER

)B(KCED

"526.1-"573.15"52.1

"573.2-"578.14"00.2

"521.3-"526.23"57.2

"578.3-"573.32"05.3

"526.4-"521.41"52.4

elohtsehgihehtsi1noitisoP*

.kcedenigneehtno

6. Remove belt cover and set aside.

7. Block the rear of the cutterdeck with the

appropriate height block for the desired height of

cut B. See Support Block Chart below.

8. Position the power unit behind the cutterdeck.

9. Move the power unit towards the cutterdeck until

the guide pins Aengage the appropriate hole C

on the power unit for the desired height of cut.

Fasten with (4) M12-1.75 X 30 bolts at D.

10. Loop the PTO belt Earound the electric clutch

pulley. Using a 3/8" ratchet wrench or 3/8"

breaker bar rotate the PTO belt idler while looping

the PTO belt around the cutterdeck pulley.

11. Reinstall belt cover and fasten in place with

knobs F.

12. Remove support block from the rear of

cutterdeck.

13. Remove support from the rear of the power unit.

Midsize

Decks

PARTS SECTION

PARTS

SECTION

Midsize

Decks

FIGURE 1

36" EC SIDE DISCHARGE DECK

ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY

Midsize

Decks

1-1 4115084 S-36 DECK SD W/LABS EC 1

1-2 2721323 S-ASSY SPINDLE SHORT 1

(SEE FIGURE 5 FOR COMPONENTS)

1-3 2721097 S-ASSY SPINDLE LONG 1

(SEE FIGURE 5 FOR COMPONENTS)

1-4 64197-003 BLT-TDFM 3/8-16X1.00 12

1-5 2722021.2 CHUTE 1

1-6 112243-02 BLADE 18.00 OFFST LLFT 2

1-7 4115424 SPACER-10.31 X 25.4 X 12.0 1

1-8 64163-16 41/64X1-3/8X12GA WASHR 2

1-9 33049-05 BOLT-BLADE RH 1

1-10 64163-12 .635/.640X1.0X.25 WASH 4

1-11 38219 SPRING-EXTENSION 1

1-12 2308140 PULLEY 2

1-13 2722161 PULLEY-6.75 EOD 1

1-14 2721478 BELT-HB 85.25 1

1-15 2721477 BELT-HB 56.75 1

1-16 128169 PULLEY, IDLER 5.50 1

1-17 2186138.7 WLDMT-DECK IDLER 1

1-18 4116661 PIN-PIVOT 1

1-19 48393 PULLEY-V IDLER 1

1-20 2721485 SPACER-IDLER 1

1-21 64123-88 BOLT, 3/8-16X2-3/4 HEX 1

1-22 64163-65 WSHR .890X1.375 X 18GA 1

1-23 64221-04 E-RING.875 1

1-24 4115420.7 GUIDE-BELT 1

1-25 64123-05 BLT-HEX 1/2-20 X 1-1/2 1

1-26 64006-05 LOCKWSHR-HELICAL 1/2 1

1-27 64123-173 BLT-HEX 3/8-16X4-1/2 1

1-28 64163-31 WASH.25/64X1X12 GA 2

1-29 64229-03 LOCKNUT-NYLON 3/8-16 5

1-30 4114731.2 BRKT-CHUTE SUPPORT EC 1

1-31 64141-4 NUT-WLF 3/8-16 4

1-32 64139-21 BLT-WLF 3/8-16 X 3/4 2

1-33 64123-50 BOLT-HEX 3/8-16 X 1 3

1-34 64209-03 SPRING WASHER .67 ID 2

1-35 64025-16 NUT-HEX 5/8-18 2

1-36 33049-02 BOLT-BLADE LH 1

1-37 64164-12 1/4 X 1/4 X 1 SQ END KEY 1

1-38 64164-13 1/4 X 1/4 X 2 SQ KEY 1

1-39 64123-70 BOLT-HEX 3/8-16X1-1/2 1

FIGURE 1

36" EC SIDE DISCHARGE DECK

4115263-01

Midsize

Decks

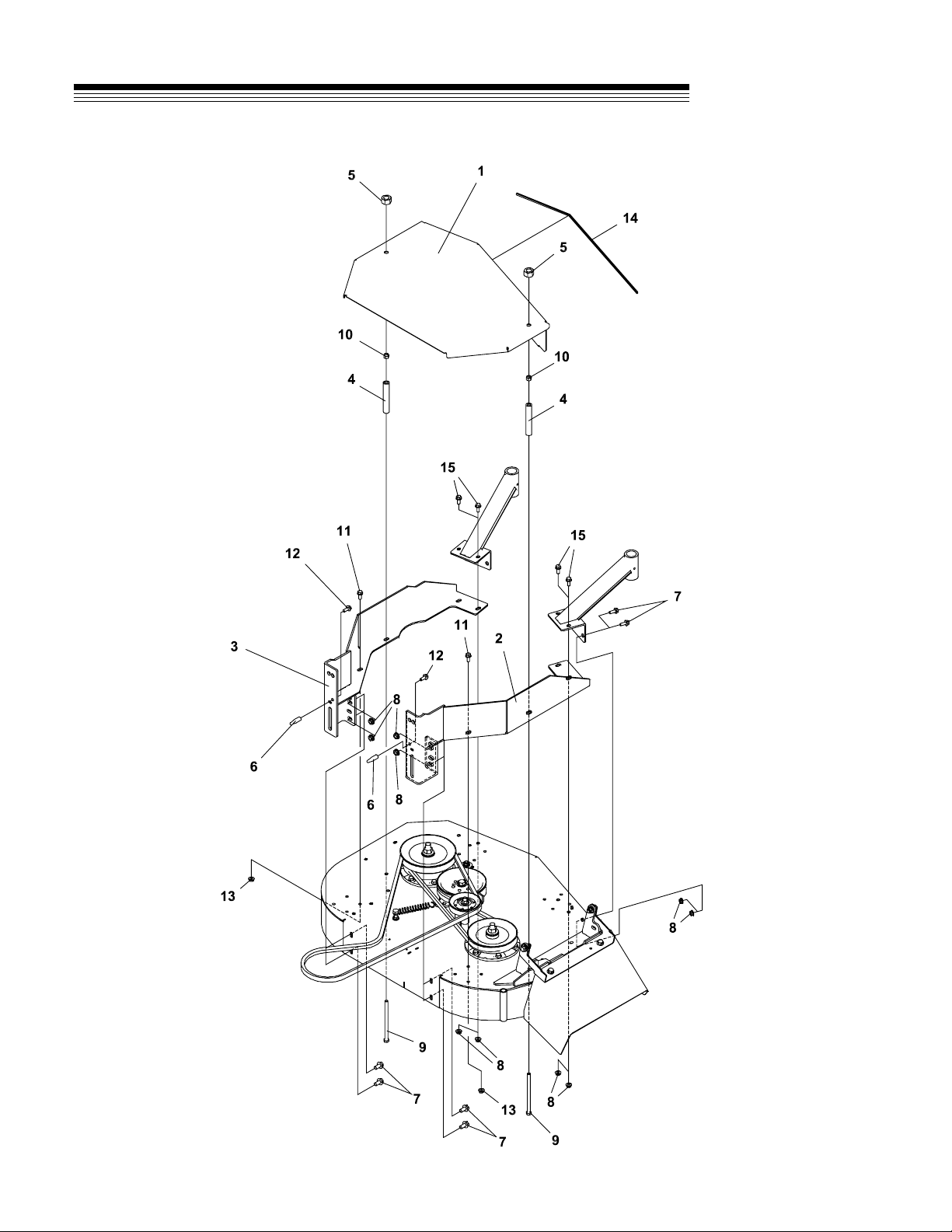

FIGURE 2

MOUNTING-36" EC SD DECK

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Textron Rasenmäher Handbücher

Textron

Textron RANSOMES G-Plex II Bedienungsanleitung

Textron

Textron Jacobsen MH5 Leitfaden

Textron

Textron RANSOMES JACOBSEN Greens King IV Service-Handbuch

Textron

Textron Jacobsen Super LF 1880 Fairway Mower with... Leitfaden

Textron

Textron BUNTON BZT 2000 Series Gebrauchs- und Pflegehandbuch

Textron

Textron Ransomes Jacobsen Super Certes 51 Leitfaden

Textron

Textron Ransomes Mastiff 91 Series Leitfaden

Textron

Textron Jacobsen G-Plex III Leitfaden

Textron

Textron JACOBSEN R-311 69166 Bedienungsanleitung

Textron

Textron Jacobsen MP493 Leitfaden

Textron

Textron Ransomes 933304H Bedienungsanleitung

Textron

Textron Jacobsen HR 9016 Turbo Bedienungsanleitung

Textron

Textron Jacobsen Super LF 1880 Fairway Mower with... Einrichtungshandbuch

Textron

Textron JACOBSEN JZT 1250 CUTTERDECKS Bedienungsanleitung

Textron

Textron JACOBSEN GP400 Bedienungsanleitung

Textron

Textron Jacobsen Turfcat T628D 2WD 2 RM Leitfaden

Textron

Textron Ransomes Jacobsen Super Certes 51 Leitfaden

Textron

Textron Jacobsen Tri-King 67139 Bedienungsanleitung

Textron

Textron JACOBSEN PGM Series Bedienungsanleitung

Textron

Textron JACOBSEN MC400 Einrichtungshandbuch

Textron

Textron JACOBSEN Eclipse 2 Bedienungsanleitung

Textron

Textron Jacobsen SLF530 Betriebsanleitung

Textron

Textron Jacobsen Super LF 1880 Fairway Mower with... Leitfaden

Textron

Textron Cessna SL510-34-18 Service-Handbuch

Beliebte Rasenmäher Handbücher anderer Marken

RHINO

RHINO 1958 Bedienungsanleitung

Wolf Garten

Wolf Garten Compact plus 40 B Bedienungsanleitung

Cub Cadet

Cub Cadet LTX 1045 Bedienungsanleitung

Craftsman

Craftsman 917.378461 Bedienungsanleitung

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Bedienungsanleitung

Challenge

Challenge CH18V2 Betriebsanleitung

TALEN TOOLS

TALEN TOOLS AVR HGM30 Bedienungsanleitung

DEWEZE

DEWEZE ATM-725 Bedienungsanleitung

Weed Eater

Weed Eater 180083 Bedienungsanleitung

Husqvarna

Husqvarna Poulan Pro PP185A42 Bedienungsanleitung

Better Outdoor Products

Better Outdoor Products Quick Series Bedienungsanleitung

Cub Cadet

Cub Cadet 23HP Z-Force 60 Betriebsanleitung

MTD

MTD 795, 792, 791, 790 Bedienungsanleitung

Toro

Toro Groundsmaster 3505-D Bedienungsanleitung

Dennis

Dennis FT 610 Bedienungsanleitung

AIRFORCE

AIRFORCE F-15 Gen 3 Bedienungsanleitung

MTD

MTD 126-220-000 Bedienungsanleitung

Toro

Toro 74806 Bedienungsanleitung
