Theben LUNA 121 top2 RC Bedienungsanleitung

LUNA 121 top2 RC

1210100/ 1210200

LUNA 122 top2 RC

1220100/ 1220200

307031

Digital twilight

switch

1. Basic safety information 4

2. Proper use 4

Disposal 4

3. Installation and connection5

Mounting the time switch 5

Connecting the cable 7

Disconnecting the cable 7

Connection/installation of

light sensor 8

4. Device description 10

Display & buttons 10

Operating instructions 11

Overview of navigation menu 12

Initial operation 13

5. Settings and functions 14

Set lux values 14

Set delay 15

Program switching time in

standard program 16

Program switching time in

special program 1 17

Delete switching program 19

Set Easter rule 19

Allocate sensors 20

Activating PIN code 20

Setting manual or permanent

switching 21

Set external input 22

Hour counter 23

Using the OBELISK top2

memory card 24

Resetting the twilight switch 25

6. Technical data 26

7. Contact 27

1. Basic safety information

Danger of death through electric shock or fire!

 Installation should only be carried out by a



WARNING

•The device is designed for installation on DIN top hat

rails (in accordance with EN 60715)

!OBELISK top2 memory card: Avoid mechanical overload

and contamination during storage/transportation

2. Proper use

•The digital twilight switch is used for lighting equipment

(streets), external stairways, display windows, entrances etc.

•Only for use in closed, dry rooms

!

safety equipment etc.

Disposal

Dispose of device in environmentally sound manner

3. Installation and connection

Mounting the time switch

Danger of death through electric shock or fire!

 Installation should only be carried out by a



WARNING

click

45° cable

Plug-in

screwless termi-

nal NC contact

OBELISK top2

memory card

(9070404)

Test tap

Load line connection



Switched voltage-free

Ensure device cannot be switched on

Check absence of voltage

Earth and bypass

Cover or shield any adjacent live components

Connecting the cable

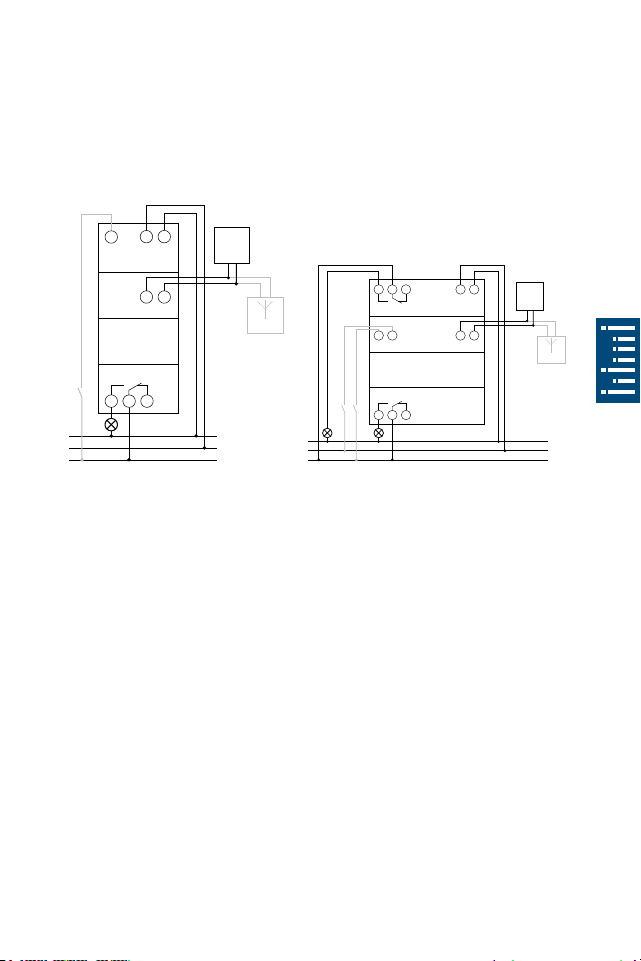

Wiring diagrams LUNA 121 top2 RC / LUNA 122

top2 RC

1 2 3

L N

Ext1

max. 100 m

Data

RC DCF

–+

Lux

max. 100 m

1 2 3

4 5 6

L N

Ext1

max. 100 m

Ext2

Data

RC DCF

–+

Lux

max. 100 m

Strip cable to 8 mm (max. 9)

Insert cable in the open DuoFix® plug-in terminal at 45°

L2 cables per terminal position possible

To open the DuoFix® plug-in terminal, press screwdriver

downwards

Disconnecting the cable

Use the screwdriver to push the load line connection

opener downwards

Connection/installation of light sensor

!Take length of connection cable into account: max. 100 m

(2 x 1.5 mm2), max. 50 m (2 x 0.75 mm2)

!Avoid running sensor wiring parallel to mains power

cables

Ensure correct polarity. Disconnect power source

Mounting light sensor 907 0 415

Mounting light sensor: 0.5-2.5 mm2, strip cable by 10 mm

(max. 11 mm)

max .o4mm

Installing light sensor 907 0 456

Installing light sensor: 0.25-1.5 mm2, strip cable by 8 mm

(max. 9 mm)

8-9 mm

max. 10 mm

Ø 5-10 mm

<9 mm Ø 20 mm

ca. 63 mm

IP 66

IP 40

4. Device description

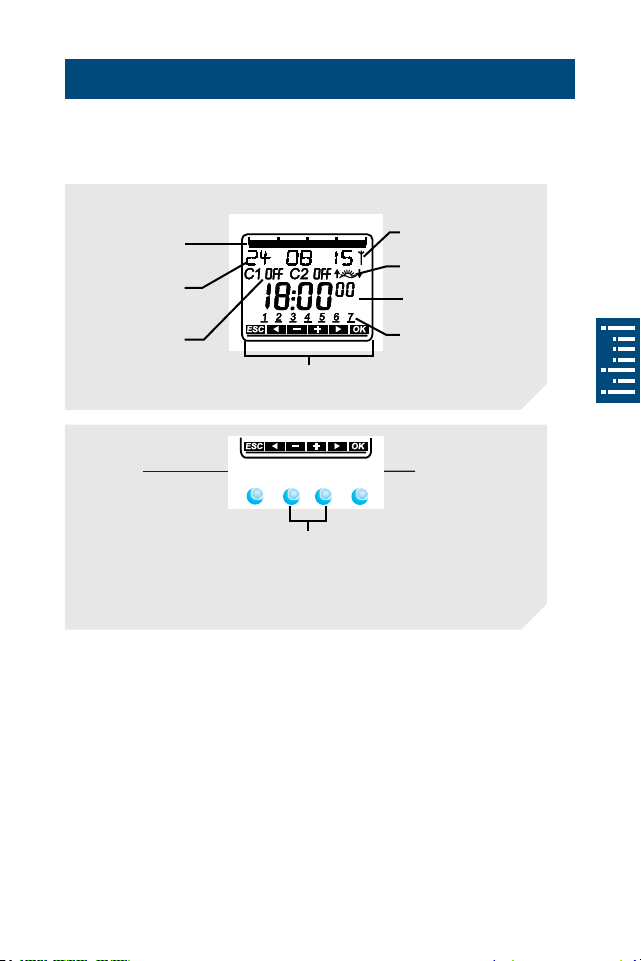

Display & buttons



MENU OK

OKMENU

0 6 12 18 24

Programmed

switching times

Date display

Channel status

C1, C2

ON = On

OFF = Off

Time display

Days of the week

from 1 to 7

Display of the active buttons

with the relevant function

–Activate display

–Open menu

–Cancel menu

–ESC

(leave menu)

–Save

selection

– Confirm

selection



Options

are displayed

Sunrise/sunset

display

DCF antenna display
