Theben TR 611 top2 RC 24 V Bedienungsanleitung
Installation and
operating instructions
Time switch
TERMINA
TR 611 top2 RC
611 0 300
309 280 01
GB
DGB F I
E NLP PL

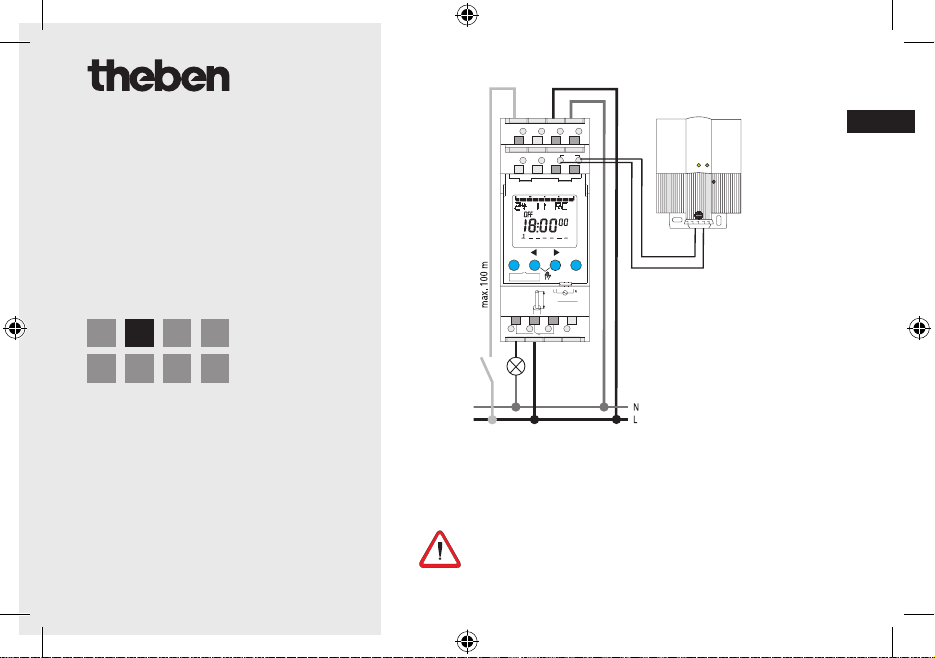

Correct connection required for smooth zero
crossing switch operation (see connection diagram)!
TERMINA 611 top2 RC
MENU OK
theben
0612 18 24
2,5mm2
0,5mm-
2
230-240V~
50-60Hz
R 10a - 30T
16(10)A 250V~
1
C1
23
8mm
Ext
RC
LN
TR 611 top2 RC
max. 100 m
Separate phases
can be connected!
Contents
Basic advice 3
Screen and keys 4
Overview of menu selection 5
Connection/installation 6
Initial start-up 7
Menu item PROGRAM
Set switching time 8
Change/delete switching time (applies also for pulse and cycle) 9
Pulse programming 10
Cycle programming 11
RESET 11
Menu item MANUAL
Manual and permanent switching 12
Menu item OPTIONS
PIN code setting 12
External output 13
OBELISK top2 memory card 13
DCF reception with top2 RC-DCF antenna 14
Technical data/Service address/Hotline 16
2
3
Basic safety instructions
• The device is designed for installation on DIN top hat rails (in accordance with EN 60715)
• Corresponds to type 1 BSTU in accordance with IEC/EN 60730-2-7
• Power reserve (10 years) is reduced if memory card is inserted (in battery operation)
Designated use
• The timer is used for lighting, ventilation, cleaning etc. applications
• Only use in enclosed dry spaces (equipment);antenna is installed in the open-air
• Do not use on safety devices, e.g. escape route doors, fire safety equipment etc.
Disposal
Dispose of equipment in an environmentally-friendly manner
Danger of death through electric shock or fire!
Installation should only be carried out by professional electrician!
WARNING
GB
4

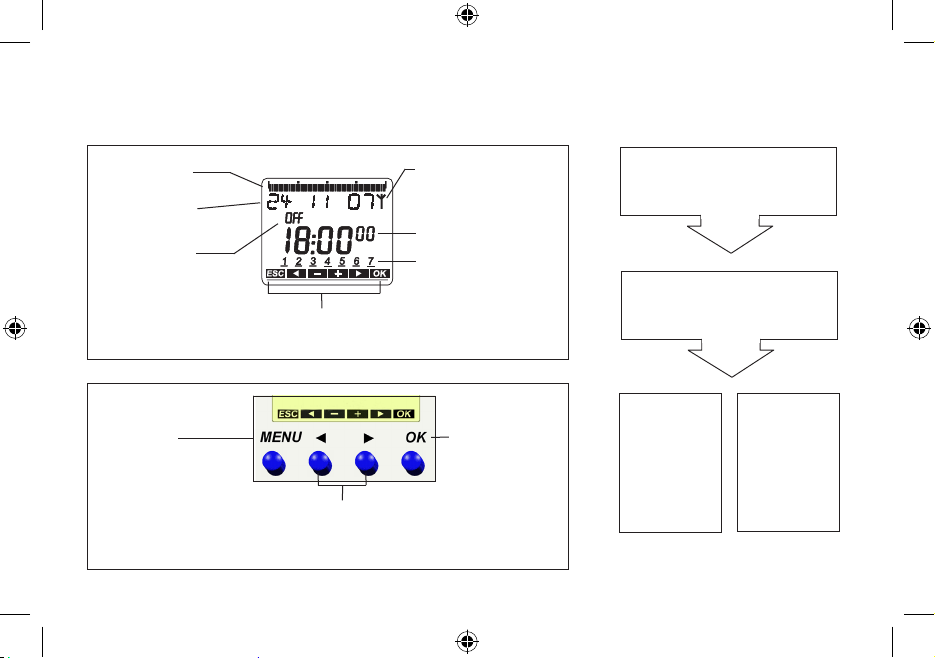

Screen display and keys Operating instructions
06
12 1 8 24
Time display
Date display
Channel status
ON = On
OFF = Off
MENU
– Activate screen
– Open menu
– Cancel menu
– ESC
(leave menu)
YES
Confirmation
Press
OK
NO
Alter/
change
Press
OK
– Store
selection
– Confirm
selection
Selection options
are displayed
Days of the week from
1 to 7
Display of active keys withrelevant
function
Programmed
switch times
bbbb
1. Read text line
Flashing text/symbol
represents query
bbbb
2. Make a decision
Display DCF antenna
connected
Overview of menu selection
19 10 RC
ON
9:4046
PROGRAM
NEW
VIEW
CHANGE
DELETE
END
MENU
TIME/DATE MANUAL OPTIONS END
TIME
DATE
SUMMER--
WINTER
DAY OF THE
WEEK
DATE
FORMAT
TIME
FORMAT
END
PERMA-
NENT ON
PERMA-
NENT OFF
MANUAL
ON
TIMER
OPERATING
HOURS METER
EXTERNAL
OUTPUT
HOLIDAY
RANDOM
END
LCD ILLUMI-
NATION
LANGUAGE
PIN
FACTORY-
SETTINGS
INFO
END
5
GB
6
Connection/installation
Connect cable
Strip cable by 8 mm (max. 9) .
Insert cable at 45° in the open terminal
(2 cables per terminal is possible).
For flexible wiring only: Press screwdriver
downwards to open spring screwless terminal.
Warning, danger of death through electric shock!
Must be installed by professional electrician!
Connect power source.
Cover or shield any adjacent live components.
Ensure device cannot be switched on!
Check power supply is disconnected!
Earth and bypass!
WARNING
45° cable
Spring screw-
less terminal
NC contact
Test tap
Spring screwless
terminal
Initial start-up
Set date, time and
summer/winter time rule
Press any key and follow on-screen
instructions (see fig.).
You can connect top2 RC-DCF antenna
(907 0 410) to synchronise the timer via DCF
signal. With correct reception, synchronisation
occurs automatically after 3 minutes.
GERMAN
DATE
FORMAT
SUMMER-WIN-
TER GB/ IRL/P
SUMMER-WINTER
FIN/ GR/TR
SUMMER-
WINTER CDN
SUMMER-WIN-
TER USA 07
SUMMER-WIN-
TER IRAN
SUMMER-
WINTER FREE
RULE
SUMMER-WINTER
FIXED DATE
WITHOUT
SUMMER-
WINTER
ok
or 19 10 07
ON
9:4046
YEAR
MONTH
DAY
TIME FORMAT
HOUR
MINUTE
SUMMER-
WINTER
EUROPE
7
GB
8
same switching time for
several days = block
Switching
time for
one day
Set switching time
Press MENU.
(see picture)
84 memory locations are available.
PROGRAM NEW SWITCHING
TIME
FREE 84
ONOn
HOUR
MINUTE
MONDAY
SAVE
COPY
PLUS
TUESDAY
SAVE
ok
ok
ok
9
Change/delete switching time
(applies also for pulse and cycle)
Press MENU.
(see fig.)
You can either change or delete a block,
i.e. a switching time copied for several days
(e.g. Mon-Fri) or a single switching time.
SWITCHING
TIME
MONDAY
CHANGE
HOUR
CHANGE
MINUTE
CHANGE
SINGLE DAY
BLOCK
CHANGE
ok
PROGRAM NEW
ok
ok
VIEW
CHANGE
DELETE.
GB
10
Pulse programming
(for pause signals, air-conditioning,
flushing etc.)
Press MENU (see picture).
FREE 84
SWITCHING
TIME
PULSE
CYCLE
ok
ok
PROGRAM
NEW
ONOn
HOUR
MINUTE
SECONDS
PULSE DURA-
TION
MINUTE
SECONDS
MONDAY
SAVE
COPY
ok
PLUS TUESDAY
SAVE
