How To

Replace the Fan Motor

in the Parlour and Gnome Pellet Stove

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

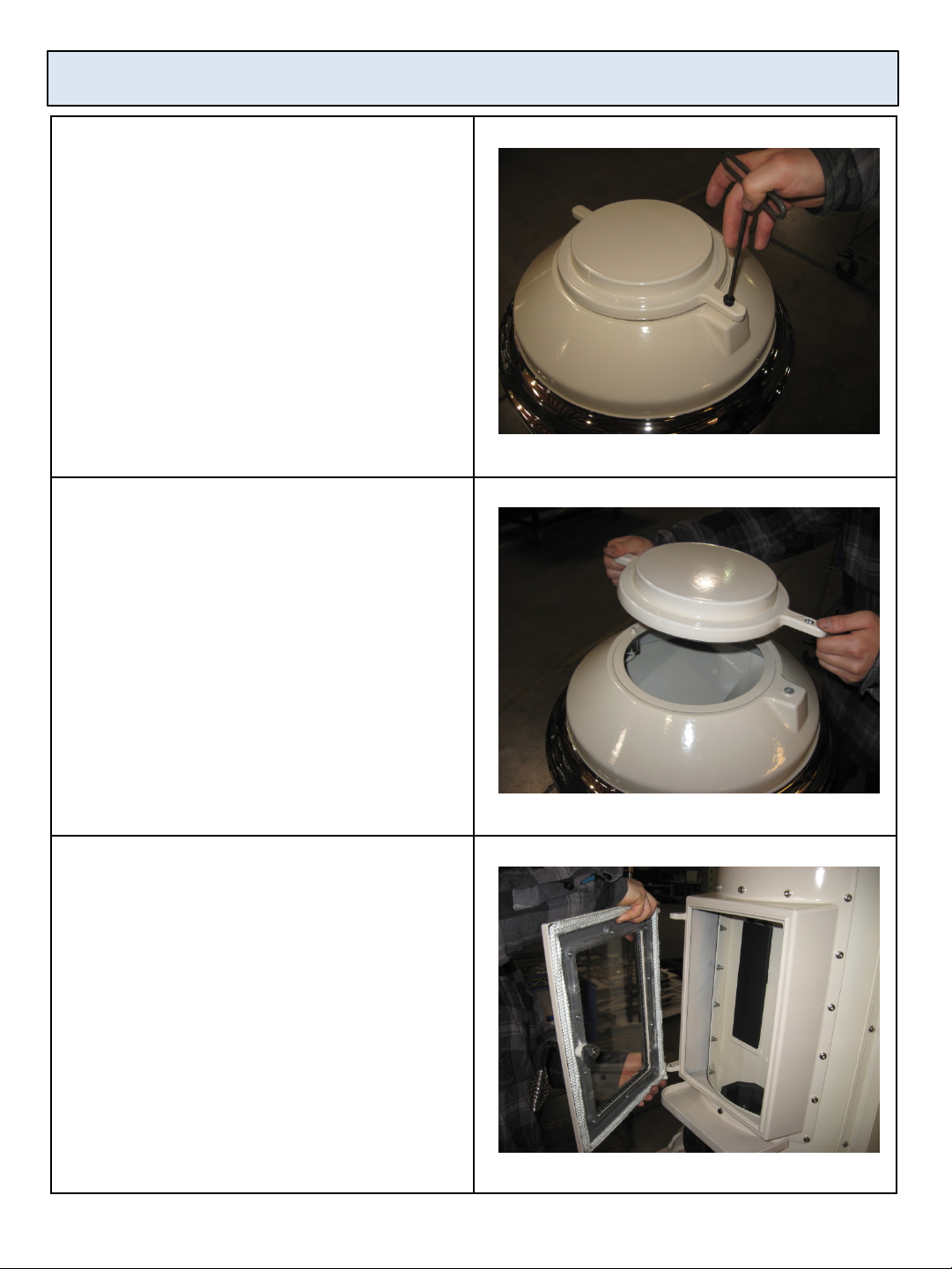

Step 1

CAUTION: Unplug power cord prior to

performing any service on stove. Ensure

stove has cooled down.

Remove pellets from Hopper.

Remove 5/16-18 shoulder bolt and aluminum

washer holding Top Lid to stove.

Step 2

Remove Top Lid from stove. Set Top Lid aside.

Step 3

Remove Front Door from stove by opening

door and gently lifting straight up. Set

aluminum washers and Front Door aside.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

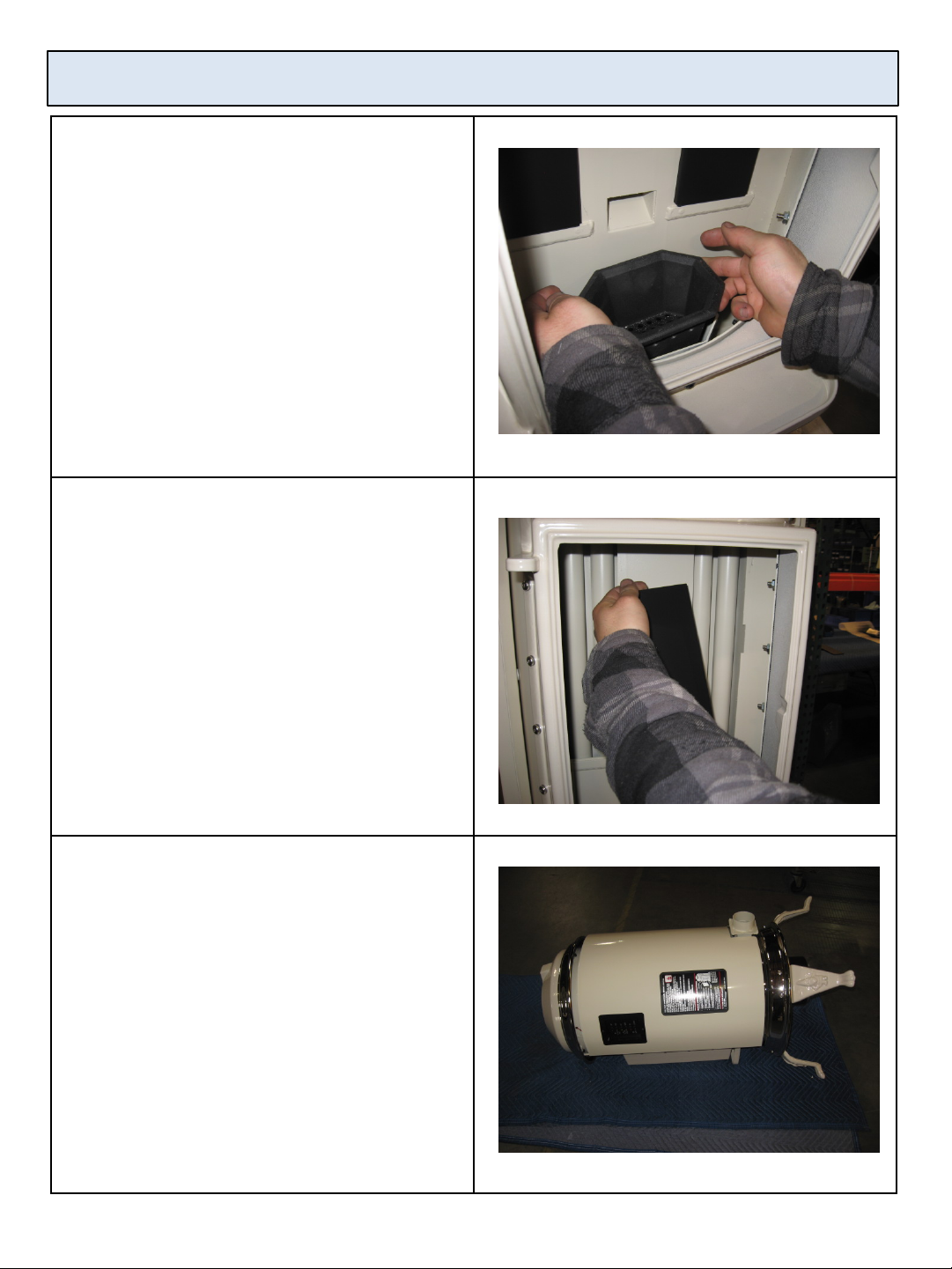

Step 4

Remove Firepot.

Step 5

Remove Clean Out Covers.

Step 6

GENTLY lay stove down on front face. Ensure

carpet, padding or blankets are under stove.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

Step 7

Rotate stove so that stove is resting on Top

Bell. Be careful not to damage the Hopper

Switch.

Step 8

Remove (4) 8-32x3/8 black philips pan head

machine screws holding Transformer to stove.

Step 9

Lift Transformer off stove.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

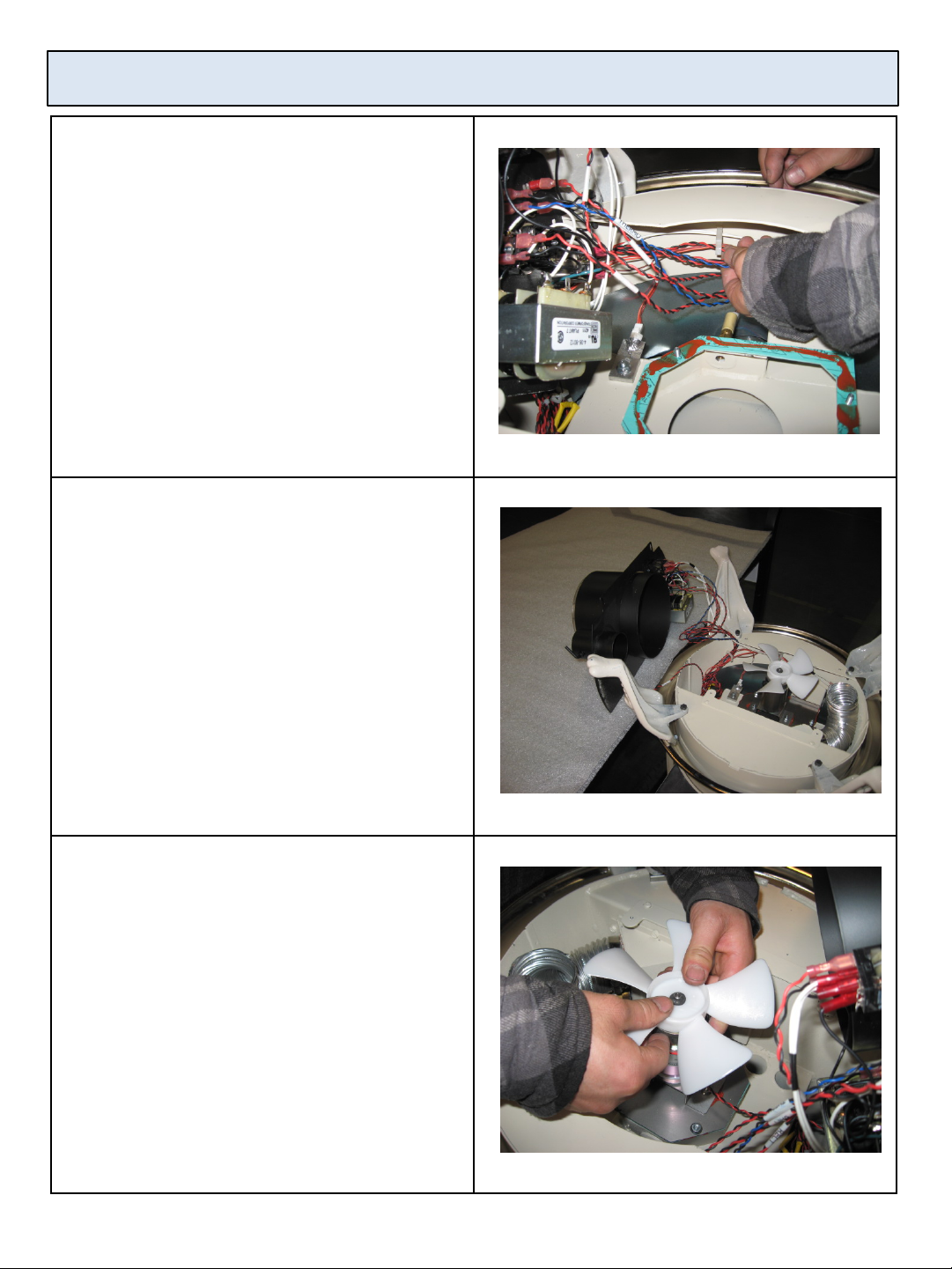

Step 10

Release Wiring Harness from wire saddle.

Step 11

Rest Transformer on cart or shelf.

Step 12

Remove Fan Blade from Fan Motor assembly.

Lock washer may need to be pried off with

knife.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

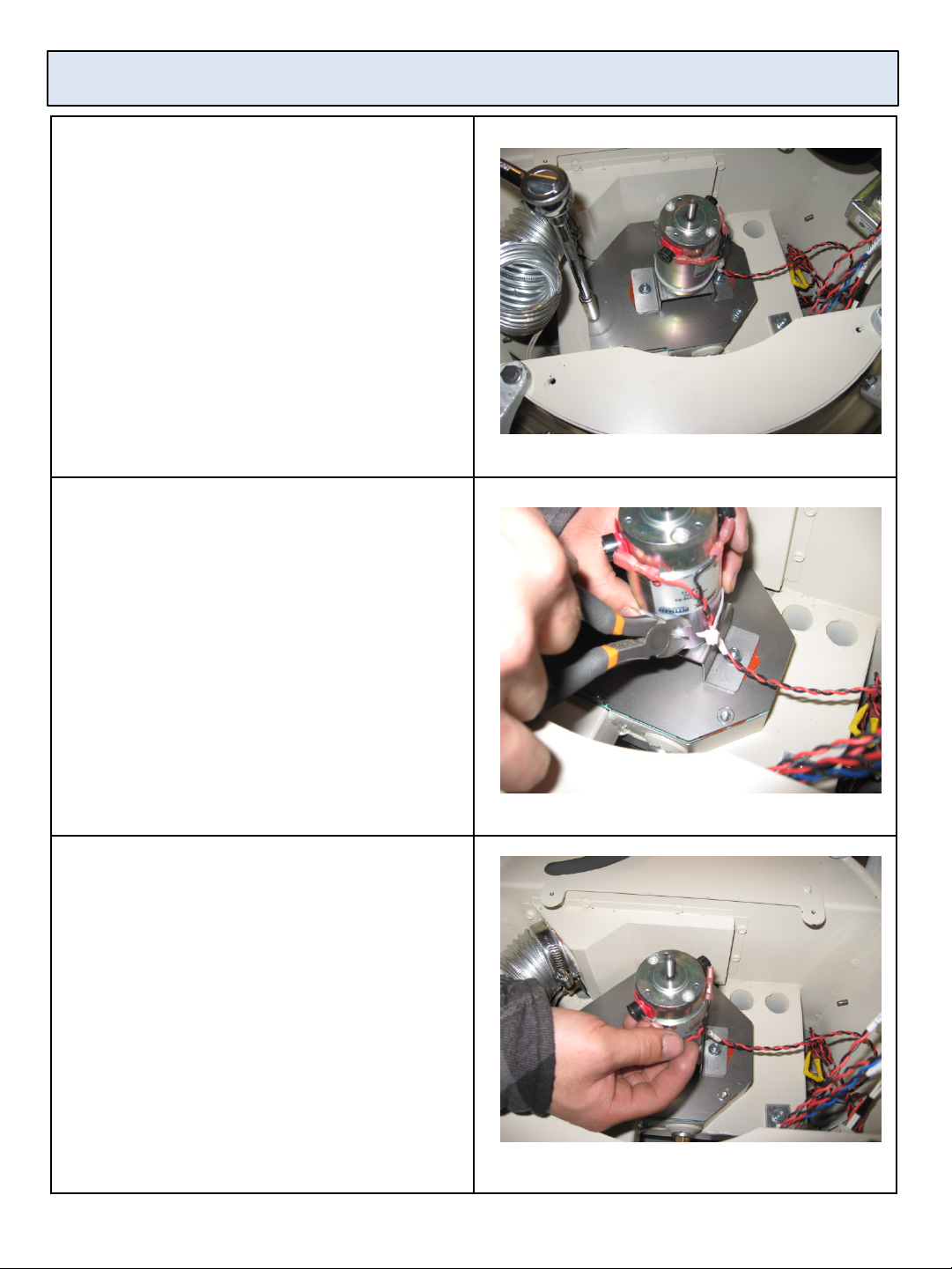

Step 13

Remove (3) 10-32 hex nuts holding Fan Motor

assembly to stove using a 3/8” socket with 6”

extension.

Step 14

Cut zip tie holding Fan Motor wires to Fan

Motor assembly.

Step 15

Unplug Fan Motor wires from Fan Motor.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

Step 16

Remove Fan Motor assembly. When removing

Fan Motor assembly the silicone seal will have

to be broken (orange sealant in photo). Gently

rocking back and forth will loosen and release

the Fan Motor assembly.

Step 17

Remove Fan Motor gasket.

Step 18

Scrape off old sealant from stove.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

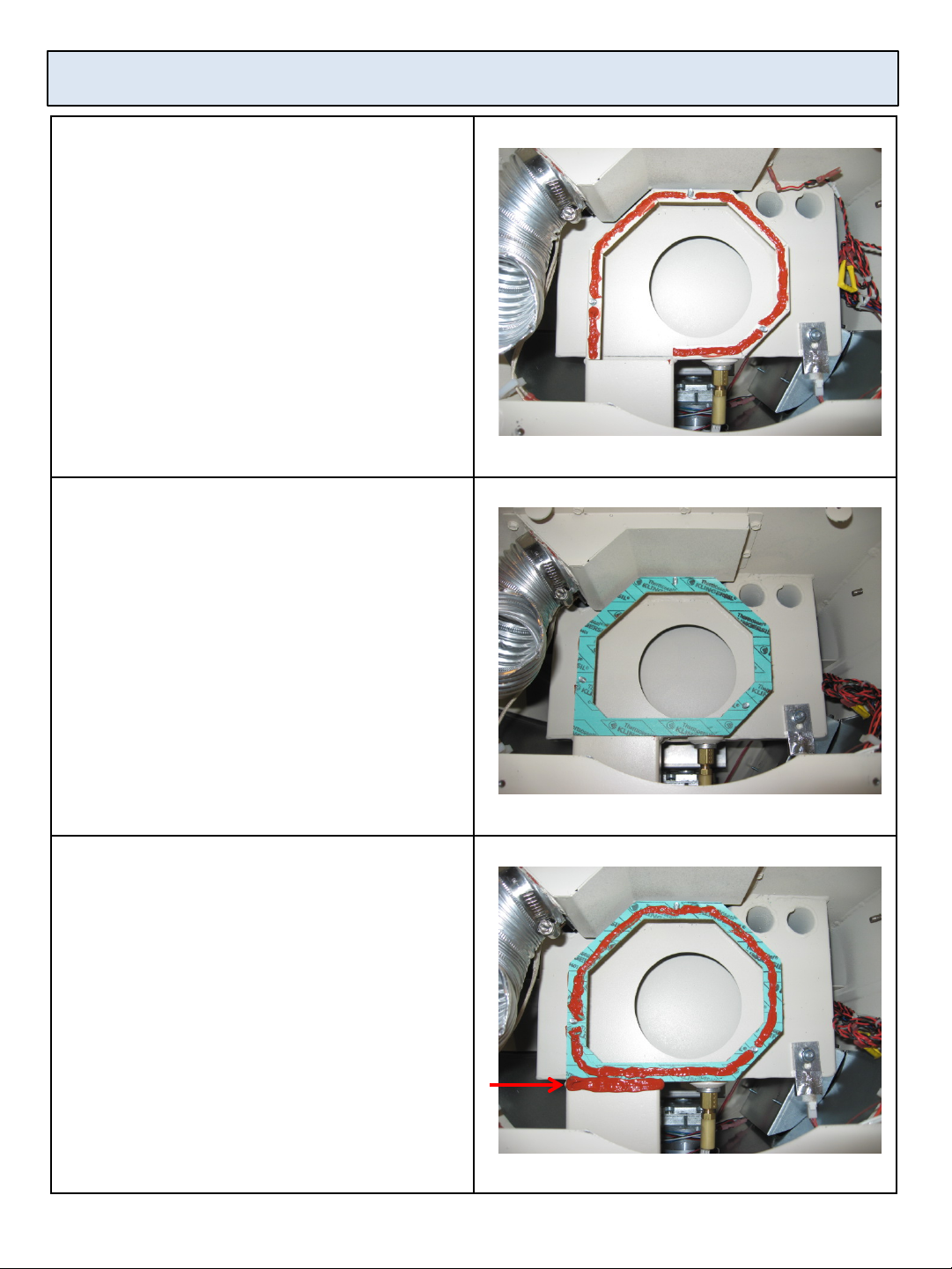

Step 19

Apply high temperature sealant around Fan

flange on stove.

Step 20

Install new gasket.

Step 21

Apply high temperature sealant on top of

gasket and where gasket meets exhaust port.

Note sealant on area between Fan and

exhaust port.

How to Replace the Fan Motor in the Parlour and Gnome Pellet Stove

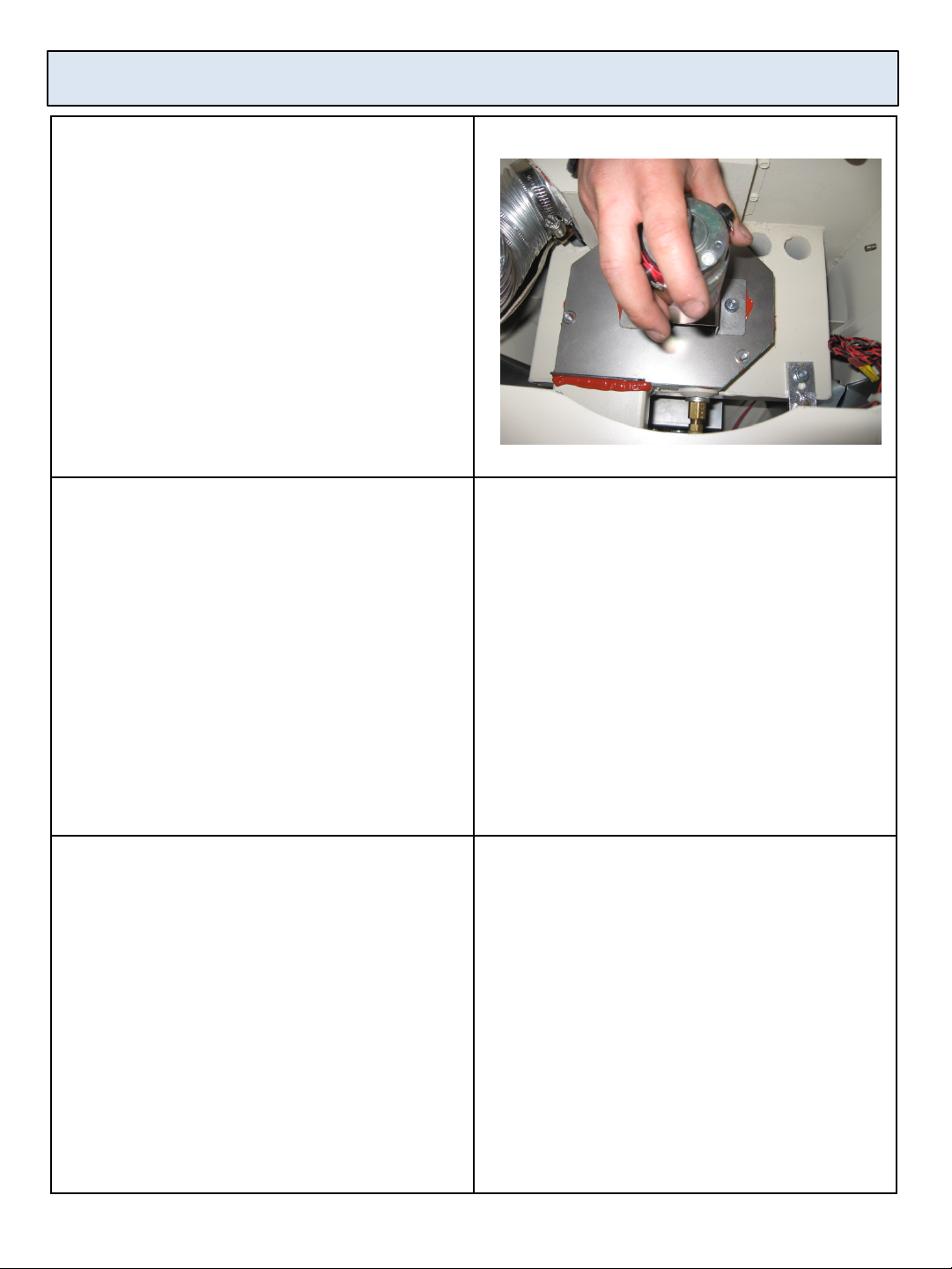

Step 22

Install Fan Motor assembly.

Reassembly is reverse of disassembly.
