User Guide

Q1000

Before using the product

About the product

This product records videos while the vehicle is operating. Use this product only for reference when

investigating incidents or road accidents. This product is not guaranteed to record for all events. The

device may not record accidents with impacts that are too minor to activate the impact sensor or accidents

with massive impacts that cause the vehicle’s battery voltage to deviate.

Video recording does not begin until the product is completely turned on (booted up). To ensure that all

vehicle events are recorded, wait until the product is completely booted up after turning it on, and then

begin operating the vehicle.

THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any

support regarding the outcome of an accident.

Depending on the vehicle’s configuration or operating conditions, such as the installation of remote door

lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different

firmware versions may influence the product’s performance or features.

About the user guide

The information provided in the guide may change when the manufacturer updates its service policy.

This user guide is intended for THINKWARE Q1000 model only, and it may contain technical errors, editorial

errors, or missing information.

Copyrights

All rights for the content and maps in this guide are reserved by THINKWARE and are protected under

written consent from THINKWARE is prohibited and is eligible for criminal charges.

Registered trademarks

THINKWARE Q1000 is a registered trademark of THINKWARE.

Other product logos and service names in this guide are trademarks of the relevant companies.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

•󳒀 Reorient or relocate the receiving antenna.

•󳒀 Increase the separation between the equipment and receiver.

•󳒀 Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•󳒀 Consult the dealer or an experienced radio/TV technician for help.

•󳒀 This appliance and its antenna must not be co-located or operation in conjunction with any other

antenna or transmitter.

•󳒀 A minimum separation distance of 20cm must be maintained between the antenna and the person

for this appliance to satisfy the RF exposure requirements.

FCC CAUTION: Any changes or modifications to the equipment not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

FCC ID: 2ADTG-Q1000

Information to user : RSS-247

This device complies with RSS-247 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20 cm between the radiator &

your body.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science

and Economic Development Canada’s licence-exempt RSS(s).

Please be cautioned the changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice: Operation is subject to the following two conditions : (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC: 12594A-Q1000

Antennas Statement

This radio transmitter (identify the device by certification number or model number if Category II)

has been approved by Industry Canada to operate with the antenna types listed below with the

maximum permissible gain indicated. Antenna types not included in this list, having a gain greater

than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Industry Canada Statement

Ce dispositif est conforme à la norme CNR-247 d’Industrie Canada applicable aux appareils radio

exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif

ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage

reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

Déclaration d’exposition aux radiations

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un

environnement non con trôlé. Cet équipement doit être installé et utilisé avec un minimum de 20

cm de distance entre la source de rayonnement et votre corps.

Antennas Statement

Le present emetteur radio (identifier le dispositif par son numero de certification ou son numero

de modele s'il fait partie du materiel de categorie II) a ete approuve par Industrie Canada pour

fonctionner avec les types d'antenne enumeres ci-dessous et ayant un gain admissible maximal.

Les types d'antenne non inclus dans cette liste, et dont le gain est superieur au gain maximal

indique, sont strictement interdits pour l'exploitation de l'emetteur.

Contents

Safety information 5

1. Product overview 8

1.1 Included items 8

1.1.1 Standarditems 8

1.1.2 Accessories(soldseparately) 8

1.2 Part names 9

1.2.1 Frontcamera(mainunit)-frontview 9

1.2.2Frontcamera(mainunit)-rearview 10

1.2.3Rearcamera(optional) 11

1.3 Removing and inserting the memory card 11

2. Installing the product 12

2.1 Installing the front camera (main unit) 12

2.1.1 Selectinganinstallationlocation 12

2.1.2Securingtheproduct 12

2.1.3Connectingthepowercable 14

2.2 Installing the rear camera (optional) 15

2.2.1Selectinganinstallationlocation 15

2.2.2Securingtherearcamera 16

2.2.3Connectingtherearcameracable 17

2.3 Installing the RADAR module (optional) 17

3. Using recording features 19

3.1 Turning the product on or off 19

3.2 Learning about the file storage locations 19

3.3 Using the continuous recording feature 19

3.4 Recording manually 20

3.5 Using the SOS recording feature 20

3.6 Using parking mode 21

3.7 Using the Ultra night vision feature 23

3.8 Using the road safety features 23

4. Using the mobile viewer 24

4.1 Connect the product to a smartphone 24

4.2 Viewing the mobile viewer screen layout 24

5. Using THINKWARE CONNECTED 25

5.1 Connecting the product to THINKWARE

CONNECTED 25

6. Using the PC viewer 26

6.1 System requirements 26

6.2 Learning about the PC viewer 26

6.2.1InstallingthePCviewer 26

6.2.2PCviewerscreenlayout(forWindows) 27

6.2.3PlayingrecordedvideosonthePC

viewer(forWindows) 28

6.2.4PCviewerscreenlayout(forMac) 29

6.2.5PlayingrecordedvideosonthePC

viewer(forMac) 30

7. Settings 31

7.1 Managing the memory card 31

7.2 Setting the Camera 31

7.3 Setting recording features 32

7.4 Setting road safety features 33

7.5 Configuring the system settings 33

8. Accessing the product information 34

8.1 Viewing the product information 34

8.2 Accessing and configuring the GPS 34

9. Upgrading the firmware 35

10. Troubleshooting 36

11. Specifications 37

Safety information

Read the following safety information to properly use the product.

Safety symbols in this guide

"Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death.

"Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage.

"Note" - Provides useful information to help users better utilize the product’s features.

Safety information for proper use

Driving and product operation

•󳒀 Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and

result in injury or death.

•󳒀 Install the product in places where the driver’s view is not obstructed. Obstruction of the driver’s vision

may cause accidents and result in injury or death. Check with your state and municipal laws before

mounting the product to the windshield.

Power supply

•󳒀 Do not operate or handle the power cable with wet hands. Doing so may result in electrocution.

•󳒀 Do not use damaged power cables. Doing so may result in electrical fire or electrocution.

•󳒀 Keep the power cable away from all heat sources. Failure to do so may cause the power cord insulation to

melt, resulting in electrical fire or electrocution.

•󳒀 Use the power cable with the correct connector and make sure the power cable is connected securely

and is firmly in place. Failure to do so may result in electrical fire or electrocution.

•󳒀 Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert,

or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution.

•󳒀 Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does

not guarantee compatibility and normal operation of third-party accessories.

•󳒀 When connecting the power cable to the product, ensure that the connection between the cable plug

and the power cable connector on the product is secure. If the connection is loose, the power cable may

become disconnected due to vehicle vibration. Video recording is not available if the power connector is

disconnected.

Children and pets

Ensure that the product is out of the reach of children and pets. If the product breaks, it may result in fatal

damage.

Other information about the product

Product management and operation

•󳒀 Do not separate the product and the mount when the product is turned on. Doing so may result in product

malfunction.

•󳒀 Do not expose the product to direct sunlight or intense light. The lens or internal circuitry may fail

otherwise.

•󳒀 Use the product at a temperature between 14°F and 140°F (-10°C to 60°C) and store the product at a

temperature between -4°F and 158°F (-20°C to 70°C). The product may not function as designed and some

permanent physical damages may result if it is operated or stored out of the specified temperature ranges.

Such damages are not covered by the warranty.

•󳒀 Frequently check the product for the proper installation position. Impact caused by extreme road

conditions may alter the installation position. Ensure that the product is positioned as instructed in this

guide.

•󳒀 Do not apply excessive force when pressing the buttons. Doing so may damage the buttons.

•󳒀 Do not use chemical cleaners or solvents to clean the product. Doing so may damage plastic components

of the product. Clean the product using a clean, soft, and dry fabric.

•󳒀 Do not disassemble the product or subject the product to impact. Doing so may damage the product.

Unauthorized disassembly of the product voids the product warranty.

•󳒀 Handle with care. If you drop, mishandle, or expose the product to external shocks, it may cause damage

and/or result in the malfunction of the product.

•󳒀 Do not attempt to insert foreign objects into the device. Doing so may damage the product.

•󳒀 Avoid excessive humidity and do not allow any water to enter the product. Electronic components inside

the product may fail if exposed to humidity or water.

•󳒀 Depending on the make and model of your car, the power may be constantly supplied to the dash cam

even when the ignition is turned off. Installation of the device to a continuously powered 12V outlet could

result in vehicle battery drainage.

•󳒀 This device is designed to record video while the vehicle is in operation. The quality of the video might be

affected by weather conditions and the road environment, such as whether it is day or night, presence of

street lighting, entering/exiting tunnels, and the surrounding temperature.

•󳒀 THINKWARE is NOT responsible for the loss of any recorded video during operation.

•󳒀 Although the device was designed to withstand high-impact car collisions, THINKWARE does not

guarantee the recording of accidents when the device is damaged as a result of the accident.

•󳒀 Keep the windshield and camera lens clean for optimal video quality. Particles and substances on the

camera lens or windshield may reduce the quality of the recorded videos.

•󳒀 This device is intended to be used inside the vehicle only.

1.󳒀 Product overview

1.1󳒀 Included items

Ensure that all the items are included when you open the product box.

1.1.1󳒀 Standard items

Front camera (main unit) Mount Shield film

Car charger Adhesive cable holder MicroSD memory card with adapter

(consumable)

Warranty / CS information

The standard items may change without prior notice.

1.1.2󳒀 Accessories (sold separately)

ACC

BATTERY

GND

Rear camera Rear camera cable Hardwiring cable RADAR module

Product overview

1.2󳒀 Part names

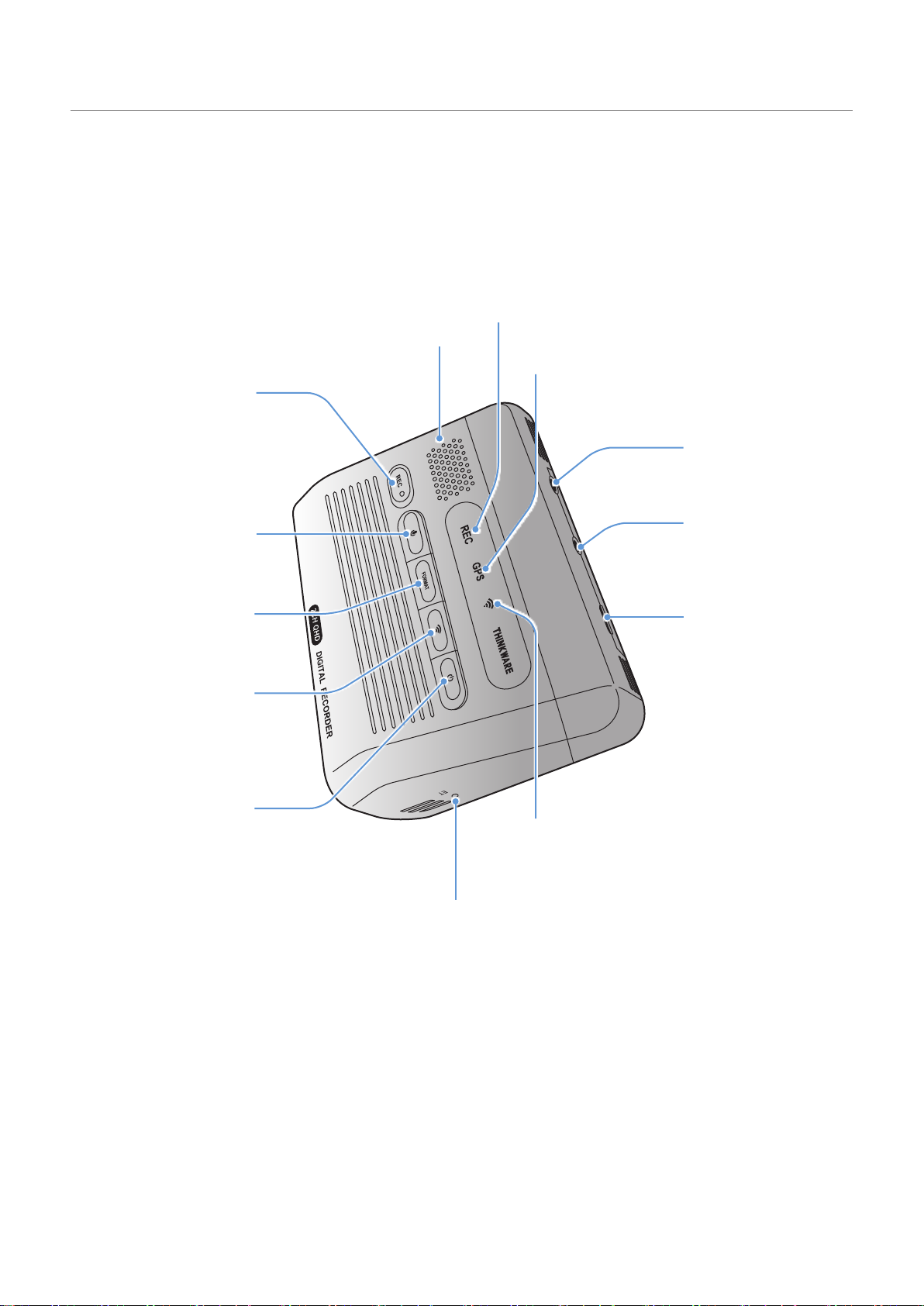

1.2.1󳒀 Front camera (main unit) - front view

RESET

DC-IN power port

Used to connect the

power cable.

RADAR port

Used to connect

the RADAR module

(optional).

V-IN input port

Used to connect the

rear camera (optional).

Connection LED

Indicates the Wi-Fi and Bluetooth connection

status.

Speaker

Outputs the voice guide and buzzer sounds to indicate

the product’s status.

REC LED

Indicates the recording status.

GPS LED

Indicates the GPS connection status.

Manual recording button

•󳒀 Press to start manual

recording.

•󳒀 Press and hold for

3 seconds for SOS

recording.

Voice recording button

Press to enable or disable

voice recording.

Format button

Press and hold to format

the memory card.

Connection button

Press to connect the

product to a smartphone

via Bluetooth or Wi-Fi

network.

Power button

•󳒀 Press and hold to turn off

the product.

•󳒀 Press to turn on the

product.

Reset button

Insert the tip of a sharp object to reset the product when

an error occurs.

Inhaltsverzeichnis

Andere Thinkware Dashcam Handbücher

Thinkware

Thinkware X550 Bedienungsanleitung

Thinkware

Thinkware VHL3Z-19G490-C Bedienungsanleitung

Thinkware

Thinkware QA100 Bedienungsanleitung

Thinkware

Thinkware FW10 Bedienungsanleitung

Thinkware

Thinkware F790 Bedienungsanleitung

Thinkware

Thinkware F70 PRO Bedienungsanleitung

Thinkware

Thinkware FA10 Bedienungsanleitung

Thinkware

Thinkware Z3000Plus Bedienungsanleitung

Thinkware

Thinkware X330 Bedienungsanleitung

Thinkware

Thinkware DC-U1-FG Bedienungsanleitung

Thinkware

Thinkware F70 Bedienungsanleitung

Thinkware

Thinkware Q850 Bedienungsanleitung

Thinkware

Thinkware DC-M1-FG Bedienungsanleitung

Thinkware

Thinkware T700 Bedienungsanleitung

Thinkware

Thinkware Q800 PRO Bedienungsanleitung

Thinkware

Thinkware iNAVI BLACK Clair2 Bedienungsanleitung

Thinkware

Thinkware X700 Bedienungsanleitung

Thinkware

Thinkware Q800 PRO Bedienungsanleitung

Thinkware

Thinkware F750 Bedienungsanleitung

Thinkware

Thinkware X350 Bedienungsanleitung

Thinkware

Thinkware DC-H1-FG Bedienungsanleitung

Thinkware

Thinkware QXD5000 Bedienungsanleitung

Thinkware

Thinkware DASH CAM F200 PRO Bedienungsanleitung

Thinkware

Thinkware X150 Bedienungsanleitung

Beliebte Dashcam Handbücher anderer Marken

Cansonic

Cansonic UltraDuo Z2 Bedienungsanleitung

Gazer

Gazer F720 Bedienungsanleitung

HP f500g Bedienungsanleitung

Xblitz

Xblitz TANGO 4K Bedienungsanleitung

Rexing

Rexing M1 Bedienungsanleitung

Maka Technologies

Maka Technologies Marbella MXPro Bedienungsanleitung

NESA

NESA NRC-80DLM Montage- und Bedienungsanleitung

Kaiser Baas

Kaiser Baas R20 Bedienungsanleitung

Boyo

Boyo VTM43TC Bedienungsanleitung

Minolta

Minolta MNCD37 Bedienungsanleitung

Momento

Momento MD-5200 Bedienungsanleitung

BlackVue

BlackVue DR590X-1CH Bedienungsanleitung

HP F300 Bedienungsanleitung

CammSys

CammSys BlackSys BH-300 Bedienungsanleitung

Snooper

Snooper DVR-2HD Bedienungsanleitung

Lukas

Lukas Q900 Bedienungsanleitung

RVS

RVS 450C Bedienungsanleitung

BlackVue

BlackVue 750G PRO Referenzhandbuch
