thomann t.akustik Isolation Booth Bedienungsanleitung

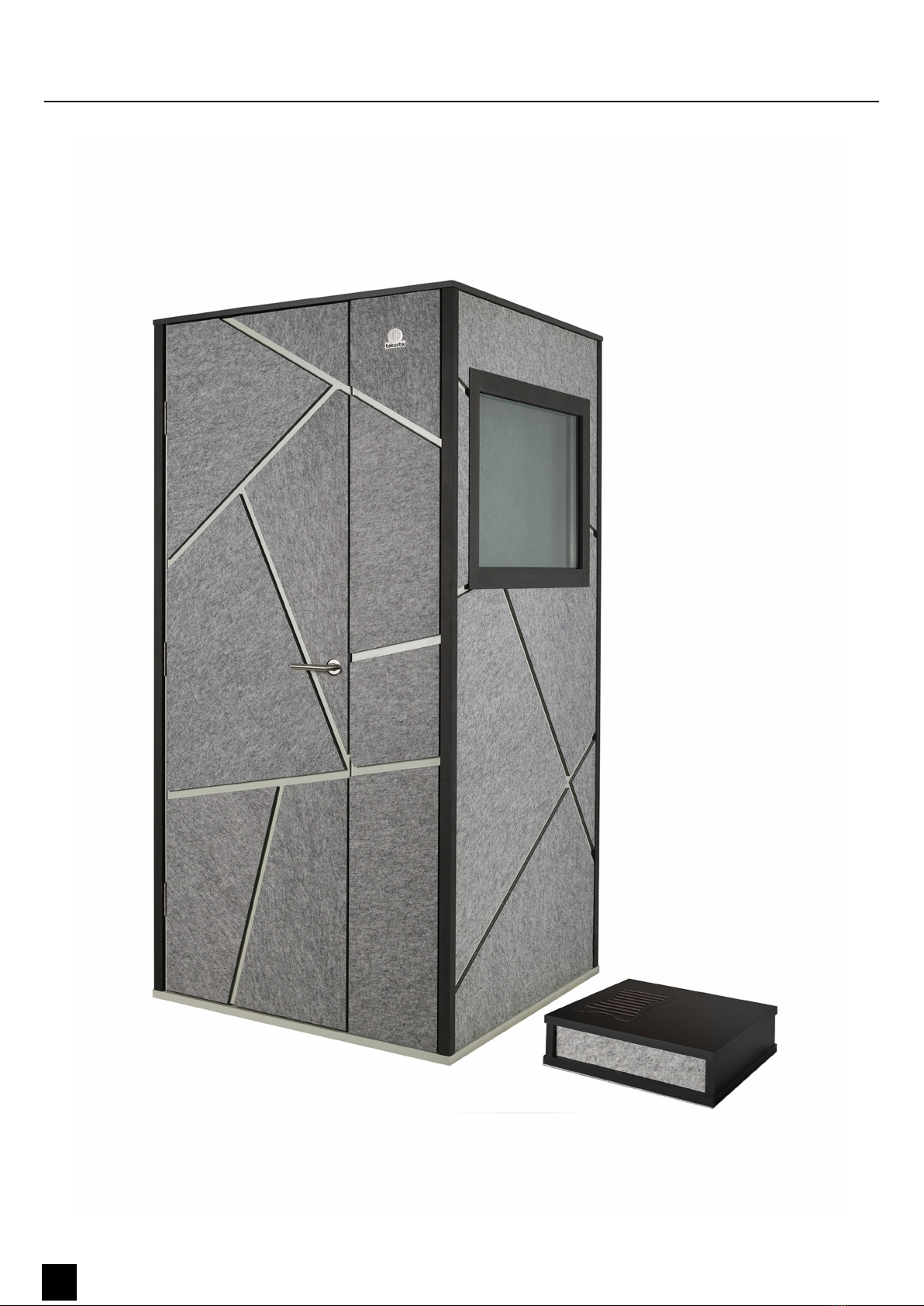

Isolation Booth
Portable Vocal and Singing Booth
Assembly Instructions
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
Internet: www.thomann.de
19.01.2024, ID: 563668, 564133 (V2)
Table of contents
1 General information....................................................................................................................................................................................................... 5
1.1 Symbols and signal words.................................................................................................................................................................................... 5
2 Safety instructions.......................................................................................................................................................................................................... 6
3 Features................................................................................................................................................................................................................................ 7
4 Scope of delivery.............................................................................................................................................................................................................. 8
5 Installation.......................................................................................................................................................................................................................... 9
6 Technical specications............................................................................................................................................................................................. 24
7 Protecting the environment.................................................................................................................................................................................... 25
Table of contents
Isolation Booth 3
Portable Vocal and Singing Booth
4Isolation Booth
Portable Vocal and Singing Booth
1 General information
This document contains important instructions for the safe operation of the product. Read and follow the safety instructions and
all other instructions. Keep the document for future reference. Make sure that it is available to all those using the product. If you
sell the product to another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They are therefore subject to change.
Please refer to the latest version of the documentation, which is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are used in this document.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an immediate dangerous sit‐
uation that will result in death or serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a possible dangerous situa‐
tion that can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a possible dangerous situa‐
tion that can result in material and environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
Isolation Booth 5
Portable Vocal and Singing Booth
2 Safety instructions
Intended use
Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sucient physical, sensorial, and intellectual abilities and having corresponding
knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is
responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow chil‐
dren to play with the packaging material and the device. Always store packaging material out of the reach of babies and small children.
Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervision. Keep small
parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with.
DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Do not modify the mains cable or the plug! In case of isolation damage, discon‐
nect immediately the power supply and arrange repair. If in doubt, seek advice from a qualied electrician.
CAUTION!
Risk of cuts to the hands from sharp edges during assembly!
Tools, screws and components can have sharp edges that can cause cuts during assembly. Pay attention to sharp edges when assembling
and screwing the individual parts. Wear protective gloves if necessary.
CAUTION!
Risk of injury due to heavy weight!
The device is heavy. Lifting and dropping it during transport and installation can cause injuries. Make sure at least two people work
together when transporting and installing the device.
NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient condi‐
tions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sunlight, heavy
dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uctuations cannot be
avoided (for example after transport in low outside temperatures), do not switch on the device immediately. Never subject the device to
liquids or moisture. Never move the device to another location while it is in operation. In environments with increased dirt levels (for
example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at regular intervals to prevent damage due
to overheating and other malfunctions.
Safety instructions
6Isolation Booth
Portable Vocal and Singing Booth
3 Features
nReduction in volume: approx. 27 dB
nPassive ventilation
nSoundproof window module made from double-layer insulation glass
nLockable door with handle
n3 holes for cable feedthrough
nInside shelves
nThread for assembling a microphone arm
nRechargeable USB LED lamp
nWall elements made from MDF elements of dierent thickness
nPET polyester insulating panels of dierent thickness for magnetic assembly
Isolation Booth Fan Module active ventilation module (available as an option, item no. 564133)
nAir exchange: approx. 40 m³
nFull air exchange: 20 × per hour
nSilent fan
nEasy to assemble by placing on the roof element
nIncludes power cable with plug
Features
Isolation Booth 7
Portable Vocal and Singing Booth
4 Scope of delivery
A shipping company will deliver the individual parts to the kerbside on a double pallet.
Before you assemble the portable vocal and singing booth, make sure the contents of package is complete according to the fol‐
lowing list.
n1 × oor panel, 2 × 25-mm MDF, melamine-coated
n1 × right side panel with window module (noise-insulating double-layer insulation glass), 25-mm MDF, melamine-coated
n1 × left side panel, 25-mm MDF, melamine-coated
n1 × rear panel with 3 holes for cable feedthrough and a thread for attaching a microphone arm, 25-mm MDF, melamine-
coated
n1 × lockable door with handle, 25-mm MDF, melamine-coated
n2 × panels for door front, 25-mm MDF, melamine-coated
n2 × shelves, one with a hole for cable feedthrough
n1 × ceiling element with air vent, 18-mm MDF, melamine-coated
n15 × screws
n58 × connecting bolts
n37 × connector housings
n59 × wooden dowels
n1 × foam lter
n1 × carpet
nPET polyester panels for exterior insulation, 12 mm, magnetic assembly
nPET polyester panels for interior insulation, 12.25 mm and 40 mm, magnetic assembly
n1 × rechargeable USB LED lamp
Optional ventilation system
n1 × ventilation element with connecting cable and plug
n4 × wooden dowels
Scope of delivery
8Isolation Booth
Portable Vocal and Singing Booth
5 Installation
CAUTION!
Risk of injury due to heavy weight!
The device is heavy. Lifting and dropping it during transport and installation can cause injuries.
Make sure at least two people work together when transporting and installing the device.
Place all components on a suitable mounting surface for mounting. Use a soft pad in order to avoid damage to the surfaces.

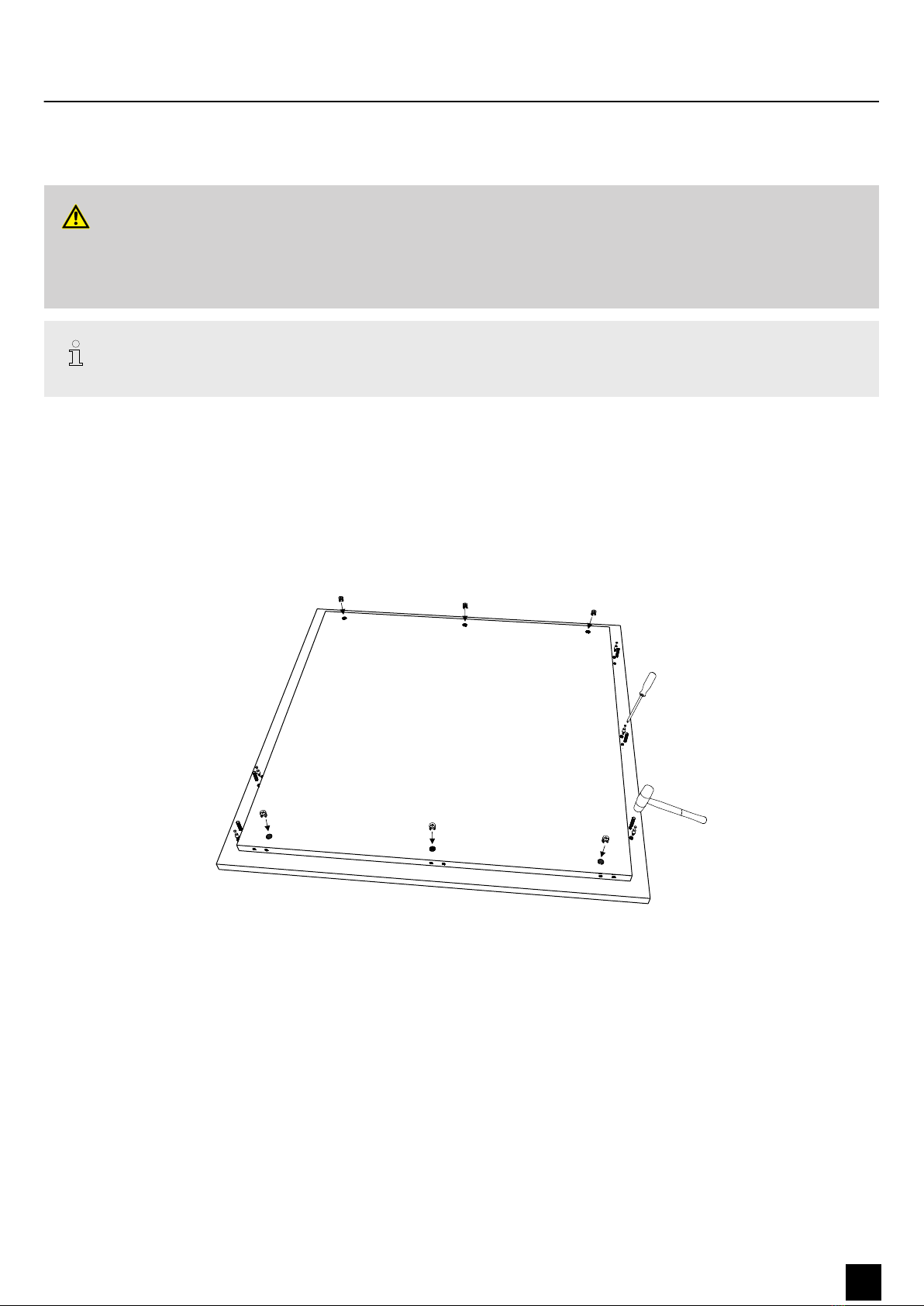

Preparing the oor panel
Attach the connector bolts, the wooden dowels and the connector housings to the oor panel as shown.
Installation
Isolation Booth 9
Portable Vocal and Singing Booth

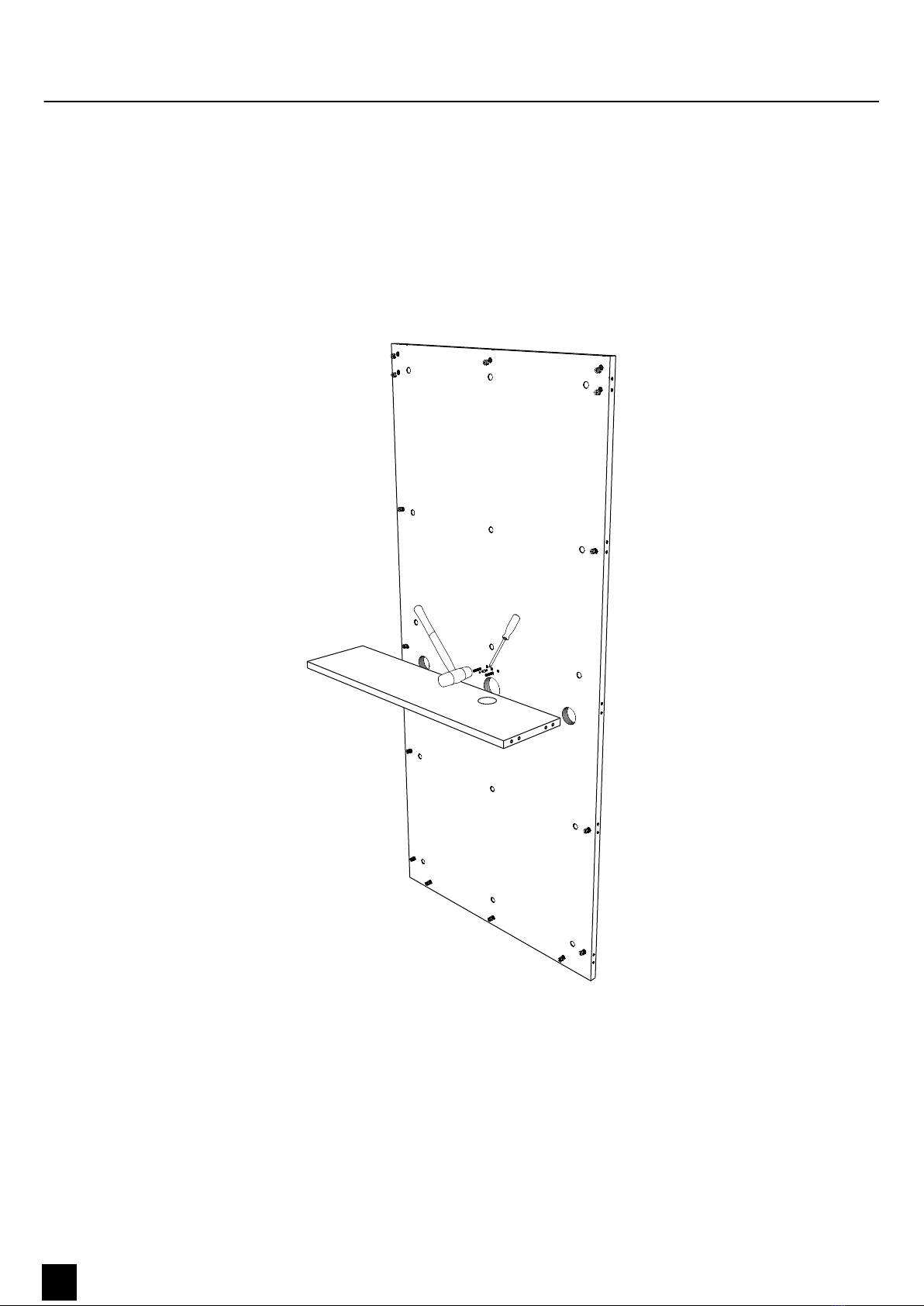

Preparing the back panel
Attach the connector bolts, the wooden dowels and the connector housing to the back panel as shown and position the shelf
with the hole for cable feedthrough correctly on the wooden dowels.
Installation
10 Isolation Booth
Portable Vocal and Singing Booth
