Thomann Thon Studio DJ Table 1500 Bedienungsanleitung

Thon DJ Table 1500

studio desk

assembly instructions

Musikhaus Thomann

Thomann GmbH

Hans-Thomann-Straße 1

96138 Burgebrach

Germany

Telephone: +49 (0) 9546 9223-0

E-mail: [email protected]

Internet: www.thomann.de

15.11.2021, ID: 503688, 503689

Table of contents

1 Safety instructions.......................................................................................................................................................................................................... 4

2 Scope of delivery.............................................................................................................................................................................................................. 5

3 Installation.......................................................................................................................................................................................................................... 6

4 Technical specications............................................................................................................................................................................................. 12

5 Protecting the environment.................................................................................................................................................................................... 13

Table of contents

Thon DJ Table 1500

1 Safety instructions

DANGER!

Danger for children

Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children.

Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces

and choke!

Never let children play unattended with the product.

CAUTION!

Risk of injury due to heavy weight

Due to the heavy weight of the studio desk, at least two persons are required for transport and assembly.

CAUTION!

Risk of injury to the hands

When assembling and screwing the individual parts, pay attention to sharp edges on tools, screws and components.

Safety instructions

studio desk

2 Scope of delivery

Before you assemble the studio desk, make sure the contents of package is complete according to the following list.

Thon DJ Table 1500

n2 × side panel, 19 mm FPY chipboard

n1 × upper rear wall, 19 mm FPY chipboard

n1 × lower rear wall, 19 mm FPY chipboard

n1 × table top, 19 mm FPY chipboard

n1 × front panel, 19 mm FPY chipboard

n28 × wooden dowel

n37 × connector housing

n37 × connector bolts

n1 × cable feed-through

n1 × assembly instruction

Scope of delivery

Thon DJ Table 1500

3 Installation

Place all components on a suitable mounting surface for mounting. Use a soft padding to prevent damages to the surfaces.

Overview

The following gure shows an overview of the individual components.

ö $

AB C

1 Right side panel 6 Lower rear wall

2 Left side panel A Connector bolt

3 Upper rear wall B Connector housing

4 Table top C Wooden dowel

5 Front panel D Cable feed-through

Installation

studio desk

Preparing the components

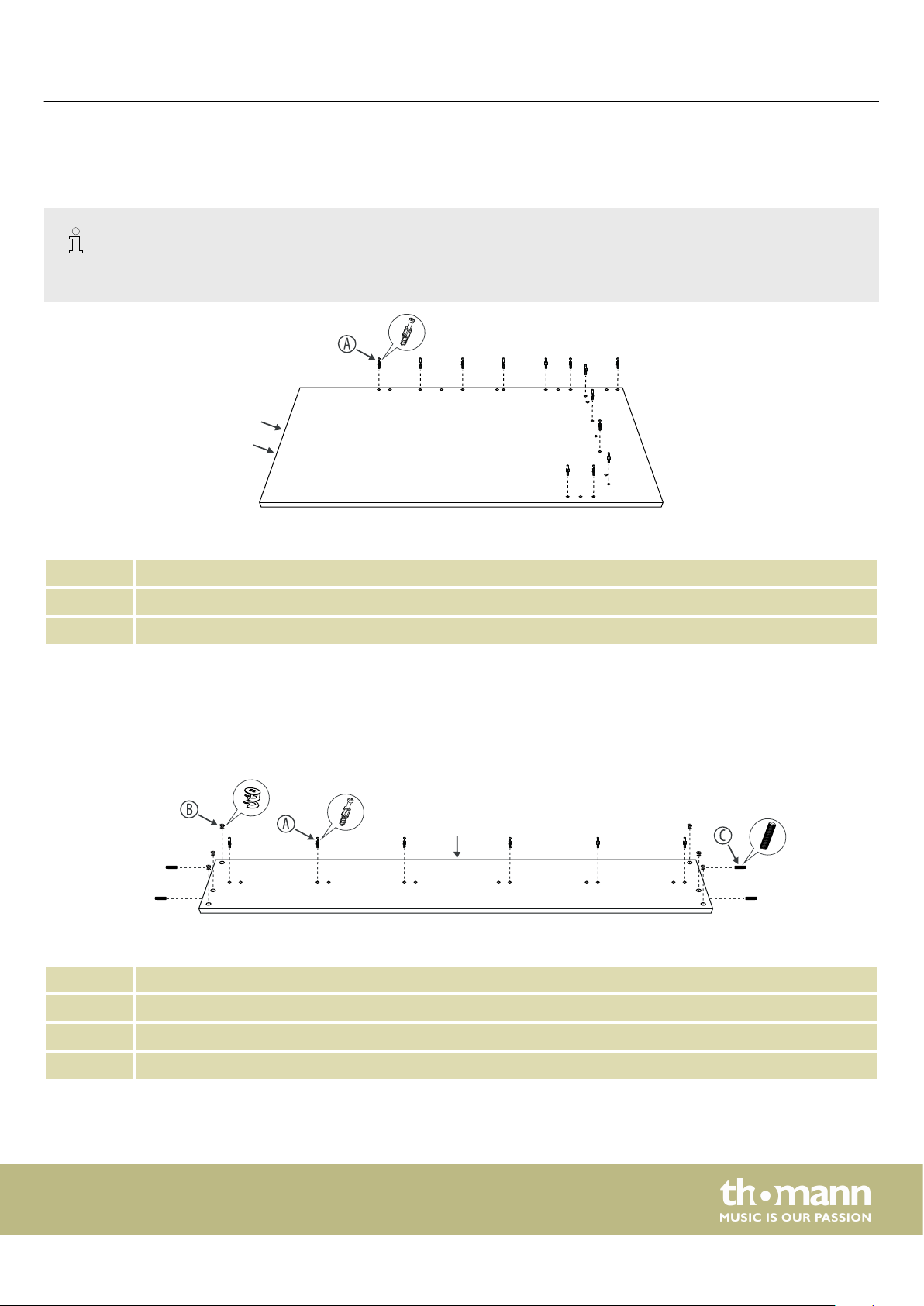

Insert the connecting bolts into the holes provided in the side panels (13 × connecting bolts each).

After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associ‐

ated component are tightened.

1 Right side panel

2 Left side panel

A Connector bolt

Place the connector housings, the connecting bolts and the wooden dowels into the holes provided in the upper rear wall

(6 × connection bolts, 6 × connector housing, 4 × wooden dowel).

Position all connector housings so that the respective connecting bolts can be completely sunk into the holes and the arrow posi‐

tion of the connector housings points towards the hole.

3 Upper rear wall

A Connector bolt

B Connector housing

C Wooden dowel

Installation

Thon DJ Table 1500

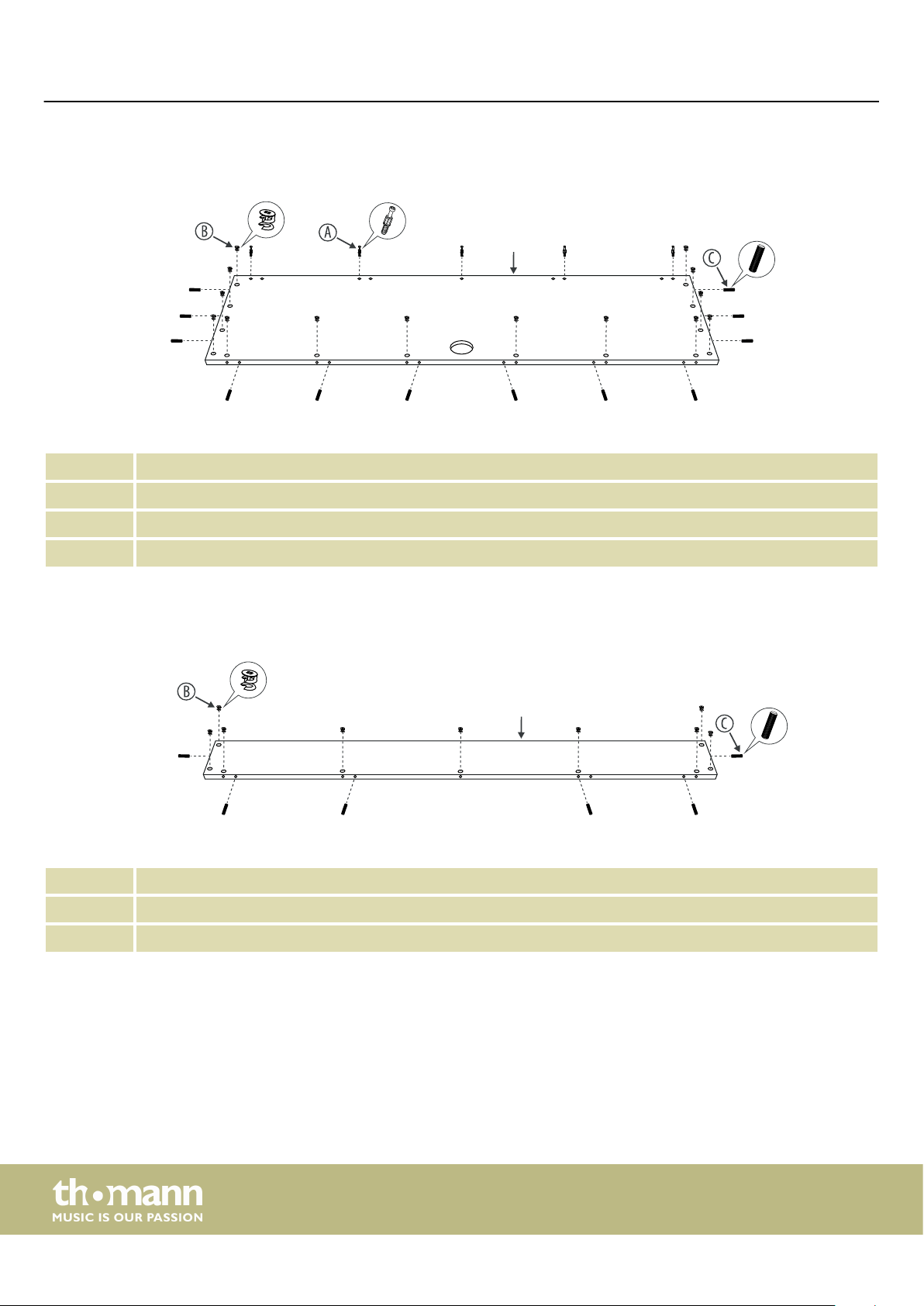

Place the connector housings, the connecting bolts and the wooden dowels into the holes provided in the table top

(5 × connection bolts, 14 × connector housing, 12 × wooden dowel).

4 Table top

A Connector bolt

B Connector housing

C Wooden dowel

Place the connector housings and the wooden dowels into the holes provided in the front panel (9 × connector housing, 6 ×

wooden dowel).

5 Front panel

B Connector housing

C Wooden dowel

Installation

studio desk

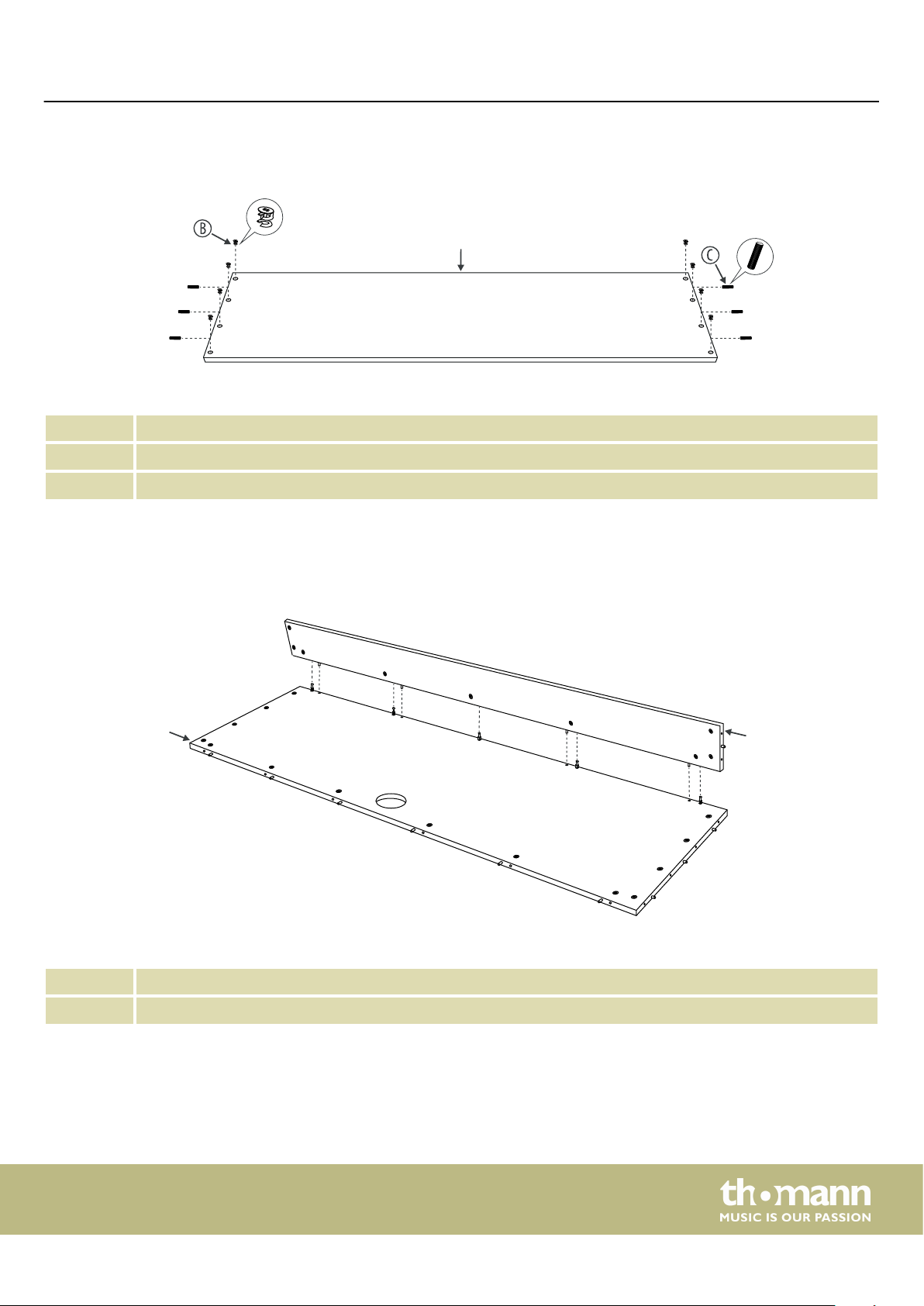

Place the connector housings and the wooden dowels into the holes provided in the lower rear wall (8 × connector housing, 6 ×

wooden dowel).

6 Lower rear wall

B Connector housing

C Wooden dowel

Assembling the components

Put the front panel onto the connecting bolts of the table top and tighten the connector housings of the front panel clockwise to

lock the connection with the inserted connecting bolts.

4 Table top

5 Front panel

Installation

Thon DJ Table 1500

Put the table top onto the connecting bolts of the upper rear wall and tighten the connector housings of the table top clockwise

to lock the connection with the inserted connecting bolts.

3 Upper rear wall

4 Table top – mounted to the front panel

Installation

studio desk
