Thrustmaster HOTAS WARTHOG Gebrauchsanweisung

1/18

Compatible: PC

Hardware User Manual

2/18

U.S. Air Force A-10C attack aircraft HOTAS™(**) (Hands On Throttle And Stick) replica

joystick pack, including:

1 Replica JOYSTICK

• Innovative new H.E.A.R.T HallEffect AccuRate Technology(*):

- 3D magnetic sensors (Hall Effect) on the stick

- 16-bit resolution (65536 x 65536 values)

- 5 coil spring system(*)

• USB connection with upgradeable firmware

• Super-stable, weighted base (over 3kg)

• New detachable handle, crafted entirely of metal:

- also compatible with HOTAS COUGAR™ handle (and vice-versa)

- new replica shape

- detachable metal plate for desk- or cockpit-style use

- new, realistic pressure on buttons and trigger

- 19 action buttons in total + one 8-way “point of view” hat:

. 1 x 8-way “point of view” hat

. 2 x 8-way hats

. 1 x 4-way hat with push button

. 1 x metal dual trigger

. 2 x push buttons

. 2 x pinkie push buttons

1 Replica CONTROL PANEL

- Weighted base (over 3,5kg) incorporated underneath the throttles

- Backlit functions

- 5 programmable LEDs

- Realistic pressure on buttons and switches

- 15 action buttons in total + 1 TRIM wheel:

. 1 x TRIM wheel

. 2 x push buttons

. 5 x 2-position switches (2 permanent)

. 2 x 3-position switches (1 momentary + 2 permanent)

. 2 x 3-position switches (3 permanent)

3/18

Dual Replica THROTTLES

• Innovative new H.E.A.R.T HallEffect AccuRate Technology(*):

- 3D magnetic sensors (Hall Effect) on the 2 throttles

- 14-bit resolution (16384 values) on each throttle

• USB connection with upgradeable firmware

• Dual throttles, featuring:

- metal hand rest

- locking system

- adjustable friction system

- realistic IDLE detent with “Pull & Push”(*) system

- realistic and disengageable AFTERBURNER detent with “Pull & Push”(*) system

- realistic pressure on buttons and switches

- 17 action buttons in total + 1 mouse hat with push button + one 8-way “point of view” hat:

. 1 x mouse hat with push button and 3D magnetic sensor (Hall Effect)

. 1 x 8-way hat

. 1 x 4-way hat with push button

. 1 x push button

. 1 x 3-position switch (2 momentary + 1 permanent)

. 2 x 3-position switches (3 permanent)

. 1 x 3-position switch (1 momentary + 2 permanent)

(*) Patent pending.

(**) HOTAS™ is a trademark of Guillemot Corporation S.A.

4/18

CONFIGURATION OF BUTTONS AND AXES

On the JOYSTICK:

5/18

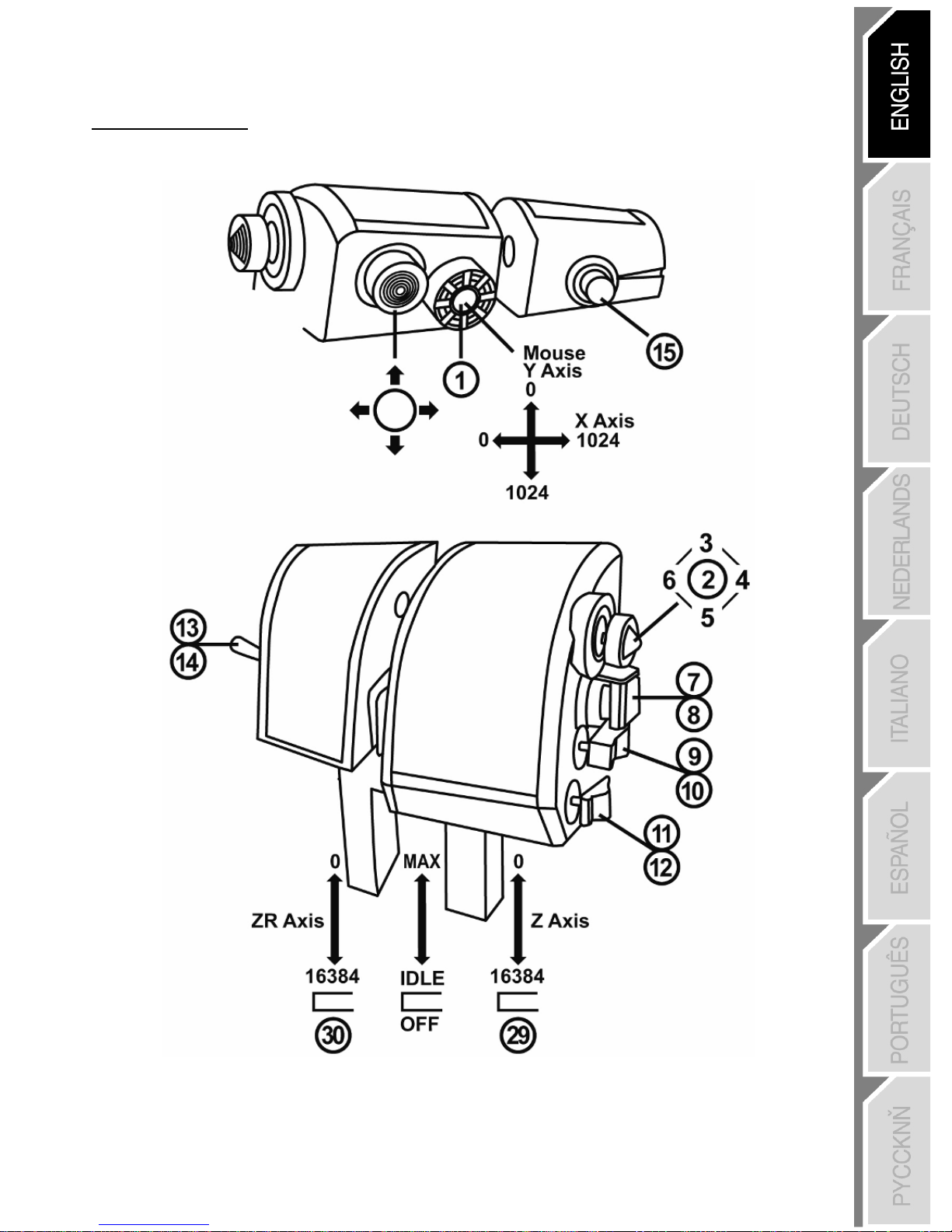

On the THROTTLE:

6/18

On the CONTROL PANEL:

7/18

“A-10C” AIRCRAFT FUNCTIONS

On the JOYSTICK:

8/18

On the THROTTLE:

9/18

On the CONTROL PANEL:
