TIC TFS6, TFS10 & TFS11 Outdoor Rock Speakers Feature

Weatherproof Design

Teflon® sealed cabinetry

Aluminum Grill

Full range 200W speaker system

8” co-axial drivers

1” aluminum tweeters

Surge protected Revchem®

8 Ohm Impedance

Aerospace grade multi-layer

composite cabinetry

Surface mount waterproof cable

connector

Finishes: Canyon (CN) Slate

(SL) or White Granite (WG)

©TIC Corporation U.S.A.

s…

…

Manufacturers

Name:

TIC Corporation

Manufacture

Contact:

www.ticcorp.com

(800) SPX-OMNI

TIC Model

Number:

_____________

Serial Number:

________________

Dealers Name:

_____________

Dealers Contact:

________________

Purchase

Date:

_____________

Invoice/ Receipt

Number:

________________

We recommend you keep your sales receipt and warranty card together

with this owners guide for safe keeping and future reference.

This TIC Exterior Audio Product Conforms to all applicable:

EMC/ EEC

Directives

One World, TIC Recycles

x…

…

Introduction ………………….……………

Component List …………………….…….

Pre-Installation …………………… ……..

Connection Cable ……… ……………....

Exterior Installation ………………………

5/6

Maintenance ………………………………

Customer Service ………………..………

Warranty …………………………..………

Trouble Shooting ……...…………….…...

Technical Specifications …………….…..

Thank You for purchasing another high quality audio

product from TIC Corporation. Please read the enclosed

installation guidelines carefully and thoroughly to ensure

years of trouble free service from your new TIC exterior

audio products.

Carefully unpack your new TIC exterior product and

save all packaging materials for possible future use. Check

that your new TIC product contains all system parts

detailed in the Components list. Do not attempt to operate,

install or use your new TIC product if any components

appear missing or damaged. If so, please notify TIC

Corporation or your TIC Dealer as soon as possible.

!WARNING! to avoid possible suffocation or injury please

keep all plastic bags away from children and pets.

t…

…

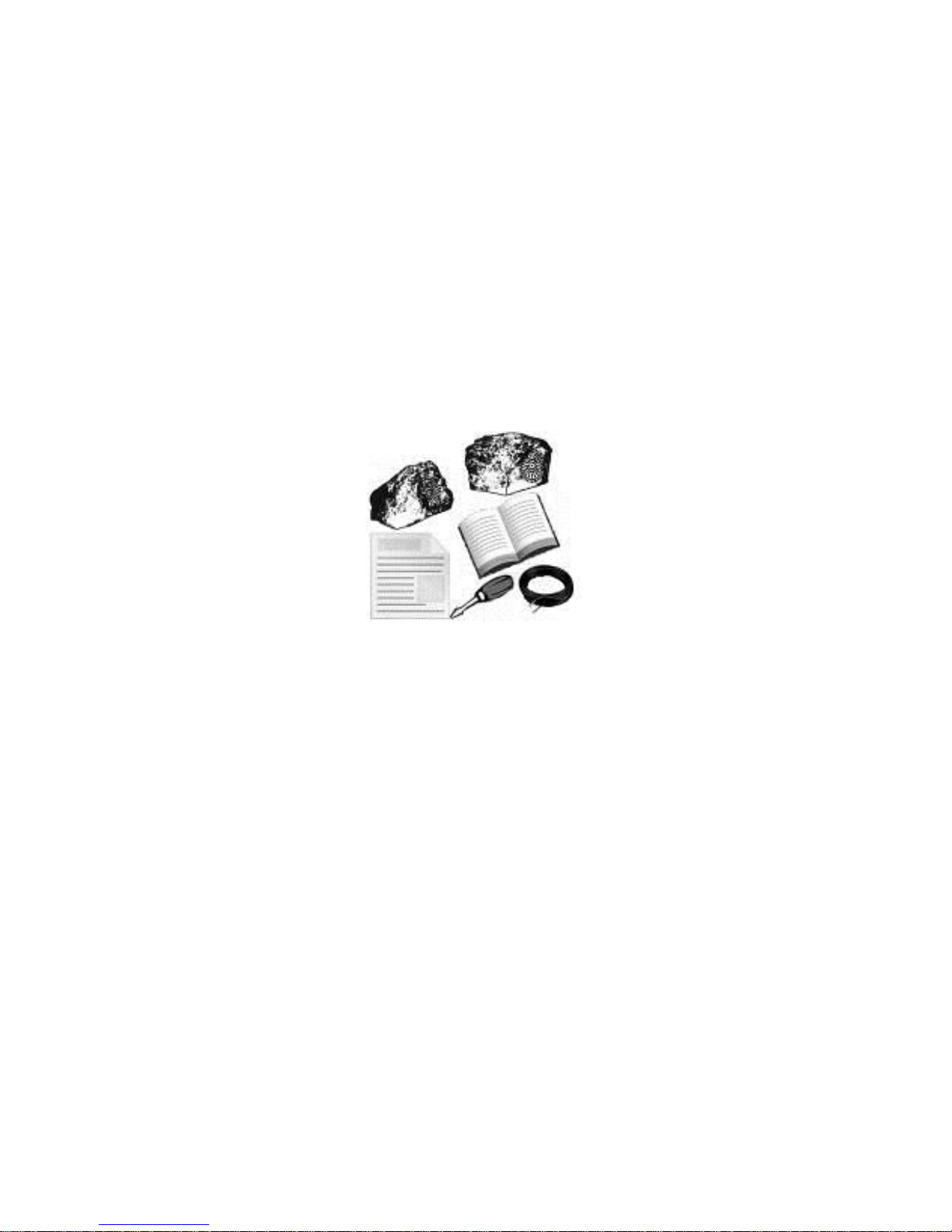

Outdoor rock speakers

Weatherproof speaker cable

connectors (base of units)

New product offer (enclosed

with literature)

Instruction Manual

Warranty Card

-I

n…

…

Need Professional Help?

Please read this owners guide carefully before installation. Failure to follow

these instructions fully or incorrect installation may damage your new TIC

products and any third party equipment used in your new system installation.

This may also Void any warranty for your new TIC products. If you are unsure

of your ability to fully understand and fully complete the installation of this TIC

product, please consult a professional installer.

Note: TIC Corporation always recommends that you test your product and its

components prior to exterior installation. Test your components near a mains

power and, if required, receiver amplifier sources somewhere convenient,

perhaps inside. Ensure all components are working smoothly and correctly

before exterior placement, installation and operation.

n…

…

Before you begin the installation of your new TIC outdoor product, please

carefully select the locations of your new TIC products.

In general;

1. Select a reasonably level surface for the installation of your new TIC

outdoor speakers. For surface speakers this will prevent movement or

excessive vibration during use. This will also ensure more uniform

sound dispersion.

2. Ensure your new TIC outdoor speaker cables or power source if

required, can easily reach your new speakers. Some people even pre-

lay string as a guide ensuring that there are no obstructions or

difficulties such as concrete paths or architectural feature impediments.

While most if not all TIC outdoor speakers use and recommend burying

the cable lightly 4-6 inches, if the cable is surface mounted you must

make sure the cable is placed where it cannot be tripped over, pulled,

abraded or crushed.

3. Do not place your TIC outdoor speakers in a depression or area where

water pools or in the direct path of sprinklers.

4. Wherever possible avoid long term exposure of your new TIC outdoor

speakers to chlorinated solvents, acids such as those often contained

in fertilizers and other solvents which have the potential to eventually

wear the components prematurely.

5. When installing either burial cable or TIC’s in-ground outdoor speakers

please be very aware of any submerged plumbing, piping such as

sprinklers or irrigation and wiring already in existence.

A note on Speaker Cable;

TIC recommends the use of our SPC double insulated high quality speaker

cable, however just about any reasonable speaker cable may be used including

existing runs that may be in place. For standard 8Ω installations of 10 – 25ft.,

just about any 16/18 gauge 2 core cables can usually be used although we

would prefer a double insulated or burial spec cable be used. For longer runs of

25 –100ft. 10/14 gauge cable can be used however resistance down the line

will become a contributing factor.

Please visit TIC Corporations website at www.ticcorp.com and review the

Audio Installation Basics articles under Technical Resources for more in depth

exterior audio and cable guidelines.

Before actually sinking the cable, run the cable from your unit to the power

source or amplifier. Ensure your cable run avoids any obstacles such as

sunken sprinkler pipes or piping and electrical cable to your house. Once the

cable runs are where you like them, connect your speakers and power source

to ensure correct operation before sinking the cable. Disconnect the cable wire

at both ends and continue.

An Important note on Polarity!

Pleasure proper polarity when connecting your new TIC outdoor speakers.

This is very important and will result in poor sound reproduction and possibly

equipment damage if not connected correctly. This is normally avoided by

ensuring + to + and –to –or as sometimes color coded Red to Red and Black

to Black from your amplified source to your speakers respectively.

Once you have tested your cable run in step 3, it is time to sink the cable. 4-6”

of cover is normally recommended to offset accidental disturbance, movement

of the earth etc. but your specific onsite conditions will apply. Should you wish

to secure the installation of your unit then simply clamp, by way of a “U” spike

etc. the cable directly beneath the unit or you may use TIC’s SPPSS Security

Stake available as an optional extra.

Reconnect the speakers and your receiver amplifier being careful to ensure

correct “Polarity” matching.

Once connected properly, fill in all trenches, sit back and enjoy!

Disclaimer;

TIC Corporation will in no way be held responsible for the improper or

unsecured installation of this product. Any and all damage arising from the

installation or use of this product is the purchaser and final installer’s sole

responsibility.

e…

…

Occasional maintenance of your TIC products cannot hurt and may help

greatly. Inspect the installation area regularly removing and twigs, dirt or

particulate matter from impeding or building up around the output grill area. The

units may be cleaned using very mild detergents like dishwashing liquid if

desired. A hose with clean water may also be used but please avoid using high

pressure or forcing water into the grill or acoustic ports.

In very cold climates with moderate to heavy snowfall an old trick from the

major theme parks we supply world wide is to place a plastic bag over the unit

for the winter or periods it may be not in use or under such snowfall.

e…

…

For any additional help please contact TIC Corporation at (800) SPX-OMNI, on

line at www.ticcorp.com , or by email at inf[email protected]om where we would be

happy to assist you at any time. Also please visit our website for FAQ

(frequently asked questions) and full contact information.

d…

…

TIC Corporation offers a full, UCC approved, one year full parts and labor

warranty on all its products as standard however there are other 3 and 5 year

warranties in use with various TIC authorized Dealers world wide. Please check

your enclosed Warranty card or your Dealer receipt to find out which one

applies to you. Also please note TIC Corporation General Terms & Conditions

posted on our website at www.ticcorp.com for further information.

s…

…

Please note series vs. parallel installation wiring choices below;

g…

…

Problem

Please Check

No Sound

Check the speakers are connected to the cable

correctly.

Check the speaker cable is connected to the receiver

amplifier correctly.

Check the receiver amplifier is powered “on” at the

mains, is not on “mute”, has no headphones attached

and that the Channels used for the exterior speakers

(usually A or B) is in operation.

Refer to the owners guide that came with your

receiver amplifier.

Most initial problems are connectivity, please try a

different connection cable to your outdoor speakers

or equipment.

No Sound from one

speaker

Check the “balance” control on your receiver

amplifier.

Check all connections and cable to the inoperable

speaker.

1. Disconnect the “working” speaker from the receiver

amplifier connection/ channel. Switch the cord from

the non-operating speaker from its current connection

to the “working” speaker connection. If the speaker

now works the problem is your receiver amplifier.

2. Reconnect as original. Remove the speaker cable

at the “working” speaker directly and connect it

directly to the non-working speaker. If the speaker

now works the problem is somewhere in the original

speaker cable.

3. If the speaker still does not work the problem is the

speaker.

One speaker

sounds distorted,

lower volume or

“different”

Follow same procedure as above for “No Sound”.

Treble or Bass

Check the “tone” setting on your receiver amplifier.

Adjust the Treble and Bass settings on your receiver

amplifier.

Check the connections carefully from the amplifier to

your speakers and ensure correct Phase (+ to + and

–to –accordingly). Poor sound replication is

expected from a speakers or speakers out of polarity

or phase.

s…

…

General Specifications TIC TFS6, TFS10 & TFS11

Outdoor Rock Speakers

Woofer(s)

8" injection molded PP cone

Butyl rubber surround

Tweeter

2" aluminum

Cabinetry

Multi-layer Composite

Grill

Multi-layer Composite

Frequency Response

35Hz –19kHz

Sensitivity @1W/1m

89db ± 3db

Continuous/ Peak

100 / 200W

Unit(s) Dimensions

TFS6: 11.9x16x12.1 in

TFS10: 11.7x19.2x13.5 in

TFS11: 11.1x18.5x16.5 in

Unit(s) Weight

TFS6: 14 lbs

TFS10: 15 lbs

TFS11: 16 lbs

Pack Dimensions

TFS6: 14x19x14.7 in

TFS10: 13.3x22x16.8 in

TFS11: 13.1x21x20.4in

Pack Weight

TFS6: 16 lbs

TFS10: 19 lbs

TFS11: 21 lbs

TIC Corporation engages in continual product research and development, new

materials, production methods and design improvements. TIC Corporation therefore,

reserves all rights to change or improve products specifications without notice.

TIC Corporation

15224 East Stafford Street

City of Industry, CA. 91744-4418 U.S.A.

Tel: (800) 779-6664 (5 lines) Fax: (800) 968-1363

Email: info@ticcorp.com WWW: www.ticcorp.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TIC Sprecher Handbücher

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
