OPERATING MANUAL
Caution:
Equipment damage hazard
Do not operate the cooling
system if the outdoor
temperature is below 50˚ F
(10˚ C) to prevent possible
compressor damage.
Thermostat Quick Reference
Thermostat Operation
Programming
Contact Us and Warranty Registration
2
3
4
6
Congratulations on purchasing a
new thermostat. This thermostat was
designed to the highest reliability and
ease of use standards. Thank you for
choosing TopTech.
® U.S. Registered Trademark. Patents pending.
Copyright © 2010 Pro1 IAQ, Inc. All rights reserved. Rev. 1022
Table of Contents Page
1
This manual covers TopTech models:
TT-S-755
Need Help?
For assistance with this product please
visit http://toptech.pro1iaq.com or call our
Customer Care Center toll-free at
1-888-776-1427 during normal business
hours (Mon-Fri 9 AM - 6 PM Eastern)
Una versión española de este
manual puede ser descargada
en http://toptech.pro1iaq.com
THERMOSTAT QUICK REFERENCE
Battery information
2
Open the battery door on the
front of the thermostat and insert
2 AA Alkaline batteries (included).

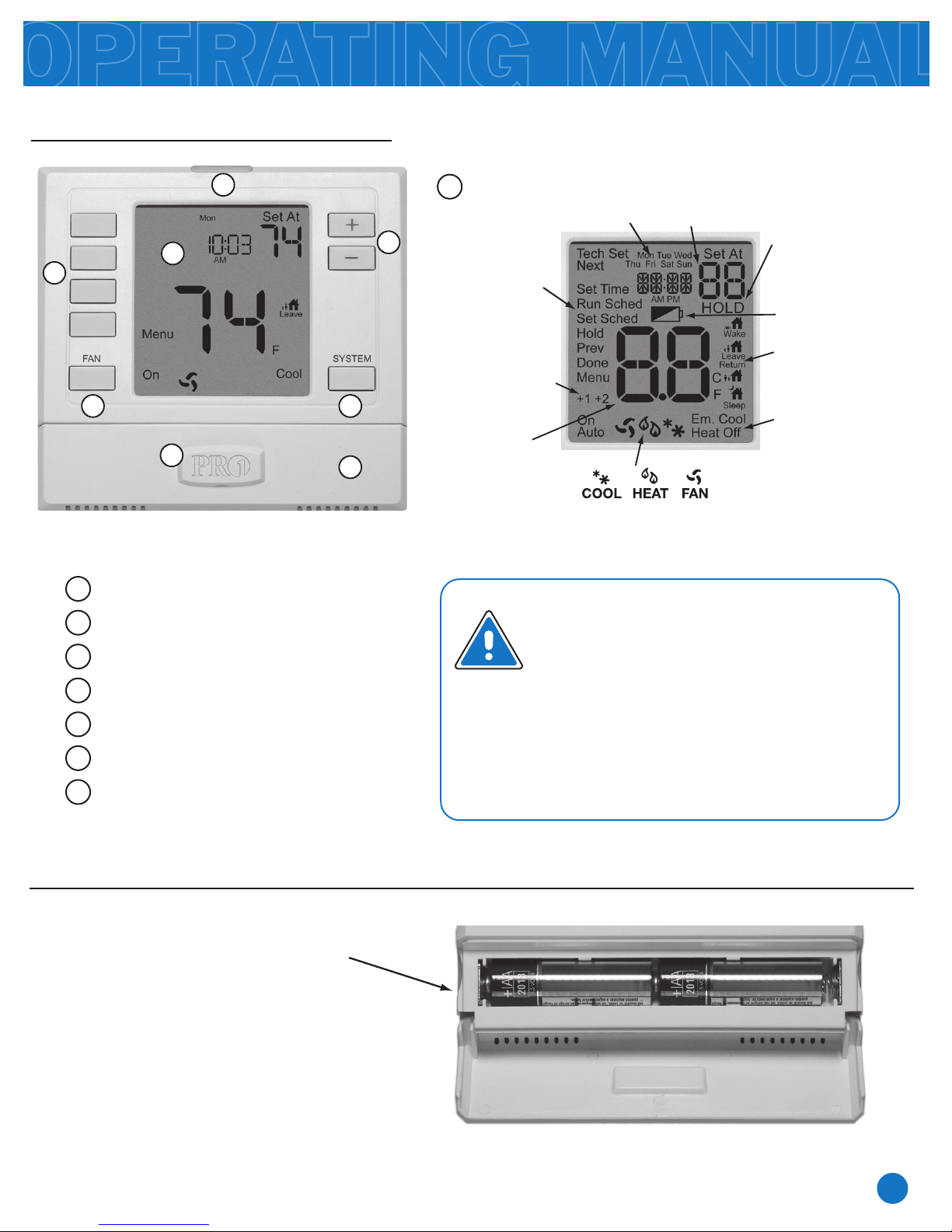

Getting to know your thermostat
2
Fan Button
Glow in the Dark Light Button
3
System Button
4
User Program Buttons
5
Temperature Setpoint Buttons
6
Universal Private Label Badge
7Battery Door
8
6
7
8
1
2
34
5
Important:
The low battery indicator is displayed
when the AA battery power is low. If the
user fails to replace the battery within
21 days, the thermostat display will only
show the low battery indicator as a final
warning before the thermostat
becomes inoperable. The batteries are
located on the front of the thermostat.
LCD
1
+1 will appear in
the display when
second stage of
heat or cool is on.
+2 will appear for
third stage of heat.
System:
Selects heat, off or cool
as needed.
Days of the
week and time
Low Battery Indicator:
Replace batteries when
this indicator is shown.
Menu Options:
Shows different
options
Indicates the
current room
temperature.
Programmable
Time Period Icons:
This thermostat has
4 programmable time
periods per day.
Displays the user
selectable setpoint
temperature. HOLD is displayed when
thermostat program is
permanently overridden.
The COOL, HEAT or FAN icon will display when the COOL,
HEAT or FAN is on.NOTE: The compressor delay feature is
active if these icons are flashing. The compressor will not
turn on until the 5 minute delay has elapsed.
THERMOSTAT OPERATION
3
Caution:
When the battery icon
appears replace your AA
batteries immediately. Failure
to do so may result in your
heating & cooling system
becoming inoperable.

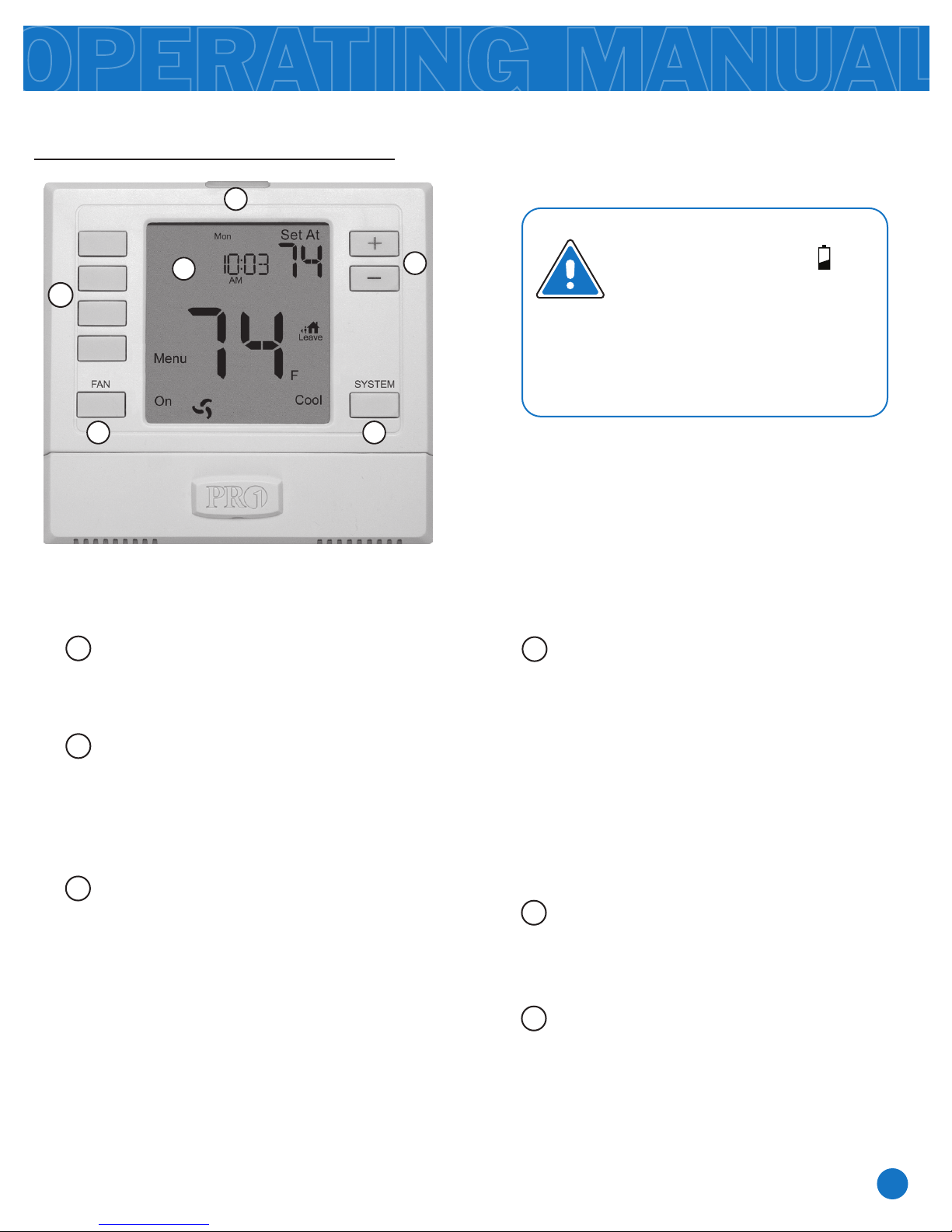

Easy to use controls
LCD Display:
See page 2 for details about this display
read out and icons.
1
2
3
4
5
Glow in the Dark Light Button:
The glow in the dark light button will
self illuminate for several hours after
exposure to ambient light. This button
turns on the display light when pressed.
Temperature Setpoint Buttons:
Press the +or - buttons to select the
desired room temperature.
6
User Buttons:
Use these buttons to set up your
programming options. Refer to the
next page for instructions.
Fan Button:
Select ON or AUTO. The ON key will run
the fan continuously. The AUTO key will
cycle the fan on only when the heating or
cooling system is on.
A Note About Programmable Fan:
The programmable fan feature will run the
fan continuously during any time period it
is programmed to be on. This is the best
way to keep the air circulated and to
eliminate hot & cold spots in your building.
System Button:
Selects the operation mode of your
HVAC system. Selecting HEAT
turns on the heat mode. Selecting
COOL turns on the air conditioning
mode. Selecting OFF turns both
heating and cooling off. Selecting
AUTO will turn the HEAT or COOL
on as needed. (EM Heat will appear
as an option if operating a heat
pump. EM Heat setting will turn on
Emergency Heat.)
6
1
2
3 4
5
PROGRAMMING THE THERMOSTAT
4
Set Time
Follow the steps below to set the current time:
Press MENU
Press SET TIME
Day of the week will be flashing.
Use the or key to select the current
day of the week.
Press NEXT STEP
The current hour is flashing.
Use the or key to select the current
hour. When using 12-hour time, make sure the
correct a.m. or p.m. choice is selected.
Press NEXT STEP
Minutes are now flashing.
Use the or key to select
current minutes.
Press DONE when completed
1.
2.
3.
4.
5.
6.
7.
8.
Set Program Schedule 5+1+1
To customize your 5+1+1 program schedule, follow these steps:
Weekday: Saturday:
Sunday:
Select HEAT or COOL using the SYSTEM key.
Note: You have to program heat and cool each
separately.
Press MENU
Press SET SCHED. Note: Monday-Friday is displayed and the
WAKE icon is shown. You are now programming the WAKE time
period for the weekday setting.
Time is flashing. Use the or key to make your time
selection for the weekday WAKE time period. Note: If you want
the fan to run continuously during this time period, select ON with
the FAN key.
Press NEXT STEP
The setpoint temperature is flashing. Use the or key
to make your setpoint selection for the weekday WAKE period.
Press NEXT STEP
Repeat steps 4 through 7 for weekday LEAVE time period, for
weekday RETURN time period, and for weekday SLEEP time
period.
Repeat steps 4 through 7 for
Saturday WAKE time period,
for Saturday LEAVE time
period, for Saturday RETURN
time period, and for Saturday
SLEEP time period.
Repeat steps 4 through 7 for
Sunday WAKE time period,
for Sunday LEAVE time
period, for Sunday RETURN
time period, and for Sunday
SLEEP time period.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Important:
You will see a TECHNICIAN
SETUP option after the MENU
key is pressed.
This TECHNICIAN SETUP key
is for installer configuration and
should NOT be changed unless
you consult your Professional
Heating and Air Conditioning
Technician.
PROGRAMMING THE THERMOSTAT
5
Filter Change Reminder
If your installing contractor has configured
the thermostat to remind you when the air
filter needs changed, you will see FILT in the
display when your air filter needs changed.
FILT will be shown in the display after your
system has run long enough to require an air
filter change.
Resetting the filter change reminder: When
FILT reminder is displayed, you should
change your air filter and reset the reminder
by holding down the second button from the
top of the thermostat for 3 seconds.
Temporary and Permanent Hold Feature
Temporary hold: The thermostat will display
HOLD and RUN SCHED on the bottom of
your screen when you press the or
key. If you do nothing, the temperature will
remain at this setpoint temporarily for 4
hours. Your program setpoint will then
replace your temporary setpoint.
Permanent hold: If you press HOLD key at
the bottom of your screen, you will see HOLD
appear below the setpoint temperature in the
display. The thermostat will now permanently
stay at this setpoint and can be adjusted
using the or keys.
To return to program: Press the RUN SCHED
key at the bottom of your screen to exit either
temporary or permanent hold.
CONTACT US AND WARRANTY INFORMATION
Warranty Registration:
Your new Pro1 thermostat has a 5 year limited warranty. You must register your warranty
within 60 days of installation. You can register your new thermostat in 2 ways.
Go to www.pro1iaq.com, select warranty registration and fill out a short registration form.
-or-
Complete the form below and mail it to the address shown.
Name: ____________________________
Address: ____________________________
____________________________
City: ____________________________
State: ____________________________
Zip: _____________________
Thermostat Model: _____________________
Date Installed: _____________________
6
Contact Us Information
Pro1 IAQ Warranty Registration:
1
2
Pro1 IAQ Inc.
1111 S. Glenstone
Suite 2-100
Springeld, MO 65804
Toll-free: 1-888-Pro1iaq (776-1427)
Toll Number (Outside the USA): 330-821-3600
Web: http://www.pro1iaq.com
Hours of Operation: Monday - Friday 9 AM - 6 PM Eastern
Complete form and mail to:
Pro1 IAQ Inc.
1111 S. Glenstone
Suite 2-100
Springeld, MO 65804
