TOTALINE P374-1900 Bedienungsanleitung
I
OTN
TAL E
AUTO
0I 2 0 :
Su
Pm
HEAT
OOL
C
27
74
RESIDENTIALRESIDENTIAL
THERMOSTATTHERMOSTAT
P/NP/N
P374-P374-19001900
TOTALINE
Signature
HEAT
COOL HEAT
PUMP
DUAL
FUEL CAPABLE
HEAT
COOL HEAT
PUMP
DUAL
FUEL CAPABLE
7-DAY
PROGRAMMABLE
DIGITAL
THERMOSTAT
HUMIDITY
CONTROL
Equipped with Humidity Module
Programmable Output
Accepts EZ Programmer
Accepts Optional IR Remote Control
Optional Internet / Phone Control
Accessory
Outdoor Sensor Ready
with High/Low Readouts
for the Day
with
Replacement Components Division Carrier Corporation 02/06
Meets Residential California Title 24
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & 3 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.
OWNER’S
MANUAL
OWNER’S
MANUAL
3 Configurable Outputs
Control up to 3 Heat &
2 Cool Stages
Adjustable 2nd & 3rd Stage
Timers & Deadbands
Backlit Display & Button
Legends
Aux Heat Indicator
Dry Contact Equipped
3 Configurable Outputs
Control up to 3 Heat &
2 Cool Stages
Page i
NOTE: Due to variations in environmental conditions, it is not
always possible to achieve the desired humidification or
dehumidification setpoint.
MISC3 MISC3
OK
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Follow the Installation Instructions before proceeding.
Set the thermostat mode to “OFF” prior to changing
settings in setup or restoring Factory Defaults.
NEVER PUT MORE THAN ONE
JUMPER ON THE SAME MISC
JUMPER BLOCK!
THIS MAY DAMAGE YOUR
THERMOSTAT AND VOID
YOUR WARRANTY.
CAUTION
C
c
F
FOR HOME OR OFFICE USE
Tested to Comply
with FCC Standards
Thermostat P374-1900
4Z95
TOTALINE
CAUTION
Page ii
Page 14.1
Section 14 Contents:
Adjusting the Heat/Cool
Differential..............................14.2
Adjusting the Cycles
Per Hour..................................14.3
Adjusting the Deadband..........14.4
Adjusting the Minutes of
Run-Time Before the
Next Stage...............................14.6
Selecting 2nd Stage Turn
Off Temperature.....................14.7
SECTION 14
Timers and DeadbandsTimers and Deadbands
TOTALINE
14
The Table of Contents divides the thermostat features into sections
making it easier to quickly find information.
In addition, this manual also has an Index to help you find any information
regarding this thermostat quickly.
How to Use This ManualHow to Use This Manual
TOTALINE
Header shows section #
and title of section
Section contents
Visible section tab
on the side of the
page
Section and page #
The first page of each section contains a more detailed Contents of each
section, such as the example page shown below.
TOTALINE
Glossary of TermsGlossary of Terms
Page iii
Auto-Changeover: A mode in which the thermostat will turn on
the heating or cooling based on room temperature demand.
Configurable Output Jumper: Using jumpers on the thermostat
you can configure the MISC1, MISC2, and MISC3 terminals to
control humidification, dehumidification, 2nd stage cooling, 3rd
stage heating, and a programmable output.
Cool Setpoint: The warmest temperature that the space should
rise to before cooling is turned on (without regards to
deadband).
Deadband: The number of degrees the thermostat will wait, once
setpoint has been reached, before energizing heating or cooling.
Dehumidify: To reduce the amount of moisture in the air.
Differential: The forced temperature difference between the
heat setpoint and the cool setpoint.
Heat Setpoint: The coolest temperature that the space should
drop to before heating is turned on (without regards to
deadband).
Humidify: To increase the amount of moisture in the air.
Icon: The word or symbol that appears on the thermostat
display.
Mode: The current operating condition of the thermostat (i.e. Off,
Heat, Cool, Auto, Program On).
Non-Programmable Thermostat: A thermostat that does not
have the capability of running the Time Period Programming.
Programmable Thermostat: A thermostat that has the capability
of running the Time Period Programming.
Reheat: Running the cooling and 2nd stage strip heaters at the
same time in order to dehumidify the air without cooling down
the room temperature.
Temperature Swing: Same as Deadband.
Time Period Programming: A program that allows the
thermostat to automatically adjust the heat setpoint and/or the
cool setpoint based on the time of day.
2
TOTALINE
Table of ContentsTable of Contents
Page iv
1
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4
5
Quick Start
Getting to Know Your
Thermostat
Setting Clock and Day
Basic Operation
Viewing Outside and Remote
Temperature and Humidity
Programming the
Daily Schedule
Programming the
Fan Operation
Thermostat Display
Options
Humidification
Dehumidification
Viewing Equipment
Run-Times
Electric Heat and
Heat Pump Operation
Dual Fuel Operation
Timers and Deadbands
Using the
Programmable Output
Programming Remote
Sensor Operation
Dry Contact Operation
Energy Save
Operation
Programming the Run-
Time Alerts
Programming the
Vacation Mode
Configuring the MISC
Outputs
Factory Defaults and
Calibration
Accessories
Advanced Setup Table
Section 1 Contents:
Front Panel Buttons.....................1.2
Display Features...........................1.3
Page 1.1
SECTION 1
Getting to Know Your ThermostatGetting to Know Your Thermostat
1
TOTALINE
Backlit LCD Display
Mode
Button
Heat or Cool Demand Indicator
Red = Heat, Green = Cool
TOTALINE
Front PanelFront Panel

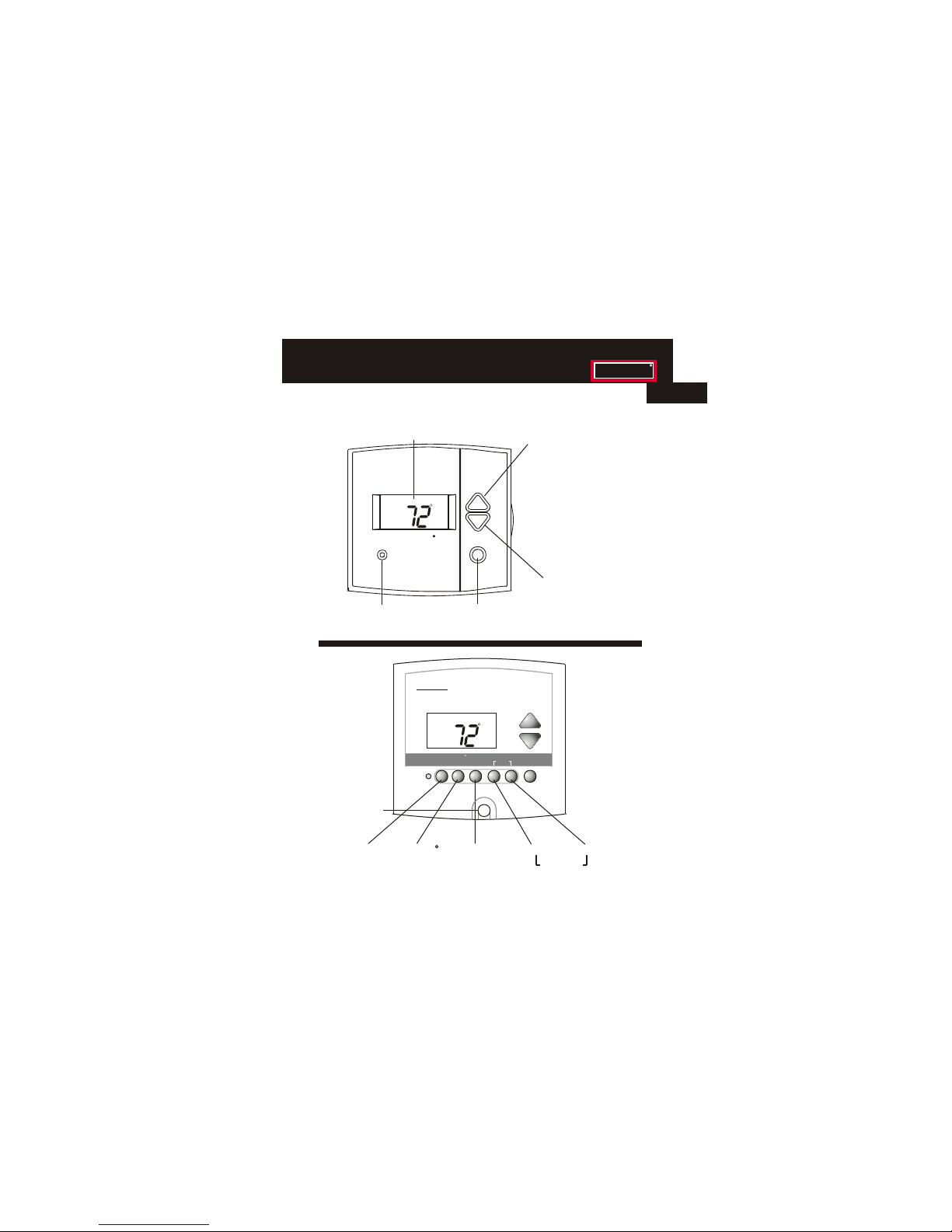

Page 1.2
OUTSIDE HUMIDITYFAN PROGRAM MODE
VACATION
OUTSIDE
AUTO
I2:00
Mo
Pm
HEAT
COOL
72
74
AUTO
I2:00
Mo
Pm
HEAT
COOL
72
74
HUMIDITY
FAN PROGRAM SET CLOCK
VACATION
Premier
Residential
Programmable Thermostat
SET
CLOCK
TOTALINE
1
Warmer Button sometimes referred
(glows red) to as the UP button
Cooler Button sometimes refer-
(glows blue) red to as the
DOWN button
[ ]
[ ]
QUICK RELEASE FOR
ACCESSORY PORT
(pg. 23.1)
Page 1.3

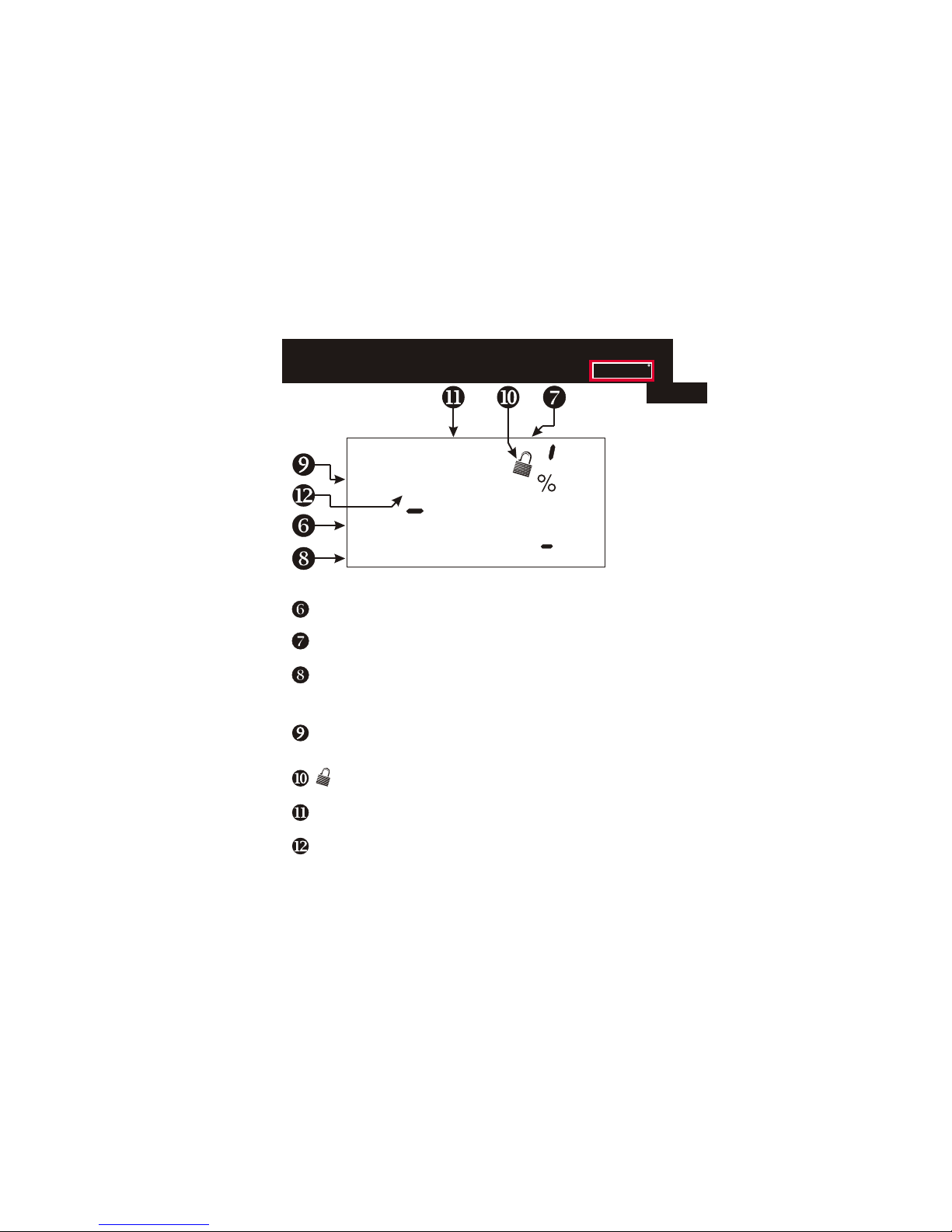

Mode Indicators - Section 4
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically changeover
between heat and cool modes as the temperature varies.
OFF - Indicates heating and cooling is turned off.
PROGRAM ON - Indicates the time period program is enabled to
run.

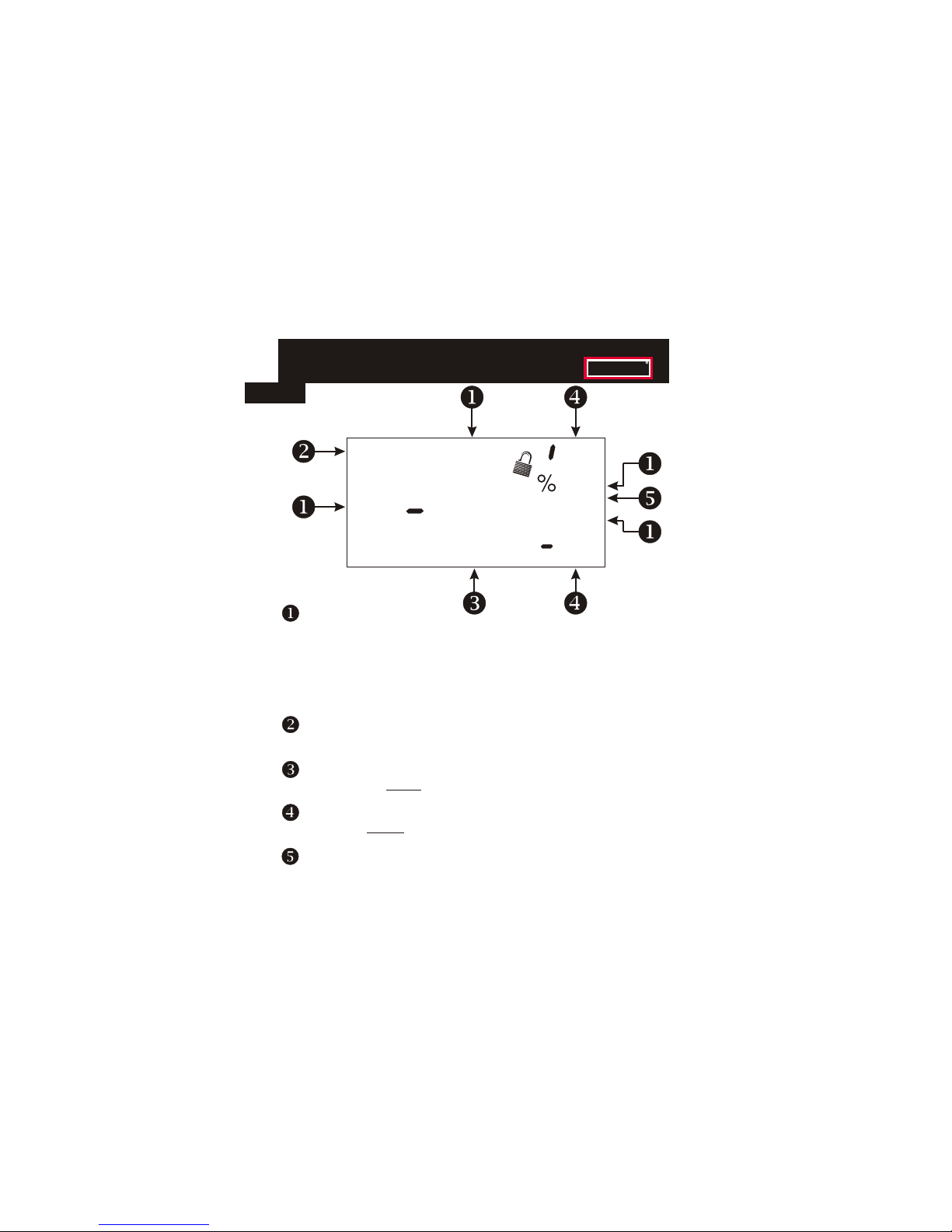

Display FeaturesDisplay Features
Clock with Day of the Week - Section 3
Indicates the current time and day. This clock is also used to program
the time period schedules.
Room Temperature Display - Section 5
Indicates the current room temperature and displays the outside
temperature when selected.
Desired Set Temperature - Section 4/5
Indicates desired room temperature(s). Also displays the highest
and lowest temperatures for the day.
Outside icon - Section 5
Indicates the temperature displayed is from the optional outside
sensor.
Evening
FanOn
AUXHEAT
COOL
AUTO
OFFON
Morning
DayNight
Am
I8:88
SuMoTuWeThFrSa
Service Filter
Pan UV Light
Program On
StartStop
DeHumidify
I88
Setup
Outside
Vacation
Pm
88
L O
HI
88
1
1
1
TOTALINE
Page 1.4
Setup icon -
Indicates the thermostat is in the setup mode.
Fan On icon -
Indicates constant, continuous fan operation.
When Fan On is not lit - indicates the fan will only operate when
necessary to heat or to cool.
Service Filter icon -
Appears when the filter should be serviced under normal conditions.
Adjustable from 0 - 1950 hours of blower operation.
icon -
StartStop icon -
Appears when programming timer functions.
UV Light icon -
Appears when the UV bulb should be serviced under normal
conditions. Adjustable from 0 - 1990 days of operation.
Sections 6-19
Section 7
Section 19
Section 8
Indicates the keypad has been locked.
Section 6
Section 19
TOTALINE
AUXHEAT
COOL
AUTO
OFFON
Morning
DayNight
Evening
FanOn
Am
I8:88
SuMoTuWeThFrSa
Service Filter
Pan UV Light
Program On
StartStop
DeHumidify
I88
Setup
Outside
Vacation
Pm
88
L O
HI
88
Display FeaturesDisplay Features
Morning, Day, Evening & Night icons - Section 6
Indicates the day part of the time period program.
1
Inhaltsverzeichnis
Andere TOTALINE Thermostat Handbücher
