Touchboards PANA-103MTV Leitfaden

Max Load Capacity: 500 lb (227 kg)

ISSUED: 10-18-06 SHEET #: 202-9172-4 08-14-14

Installation and Assembly:Installation and Assembly:

Installation and Assembly:

MountMount

Mount for Panasonic TH-103PF12U, TH-103PH9UK, TH-103VX200U andfor Panasonic TH-103PF12U, TH-103PH9UK, TH-103VX200U and

for Panasonic TH-103PF12U, TH-103PH9UK, TH-103VX200U andfor Panasonic TH-103PF12U, TH-103PH9UK, TH-103VX200U and

for Panasonic TH-103PF12U, TH-103PH9UK, TH-103VX200U and

TH-103PB1UTH-103PB1U

TH-103PB1U

Model: PANA-103MTV

2300 White Oak Circle. • Aroura, IL 60502 • (800) 856-2112 • www.peerlessmounts.com

2 of 4 ISSUED: 10-18-06 SHEET #: 202-9172-4 08-14-14

This item was manufactured for Panasonic by Peerless Industries.

Note: Read entire instruction sheet before you start installation and assembly.

For customer care call (800) 865-2112.

• Do not begin to install your Panasonic product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Panasonic Customer Support.

• This product should only be installed by a qualified professional.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-

ware and components.

• Never exceed the Maximum Load Capacity of 500 lb (227 kg).

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

WARNING

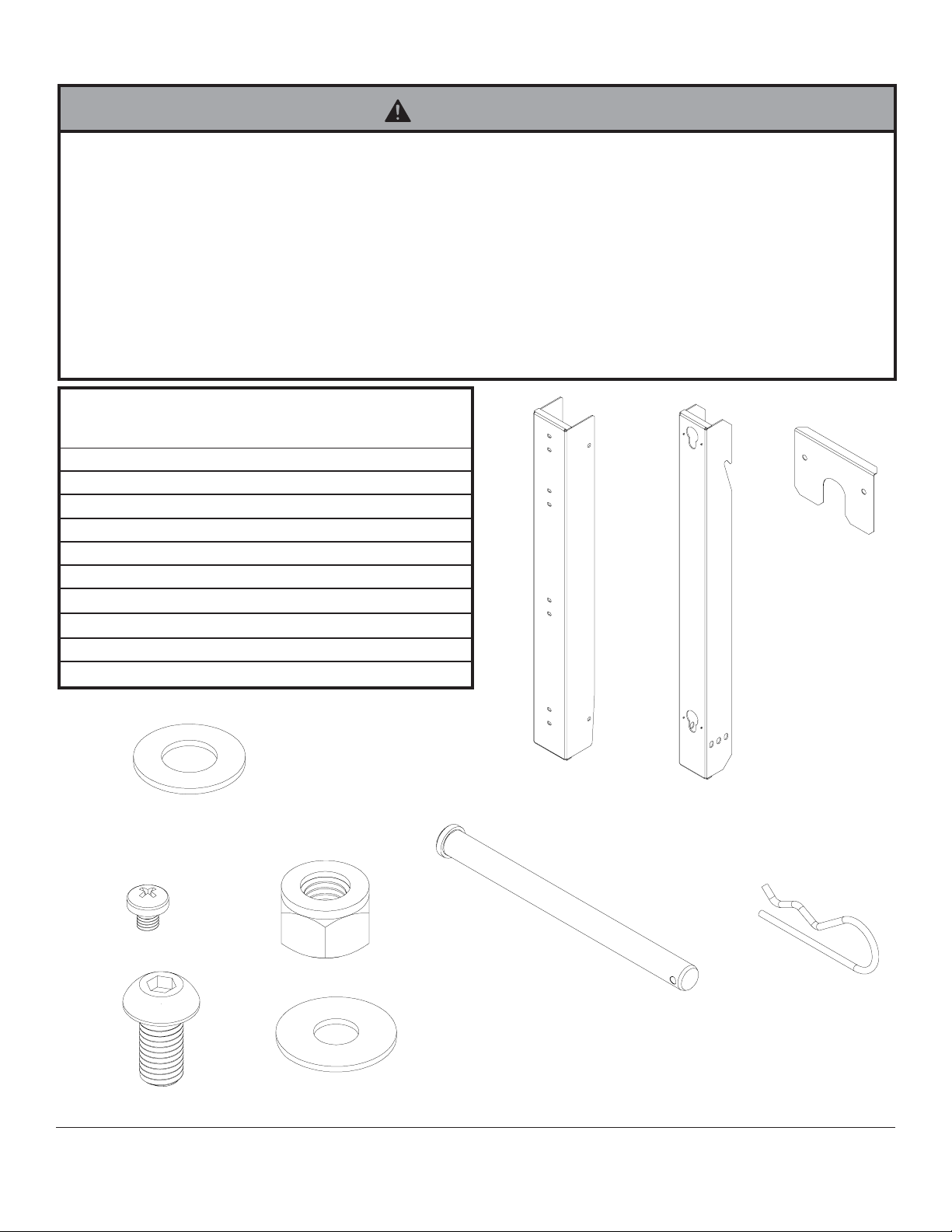

Parts ListTS LIST

Description Qty. Part #

Awall plate 2 201-1201

Btilt plate 2 201-1203

Clock tab 4 201-1204

Dwasher 8 540-1005

Eclevis pin 4 560-2115

Fcotter pin 4 560-2157

GM5 x 6 mm phillips screw 8 520-9504

Hnylock nut 8 530-9412

ISAE washer 8 540-9448

JM10 x 20 mm socket screw 8 5S1-M10-A20

3 of 4 ISSUED: 10-18-06 SHEET #: 202-9172-4 08-14-14

This item was manufactured for Panasonic by Peerless Industries.

• Installer must verify that the supporting surface will safely support four times the combined weight of all attached

equipment and hardware.

• Only meant for surface mounting to the desired wall, recessed mounting or any other application please contact

customer care.

Installation to Wall

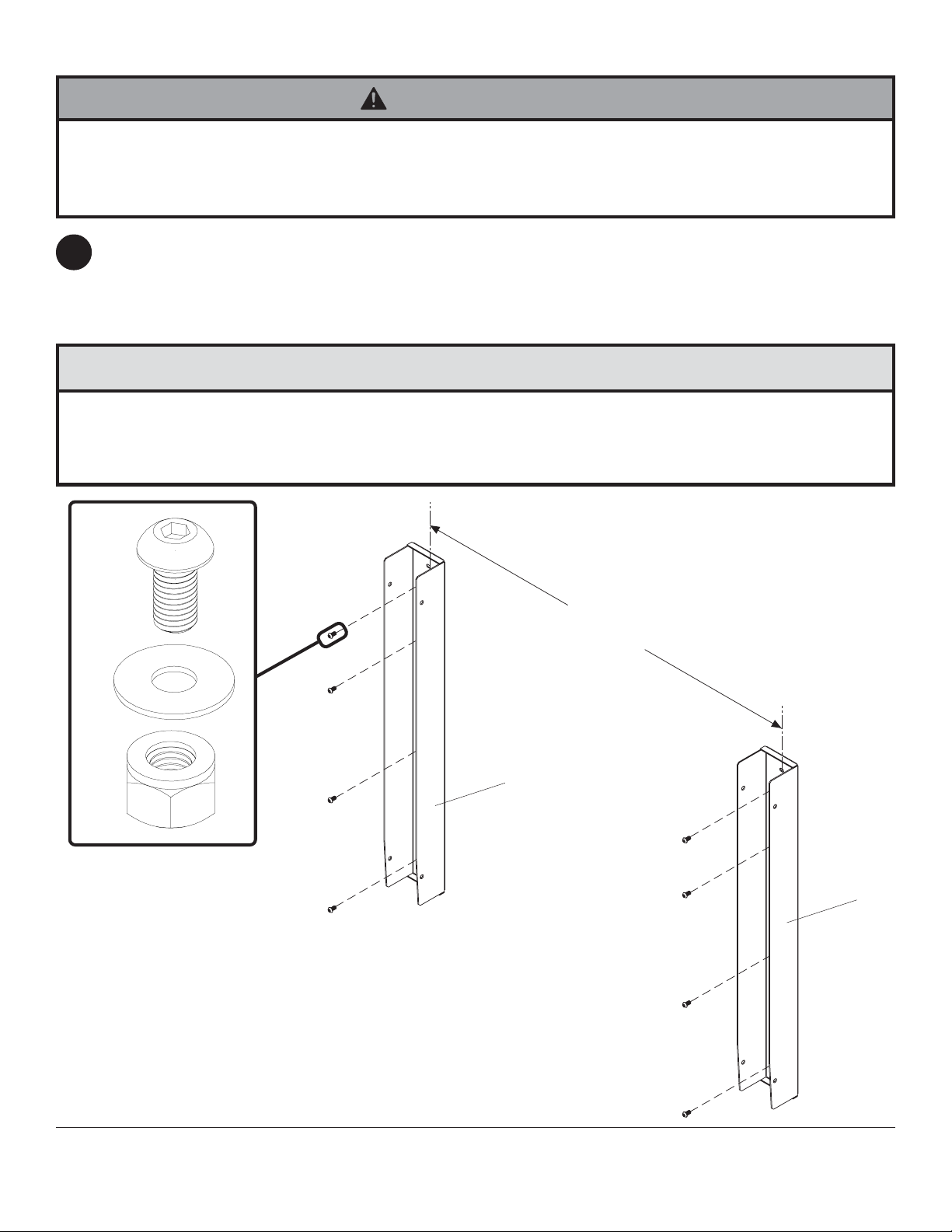

Attach wall plates (A) to supporting surface. Distance between centers of wall plates (A) must be 59.5" (1511mm)

and wall plates (A) must be level with one another.

M10 x 20 mm socket screws (J), nylock nuts (H), and SAE wahers (I) may be used to attach wall plates to wall.

Note: If using custom fasteners to attach wall plates to wall be sure that fasteners can support the combined weight

of all attached equipment and hardware.

WARNING

• If wall mounts are not level and square, mount will not function properly.

• If using custom fasteners to attach wall plates to wall be sure that fasteners can support the combined weight of all

attached equipment and hardware.

CAUTION

59.5"

(1511 mm)

4 of 4 ISSUED: 10-18-06 SHEET #: 202-9172-4 08-14-14

This item was manufactured for Panasonic by Peerless Industries.

Slide keyhole slots of tilt plates (B) onto spacers provided with screen. Secure tilt plates (B) to screen by using

eight M5 x 6 mm screws (G) to attach four locking tabs (C) to keyhole slots as shown in Detail 1.

Attach clevis pin to wall plates (A) using two

washers (D). Secure clevis pin (E) with cotter pin (F)

as show below. Attach tilt plates (B) to wall plates

(A) by sliding tilt plate (B) onto clevis pin (E) per set

of brackets.

Note: Screen not shown for clarity.

Set tilt plate (B) to desired tilt shown in detail 2.

Secure with one clevis pin (E), two washers (D), and

one cotter pin (F) per set of brackets.

DETAIL 1

DETAIL 2

4°

2°

0°

Peerless is a registered trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

Note: Side clearance is

needed to install pin
