QUICK REFERENCE GUIDE
86
2 0 17
2
Toyota 86
2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satised driving in your new
86.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of 86 operations. Every 86
owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
11
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 6
Light control-Instrument cluster 7
OVERVIEW
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 14
Automatic transmission 9
AUX/USB port 16
Clock 15
Cruise control 10
Cup/bottle holders 16
Door locks 15
Driving modes 10-11
Hill-start Assist Control (HAC) 11
Lights & turn signals 12
Manual transmission 9
Multi-Information Display (MID) 12
Parking brake 9
Power outlets 16
Rear view monitor system 17
Seat adjustments-Front 13
Seats-Fold down rear seats 13
Seats-Head restraints 13
Tilt steering wheel 14
Trunk release 15
Windows 14
Windshield wipers & washers 13
Floor mat installation 21
Seat belts 18
Spare tire & tools 19
Star Safety System™20-21
Tire Pressure Monitoring
(warning) System (TPMS) 18
PAIRING BLUETOOTH®PHONE FOR
THE FIRST TIME 22-23
22
Instrument panel
Steering wheel controls
OVERVIEW
Paddle shift switches*
Audio control
switches
Ignition
Headlight and turn signal controls
Wiper and washer controls
Tilt and telescopic steering lock release
Hood release
Fuel filler door opener
Trunk opener
Instrument panel light control
Cruise control
OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
33
Clock
Emergency flasher switch
Rear window and outside rear
view mirror defogger switch
Air conditioning controls
Vehicle Stability Control (VSC) OFF switch
TRACK mode switch
SPORT or SNOW mode switch*
* If equipped
AUX/USB port
44
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Anti-lock Brake System warning1
Brake system warning1
Airbag SRS warning1
Electric power steering system warning1
Fuel tank door position
Cruise control indicators2

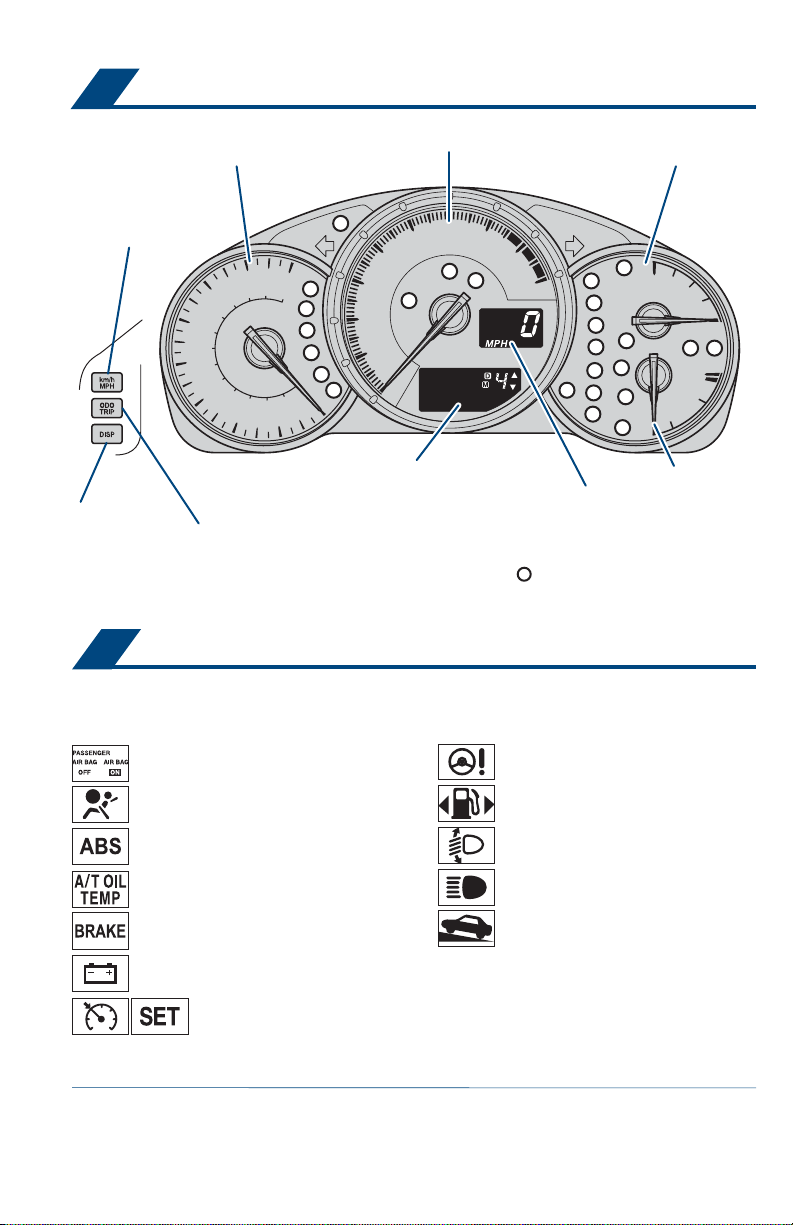

Instrument cluster
Automatic Transmission fluid
temperature warning1
Hill-start assist control ON indicator
Headlight low/high beam indicators
Headlight low/high beam indicators
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator
1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.
Display switch
Indicator symbols
Analog speedometer
km/h MPH switch
Odometer/trip meter
display change switch
Tachometer Fuel gauge
Engine coolant temperature
Digital speedometer
Odometer/Trip meter
/Multi-Information Display
Service indicators and reminders
OVERVIEW
OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
55
Low fuel level warning1
Low Tire Pressure Warning1
2If these lights come on in yellow, refer to “Cruise control” Section 2-4, 2017 Owner’s Manual.
3If equipped.
Slip indicator1
Vehicle Stability Control OFF indicator1
Traction Control OFF indicator1
SNOW indicator3
REV (engine RPM) indicator
Upshift/downshift indicator
Shift position indicator
Shift-up indicator
Shift position and shift range indicator
Security indicator
SPORT indicator3
Turn signal indicator
TRACK mode indicator
Open door warning
Seat belt reminder (alarm will
sound if speed is over 12 mph)
Malfunction/
Check Engine indicator1
Low engine oil pressure warning1
6

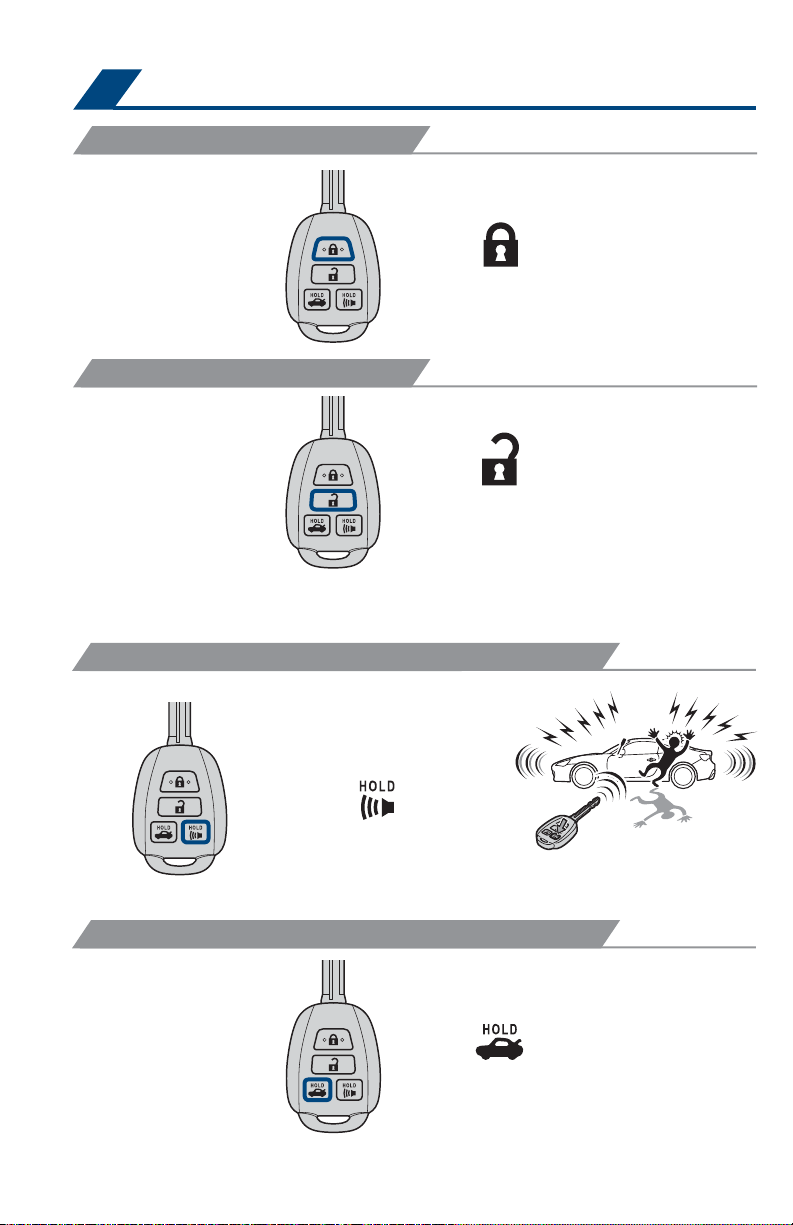

LOCKING OPERATION
UNLOCKING OPERATION
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Keyless entry
Push
Push
ONCE: Driver door
TWICE: All doors
PANIC BUTTON
TRUNK UNLOCKING OPERATION
Push and hold
Push and hold
OVERVIEW
OVERVIEWFEATURES & OPERATIONSSAFETY & EMERGENCY FEATURES
7

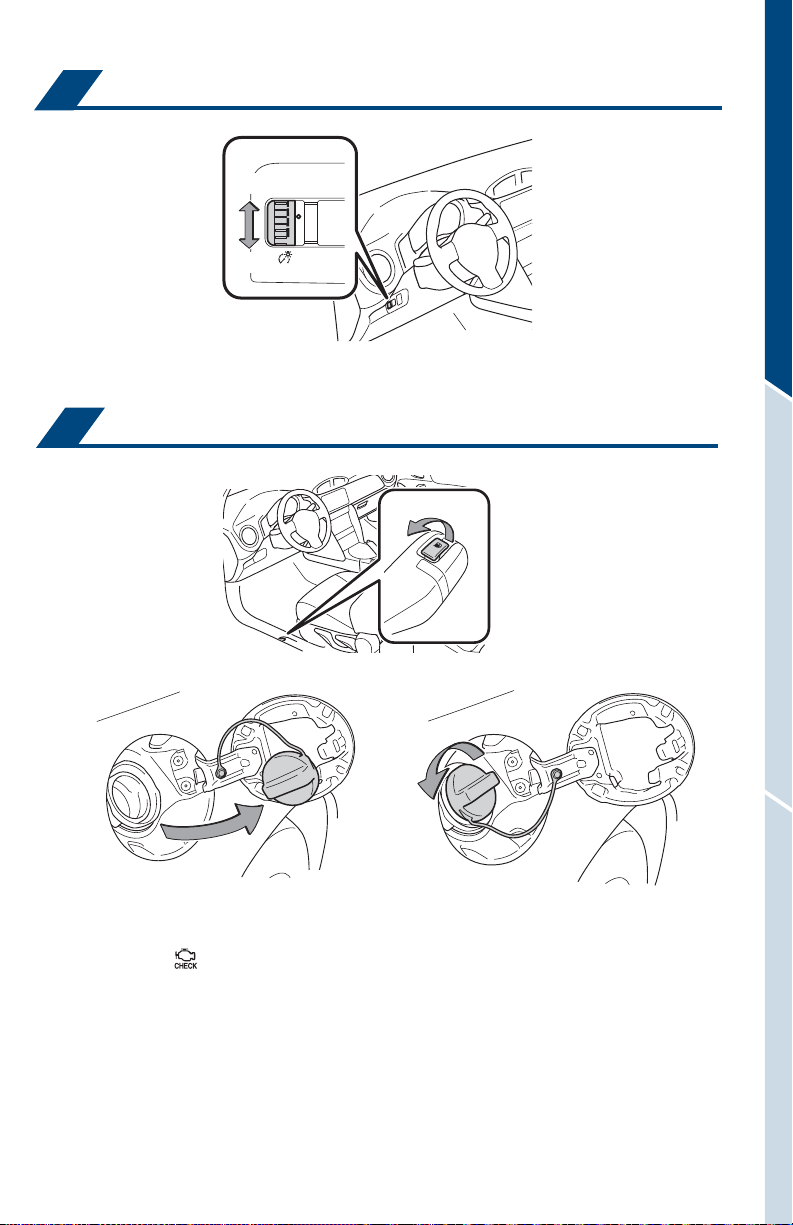

Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Light control-Instrument cluster
Brightness control
Brighter
Darker
+
-
Pull up
Store
Turn to open
8
Hood release
Engage support rod
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty Maintenance Guide.”
Engine maintenance
Pull up latch and raise hood
Pull
OVERVIEW
