1. BASIC INFORMATION BEFORE OPERATION

Introduction

This manual is made up of 2 sections.

The first describing available functions for models without navigation capabili-

ties (WITHOUT NAVIGATION) such as audio and hands-free.

The second describing available functions for models with navigation capabili-

ties (WITH NAVIGATION) such as navigation, audio, and hands-free.

For models that do not have navigation capabilities, refer to the “WITHOUT

NAVIGATION” section. For models that have navigation capabilities, refer to

the “WITH NAVIGATION” section.

■EXISTENCE OF NAVIGATION CAPABILITIES

Existence of navigation capabilities can be confirmed by performing the following:

1 When the ignition switch is turned to the “ACC” or “ON” position, the initial

screen will be displayed and the system will begin operating.

2 Press the “APPS” button.

”Either of the following screens will be displayed.

”If your system does not have the “APPS” button, the Display Audio system does not

have navigation capabilities, refer to the “WITHOUT NAVIGATION” section.

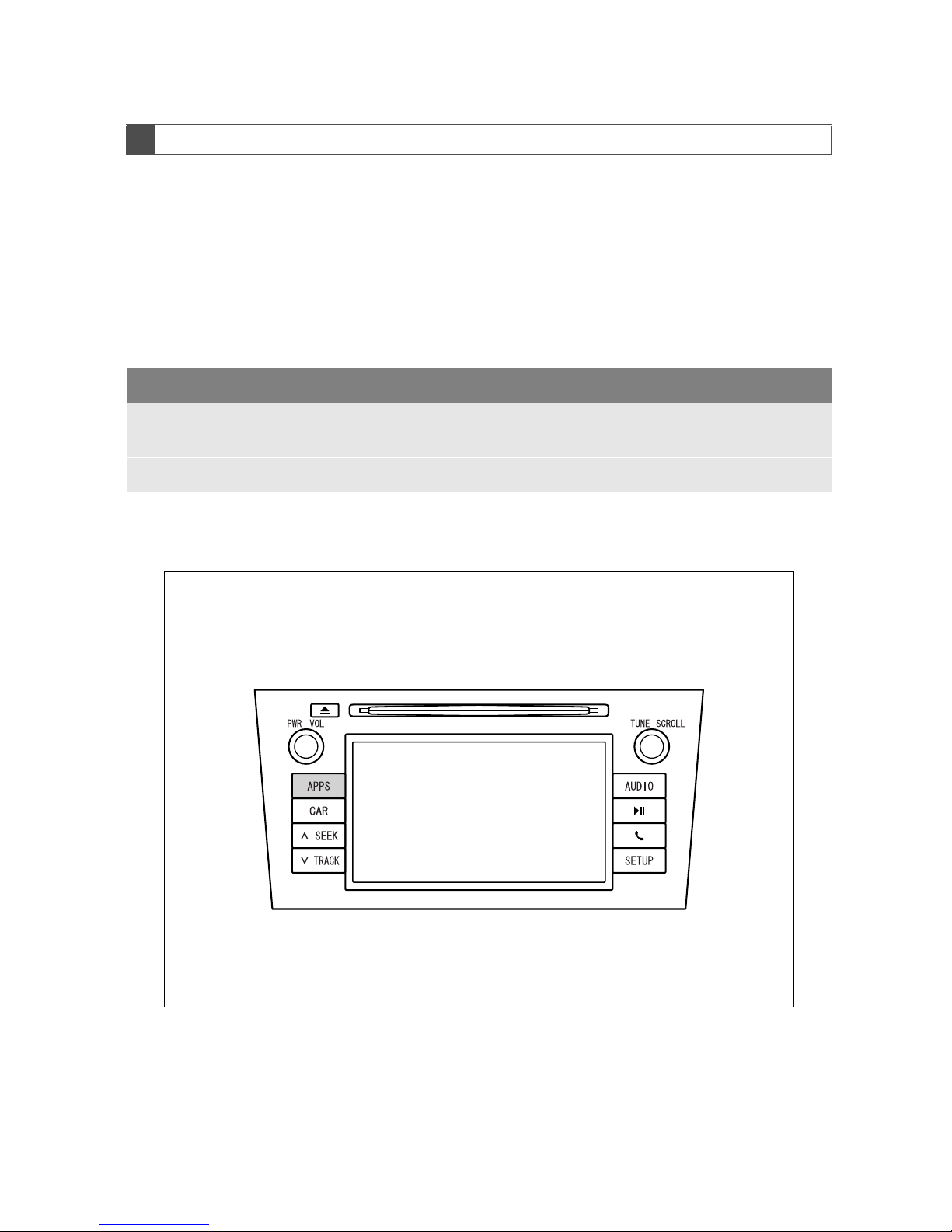

CONFIRMING DISPLAY AUDIO MODEL

Navigation capabilities Reference

Not installed WITHOUT NAVIGATION (1ST SECTION

only)

Installed WITH NAVIGATION (2ND SECTION only)

1. BASIC INFORMATION BEFORE OPERATION

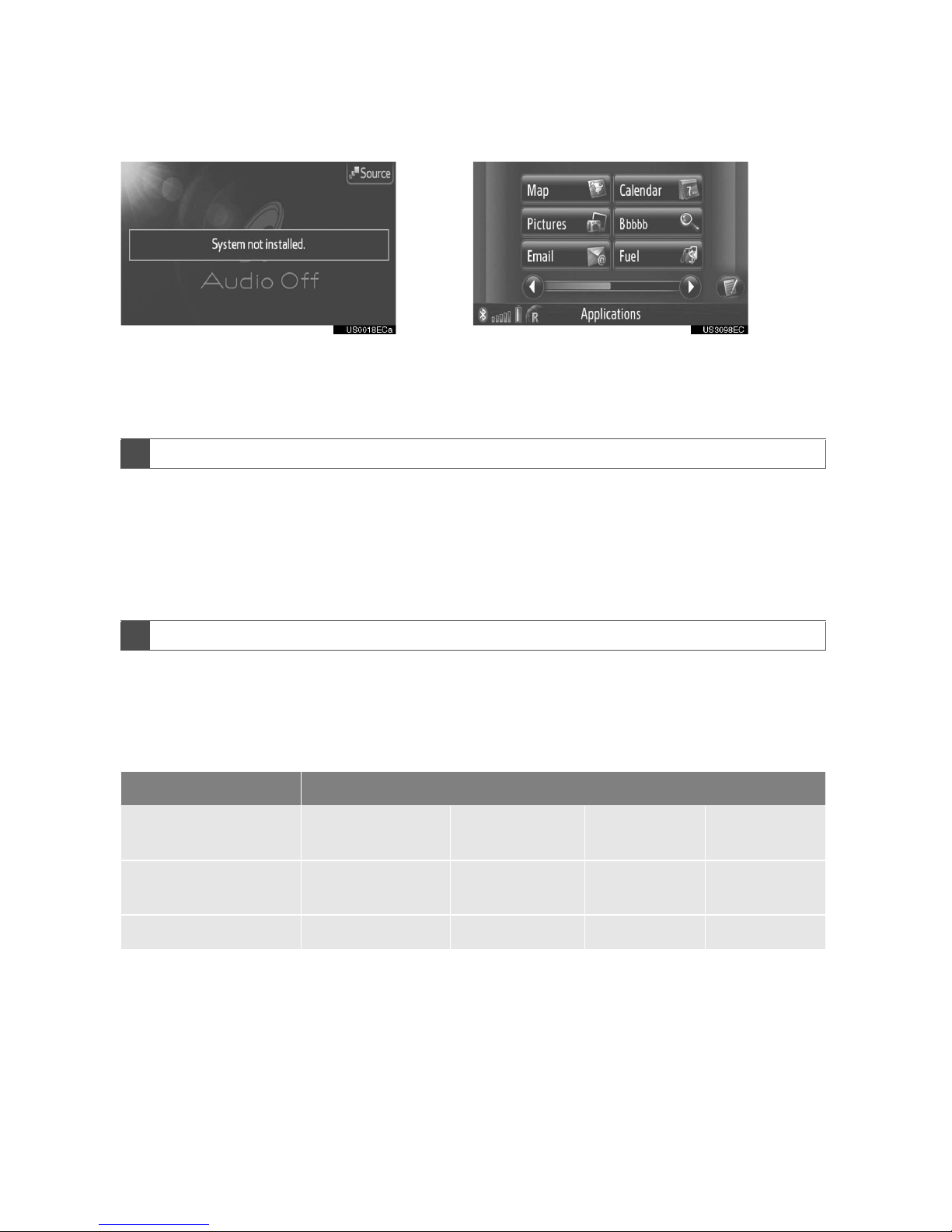

If screen A is displayed, the Display Audio system does not have navigation ca-

pabilities.

If screen B is displayed, the Display Audio system has navigation capabilities.

In this manual, illustrations showing the typical Display Audio system layout,

USB port and rear view camera location, etc. has been used. The actual design

and button position may differ depending on the vehicles. For the correct loca-

tion of these items, please refer to Section 3 and the pictorial index of the “Own-

er’s Manual”.

This manual has been written using a vehicle with a gasoline engine vehicle

(without a smart entry and start system) as an example. For vehicles with a

smart entry and start system and hybrid vehicles, please refer to the following

table to confirm the engine switch name and mode.

COMMON ILLUSTRATIONS FOR ALL VEHICLE MODELS

ENGINE SWITCH NAMES AND MODES

Vehicle system Switch name and mode

Vehicles without a

smart key system Engine switch ACC ON OFF (LOCK)

Vehicles with a smart

key system

“ENGINE START

STOP” switch ACCESSORY IGNITION

ON OFF

Hybrid vehicles “POWER” switch ACCESSORY ON OFF

wScreen A wScreen B

iii

1. BASIC INFORMATION BEFORE OPERATION

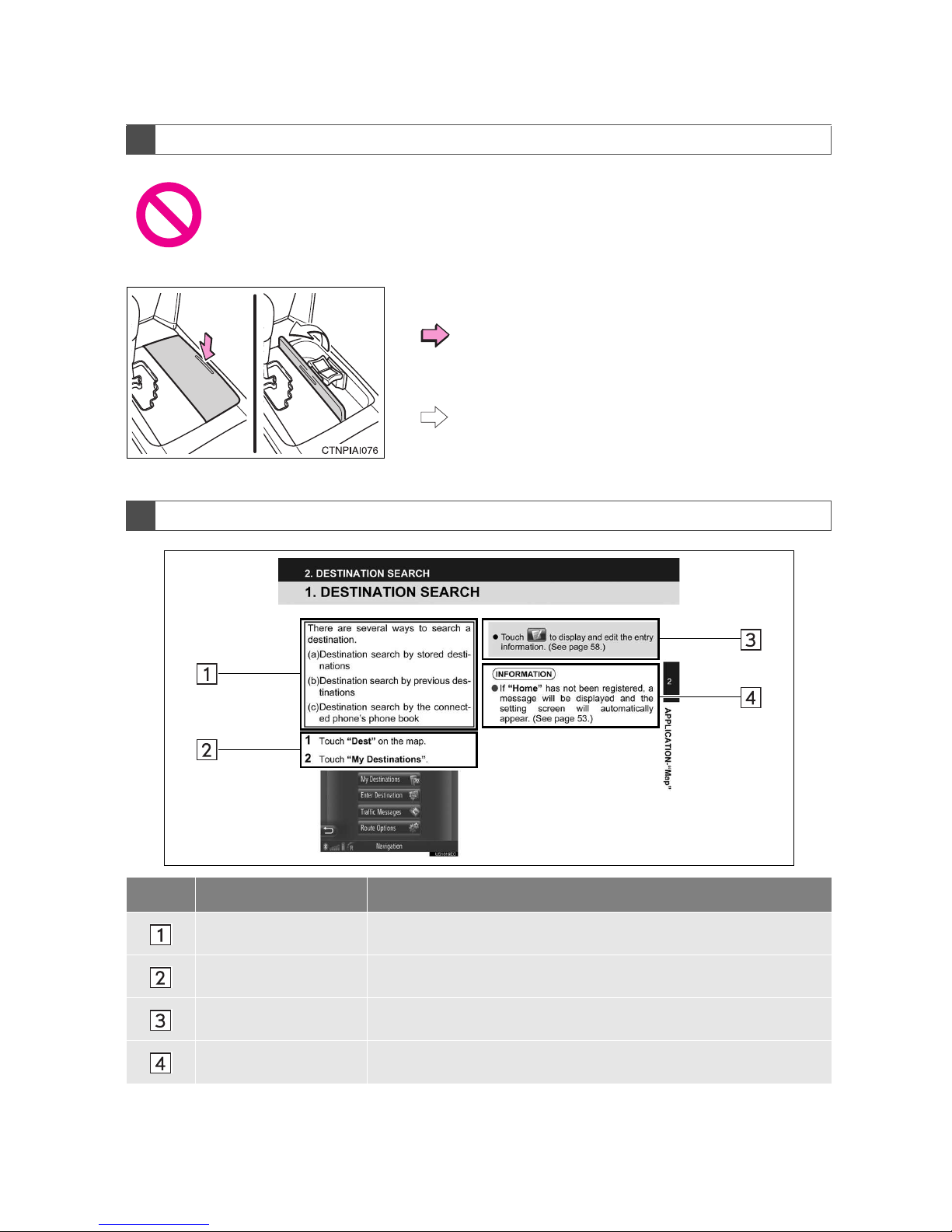

SYMBOLS USED IN ILLUSTRATIONS

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not

do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning, etc.)

used to operate switches and other

devices.

Indicates the outcome of an operation (e.g.

a lid opens).

HOW TO READ THIS MANUAL

No. Name Description

Operational Outlines An outline of the operation is explained.

Main Operations The steps of an operation are explained.

Related Operations A main operation’s supplementary operations are described.

Information Useful information for the user is described.

1. BASIC INFORMATION BEFORE OPERATION

Introduction

This manual explains the operation of the Display Audio system. Please read

this manual carefully to ensure proper use. Keep this manual in your vehicle at

all times.

The screen shots in this document and the actual screens of the Display Audio

system differ depending on whether the functions and/or a contract existed at

the time of producing this document.

For safety reasons, this manual indicates

items requiring particular attention with the

following marks.

To use this system in the safest possible

manner, follow all the safety tips shown

below.

Do not use any feature of this system to

the extent it becomes a distraction and

prevents safe driving. The first priority

while driving should always be the safe op-

eration of the vehicle. While driving, be

sure to observe all traffic regulations.

Prior to the actual use of this system, learn

how to use it and become thoroughly famil-

iar with it. Read the entire Display Audio

system Owner’s manual to make sure you

understand the system. Do not allow other

people to use this system until they have

read and understood the instructions in

this manual.

For your safety, some functions may be-

come inoperable when driving. Unavail-

able screen buttons are dimmed.

IMPORTANT INFORMATION

ABOUT THIS MANUAL

CAUTION

●This is a warning against anything which

may cause injury to people if the warn-

ing is ignored. You are informed about

what you must or must not do in order to

reduce the risk of injury to yourself and

others.

NOTICE

●This is a warning against anything which

may cause damage to the vehicle or its

equipment if the warning is ignored. You

are informed about what you must or

must not do in order to avoid or reduce

the risk of damage to your vehicle and

its equipment.

SAFETY INSTRUCTION

CAUTION

●For safety, the driver should not operate

the Display Audio system while he/she

is driving. Insufficient attention to the

road and traffic may cause an accident.

1. CONTROLS AND FEATURES

1. OVERVIEW BUTTONS

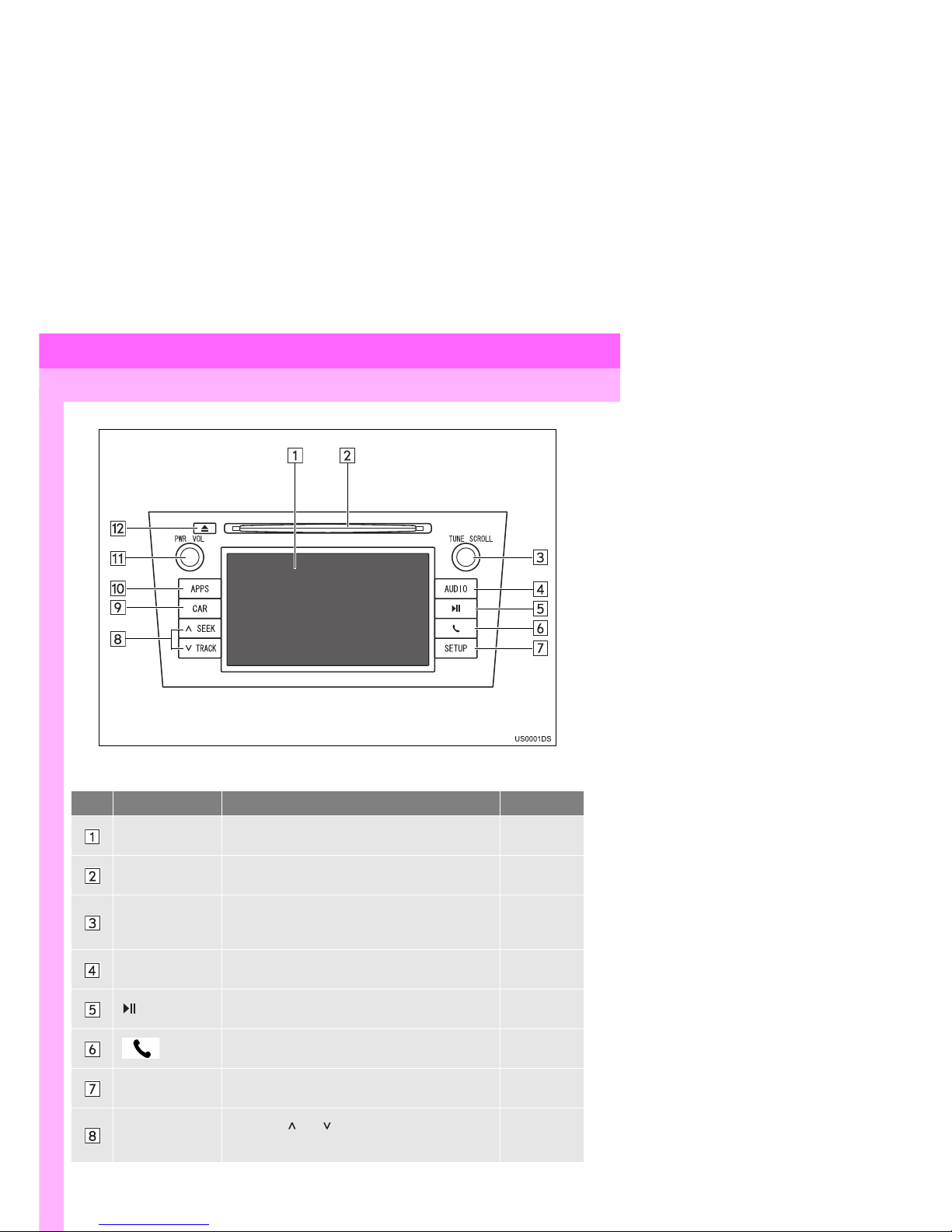

”The actual design and button position may differ depending on the vehicle. For

details, see Section 3 of the vehicle “Owner’s Manual”.

No. Name Function Page

Touch screen

display

By touching the screen with your finger, you can

control the selected functions. 11

Disc slot Insert a disc into this slot. The CD player turns on

immediately. 34

“TUNE/SCROLL”

knob

Turn this knob to select radio station bands, tracks

and files. Also, the knob can be used for selection

from the list display.

“AUDIO” button Press this button to access the audio system. The

audio system turns on in the last mode used. 14, 16, 17

button* Press this button to pause or resume playing the

music. —

button Press this button to access the Bluetooth®hands-

free system. 68

“SETUP” button Press this button to customize the function set-

tings. 92

“SEEK/TRACK”

button

Press the “ ” or “ ” button to seek up or down for

a radio station, or to access a desired track or file.

21, 24, 31,

36, 37, 41,

44, 54

1. CONTROLS AND FEATURES

QUICK GUIDE

*: If equipped

“CAR” button* Press this button to access the vehicle information

system. 86

“APPS” button* This button is used for an add-on external naviga-

tion system. (If equipped) —

“PWR/VOL” knob Press this knob to turn the audio system on and off,

and turn it to adjust the volume. 16

button Press this button to eject a disc. 34

No. Name Function Page

1. CONTROLS AND FEATURES

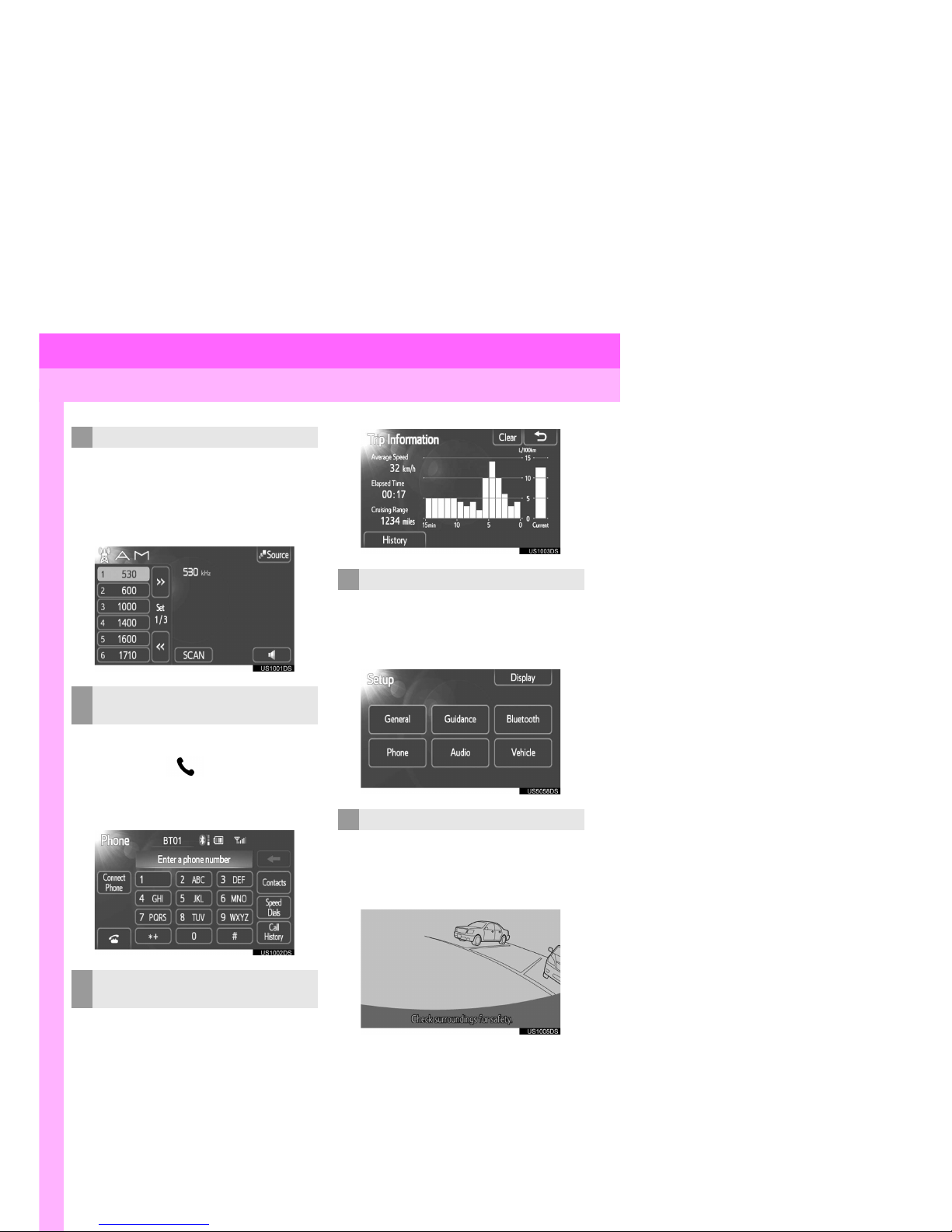

2. SYSTEM FUNCTION INDEX

To access the audio system, press the

“AUDIO” button. The audio control screen

will be displayed. Audio sources: Radio,

CDs, iPod, USB, AUX and Bluetooth®au-

dio. For details, see pages 13.

To access the Bluetooth®hands-free sys-

tem, press the button. The driver

can make or receive phone calls without

taking their hands off the steering wheel.

For details, see pages 67.

To access the vehicle information system,

press the “CAR” button. Fuel consump-

tion and tire pressure can be checked. For

details, see pages 85.

To customize the function settings, press

the “SETUP” button. The interface lan-

guage can also be changed from the setup

menu. For details, see pages 91.

Shifting into the “R” position will automati-

cally show the view behind the rear of the

vehicle on the display screen. For details,

see page 119.

AUDIO SYSTEM

Bluetooth®HANDS-FREE

SYSTEM

VEHICLE INFORMATION

(IF EQUIPPED)

SETUP

REAR VIEW MONITOR SYSTEM
