TP-Link TG-3468 Bedienungsanleitung

1910012392 REV3.0.0

User Guide

Gigabit PCI Express Network Adapter

TG-3468

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Chapter 1. Get to Know About Your Adapter . . . . . . . . . . . . . . . . . . . . .2

1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1. 2. LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2. Connect to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Chapter 3. Install Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

3. 1. For Windows XP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. 2. For Other Windows Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Appendix: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

About This Guide

This guide is a complement to Quick Installation Guide. The Quick Installation

Guide instructs you on quick installation, and this guide provides the product

overview and detailed instructions for each steps.

When using this guide, please notice that features available of the adapter may

vary by model and software version. Deco availability may also vary by region or

ISP. All images, steps, and descriptions in this guide are only examples and may

not reflect your actual experience.

Conventions

In this guide, the following conventions are used:

Convention Description

Teal Underline Hyperlinks are in teal italic. You can click to redirect to a website or a

specific section.

Teal Contents to be emphasized and texts on the web page are in teal, including

the menus, items, buttons, etc.

Note: Ignoring this type of note might result in a malfunction or damage to the

device.

Tips: Indicates important information that helps you make better use of your

device.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications.

Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1)

environmental factors, including building materials, physical objects, and obstacles, 2) network conditions,

including local interference, volume and density of traffic, product location, network complexity, and

network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP

condition.

More Info

• The latest software can be found at https://www.tp-link.com/download-center.

• The Quick Installation Guide (QIG) can be found where you find this guide or

inside the package of the product.

• Specifications can be found on the product page at https://www.tp-link.com.

• A TP-Link Community is provided for you to discuss our products at https://

community.tp-link.com.

• Our Technical Support contact information can be found at the Contact

Technical Support page at https://www.tp-link.com/support.

Chapter 1

Get to Know About Your

Adapter

This chapter introduces what the adapter can do and shows its appearance.

This chapter contains the following sections:

• Product Overview

• LED Status

Chapter 1 Get to Know about Your Adapter

1. 1. Product Overview

TG-3468 is a high performance adapter designed for the high-speed PCI Express

Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-

Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 is a

highly integrated and cost-effective gigabit Ethernet adapter which is a good

selection to upgrade your network.

• Integrated 10/100/1000Mbps transceiver

• Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab

• Auto-Negotiation with Next Page capability

• Wake-on-LAN and remote wake-up support

• Support Full Duplex flow control (IEEE802.3X)

• Support IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1Q VLAN tagging

1. 2. LED Status

There are three LEDs, including a 10Mbps Link/Act LED, a 100Mbps Link/Act

LED, and a 1000Mbps Link/Act LED. You can check the adapter’s status by

following the LED explanation table.

Status Indication

Off The driver has not been installed.

Solid On The driver has been installed and the connection is built.

Flashing Data is being transmitted or received.

Chapter 1 Get to Know about Your Adapter

Tips:

If the LED is off, try these troubleshooting tips:

1. Check if the adapter is recognized and enabled or not. Refer to Troubleshooting-T3 for detailed

instructions.

2. Remove and reinsert the adapter.

3. Reinstall the adapter software, if necessary.

Chapter 2

Connect to a Computer

This chapter introduces how to connect the adapter to your computer.

Chapter 2 Connect to a Computer

Before you begin using your adapter, insert the adapter into your computer by

following these steps.

1. Turn off the computer, unplug the power cable and remove the case panel.

2. Locate an available PCI-E slot and carefully insert the adapter.

Note:

If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the

low-profile bracket provided.

Chapter 2 Connect to a Computer

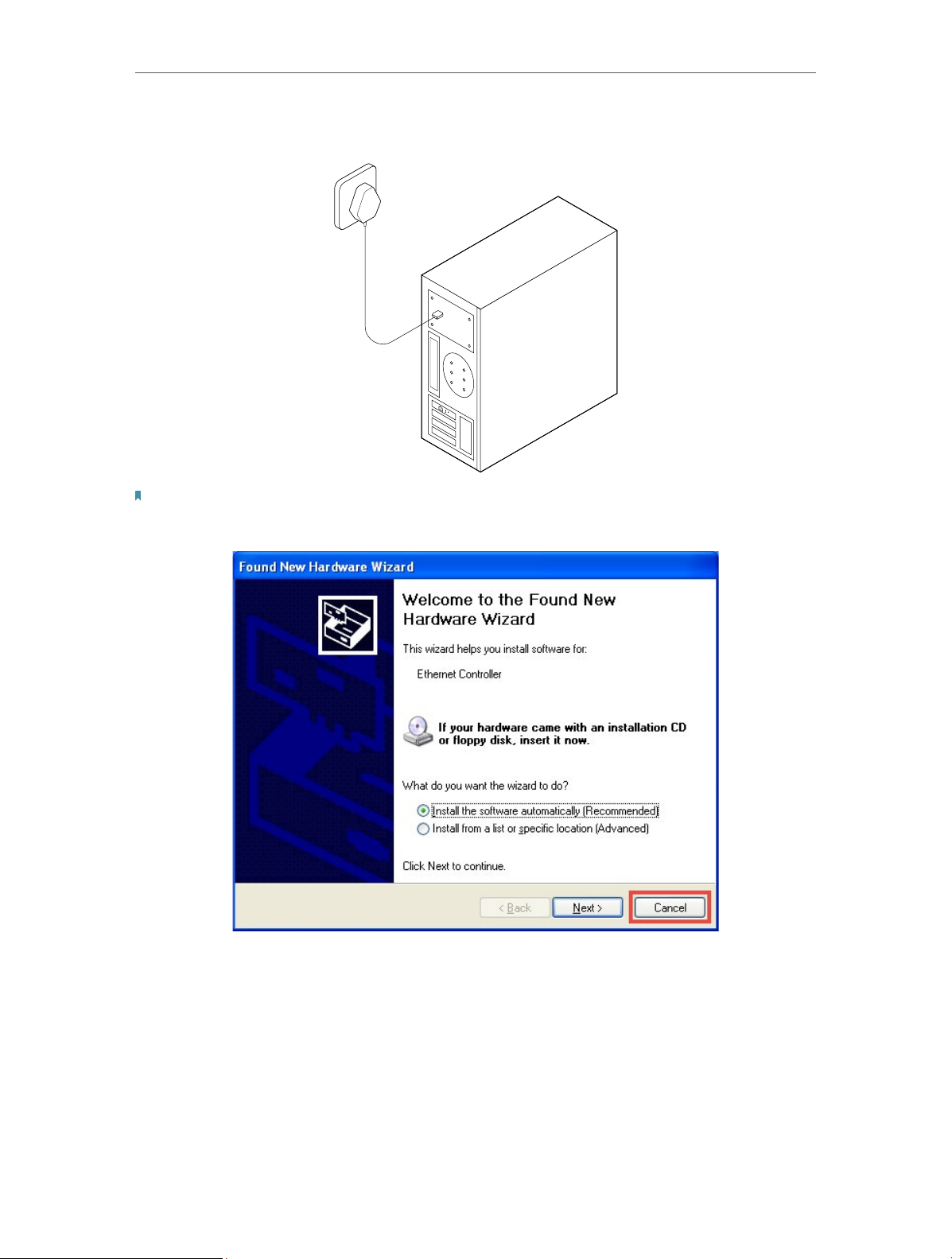

3. Replace the case panel, plug in the power cable and turn on your computer.

Note:

In Windows XP and Windows Vista, you may see the Found New Hardware Wizard window when the

adapter is plugged. Please click Cancel.

Chapter 3

Install Driver

This chapter introduces how to install your adapter’s driver in different Windows

systems. This chapter includes the following sections:

• For Windows XP

• For Other Windows Systems
