TP-Link TL-PA201 STARTER Bedienungsanleitung

TL-PA201

200Mbps Powerline Ethernet Adapter

Rev: 1.0.0

1910010103

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which

case the user may be required to take adequate measures.

III

Important Safety Instructions

1. Do Not open this product or attempt to service this product, it may expose you to dangerous high

voltage and other risks.

2. Do Not operate this product near water.

3. Do Not place or operate near or over radiator or heat register.

4. Do Not expose this product to dampness, dust or corrosive liquids.

5. Do Not connect this product and Disconnect from wall socket during a lightning or thunderstorm

6. Do Not obstruct this product ventilation slots, as insufficient airflow may harm this product.

7. Do Not put anything on this product.

8. Plug directly into wall socket (100Vac~240Vac). Do Not use an extension cord between this product

and the AC power source.

9. When plugging this product into wall socket, make sure that electrical socket are not damaged, and

no leakage for gas or water pipes to begin with.

10. Place the connecting cables carefully so people won’t stumble or walk on it.

11. The Powerline Adapter should be operated from the type of power indicated on the marking label. If

you are not sure of the type of power available, consult the qualified technician.

12. Unplug the Powerline Adapter from the mains and refer the product to qualified service personnel for

the following conditions:

¾If liquid has been spilled on the product

¾If the product has been exposed to rain or water

13. Unplug from the wall socket before cleaning. Use a damp cloth for cleaning. Do not use liquid

cleaners or aerosol cleaners

CONTENTS

Chapter 1 Introduction ..................................................................................................... 1

Chapter 2 Connecting Mechanism.................................................................................. 2

2.1 Introduction ....................................................................................................................................... 2

2.2 LED Indicator .................................................................................................................................... 2

2.3 Physical Interface.............................................................................................................................. 3

2.4 Hardware Connection – Computer.................................................................................................... 3

2.5 Hardware Connection – Internet ....................................................................................................... 4

Chapter 3 Installing Management Utility......................................................................... 5

Chapter 4 Using The Management Utility....................................................................... 8

4.1 Main .................................................................................................................................................. 8

4.1.1 Rename .................................................................................................................................... 10

4.1.2 Enter Password ........................................................................................................................ 10

4.1.3 Add Device ................................................................................................................................11

4.2 QOS ................................................................................................................................................ 12

4.3 Privacy ............................................................................................................................................ 13

4.4 Diagnostics...................................................................................................................................... 14

4.5 About............................................................................................................................................... 16

Chapter 5 Advance Feature: How to Use the Push buttons ....................................... 17

5.1 Pair( Secure with 128 bits-AES)...................................................................................................... 17

5.2 Set Up a Powerline AV Network with the Pair button ...................................................................... 17

5.3 Pair Button Behavior ....................................................................................................................... 18

5.4 Reset............................................................................................................................................... 18

Chapter 6 Appendix A: Troubleshooting Guide ........................................................... 19

TL-PA201 200Mbps Ethernet Powerline Adapter

Chapter 1 Introduction

Congratulations on your purchase of this outstanding Ethernet Powerline Adapter. This device is an

200Mbps Powerline Ethernet Adapter which transforms your house’s existing electrical wiring into an

ubiquitous networking infrastructure. Simply plug this 200Mbps Ethernet Powerline Adapter into an

ordinary AC power outlet which will easily extend your Cable/xDSL broadband connection or existing

Ethernet (LAN) network to any other electrical outlet in any room of a house without the need of any new

cabling.

This Ethernet Powerline Adapter supports up to 200Mbps data rate over the existing household power

circuit. With data rates of 200Mbps, full multimedia application can easily be supported throughout the

whole house in addition to Internet access. This Ethernet Powerline Adapter uses the existing power

lines installed in a home as a path to transmit digital data, voice, audio and video between devices.

To ensure data communication’s security and multimedia applications, this Ethernet Powerline Adapter

support built-in 128-bit AES encryption and Quality of Service (QOS)features.With minimum setup, you

can install and use this Ethernet Powerline Adapter within minutes. The adapter add two new function

to be useful

1．Existing connection with a new Unassociated device added via the Pair button.

2．Reset to default setting via the Reset button.

A. System Requirement

a) At least two AC 100V ~ 240V power outlets with standard home power wiring

b) A computer with the following:

¾Operating System with TCP/IP installed

¾Pentium III compatible processor and above

¾Ethernet LAN card installed with TCP/IP protocol

¾64 MB RAM or more

¾50 MB of free disk space (Minimum)

¾CD-ROM Drive

B. Package Contents

The 200Mbps Ethernet Powerline Adapter package contains the following items:

¾One Ethernet Powerline Adapter.

¾One CAT-5 Ethernet (LAN) Cable.

¾One Quick Installation Guide

¾One CD-ROM (Utility / Manual / Quick Installation Guide/Acrobat Reader)

If any of the above items are damaged or missing, please contact your dealer immediately..

TL-PA201 200Mbps Ethernet Powerline Adapter

Chapter 2 Connecting Mechanism

2.1 Introduction

The Ethernet Powerline Adapter support up to 200Mbps data rate. With this high speed connection rate,

this Ethernet Powerline Adapter allows you to setup a high speed home network by using your home

existing electrical wiring. Simply plug this Ethernet Powerline Adapter into an ordinary power outlet to

extend your Cable/xDSL broadband connection or existing LAN network to any other electrical outlet in

any rooms of your house.

Take notes that this Ethernet Powerline Adapter works in pairs. You need to plug one Ethernet Powerline

Adapter into a power outlet for each computer (Connect to the computer LAN card) you want to connect

(Network access); you will also need another Ethernet Powerline Adapter connected to your

Cable/xDSL broadband (Ethernet port) in order to extend your broadband connection or Internet surfing.

Section below describes the Ethernet Powerline Adapter’s LED indicators, physical interface and

hardware connection mechanism.

2.2 LED Indicator

The LED indicator displays information about the device’s status.

Label Status Description

ON Another powerline port is detected on the same powerline network

OFF Did not detect any other powerline port on the same powerline network

Powerline

Blinking The powerline port is transmitting/receiving data

ON The Ethernet Powerline Adapter is power on

Power

OFF The Ethernet Powerline Adapter is not receiving power

ON The Ethernet port is on and ready to receiving/transmitting data

OFF The Ethernet port is not connected or not power on

Ethernet

Blinking The Ethernet port is receiving/transmitting data

TL-PA201 200Mbps Ethernet Powerline Adapter

OFF Did not detect any HomePlug 1.0 device on the same powerline

network

HP 1.0 DET

Blinking Another HomePlug 1.0 device is detected on the same powerline

network

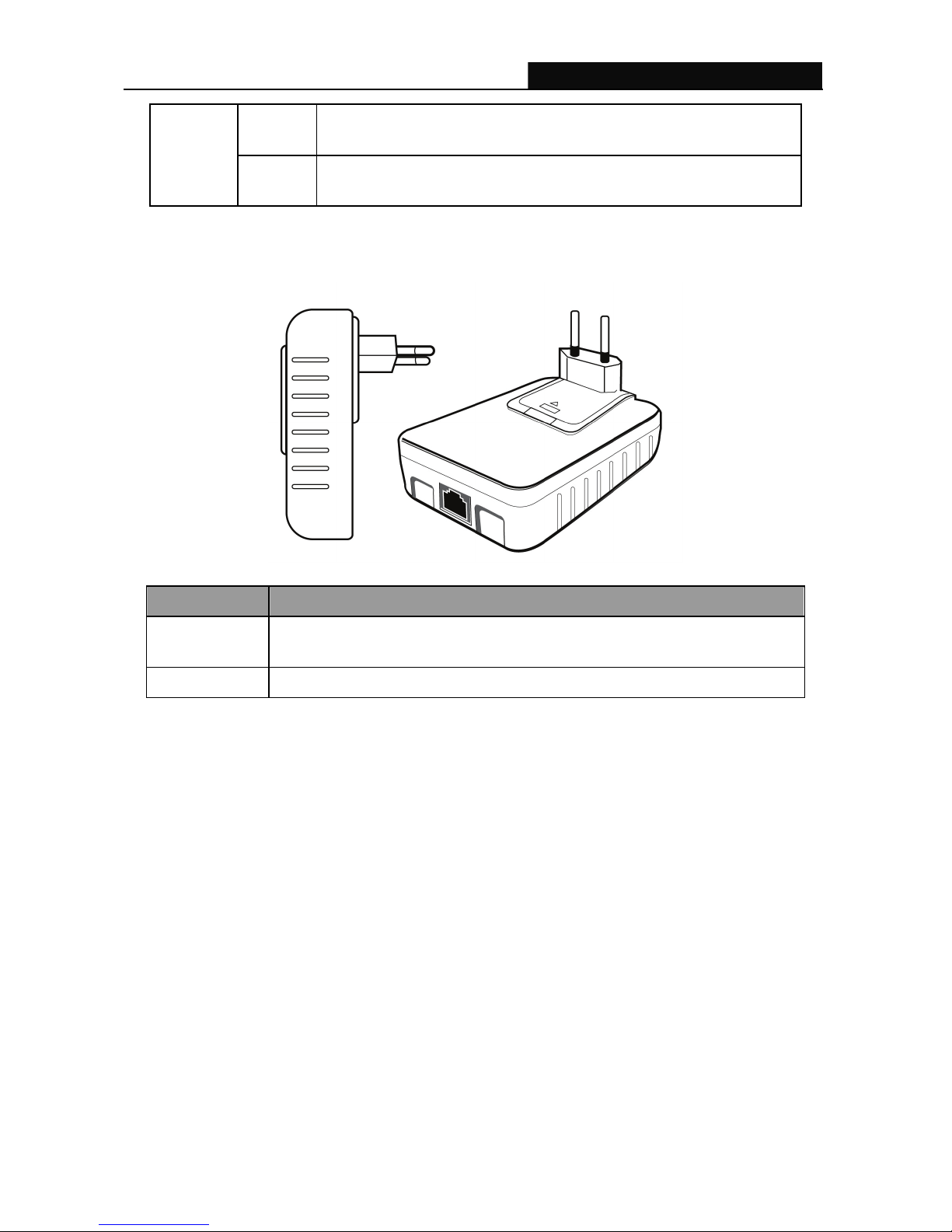

2.3 Physical Interface

There are two physical interfaces on this Ethernet Powerline Adapter.

Interface Description

Ethernet One 10/100Mbps Ethernet port connected to PC LAN card or broadband

device.

Power Plug Power Plug connected to any 100V ~ 240V AC power socket.

2.4 Hardware Connection – Computer

For those computers you wish to be networked by Ethernet Powerline Adapter, each of the computers

must be properly connected with an Ethernet Powerline Adapter through an Ethernet (RJ-45) cable.

Following are the steps to properly connect the Ethernet Powerline Adapter to your computer:

1．Power off your PC or Notebook.

2．Connect the provided Ethernet (RJ-45) cable to the Ethernet Powerline Adapter’s Ethernet port.

3．Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port.

4．Plug the Ethernet Powerline Adapter into a wall socket next to the computer.

5．Turn on your computer.

6．Check and confirm that the Power and Ethernet LEDs on the Ethernet Powerline Adapter are ON.

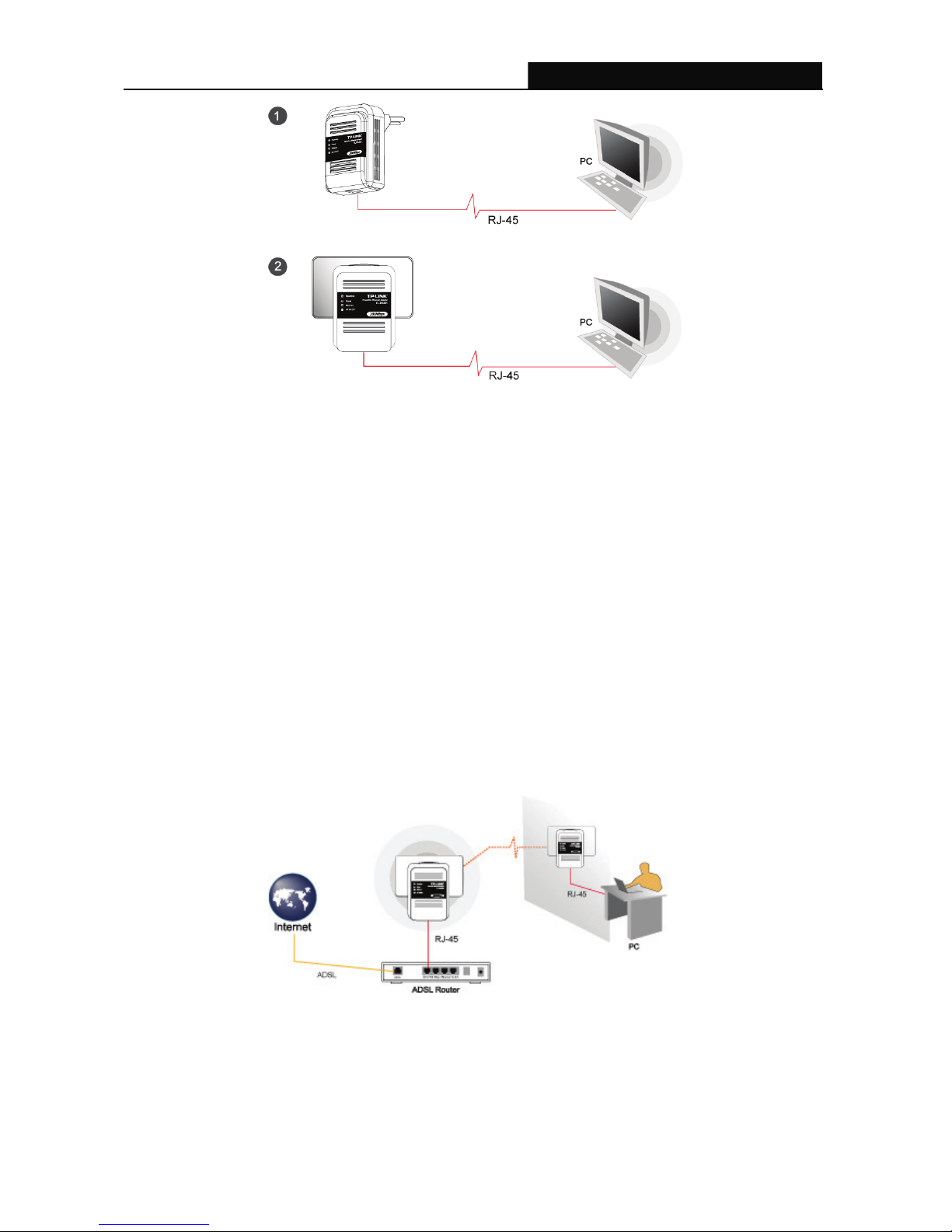

The hardware connection mechanism is shown below:

TL-PA201 200Mbps Ethernet Powerline Adapter

2.5 Hardware Connection – Internet

This section describes how to connect the Ethernet Powerline Adapter into your existing ADSL

broadband connection via ADSL Ethernet port. Follow the procedures describe below to connect the

Ethernet Powerline Adapter to your ADSL broadband connection:

1．Power off your PC or Notebook.

2．Connect the provided Ethernet (RJ-45) cable to the Ethernet Powerline Adapter’s Ethernet port.

3．Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL

broadband Router.

4．Plug the Ethernet Powerline Adapter into a wall socket next to the computer.

5．Turn on your computer.

6．Check and confirm that the Power, Powerline and Ethernet LEDs on the Ethernet Powerline

Adapter are ON.

The hardware connection mechanism is shown below:

)Note:

Do not connect the Powerline adapter to an extension lead, power strip,extension cord,surge protector

as this may degrade the network performance

TL-PA201 200Mbps Ethernet Powerline Adapter

Chapter 3 Installing Management Utility

Please verify that no other Ethernet Powerline Adapter or any Encryption Management Utilities are

installed before installing the provided software. If other Powerline Utilities are installed, uninstall them

and restart your personal computer before installing this provided software.

Follow the following procedures to properly installing the provided Management Utility:

Step 1: The program installation process will carry out and copy all the necessary files to your system.

Andere Handbücher für TL-PA201 STARTER

Inhaltsverzeichnis

Andere TP-Link Adapter Handbücher

TP-Link

TP-Link TL-WN951N - IEEE 802.11b/g 802.11n Draft 2.0 PCI Wireless... Bedienungsanleitung

TP-Link

TP-Link Archer TX20U Plus Bedienungsanleitung

TP-Link

TP-Link Archer TX50UH Bedienungsanleitung

TP-Link

TP-Link TL-WN725N Bedienungsanleitung

TP-Link

TP-Link TL-WN951N - IEEE 802.11b/g 802.11n Draft 2.0 PCI Wireless... Bedienungsanleitung

TP-Link

TP-Link TL-WN781ND Bedienungsanleitung

TP-Link

TP-Link UB400 Bedienungsanleitung

TP-Link

TP-Link TL-PA4010 Bedienungsanleitung

TP-Link

TP-Link Archer T9UH AC1900 Bedienungsanleitung

TP-Link

TP-Link TPL-WN722N Bedienungsanleitung

TP-Link

TP-Link TL-WN822N Bedienungsanleitung

TP-Link

TP-Link TL-PA211 Bedienungsanleitung

TP-Link

TP-Link TL-PA210 Bedienungsanleitung

TP-Link

TP-Link TL-PA251 Bedienungsanleitung

TP-Link

TP-Link TL-WPA7517 Bedienungsanleitung

TP-Link

TP-Link UE330 Bedienungsanleitung

TP-Link

TP-Link WN-512AG Bedienungsanleitung

TP-Link

TP-Link Kasa Smart KP405 Bedienungsanleitung

TP-Link

TP-Link TL-WDN4200 Bedienungsanleitung

TP-Link

TP-Link TL-PA4020P Bedienungsanleitung

TP-Link

TP-Link TL-PA8010P Bedienungsanleitung

TP-Link

TP-Link UB400 Bedienungsanleitung

TP-Link

TP-Link TL-WN725N Bedienungsanleitung

TP-Link

TP-Link TL-PA7020 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
