TP-Link TL-PA210 Bedienungsanleitung

TL-PA210

AV200 Mini Powerline Adapter

Rev: 1.0.0

1910010461

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered

trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which

case the user may be required to take adequate measures.

Important Safety Instructions

1. Do not open this product or attempt to service it; it may expose you to dangerous high voltage or

other risks.

2. Do not operate this product near water.

3. Do not place or operate this product near a radiator or a heat register.

4. Do not expose this product to dampness, dust or corrosive liquids.

5. Do not connect this product or disconnect it from a wall socket during a lightning or a thunderstorm

6. Do not block the ventilation slots of this product, for insufficient airflow may harm it.

7. Do not put anything on this product.

8. Plug this product directly into a wall socket (100Vac~240Vac). Do not use an extension cord between

this product and the AC power source.

9. When plugging this product into a wall socket, make sure that the electrical socket is not damaged,

and that there is no gas leakage.

10. Place the connecting cables properly so that people won’t stumble or walk on it.

11. This product should be operated from the type of power indicated on the marking label. If you are not

sure of the type of power available, consult the qualified technician.

12. Unplug this product from the mains and refer the product to qualified service personnel for the

following conditions:

¾If liquid has been spilled on the product

¾If the product has been exposed to rain or water

13. Unplug this product from the wall socket before cleaning. Use a damp cloth for cleaning. Do not use

liquid cleaners or aerosol cleaners.

14. The specification of the fuse is T2.5AL250V. To avoid damage, please do not change the fuse.

15. The Operating temperature is 0 ~4℃0 (32~10℃℉4)℉.

16. The Storage temperature is -40 ~70℃℃(-40 ~158 )℉℉.

CONTENTS

Chapter 1 Introduction ..................................................................................................... 1

Chapter 2 Connecting Mechanism .................................................................................. 4

2.1 Introduction ................................................................................................................................. 4

2.2 LED Indicator.............................................................................................................................. 1

2.3 Physical Interface ...................................................................................................................... 2

2.4 Hardware Connection – Computer ......................................................................................... 4

2.5 Hardware Connection – Internet ............................................................................................. 5

Chapter 3 Installing Management Utility......................................................................... 7

Chapter 4 Using The Management Utility ..................................................................... 11

4.1 Main ........................................................................................................................................... 11

4.1.1 Rename .............................................................................................................................. 13

4.1.2 Enter Password................................................................................................................. 14

4.1.3 Add Device......................................................................................................................... 15

4.1.4 Reset................................................................................................................................... 16

4.2 Privacy....................................................................................................................................... 16

4.3 Diagnostics ............................................................................................................................... 17

4.4 About.......................................................................................................................................... 19

Chapter 5 Advance Feature: How to Use the Pair Buttons ......................................... 20

5.1 Pair (Secure with 128 bits-AES)............................................................................................ 20

5.2 Set Up a Secured Powerline AV Network with the Pair button......................................... 20

Appendix A: Troubleshooting Guide............................................................................. 22

Appendix B: Specifications ........................................................................................... 23

TL-PA210 AV200 Mini Powerline Adapter

Chapter 1 Introduction

Congratulations on your purchase of this outstanding Mini Powerline Adapter. This device is an AV200

Mini Powerline Adapter which transforms your house’s existing electrical wiring into a ubiquitous

networking infrastructure. Simply plug this AV200 Mini Powerline Adapter into an ordinary AC power

outlet which will easily extend your Cable/xDSL broadband connection or existing Ethernet (LAN)

network to any other electrical outlet in any room of a house without the need of any new cabling.

This Mini Powerline Adapter supports up to 200Mbps data rate over the existing household power circuit.

With data rates of 200Mbps, full multimedia application can easily be supported throughout the whole

house in addition to Internet access. This Mini Powerline Adapter uses the existing power lines installed

in a home as a path to transmit digital data, voice, audio and video between devices.

To ensure data communication’s security and multimedia applications, this Mini Powerline Adapter

support built-in 128-bit AES encryption. With minimum setup, you can install and use this Mini Powerline

Adapter within minutes. The adapter adds two useful functions.

1．Existing connection with a new unassociated device added via the Pair Button.

2．Reset to default setting via the Management Utility.

A. System Requirement

a) At least two AC 100V ~ 240V power outlets with standard home power wiring

b) A computer with the following:

¾Operating System with TCP/IP installed

¾Pentium III compatible processor and above

¾Ethernet LAN card installed with TCP/IP protocol

¾64 MB RAM or more

¾50 MB of free disk space (Minimum)

¾CD-ROM Drive

B. Package Contents

The AV200 Mini Powerline Adapter package contains the following items:

¾One AV200 Mini Powerline Adapter (There are two AV200 Mini Powerline Adapters in Starter Kit)

¾One CAT-5 Ethernet Cable (There are two CAT-5 Ethernet Cables in Starter Kit)

¾One Quick Installation Guide

¾One CD-ROM (Management Utility and User Manual)

If any of the above items are damaged or missing, please contact your dealer immediately.

TL-PA210 AV200 Mini Powerline Adapter

1.1 LED Indicator

The LED indicator displays information about the device’s status.

Item Status Indication

On The adapter is on.

Blinking The adapter is in power-saving mode.

Power LED Off The adapter is off.

On The adapter is connected to a powerline network.

Blinking The adapter is transferring data.

Powerline LED Off The adapter isn’t connected to any powerline network or

is in power-saving mode.

On The Ethernet port is connected, but there is no data

being transferred.

Blinking The Ethernet port is transferring data.

Ethernet LED

Off The Ethernet port isn’t connected.

)Note:

5 minutes after the device connected to the adapter is turned off, the adapter will automatically switch to

the power-saving Mode.

TL-PA210 AV200 Mini Powerline Adapter

1.2 Physical Interface

There are four physical interfaces on this Mini Powerline Adapter.

Interface Description

Ethernet Port

A 10/100Mbps Ethernet port for connecting the adapter to the PC or

the broadband device with a network cable.

Power Plug*

A Power Plug for connecting the adapter to a 100V ~ 240V AC

power socket.

Pair Button

Pair buttons are used to secure a powerline network. To secure

your network, please follow the steps below. Firstly, plug in a new

adapter, and press its pair button for 3 to 8 seconds; then plug in

another adapter and press its pair button for 3 to 8 seconds as well.

The two buttons should be pressed within 2 minutes of each other.

After that, wait about 60 seconds so that the two adapters can finish

connecting.

* The provided power plug may differ from the picture due to different regional power specifications. Here

we take the EU version as an example.

)Note:

1. If you press the pair button for more than 10 seconds, the powerline adapter will leave the network

which it has joined and its new network name assumes a random value. The Power LED turns off

when it disconnects from the powerline network.

2. For detail information about the pair button, please refer to Charpter 5 Advanced Feature: How to

Use the Pair buttons.

Ethernet Port

Pair Button

Power Plug

TL-PA210 AV200 Mini Powerline Adapter

Chapter 2 Connecting Mechanism

2.1 Introduction

The Powerline Adapter supports up to 200Mbps data rate. With this high speed connection rate, this

Powerline Adapter allows you to setup a high speed home network by using your home existing

electrical wiring. Simply plug this Powerline Adapter into an ordinary power outlet to extend your

Cable/xDSL broadband connection or existing LAN network to any other electrical outlet in any room of

your house.

Note that this Powerline Adapter works in pairs. You need to plug one Powerline Adapter into a power

outlet for each computer and connect the Powerline Adapter to the computer’s LAN card with an

Ethernet cable; you will also need another Powerline Adapter connected to your Cable/xDSL broadband

so as to extend your broadband connection or Internet surfing. With clean power line, the distance

between two Powerline Adapters can reach 300 meters at lease, but the actual distance may vary due to

the environment.

Section below describes the connection instructions and hardware connection mechanism.

2.2 Connection Instruction

To ensure the optimum performance of the Powerline Adapter and significantly improve the transmission

capacity of the network, we recommend that you comply with the following connection rule:

yPlug the Powerline Adapter directly into a wall socket but not the multiple sockets.

2.3 Hardware Connection – Computer

For those computers you wish to be networked by Powerline Adapter, each of the computers must be

properly connected with a Powerline Adapter through an Ethernet (RJ-45) cable.

Following are the steps to properly connect the Powerline Adapter to your computer:

1．Connect the provided Ethernet (RJ-45) cable to the Powerline Adapter’s Ethernet port.

2．Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port.

3．Plug the Powerline Adapter into a wall socket next to the computer.

4．Turn on your computer.

5．Check and confirm that the Power LED and Ethernet LED on the Powerline Adapter are

ON.

TL-PA210 AV200 Mini Powerline Adapter

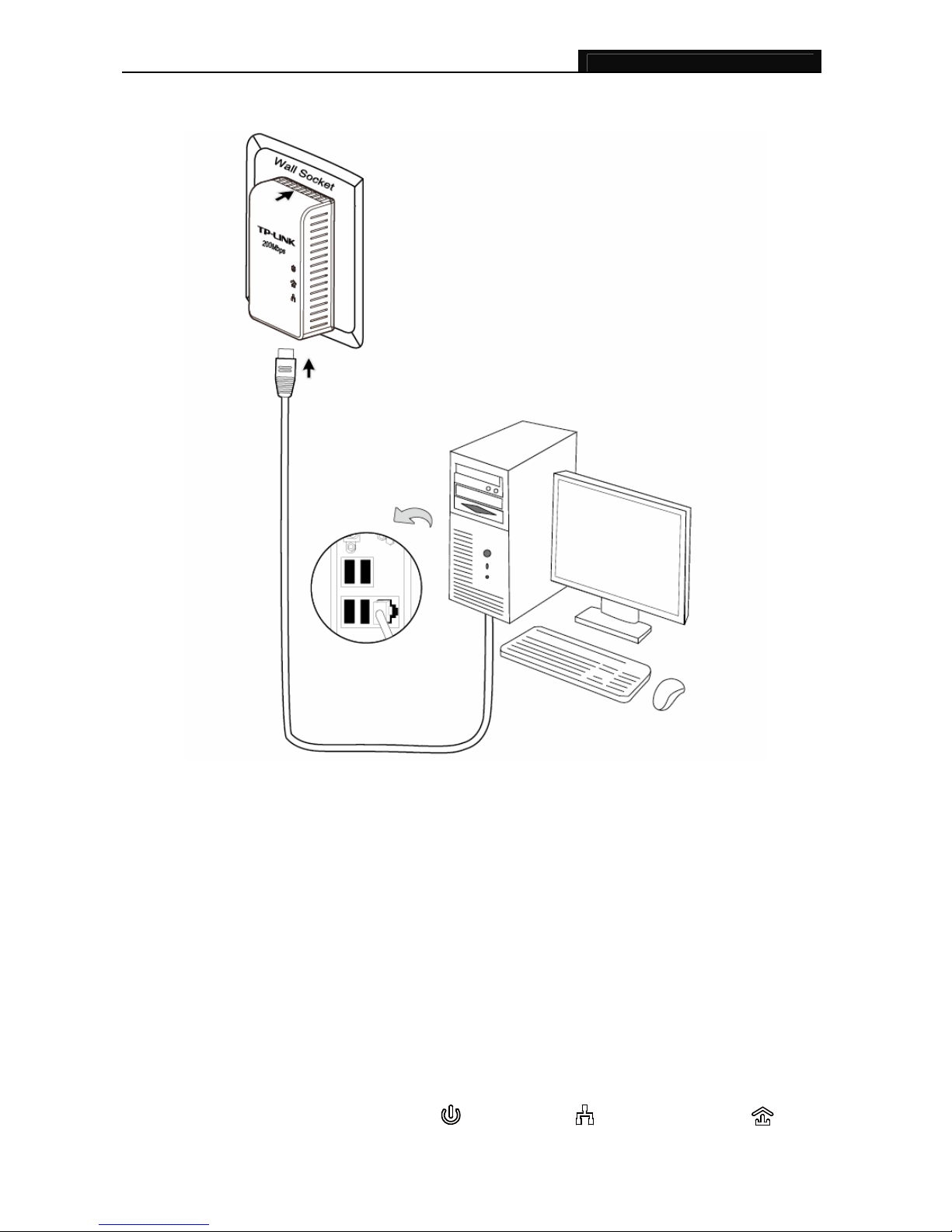

The hardware connection mechanism is shown below:

)Note:

Do not connect the Powerline adapter to any extension lead, power strip, extension cord or surge

protector, as this may degrade the network performance.

2.4 Hardware Connection – Internet

This section describes how to connect the Powerline Adapter into your existing ADSL broadband

connection via ADSL Ethernet port. Follow the procedures described below to connect the Powerline

Adapter to your ADSL broadband connection:

1．Connect the provided Ethernet (RJ-45) cable to the Powerline Adapter’s Ethernet port.

2．Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL

broadband Router.

3．Plug the Powerline Adapter into a wall socket next to the computer.

4．Turn on your computer.

5．Check and confirm that the Power LED , Ethernet LED , and Powerline LED on the

Powerline Adapter are ON.

Andere Handbücher für TL-PA210

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TP-Link Adapter Handbücher

TP-Link

TP-Link TL-WN821N - NT WIRELESS N USB ADAPTERATHEROS2T2R 2.4GHZ 802.11G B ND... Bedienungsanleitung

TP-Link

TP-Link TL-WN727N Bedienungsanleitung

TP-Link

TP-Link TF-3200 Bedienungsanleitung

TP-Link

TP-Link TL-PA211 Bedienungsanleitung

TP-Link

TP-Link TL-PA7017 KIT Bedienungsanleitung

TP-Link

TP-Link TL-PA511 Bedienungsanleitung

TP-Link

TP-Link TL-WN881ND Bedienungsanleitung

TP-Link

TP-Link TL-WN321G Bedienungsanleitung

TP-Link

TP-Link TL-WN781ND Bedienungsanleitung

TP-Link

TP-Link Archer T3U Nano Bedienungsanleitung

TP-Link

TP-Link TL-WN725N Bedienungsanleitung

TP-Link

TP-Link TL-WN320G Bedienungsanleitung

TP-Link

TP-Link TL-PA7020P Bedienungsanleitung

TP-Link

TP-Link TL-WN723N Bedienungsanleitung

TP-Link

TP-Link TL-WN881ND Bedienungsanleitung

TP-Link

TP-Link CP250 Bedienungsanleitung

TP-Link

TP-Link TL-PA2030 Bedienungsanleitung

TP-Link

TP-Link TL-WN861N Bedienungsanleitung

TP-Link

TP-Link TL-PA4010PT Kit Bedienungsanleitung

TP-Link

TP-Link TL-PA4010 Bedienungsanleitung

TP-Link

TP-Link TL-WN822N Bedienungsanleitung

TP-Link

TP-Link TL-PA7010 Bedienungsanleitung

TP-Link

TP-Link TL-PA717 Bedienungsanleitung

TP-Link

TP-Link TL-PA9020 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
