User Guide

TL-POE150S

PoE Injector

Rev:3.0.0

7106503937

Specifications are subject to change without notice.

is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names

are trademarks or registered trademarks of their respective

holders.

No part of the specifications may be reproduced in any form

or by any means or used to make any derivative such as

translation, transformation, or adaptation without permission

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

¾Reorient or relocate the receiving antenna.

¾Increase the separation between the equipment and

receiver.

¾Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

¾Consult the dealer or an experienced radio/ TV technician

for help.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received,

including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority

to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Продукт сертифіковано згідно справилами системи УкрСЕПР О

на відповідність вимогам нормативних документів та вимогам,

що передбачені чинними законодавчими актами України.

SAFETY NOTICES

¾Do not use this product near water, for example, in a wet

basement or near a swimming pool.

¾Avoid using this product during an electrical storm. There

may be a remote risk of electric shock from lightning.

CONTENTS

Package Contents.................................................................... 1

Chapter 1 Introduction.......................................................... 1

1.1 Overview of the Product.............................................. 1

1.2 Features ...................................................................... 2

Chapter 2 Identifying External Components....................... 2

Chapter 3 Connecting the PoE Injector............................... 3

Appendix: Specifications........................................................ 5

Package Contents

The following items should be found in your package.

¾TL-POE150S PoE Injector

¾One Power Adapter

¾One Ethernet (CAT5 UTP) Cable

¾This User Guide

)Note:

Make sure that the package contains the above items. If any of

the listed items are damaged or missing, please contact your

distributor.

Chapter 1 Introduction

1.1 Overview of the Product

Thank you for choosing the TL-POE150S PoE Injector. The

Power over Ethernet (PoE*) Injector is able to supply steady

power to Powered Device (PD*) or PoE Splitter over the

Ethernet cable. The Ethernet equipment can work as a Power

Sourcing Equipment (PSE*) with the help of the TL-POE150S

connection.

PoE technology allows the existing Ethernet infrastructure to

transmit electrical power, along with data, to remote IP endpoints

over the Ethernet cables, which can greatly save the cost of the

external power cables. Your network can benefit from PoE

technology for it will ensure the normal working status of your

network while keep the existing Ethernet infrastructure secure.

1.2 Features

¾Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3af standards

¾Compatible with PoE compliant PDs and PoE Splitters

¾Transmits electrical power along with data in one single

cable

¾External 48V DC power supply

¾Supports Plug-and-Play for the devices, without any

configuration

¾Elegant appearance with space-saving mini size

Chapter 2 Identifying External Components

*PoE: This technology describes a system to transmit electrical power, along

with data, to remote devices over standard twisted-pair cable in an

Ethernet network.

*PD: A device powered by a PSE and thus consumes energy. Examples

include powering IP telephones, wireless LAN access points, network

cameras, network hubs, embedded computers etc.

*PSE: A device (switch or hub for instance) that will provide power in a PoE

setup.

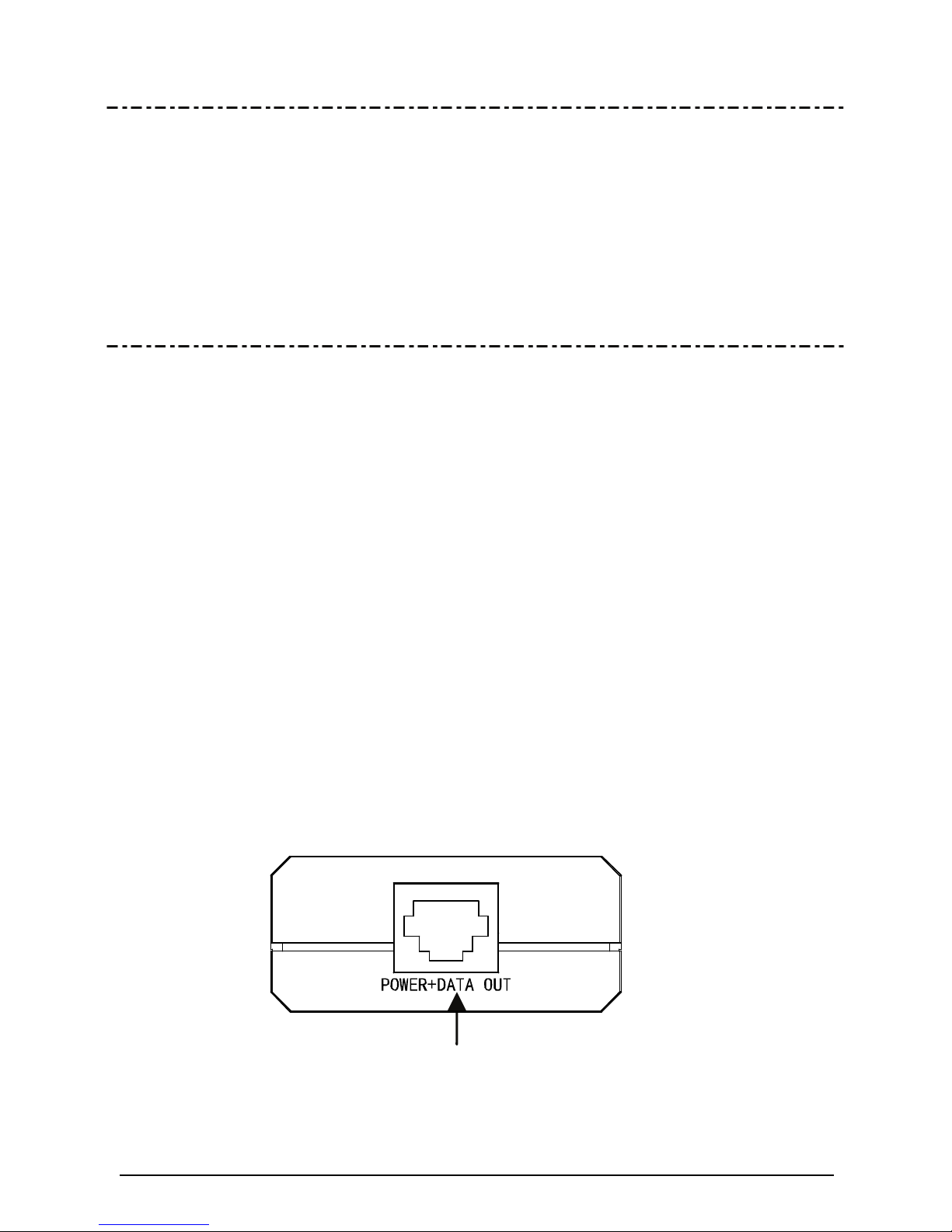

POWER+DATA OUT: Connect to the PD or PoE Splitter

with a CAT5 UTP cable.

Chapter 3 Connecting the PoE Injector

You can use TL-POE150S PoE Injector with PD or PoE Splitter

to expand your network to where there are no power lines or

outlets, where you wish to fix devices such as APs, IP Cameras

or IP Phones, etc. The following steps will tell you how to

connect the PoE Injector correctly.

1. Use a CAT5 UTP cable to connect port of Ethernet device

(such as a switch, hub or router) to the LAN IN port.

2. Please connect the power adapter properly to a power

socket with provided power cable, and then connect the

other end of the power adapter to the DC 48V port of the

TL-POE150S.

3. Connect the POWER+DATA OUT port of the TL-POE150S

to a PD or a PoE Splitter with CAT 5 UTP cable.

Now, the device can work normally with data and power.

LAN IN: Connect to a

network device (such as a

Switch or Router ) with

CAT5 UTP cable.

DC 48

:Connect to the

provided power adapte

which can supply steady

ower of 48V DC.

PWR: Power LED. A steady blend color of red and yellow

indicates that the power adapter is working properly. A steady

green light indicates that the PoE system has detected the

PD or PoE Splitter and the PoE Injector is supplying powe

normally. A flashing light indicates abnormal power supply.

There are two schemes to realize the PoE.

1. If the device supports PoE (take an IP camera with PoE for

example), following topology will work:

Scheme 1

2. If the device does not support PoE, it is necessary to have a

PoE Splitter to separate the power and data, transmitting

them detached in one UTP cable and one power cable. Here

we take TP-LINK TL-POE10R Splitter for example. You can

use following topology.

Scheme 2

)Note:

¾Do not mistake the power port of the TL-POE150S and

TL-POE10R when choosing the Scheme 2, or else it will

cause serious damage to your network device.

¾If you want to know more details about TL-POE10R Splitter,

please refer to “TL-POE10R User Guide” on our website

http://www.tp-link.com.

Appendix: Specifications

Normal

Standards IEEE 802.3, IEEE 802.3u, IEEE

802.3ab, IEEE 802.3af

Ports

1 10/100/1000Mbps Auto-Negotiation

RJ45 LAN port

1 10/100/1000Mbps Auto-Negotiation

RJ45 PoE port

1 48V DC Power Input Port

Cabling Type RJ45 CAT5 UTP cable

LED PWR

Safety &

Emissions FCC, CE

Environmental and Physical

Operating Temp 0℃~40℃(32℉~104℉)

Storage Temp -40℃~70℃(-40℉~158℉)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH, Non-condensing

Dimensions (W*D*H) 80.8*54*24 mm
