TP-Link TL-R4199G Bedienungsanleitung

TL-R4199G

SMB Broadband Router

Rev: 1.0.3

1910010054

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

Package contents

The following contents should be found in your box:

¾One TL-R4199G SMB Broadband Router

¾One power cord for TL-R4199G SMB Broadband Router

¾One Resource CD for TL-R4199G SMB Broadband Router, including:

•This Guide

•Other Helpful Information

¾Mounting kits for installing in a standard 19-inch rack

)Note:

Make sure that the package contains the above items. If any of the listed items are damaged or

missing, please contact with your distributor.

Conventions

The Router or TL-R4199G mentioned in this guide stands for TL-R4199G SMB Broadband Router

without any explanation.

Parameters provided in the pictures are just references for setting up the product, which may

differ from the actual situation.

You can set the parameters according to your demand.

CONTENTS

Chapter 1. Introduction ........................................................................................ 1

1.1 Overview of the Router .................................................................................................. 1

1.2 Features......................................................................................................................... 1

Chapter 2. Hardware installation ......................................................................... 2

2.1 Panel Layout.................................................................................................................. 2

2.1.1 The Front Panel................................................................................................................2

2.1.2 The Rear Panel ................................................................................................................3

2.2 System Requirements ................................................................................................... 3

2.3 Installation Environment Requirements ......................................................................... 3

2.4 Connecting the Router................................................................................................... 3

Chapter 3. Quick Installation Guide .................................................................... 5

3.1 Configure PC ................................................................................................................. 5

3.2 Login.............................................................................................................................. 8

Chapter 4. Configuring the Router .................................................................... 11

4.1 Status........................................................................................................................... 11

4.2 Quick Setup ................................................................................................................. 13

4.3 Network........................................................................................................................ 13

4.3.1 LAN.................................................................................................................................13

4.3.2 WAN ...............................................................................................................................14

4.3.3 Network service detection ..............................................................................................25

4.3.4 MAC Clone .....................................................................................................................25

4.3.5 WAN Port Parameter......................................................................................................26

4.4 DHCP........................................................................................................................... 27

4.4.1 DHCP Settings ...............................................................................................................28

4.4.2 DHCP Clients List...........................................................................................................29

4.4.3 Address Reservation ......................................................................................................29

4.5 Forwarding................................................................................................................... 30

4.5.1 Virtual Servers................................................................................................................31

4.5.2 Port Triggering................................................................................................................32

4.5.3 DMZ................................................................................................................................34

4.5.4 UPnP ..............................................................................................................................35

4.6 Security........................................................................................................................36

4.6.1 Firewall ...........................................................................................................................36

4.6.2 IP Filtering ......................................................................................................................37

4.6.3 Domain Filtering .............................................................................................................40

4.6.4 MAC Filtering..................................................................................................................41

4.6.5 Screen ............................................................................................................................43

4.7 Static Routing .............................................................................................................. 46

4.8 Session Limit ............................................................................................................... 48

4.8.1 Session Limit ..................................................................................................................48

4.8.2 Session List ....................................................................................................................49

4.9 QoS.............................................................................................................................. 49

4.9.1 QoS Settings ..................................................................................................................50

4.9.2 QoS Rules List ...............................................................................................................50

4.10 IP & MAC Binding ........................................................................................................ 51

4.10.1 Binding Setting ...............................................................................................................51

4.10.2 ARP List..........................................................................................................................53

4.11 Dynamic DNS .............................................................................................................. 54

4.11.1 Dyndns DDNS ................................................................................................................54

4.11.2 PeanutHull DDNS...........................................................................................................55

4.11.3 Comexe DDNS...............................................................................................................55

4.12 Switch Setting .............................................................................................................. 56

4.12.1 Port Statistics .................................................................................................................57

4.12.2 Port Mirror ......................................................................................................................57

4.12.3 Port Rate Control............................................................................................................58

4.12.4 Port Parameter ...............................................................................................................58

4.12.5 Port Status......................................................................................................................59

4.12.6 Port VLAN ......................................................................................................................60

4.13 System Tools ............................................................................................................... 60

4.13.1 Time Settings .................................................................................................................61

4.13.2 Firmware.........................................................................................................................62

4.13.3 Factory Defaults .............................................................................................................62

4.13.4 Backup and Restore.......................................................................................................63

4.13.5 Reboot............................................................................................................................64

4.13.6 Password........................................................................................................................65

4.13.7 System Log ....................................................................................................................66

4.13.8 Remote Management.....................................................................................................66

4.13.9 Statistics .........................................................................................................................67

4.13.10WAN Speed Detect ........................................................................................................68

4.13.11IP NAT Table..................................................................................................................70

4.13.12NAT Source Port Settings ..............................................................................................70

Appendix A: Specifications................................................................................... 71

Appendix B: FAQ.................................................................................................... 72

Appendix C: Glossary............................................................................................ 76

TL-R4199G SMB Broadband Router User Guide

Chapter 1.Introduction

Thank you for choosing TL-R4199G SMB Broadband Router!

1.1 Overview of the Router

The TL-R4199G SMB Broadband Router possesses excellent throughput and driving load

capability, which consumedly meets the requirements from Internet cafe and small

/medium/sizable enterprise with volumes of users, making a more expedite communication. The

superior performance will bring you full-new experience of a non-bottle-neck network.

TL-R4199G SMB Broadband Router makes plenty of applications become a reality. It can be

used for constructing intranet FTP, WEB, and Mail server, etc. Inaccessibly, it features network

game ports opened, MSN audio conversation and special application setting, providing much

more additional value to your network.

Featuring firewall and VPN Passthrough, the TL-R4199G SMB Broadband Router resists most

common Internet attacks and ensures secure data connectivity and transmission over the

Internet.

TL-R4199G SMB Broadband Router is easy-to-manage. Quick Setup is supported and friendly

help messages are provided for every step. So you can configure it quickly and share Internet

access, files and fun comfortably.

1.2 Features

¾Intel IXP core, main frequency up to 533Hz

¾Complies with IEEE 802.3, 802.3u , 802.3x, 802.1x standards

¾8 LAN ports, 1 WAN port

¾Support Port Bandwidth Control, Port Mirror, Port-based VLAN for LAN ports

¾Supports QoS based on IP address

¾Built-in NAT and DHCP server supporting static IP address distributing

¾Supports Virtual Server, Port Triggering, and DMZ host

¾Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address

filtering

¾Supports connecting/disconnecting Internet at a specified time of day

¾Supports access control, allowing parents and network administrators to establish restricted

access policies based on the time of day for children or staff

¾Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP

¾Supports UPnP, Dynamic DNS, Static Routing, VPN pass-through

¾Supports Traffic Statistics

¾Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter

¾Ignores Ping packets from WAN or LAN ports

TL-R4199G SMB Broadband Router User Guide

¾Supports firmware upgrade

¾Supports Remote and Web management

Chapter 2.Hardware installation

2.1 Panel Layout

2.1.1 The Front Panel

The Router’s LEDs are located on the front panel (View from left to right).

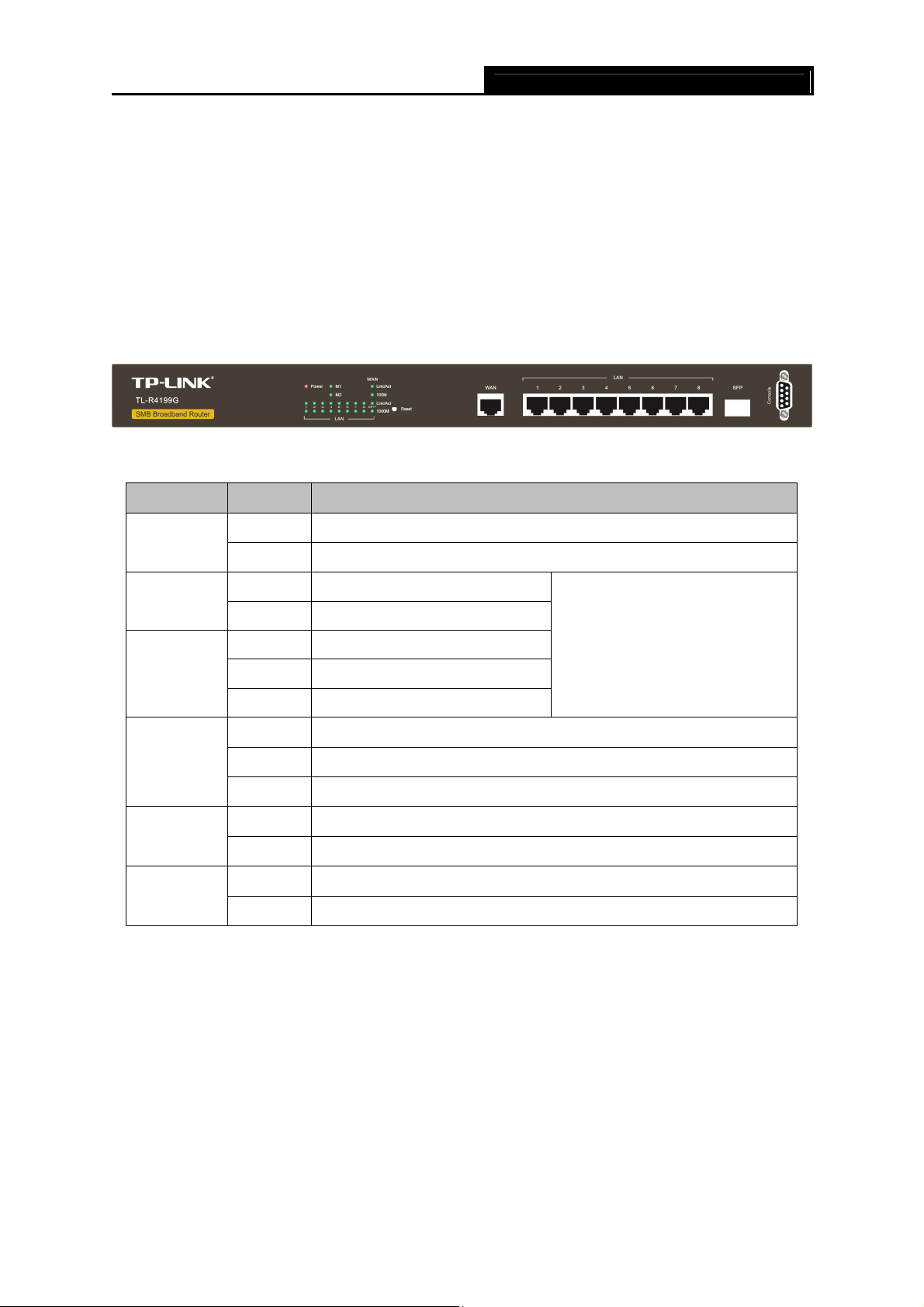

Figure 2-1

LED Descriptions:

Name Status Indication

Not lit The router is power off

Power

Lit up The router is power on

Not lit The router works properly

M1 Lit up The router has a hardware error

Not lit The router has a hardware error

Lit up The router has a hardware error

Flashing The router works properly

When M1 and M2 are flashing

synchronously, the router is

restoring the factory default

settings.

Not lit There is no device linked to the corresponding port

Lit up There is a device linked to the corresponding port but no activity

WAN/LAN

(Link/Act)

Flashing There is an active device linked to the corresponding port

Not lit The linked device is running at 10Mbps

100M(WAN)

Lit up The linked device is running at 100Mbps

Not lit The linked device is running at 10Mbps or 100Mbps

1000M(LAN)

Lit up The linked device is running at 1000Mbps

The front panel contains the following features. (Viewed from left to right)

¾Reset: Use the button to restore the router to the factory defaults.

There are two ways to reset the router:

Method one: Use the Factory Defaults function on System Tools -> Factory Defaults page in

the router's Web-based Utility.

Method two: Use the Factory Default Reset button. First, turn off the router's power. Second,

press the default reset button, then turn on the router's power, and hold the reset button until the

M1 and M2 LED flash simultaneously (about 3 seconds). At last, release the reset button and wait

for the router to reboot.

TL-R4199G SMB Broadband Router User Guide

)Note:

Ensure the router is powered on before it restarts completely.

¾WAN: One RJ45 port for connecting the router to a cable, DSL modem or Ethernet

¾LAN: Eight 10/100/1000Mbps RJ45 port for connecting the router to the local PCs

2.1.2 The Rear Panel

The rear panel of the TL-R4199G only features a power receptacle, which is an AC power

receptacle. Connect the female of the power cord head here, and the male head to the AC power

outlet.

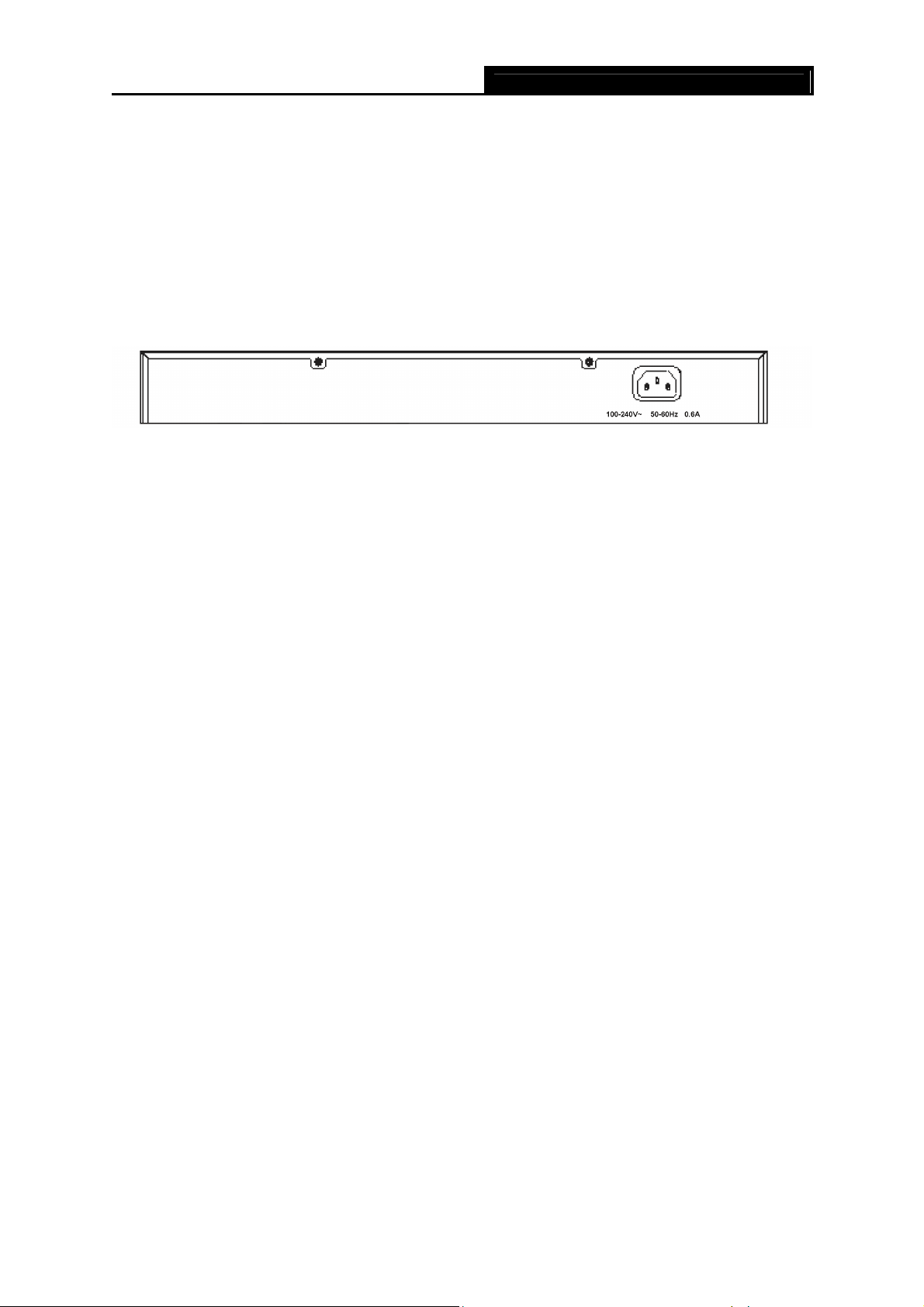

Figure 2-2

2.2 System Requirements

¾Broadband Internet Access Service (DSL/Cable/Ethernet)

¾One DSL/Cable modem that has an RJ45 connector (It’s not necessary if you connect the

router to Ethernet)

¾Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45

connectors

¾TCP/IP protocol must be installed on each PC

¾Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later

2.3 Installation Environment Requirements

¾Not in direct sunlight or near a heater or heating vent

¾Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space on all sides

of the router

¾Well ventilated (especially if it is in a closet)

¾Operating temperature: 0℃~40℃(32℉~104℉)

¾Operating Humidity: 10%~90%RH, Non-condensing

)Note:

Do not use this product near water, for example, in a wet basement or near a swimming pool.

Avoid using this product during an electrical storm. There may be a remote risk of electric shock

from lightning.

2.4 Connecting the Router

Before you install the router, you should connect your PC to the Internet through your broadband

service successfully. If there is any problem, please contact with your ISP for help. After that,

please install the router according to the following steps. Don't forget to pull out the power plug

TL-R4199G SMB Broadband Router User Guide

and keep your hands dry.

1. Power off your PC(s), Cable/DSL modem, and the router.

2. Connect the PC(s) and all Switches/Hubs on your LAN to the LAN Ports on the router, shown

in figure 2-3.

3. Connect the DSL/Cable modem to the WAN port on the router, shown in figure 2-3.

4. Connect the AC power adapter to the AC power socket on the router, and the other end into

an electrical outlet. The router will start to work automatically.

5. Power on your PC(s) and Cable/DSL modem.

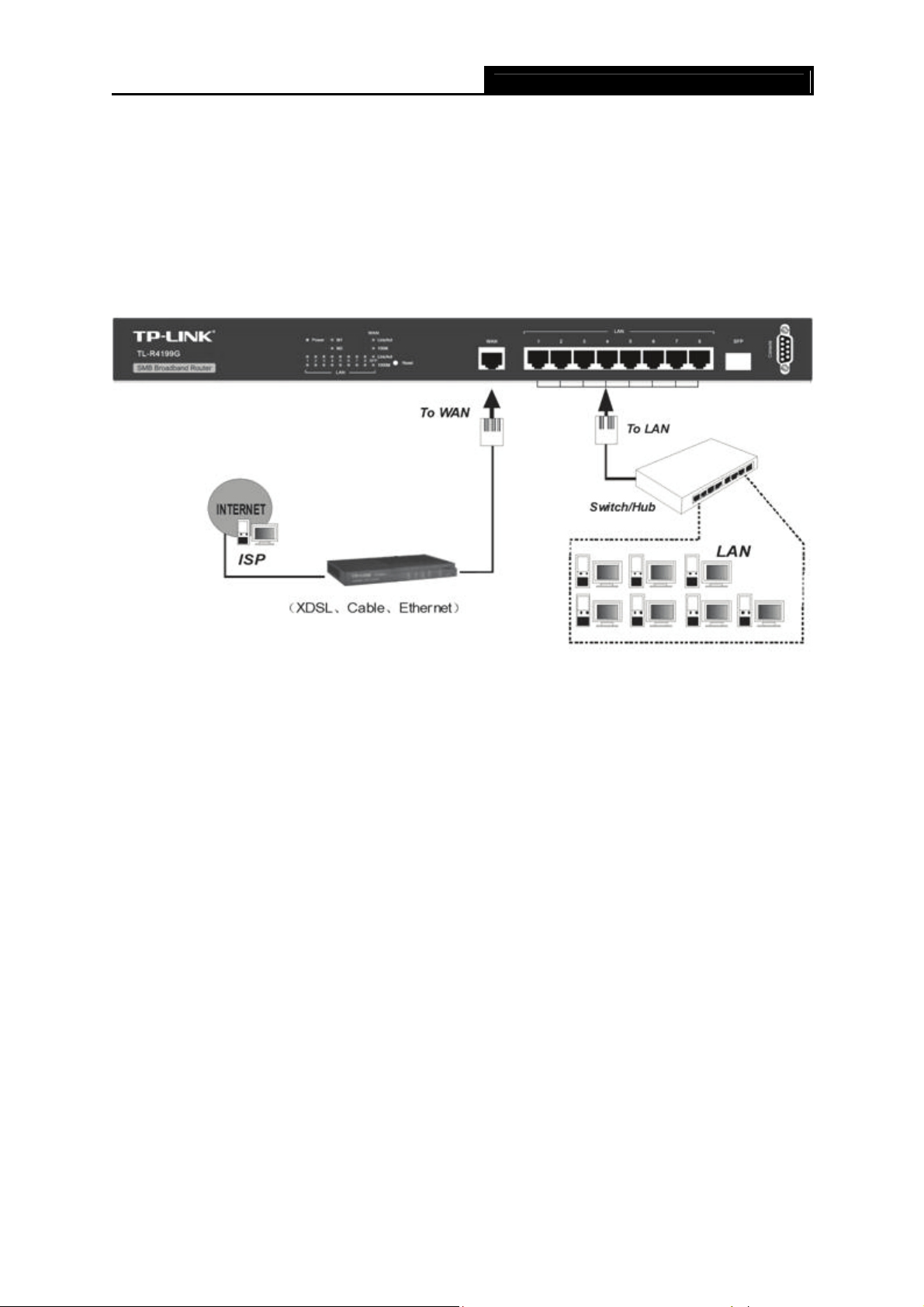

Figure 2-3

Inhaltsverzeichnis

Andere TP-Link Netzwerk-Router Handbücher

TP-Link

TP-Link TD-W8968 Bedienungsanleitung

TP-Link

TP-Link TL-WR820N Bedienungsanleitung

TP-Link

TP-Link Archer C3000 Bedienungsanleitung

TP-Link

TP-Link TL-MR6400 Bedienungsanleitung

TP-Link

TP-Link Deco BE16000 Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

TP-Link

TP-Link T1700X-16TS Bedienungsanleitung

TP-Link

TP-Link TL-SG1008 Bedienungsanleitung

TP-Link

TP-Link Hexagon P50 Bedienungsanleitung

TP-Link

TP-Link Archer C7 Bedienungsanleitung

TP-Link

TP-Link TL-MR3420 Bedienungsanleitung

TP-Link

TP-Link Deco XE200 Bedienungsanleitung

TP-Link

TP-Link Archer C5 Pro Bedienungsanleitung

TP-Link

TP-Link Deco WE10800 Bedienungsanleitung

TP-Link

TP-Link TL-WR1043ND Bedienungsanleitung

TP-Link

TP-Link TL-WPA8730 Bedienungsanleitung

TP-Link

TP-Link deco AX7800 Bedienungsanleitung

TP-Link

TP-Link TD-W8151N Bedienungsanleitung

TP-Link

TP-Link EC231-G1u Bedienungsanleitung

TP-Link

TP-Link Archer AX55 Bedienungsanleitung

TP-Link

TP-Link Archer AX4400 Bedienungsanleitung

TP-Link

TP-Link Archer C5200 Bedienungsanleitung

TP-Link

TP-Link Archer VR200v Bedienungsanleitung

TP-Link

TP-Link SafeStream TL-ER6020 Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise

LevelOne

LevelOne FBR-1416 Bedienungsanleitung
