TP-Link TL-SC3130 Bedienungsanleitung
1
Using IP Camera via Mobile Phone
You can use TP-LINK Web User Interface via mobile phones. To use IP cameras via mobile
phones, please make sure your RTSP is set to “On” (Default is “On”). To change the settings of IP
cameras, Please check “Settings →Basic →Camera →General.” Up to the 15th August, it has
been tested that you can use TP-LINK Web User Interface via mobile phones supporting the
mobile view modes shown in the table below.
Tested Mobile Phone Tested Mobile View Mode
Brand Model 3G Streaming
Mobile View
3G Web
Brower Mobile
View
2.5G WAP
browser
Snapshot
2.5G Web
browser
Snapshot
Nokia N76 ●●
Nokia N82 ●
Nokia N95 ●●
Nokia E66 ●●
Nokia 5800 ●●
Nokia 6680 ●●
Apple iPhone 3G ●
SonyEricsson K310i ●
SonyEricsson K618i ●
SonyEricsson C905 ●
SonyEricsson W550i ●
SonyEricsson W580i ●
Motorola W220 ●
Motorola W510 ●
Motorola E6 ●
HTC Touch ●
Windows Mobile 6 Smart
Phone
▲■●
)Note:
▲Please install Platform4 Player on your phone first.
■Please install Opera Mobile 9.5 on your phone first.
●Please use Real Player and other RSTP streaming media player embedded to view the video
in this mode.
●Please use the normal embedded browser in the phone to view the video in this mode.
1.1 3G Streaming Mobile View Mode
For 3G Streaming Mobile View Mode, please type “rtsp://<IP>:<PORT>/video.3gp ” into your 3G
Streaming Link. <IP> is the Public IP address of your IP camera (the default value is
192.168.1.10); <PORT> is the RTSP port of your IP camera (Default value is 554). For Example:
rtsp://192.168.1.10:554/video.3gp
)Note:
You can also use RTSP clients (RealPlayer, VLC, QuickTime Player etc) to view RTSP streaming,
just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player URL.
2
Below is an example of viewing the camera in 3G streaming mode on NOKIA N76:
1. Click Function and select Gallery.
2. Click the Streaming links.
3. Click Option and add a New link
4. Type the New link Name and Web address. (The address is Public IP or domain name), Ex:
rtsp://tl-sc3130.dyndns.org/video.3gp
3
5. Open with Real-Player and click Yes to connect.
1.2 3G Web Brower Mobile View Mode
For 3G Web Browser Mobile View Mode, please type “http://<IP>” into your 3G Mobile’s Web
Browser. <IP> is the Public IP address of your IP camera (the default value is 192.168.1.10); For
Example: rtsp://192.168.1.10:554/video.3gp

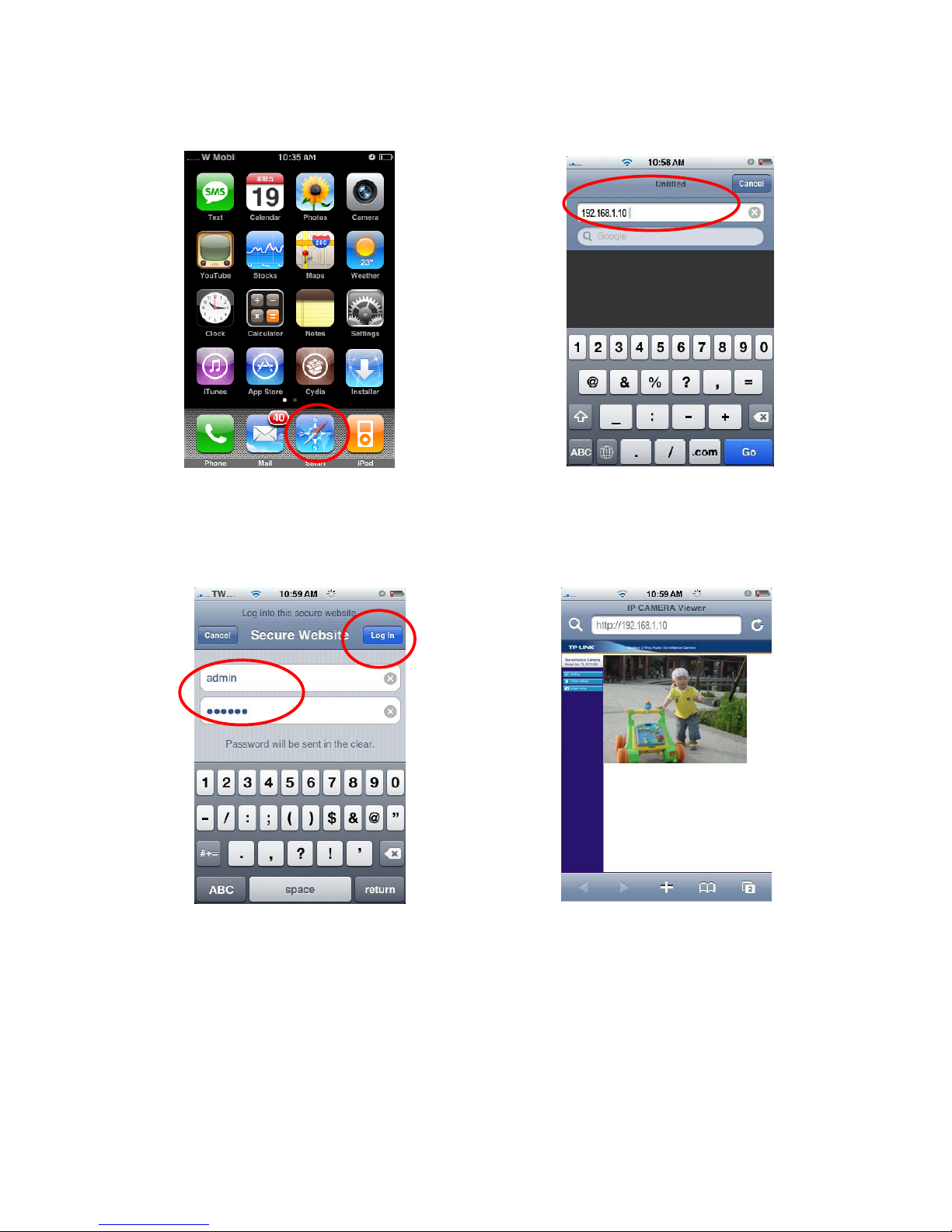

Below is an example of viewing the camera in 3G Web Browser Mobile View Mode on iPhone 3G:
4
1. Select Safari function 2. Enter IP address in
y
our web link.
3. Enter name and password.
Default values are both admin.
Then click Lo
g
in
4. The TP-LINK User Interface and live
image will show up in the middle of
the screen.
)Note It will show continuous snapshots not
a real time video streaming. Therefore, the
recording feature is disabled.
5
1.3 2.5G WAP Browser Snapshot Mode
For 2.5G WAP Browser Snapshot Mode, please type “ <IP>/mobile.wml ” into your 2.5G WAP
Browser. <IP> is the Public IP address of your IP camera.
1.4 2.5G Web Browser Snapshot Mode
For 2.5GWeb Browser Snapshot Mode, please type “ <IP>/mobile.htm ” into your 2.5G Web
Browser. <IP> is the Public IP address of your IP camera.
)Note:
Through 2.5G WAP or Web browser, you can only get the snapshot of the camera, not the video.
1.5 Mobile View on Windows Mobile 6 Smart Phone
The tested Smart Phones installed with Windows Mobile 6 OS are HTC smart mobile phone and
HP PDA. Below is the example, and the Platform4 Player and Opera Mobile 9.5 can be
downloaded from our website www.tp-link.com.
To use IP Camera via HP PDA, please take the following steps:
1. For HP iPDA HSTNH-L05C-WL, you need to install the free software Platform4 Player first.
Click the program Platform4 Player.
2. Click the setting and type rtsp link in Open Url field. Ex: rtsp://tl-sc3130.dyndns.org/video.3gp
6
3. Click Setting I and select protocol with TCP.
4. Click Setting II and select System Settings.
5. Click OK and connect to IP Camera.
7
To use IP Camera via Opera Mobile with Windows Mobile Smart Phone, please take the following
steps:
1. Download the ”Opera Mobile 9.5.cab“ and copy to Windows Mobile 6 Smart Phone.
2. Click the “Windows Explorer” to find the download cab file.
3. Click the cab file to install the Opera Mobile 9.5.
4. Click Programs to find the Opera 9.5 icon.
8
5. Type IP or http url link.
6. Type the username and password or setup authentication off in Setting > Basic > Security >
Account.
