TP-Link TL-SG1005D - 5 PORT GIGABIT DESKTOP SWITCH Bedienungsanleitung

User Guide

TL-SG1005D

TL-SG1008D

5/8-Port Gigabit Desktop Switch

Rev2.0.1

7106503323

Specifications are subject to change without notice.

is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names

are trademarks or registered trademarks of their respective

holders.

No part of the specifications may be reproduced in any form or

by any means or used to make any derivative such as

translation, transformation, or adaptation without permission

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and

receiver.

•Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

•Consult the dealer or an experienced radio/ TV technician

for help.

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions:

III

1）This device may not cause harmful interference.

2）This device must accept any interference received,

including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority

to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Safety Notices

Cautions:

Do not use this product near water, for example, in a wet

basement or near a swimming pool.

Avoid using this product during an electrical storm. There may

be a remote risk of electric shock from lightning.

Package Contents

The following items should be found in your package:

¾One TL-SG1005D/TL-SG1008D Switch

¾One Power Adapter

¾This User Guide

)Note:

Make sure that the package contains the above items. If any of

the listed items are damaged or missing, please contact with

your distributor.

Convention

The Switch or TL-SG1005D/TL-SG1008D mentioned in this

User Guide stands for TL-SG1005D/TL-SG1008D 5/8-port

Gigabit Desktop Switch without any explanation.

)Note:

The two devices of TL-SG1005D and TL-SG1008D are sharing

this User Guide. For simplicity, we will take TL-SG1008D for

example throughout this Guide.

The differences between them are:

¾TL-SG1005D Switch with 5 10/100/1000Mbps Auto-

Negotiation RJ45 ports.

¾TL-SG1008D Switch with 8 10/100/1000Mbps Auto-

Negotiation RJ45 ports.

Chapter 1 Introduction of the Product

Thank you for choosing the TL-SG1005D/TL-SG1008D 5/8-port

Gigabit Desktop Switch.

1.1 Overview of the Product

TL-SG1008D Gigabit Desktop Switch provides the seamless

network connection, which can speed up your old network to

1000Mbps. The increased speed and backbone connections

make Gigabit a reality, which ensures the graphics, CGI, CAD,

or multimedia files and other applications with bandwidth-

intensive files transferred across the network almost instantly.

The non-blocking switching architecture adopted in the TL-

SG1005D/TL-SG1008D switch greatly improves network

response times as well as significantly speed up the traffic

between subnets by forwarding and filtering packets at full wire-

speed for maximum throughput.

The TL-SG1005D/TL-SG1008D switch is compatible with all

10Mbps, 100Mbps, and 1000Mbps Ethernet devices, which can

protect your existing network investments while provide you a

straightforward migration path to faster Gigabit speed.

The TL-SG1005D/TL-SG1008D switch is very easy to manage

since it is plug-and-play and no configuration is needed. In

addition, the Auto-MDI/MDIX cable detection on all ports

eliminates the demand of crossover cable or Uplink port. Each

port can be used as general ports or Uplink ports, and any port

can be simply plugged into a server, a hub, a router, a switch or

a PC, using the straight cable or crossover cable. Diagnostic

LEDs which display link status and activity, allowing you to

quickly detect and correct problems on the network.

The TL-SG1005D/TL-SG1008D switch adopts Green Ethernet

technology, supports power saving features to help make your

network environmentally friendly without compromising

performance. The switch automatically powers down the ports

that are idle, budgets power output for different Ethernet cable

lengths.

1.2 Features

¾Supports Green Ethernet technology to implement power

saving features

¾Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab

standards

¾5/8 10/100/1000Mbps Auto-Sensing RJ45 ports supporting

Auto-MDI/MDIX

¾Supports IEEE802.3x flow control for Full-duplex Mode and

backpressure for Half-duplex Mode

¾Non-blocking switching architecture that forwards and filters

packets at full wire-speed for maximum throughput

¾8K entry MAC address table of TL-SG1005D/TL-SG1008D

with auto-learning and auto-aging

¾Supports for Jumbo frames of up to 15KB

¾LED indicators for monitoring power, link and activity

¾External power adapter supply

Chapter 2 Identifying External Components

This Chapter describes the front panel and rear panel of the

Switch.

2.1 Front Panel

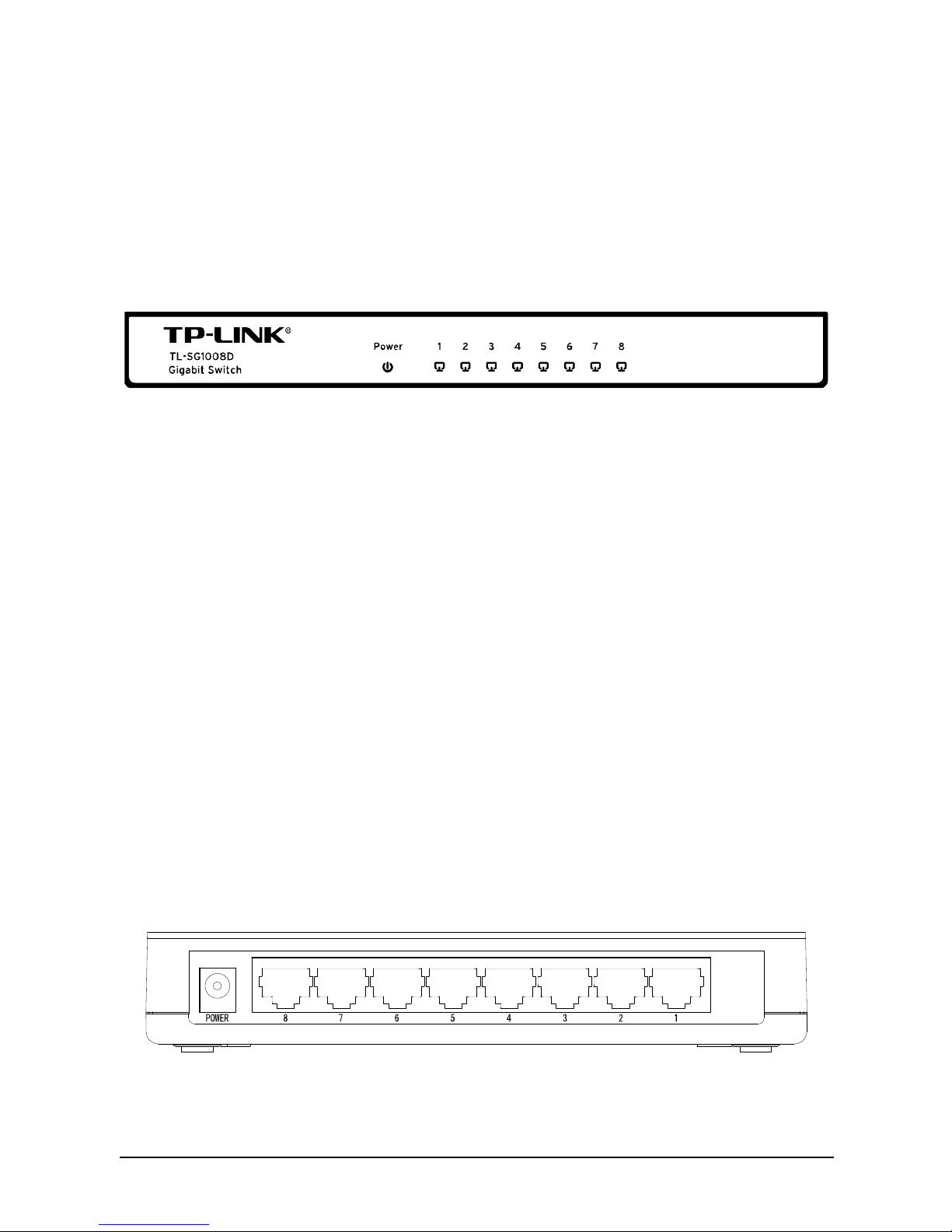

Figure 2-1 TL-SG1008D Switch Front Panel

The Switch’s LEDs are located on the front panel:

¾Power LED: This indicator will light up when the Switch

powers up.

¾LEDs (1~8): The LED indicates Link/Active status. The

corresponding LED indicator will light solid green when

connected to a network device. It flashes green when data is

being transmitted or received on the working connection.

Note:

The LEDs’ description above explains the device’s working

status after initialization.

2.2 Rear Panel

Figure 2-2 TL-SG1008D Switch Rear Panel

The following parts are located on the rear panel.

¾POWER: The POWER socket is where you will connect the

power adapter. Please use the power adapter provided with

this TL-SG1008D Switch.

¾Port (1-8): The TL-SG1008D Switch is equipped with 8

10/100/1000Mbps Auto-Sensing RJ45 ports where you will

connect your network devices. The working status can be

indicated by the corresponding LEDs on the front panel.

Chapter 3 Installation

3.1 Mounting the Switch on a Desk

To install the Switch, please follow these steps:

1) You can place the Switch on a flat desk.

2) Please inspect the Power Adapter carefully and make sure

that it is properly connected to a power source.

3) Ensure adequate ventilation space around the switch for

dissipating heat and air.

Note:

Please avoid any heavy thing placed on the switch.

To ensure the stable cable connection, please keep the switch

horizontal on the desktop, with white cover facing up.

3.2 Power On

Powering on the Switch, it will automatically initialize and its

LED indicators will respond as follows:

Name Time Status Indication

Power All the time On Power on

1st second On N/A

2nd second Off N/A

Off No device connected to the

corresponding port.

LEDs

(port

1-8) 3rd second~

There is a 10/100/1000Mbps

device connected to the

corresponding port.

Note:!

If the LED indicators don’t respond as described above, please

check the power supply and its connection.
