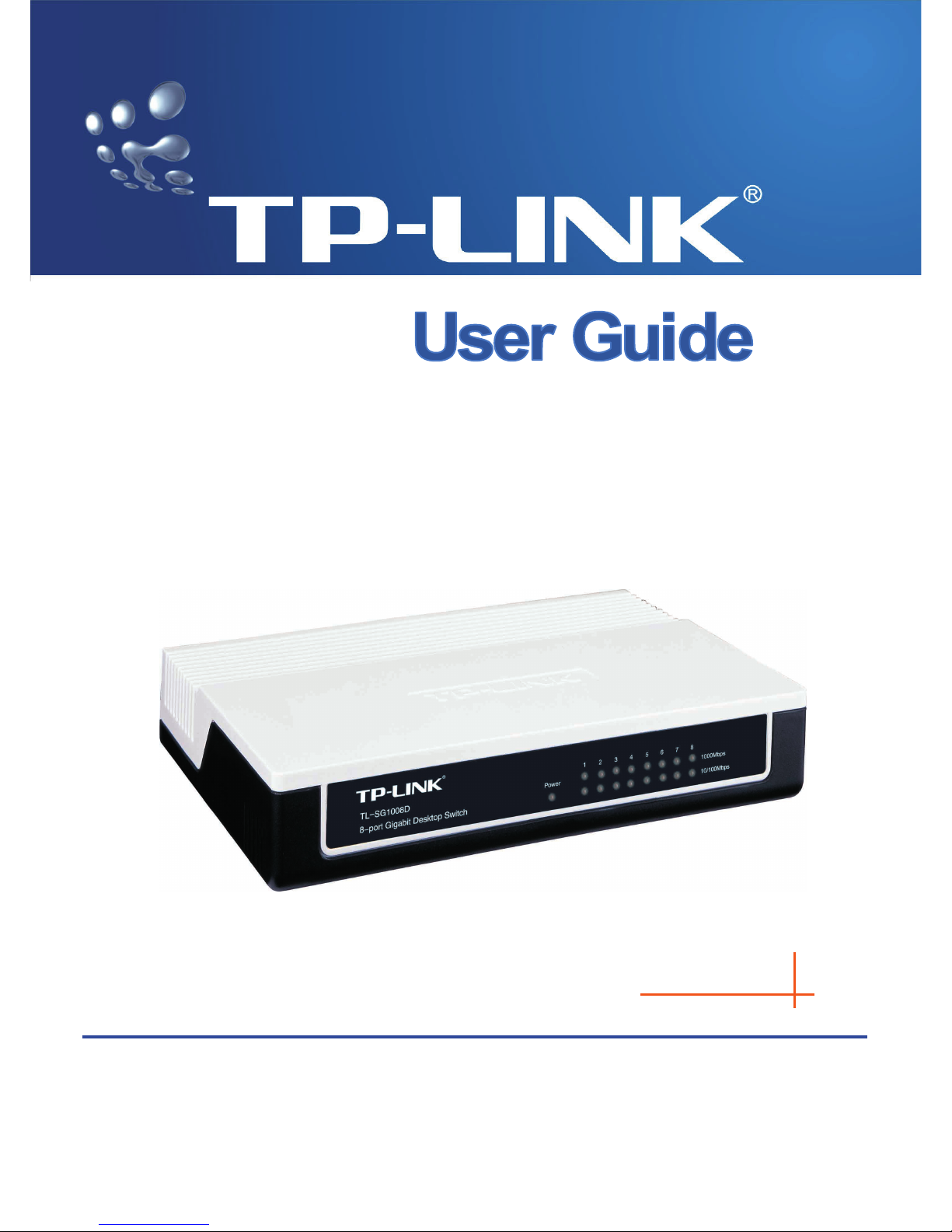

TP-Link TL-SG1008D Bedienungsanleitung

TL-SG1008D

8-port Gigabit Desktop Switch

REV: 1.0.0

1910010024

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-

rights reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may

cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference,

in which case the user may be required to take adequate measures.

SAFETY NOTICES

Cautions

Do not use this product near water, for example, in a wet basement or near a swimming pool.

Avoid using this product during an electrical storm. There may be a remote risk of electric shock

from lightning.

Package Contents

The following items should be found in your box:

¾One TL-SG1008D 8-port Gigabit Desktop Switch

¾One AC Power Adapter

¾This User Guide

)Note:

Make sure that the box contains the above items. If any of the listed items are damaged or

missing, please contact with your distributor.

CONTENTS

Chapter 1. Introduction of the Product.................................................................. 1

1.1 Overview of the Product............................................................................ 1

1.2 Convention................................................................................................ 1

1.3 Features.................................................................................................... 1

Chapter 2. Installation............................................................................................. 2

2.1 Mounting the Switch on a Desk................................................................. 2

2.2 Power On .................................................................................................. 2

Chapter 3. Identifying External Components........................................................ 3

3.1 Front Panel ............................................................................................... 3

3.2 Rear Panel ................................................................................................ 3

Appendix A: Specifications..................................................................................... 4

Appendix B: Troubleshooting................................................................................. 5

Chapter 1. Introduction of the Product

Thank you for choosing the TL-SG1008D 8-port Gigabit Desktop Switch.

1.1 Overview of the Product

provides the seamless network connection, which can speed up your old network to 1000Mbps.

The increased speed and backbone connections make Gigabit a reality, which ensures the

graphics, CGI, CAD, or multimedia files and other applications with bandwidth-intensive files

transferred across the network almost instantly.

The non-blocking switching architecture adopted in the TL-SG1008D greatly improves network

response times as well as significantly speed up the traffic between subnets by forwarding and

filtering packets at full wire-speed for maximum throughput.

The TL-SG1008D switch is compatible with all 10Mbps, 100Mbps, and 1000Mbps Ethernet

devices, which can protect your existing network investments while provide you a straightforward

migration path to faster Gigabit speed.

The TL-SG1008D switch is very easy to manage since it is plug-and-play and no configuration is

needed. In addition, the auto MDI/MDI-X cable detection on all ports eliminates the demand of

crossover cable or Uplink port. Each port can be used as general ports or Uplink ports, and any

port can be simply plugged into a server, a hub, a router or a switch, using the straight cable or

crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly

detect and correct problems on the network.

1.2 Convention

The Switch or TL-SG1008D mentioned in this User Guide stands for TL-SG1008D 8-port

Gigabit Desktop Switch without any explanation.

1.3 Features

¾Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards

¾Eight 10/100/1000Mbps Auto-Negociation RJ45 ports supporting Auto-MDI/MDIX

¾Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex

Mode

¾Non-blocking switching architecture that forwards and filters packets at full wire-speed for

maximum throughput

¾4K entry MAC address table of the TL-SG1008D with auto-learning and auto-aging

¾Support for Jumbo frames of up to 9728 Bytes

¾LED indicators for monitoring power, link, speed and activity

¾External power adapter supply

Chapter 2. Installation

2.1 Mounting the Switch on a Desk

To install the Switch, please follow the steps:

1) You can place the Switch on a flat desk.

2) Please inspect the Power Adapter carefully and make sure that it is properly connected to a

power source.

3) Ensure adequate ventilation space around the switch for dissipating heat and air.

)Note:

Please avoid any heavy thing placed on the switch.

2.2 Power On

TL-SG1008D 8-port Gigabit Desktop Switch can be used with AC power supply. Powering on the

Switch, it will automatically initialize and its LED indicators will respond as follows:

1) All the 10/100Mbps and 1000Mbps Link/Act LED indicators will light simultaneously at first,

then light in turn and the 10/100Mbps Link/Act LED indicators will light simultaneously again

for the last time, which indicates the system initialized well.

2) The Power indicator will light all the time.

)Note:

If the LED indicators don’t respond as described above, please check the power supply and its

connection.

Chapter 3. Identifying External Components

This Chapter describes the front panel, rear panel and LED indicators of the Switch.

3.1 Front Panel

Figure 3-1 TL-SG1008D Switch Front Panel

The Switch’s LEDs are located on the front panel.

Name Status Indication

On (red) Power on

Power Off Power off

On (green) There is a 1000Mbps device connected to the corresponding

port.

Flashing (green) Data transmitting or receiving on corresponding port.

1000Mbps

Off No 1000Mbps device connected to the corresponding port.

On (green) There is a 10/100Mbps device connected to the

corresponding port.

Flashing (green) Data transmitting or receiving on corresponding port.

10/100Mbps

Off No 10/100Mbps device connected to the corresponding port.

3.2 Rear Panel

Figure 3-2 TL-SG1008D Switch Rear Panel

The following parts are located on the rear panel.

¾Power: The Power socket is where you will connect the power adapter. Please use

the power adapter provided with this TL-SG1008D Switch.

¾Port (1- 8): The TL-SG1008D Switch is equipped with 8 10/100/1000Mbps Auto-Sensing

RJ45 ports where you will connect your network devices. The working status

can be indicated by the corresponding LEDs on the front panel.

Appendix A: Specifications

General

Standards IEEE802.3, IEEE802.3u, IEEE802.3ab

Topology Star

Protocol CSMA/CD

Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)

Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)

Data Transfer Rate

Gigabit Ethernet: 2000Mbps (Full Duplex)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100ΩSTP (maximum 100m)

100Base-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100ΩSTP (maximum 100m)

Network Media(Cable)

1000Base-TX: UTP category 5 cable (maximum 100m)

EIA/TIA-568 100ΩSTP (maximum 100m)

Number of Ports 8 10/100/1000Mbps Auto-Negotiation RJ45 ports

LED indicators Power, 1000Mbps Link/Act, 10/100Mbps Link/Act

Transfer Method Store-and-Forward

MAC Address Learning Automatically learning, automatically aging

10Base-T: 14880pps/Port

100Base-Tx: 148800pps/Port

Frame Filter Rate

1000Base-T: 1488000pps/Port

10Base-T: 14880pps/Port

100Base-Tx: 148800pps/Port

Frame Forward Rate

1000Base-T: 1488000pps/Port

Environmental and Physical

Dimensions(W×D×H) 7.87×5.6×1.57 in. (200×142×40mm)

Power Supply Output 9V~1.2A 50/60Hz

Operating Temperature 0 ~40°C (32 ~104°F )

Storage Temperature -40 ~70°C (-40 ~158°F)

Operating Humidity 10%~90% non-condensing

Storage Humidity 5%~90% non-condensing

Appendix B: Troubleshooting

1. The Power LED is not lit

Check to see if the AC power cord is connected to the Switch properly, and make sure the

power source is ON.

2. The Link/Act LED is not lit when a device is connected to the corresponding port

Check to see if the cable connectors are firmly plugged into the Switch and the device, and

verify the connected device is turned on and working well. Make sure the cable is not longer

than 100 meters (328 feet).
