Installation Guide - TP-LINK TD-W8961ND Wireless Modem Router

Getting Your Internet Running

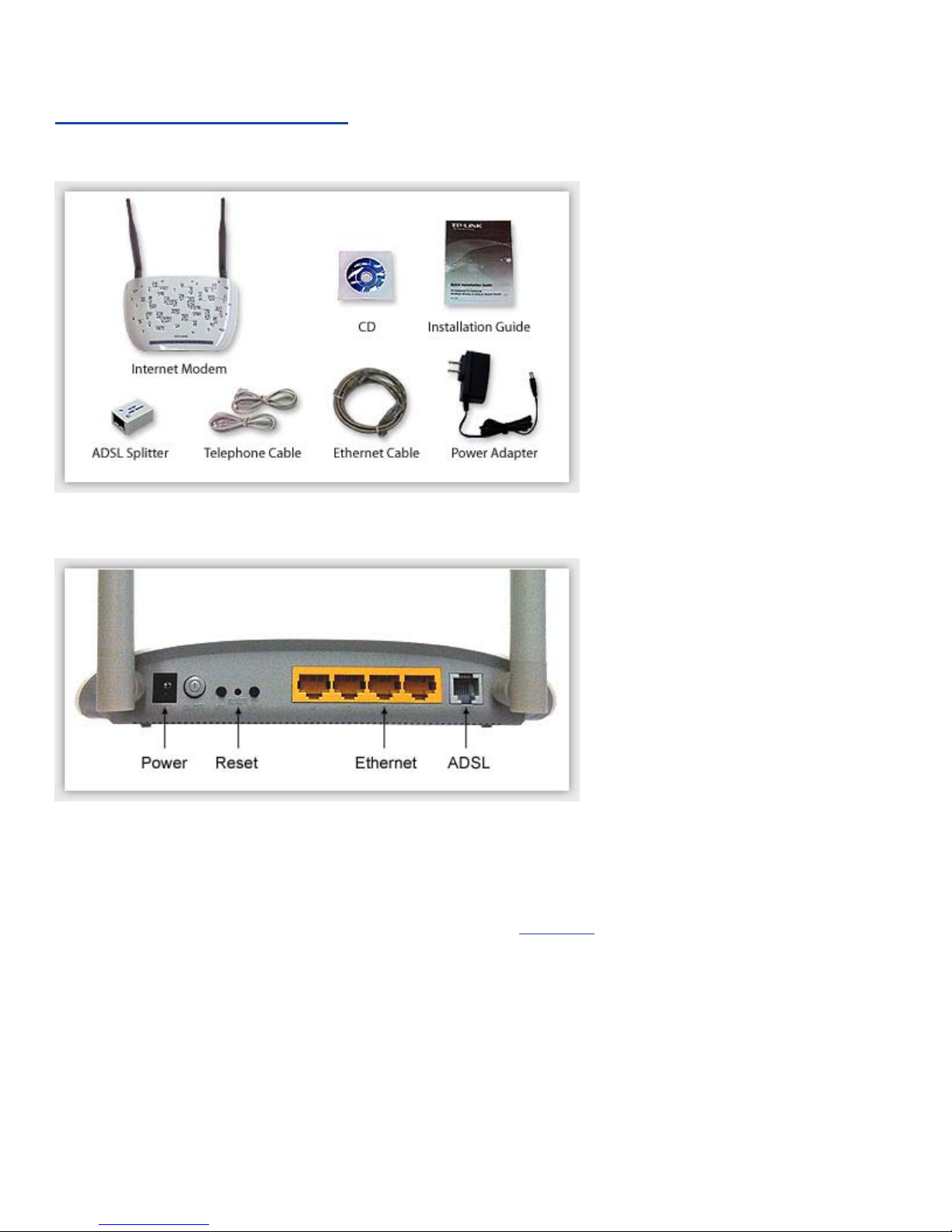

Check your modem package contents. It should contain the items shown here:

Familiarize yourself with the back of your modem

 Power - The Power plug is where you will connect the power adapter.

 ADSL - Connect the modem to your phone line with a telephone cable (RJ11 cable).

 Ethernet - These ports are used for wired Ethernet connections.

 Reset – Reset modem to factory default.

DO NOT Reset Your modem has been pre-programmed. Contact us if you have any question.

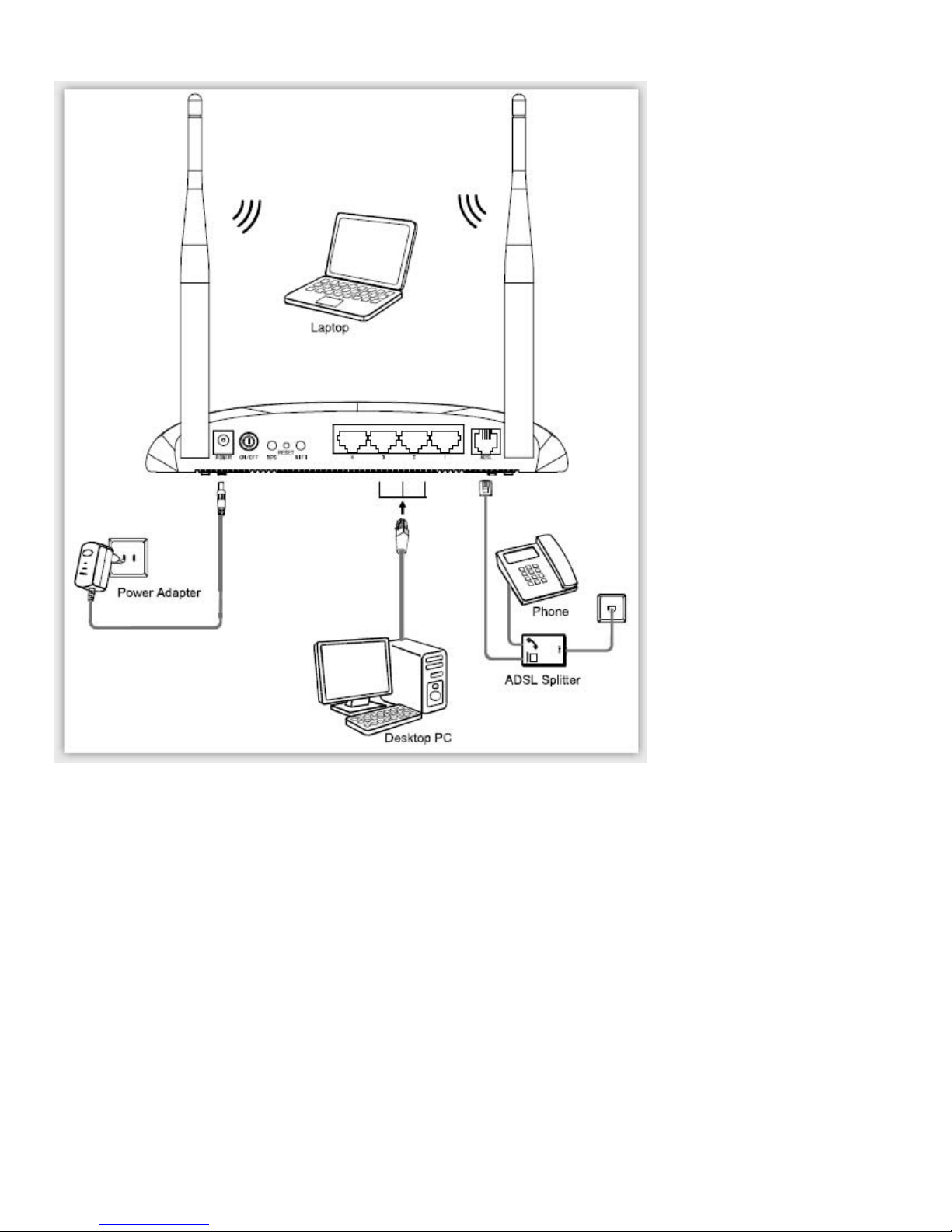

Connect Your Modem

Before cable connection, cut off the power supply and keep your hands dry. You can follow the steps below

to install it.

1. Use ADSL Splitter, The splitter has three ports:

 LINE: Connect to the wall jack

 PHONE: Connect to the phone sets

 MODEM: Connect to the ADSL port of your Modem

2. Plug one end of the telephone (RJ11) cable into your modem ADSL port and other end to the MODEM port of

the ADSL splitter

3. Connect one end of a network (RJ45) cable to your computer’s Ethernet port and the other end to the Ethernet

port on the modem.

4. Power on the computers and modem

5. Wait for 60 seconds until modem initialized

6. Open Web browser and enjoy internet surfing

7. To use wireless connection, from your wireless device, select the Network Name and enter the Wireless Key

(both are labelled at the bottom of you modem).

Front Panel LED Explanation:

 Power - The modem router is powered on.

 ADSL - ADSL line is synchronized and ready to use.

If this light is off, refer to sect. Connect Your Modem and check the ADSL port connection.

 Internet - Internet success connected.

If this light is off, follow the next section Set up Your Internet Connection.

 LAN 1-4 - There is a device connected to the Ethernet port.

 WLAN - Wireless is enabled

Setup Internet Connection

Your Modem has been pre-programmed. Normally you may skip the sections below.

Followings are for your reference.

1. Start your web browser (eg. IE, Firefox), type the IP address in the URL field: 192.168.1.1

2. In the login window, enter the default User Name admin and the default Password admin (in lower case), and

then click OK

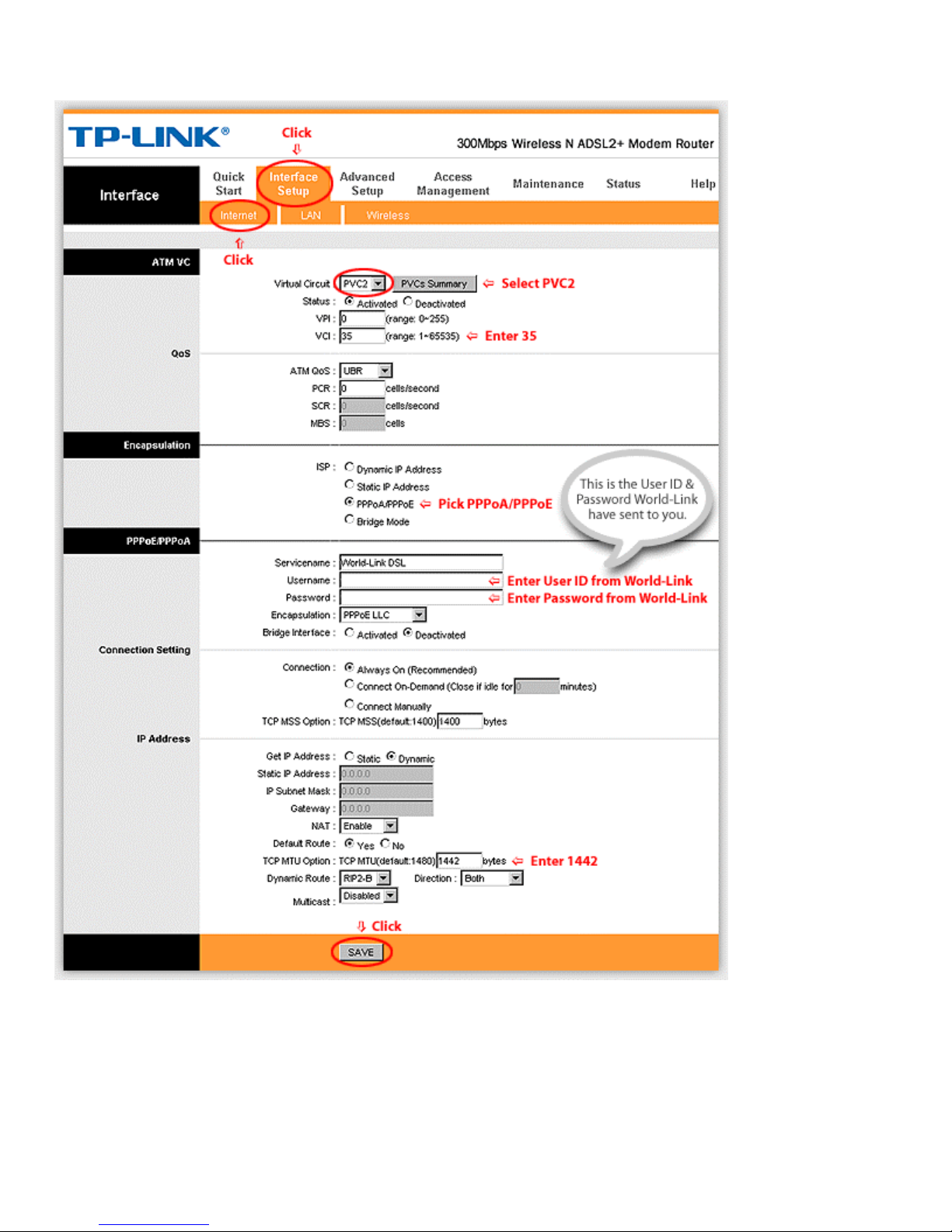

3. Click Interface Setup -> Internet from menu, configure the parameters as below, and then click Save

Setup Wireless Network

Your Modem has been pre-programmed. Normally you may skip the sections below.

Followings are for your reference.

1. Follow the section Setup Internet Connection step 1 & 2 to login your modem.

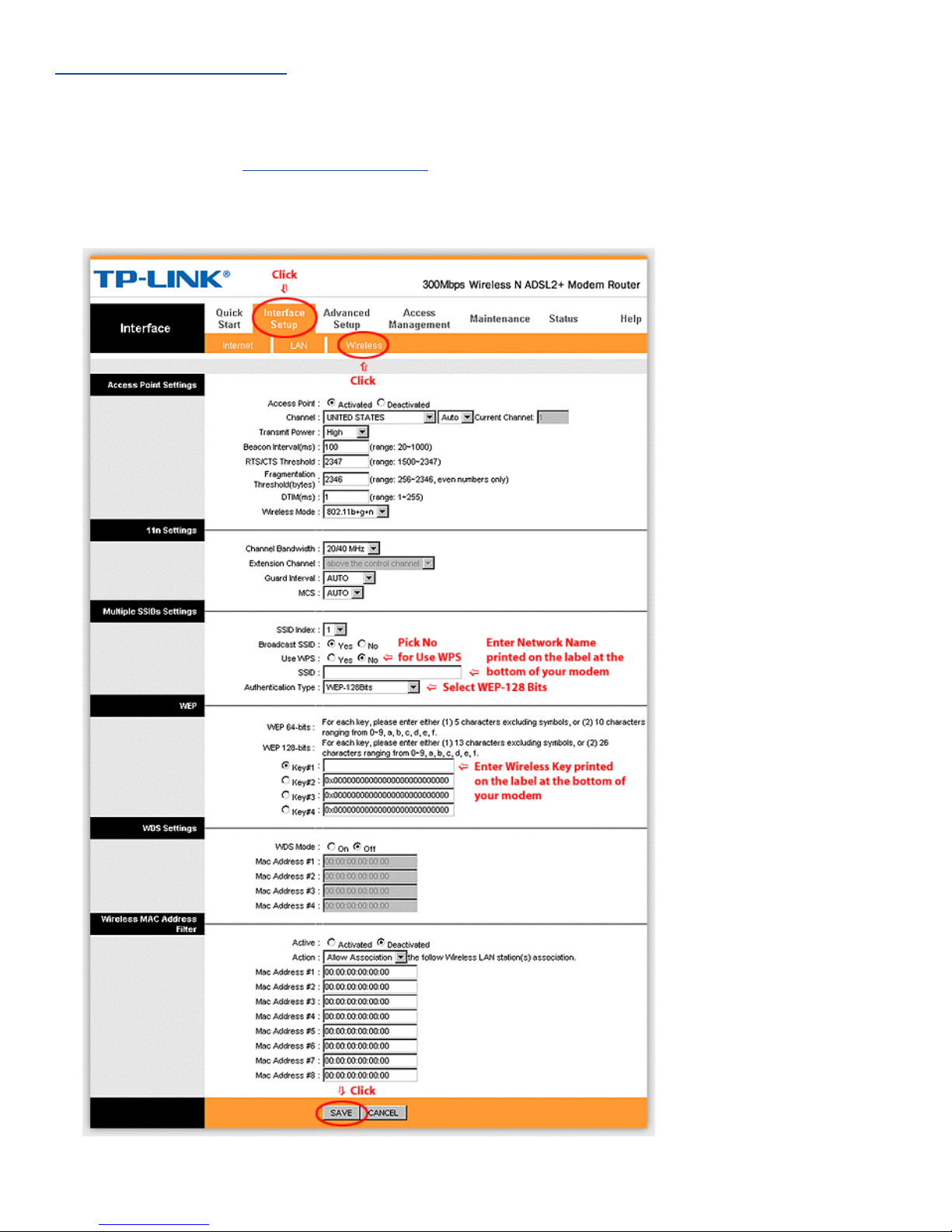

2. Click Interface Setup -> Wireless from menu, configure the parameters as below,

and then click Save

Reset your modem

Your Modem has been pre-programmed.

Normally you DO NOT need to reset your modem.

Do this unless you have well known the above sections.

To reset your modem to the factory default state by pressing and hold Reset for 5 seconds.
