TP Wooden Compact Triple Swing Set 812P Kurzanleitung

Robovision Ltd t/a TP Toys

Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England

www.tptoys.com

THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR

CHILDREN UNDER 36 MONTHS.

CONTAINS SMALLPARTS. CHOKINGHAZARD.

ONLY FOR DOMESTIC USE. FOR OUTDOOR USE.

TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.

ADULT SUPERVISION IS REQUIRED

CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED.

REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN.

THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3+ YEARS.

ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST BE FITTED BEFORE

USE.

SINGLE SWING FRAME  MAXIMUM COMBINED USER WEIGHT 100KGS

DOUBLE & TRIPLE SWING FRAMES  MAXIMUM COMBINED USER WEIGHT

200KGS

WARNING!

Build Time

2 Hrs

Triple

Single Double

Double with Extension

Compact and Standard Swing Frames

Compact - Single, Double & Triple Wooden Swing Frames

Standard - Single, Double & Triple Wooden Swing Frames

Standard - Double Wooden Swing Frame & Extension

Instructions for assembly, maintenance and safe use.

We constantly strive to improve our assembly instructions. To see the most current version of this instruction for

assembly, maintenance and safe use. Please visit the product page at tptoys.com

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 1

15/04/2021 14:55

Single, Double, Triple and Double with Extension

Important advice for assembly, maintenance and safe use.

Please retain this information for future reference.

1. Toys must be assembled by an adult before use exactly in accordance with the instructions.

2. Check all parts are present before you start to assemble the product.

3. Place small parts on a tray or similar, to ensure they are not lost.

4. If any parts are missing do not use the product until the replacement parts are ﬁtted.

5. Remove all packaging before giving to your children or allowing them to play with this product.

6. Ensure your product is sited on level ground. Failure to do this may put additional stress on connections and

joints and in time could cause them to fail.

7. Ensure your product is located on a soft impact surface like grass. Never locate your product on hard surfaces

like concrete or asphalt.

8. Children must not use this product until properly installed.

9. Adult supervision is required at all times to ensure children play safely. Ensure children’s clothing is appropriate

for the play activity.

10. Equipment should be checked by an adult at the beginning of each season and at regular intervals during the

usage season to ensure it is safe.

11. Pay special attention to all connections and fastenings.

12. Parts may need to be replaced if they show signs of wear and tear. Replace any defective parts in accordance

with these instructions.

13. Any changes to this toy, e.g. changing or adding an accessory, must be done in accordance with our instructions.

Failure to do this will render your guarantee null and void and may make your product unsafe.

14. The age recommendation for this product is clearly stated on the packaging and these instructions. Please

adhere to it at all times.

15. When you dispose of this equipment please do so responsibly.

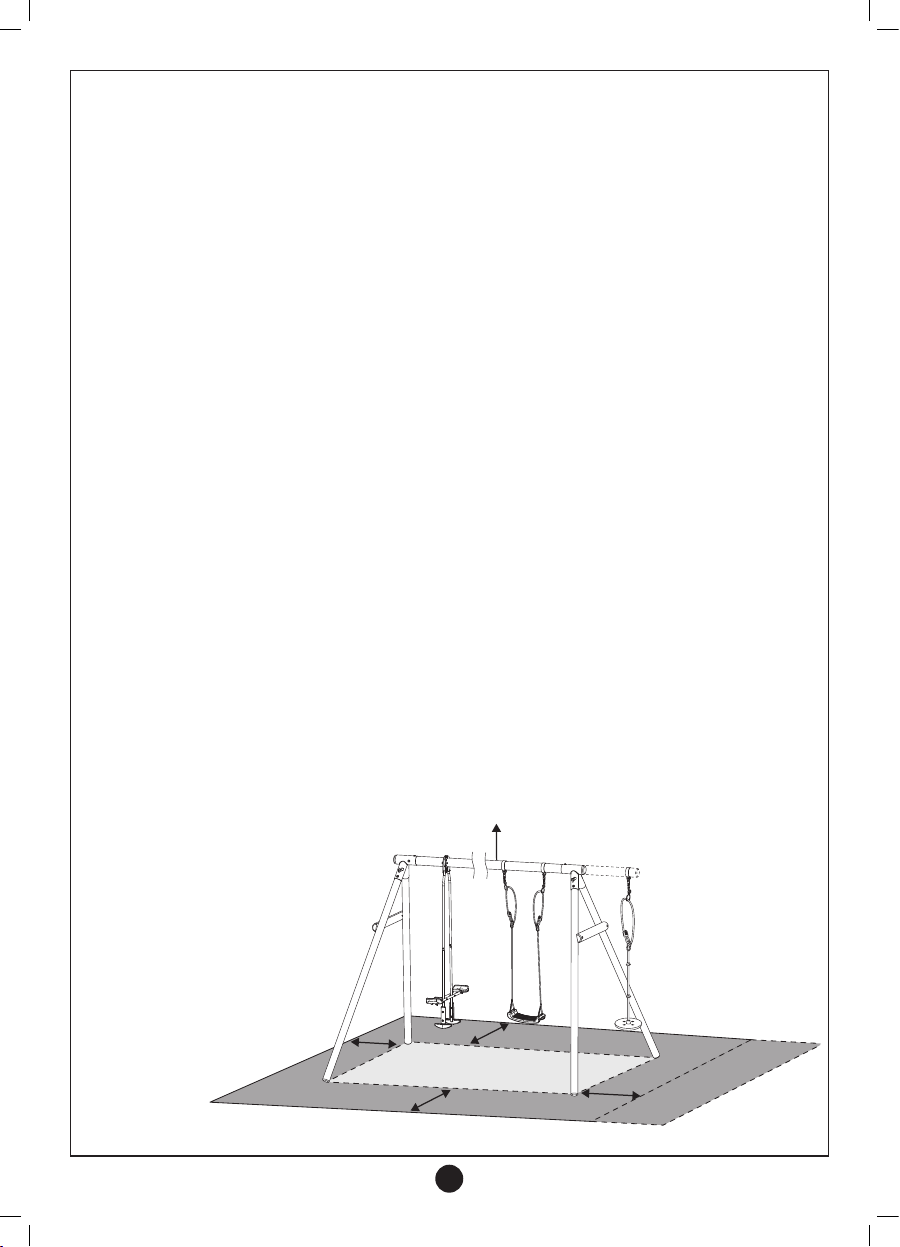

Safe play free space area

The safe play area refers to the zone

extending 200cm around the toys on all

sides and 250cm above the toy.

The safe play area must be free from all

obstacles.

2m 2m

Single

Double

Triple

Double with Extension

2.5m

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 2

15/04/2021 14:55

Single, Double, Triple and Double with Extension

Know Your TP Round Wood Play Equipment.

Timber is a very popular choice for active outdoor toys. For reasons of aordability and the environment, all wood

playset manufacturers use softwood rather than hardwood. Each piece of timber is unique, bearing its own knots,

cracks and variations in colour.

Round timbers tend to come from younger smaller trees and are complete tree poles, stripped of any bark and other

rough materials but subject to no further processing apart from the application of a suitable environmentally friendly

preservative.

Our round wood frames are rustic in appearance. The heartwood that they are made from naturally has cracks and

splits. These cracks will change over time due to atmospheric conditions. When wet, the wood will take in water, swell

and the cracks will close-up (not disappear), when dry the wood contracts and the cracks will open-up.

Whilst this can sometimes seem alarming, the round timber frames are designed and dimensioned to ensure these

natural characteristics do not have an impact upon the structural integrity of the frame. All our wooden play frames

are rigorously tested by an independent test house and fully comply with the relevant toy safety regulations.

Because of the natural characteristics of such wood products, it is vital that parents check their play frame regularly

to identify any splintering or lifting of the surface layers of the wood or any exposure of rough wood due to changes in

cracks and splits. Aected areas must be rubbed down using coarse sandpaper to restore a smooth, safe surface.

Very occasionally these characteristics can develop to a point where replacing the pole may be required. Most

commonly this is conﬁned to where a signiﬁcant crack runs directly through a ﬁxing point.

Concerns regarding splits and cracks should be directed to [email protected]

Your email should ideally be accompanied by photographs that illustrate your concern and enable the Quality Control

Team to assist you.

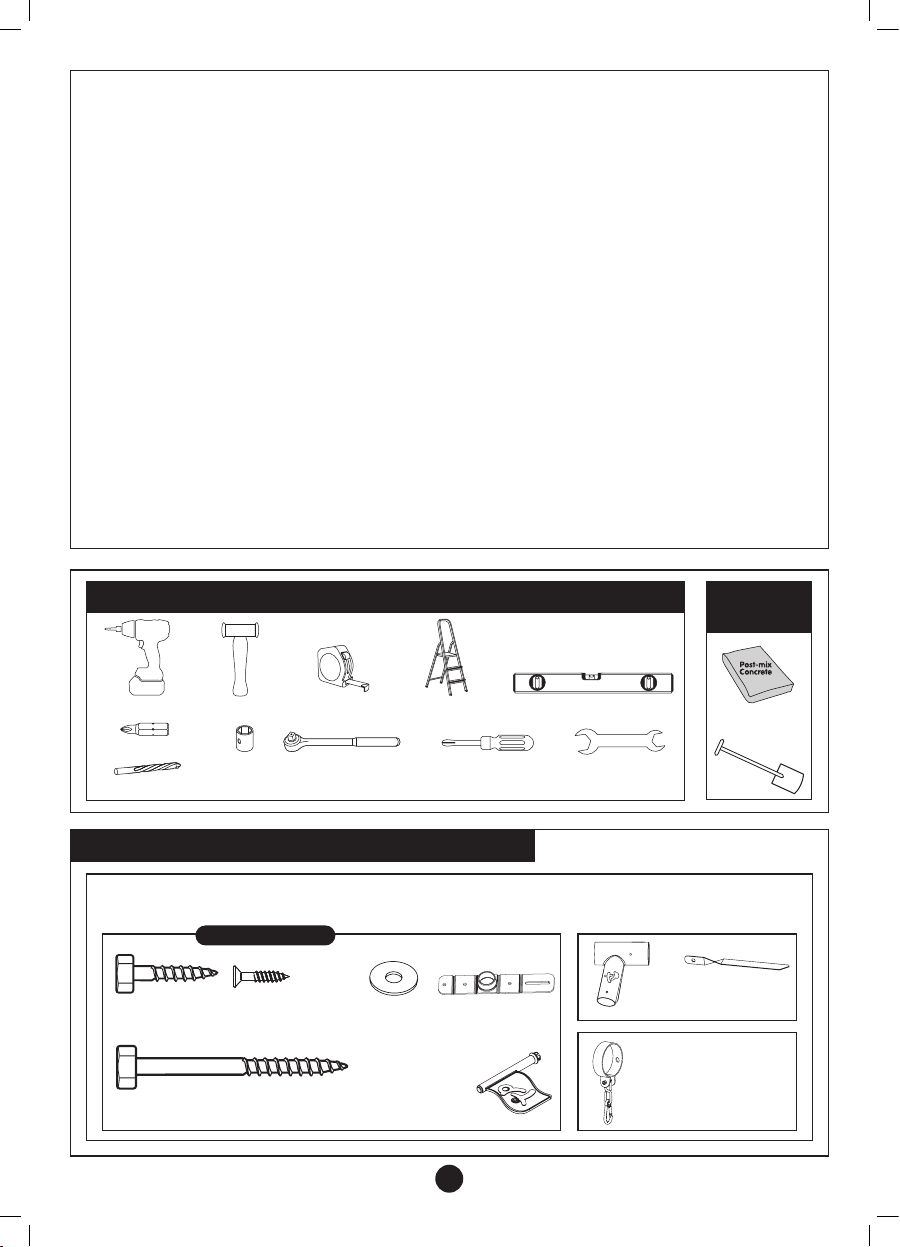

Not Supplied

Shovel

Also

Required:

M8 x25mm

FA8440

x16

PR5069

FB6038

PM1007

PM1968

PR9598

Single x2

Double x4

Triple x6

Double with Extension x5

70mm FA8439

x16

40mm FA8380

x6 4 x 16mm FA4527

Fixings - SP0075

Please note: There may be some ﬁxings left over after the assembly build.

Single, Double, Triple and Double with Extension

Tools - You will need:

5mm - Drill Bit

Step Ladder Spirit Level

Tape Measure

Mallet

Combi Drill

Screwdriver Bit ScrewdriverWrenchSockets

10 & 13mm Spanner

10 & 13mm

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 3

15/04/2021 14:55

4Single, Double, Triple and Double with Extension

MW0189 900mm x1

STB

MW1500 x1

Single Wooden Swing Frame

MW0196 2240mm x2

CPL x2

Compact Swing Frames

MW0189 900mm x1

DTB

Double Wooden Swing Frame

CPL x2

MW2250 2250mm x1

MW0196 2240mm x2

MW0189 900mm x1

TTB

Triple Wooden Swing Frame

CPL x2

MW3000 3000mm x1

MW0196 2240mm x2

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 4

15/04/2021 14:55

5Single, Double, Triple and Double with Extension

LP x2

MW0200 2700mm x2

MW0189 900mm x1

STB

MW1500 x1

Single Wooden Swing Frame

Standard Swing Frames

LP x2

MW0200 2700mm x2

MW0189 900mm x1

TTB

Triple Wooden Swing Frame

MW3000 3000mm x1

LP x2

MW0200 2700mm x2

MW0189 900mm x1

DTB

Double Wooden Swing Frame

MW2250 2250mm x1

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 5

15/04/2021 14:55

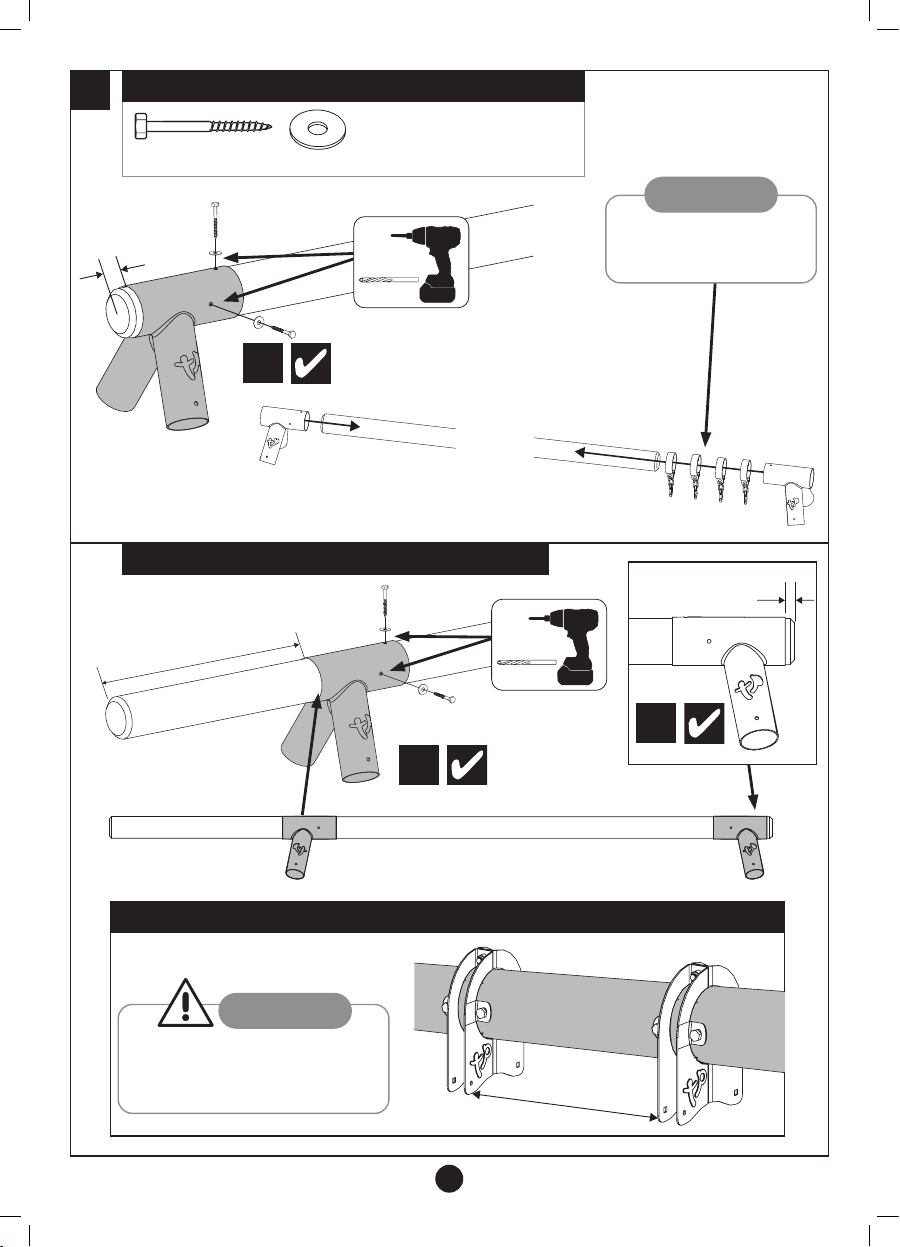

6Single, Double, Triple and Double with Extension

When attaching a swing accessory that requires

2 Duo Ride Brackets (TP784 or PR5070), ﬁxing locations

for these brackets will be the same as the Swing seat

positions using collars.

70mm FA8439

M8 x25mm

FA8440

Single, Double, Triple and Double with Extension

30mm

MW1500

MW2250

MW3000

Upto

6 Collars

Make sure you thread the metal

collars (PR7757) onto your top bar

before securing the brackets to each end.

IMPORTANT

ASSEMBLY TIP

30mm

750mm

Double Wooden Swing Frame with Extension

MW3000

Swing Frame Configuration - Using Duo Ride Brackets

5mm ø

IMPORTANT

ASSEMBLY TIP

445mm

Duo Ride Brackets

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 6

15/04/2021 14:55

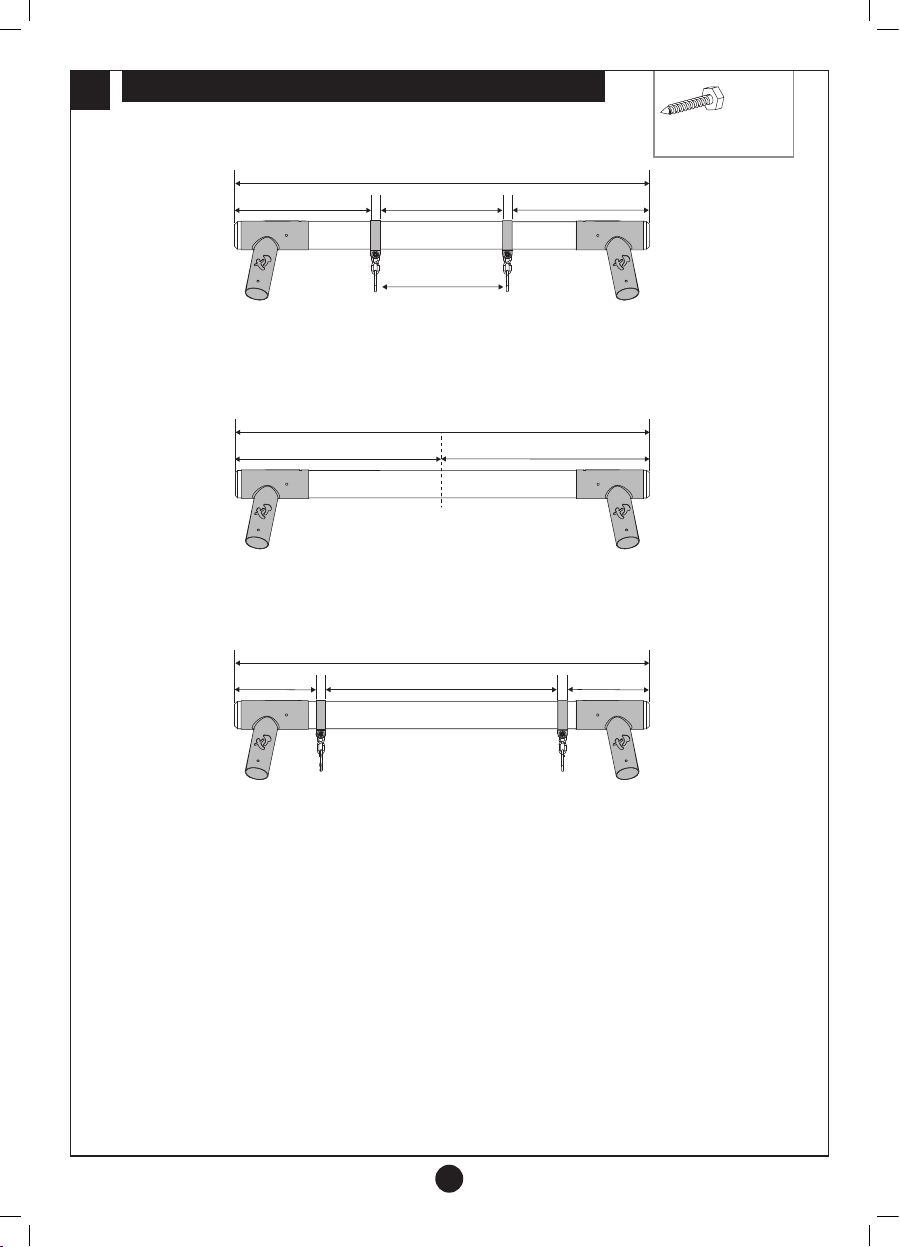

7Single, Double, Triple and Double with Extension

1500mm

445mm490mm 490mm

Swing Seat Position

With 1 single swing seat

1500mm

750mm 750mm

Bracket for rigid downtube

Glide Ride

With 1 glide ride

1500mm

820mm305mm 305mm

With 1 Nest Swing (85cm)

Single Wooden Swing Frame - Seat Configuration

240mm

FA8380

Single x2

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 7

15/04/2021 14:55

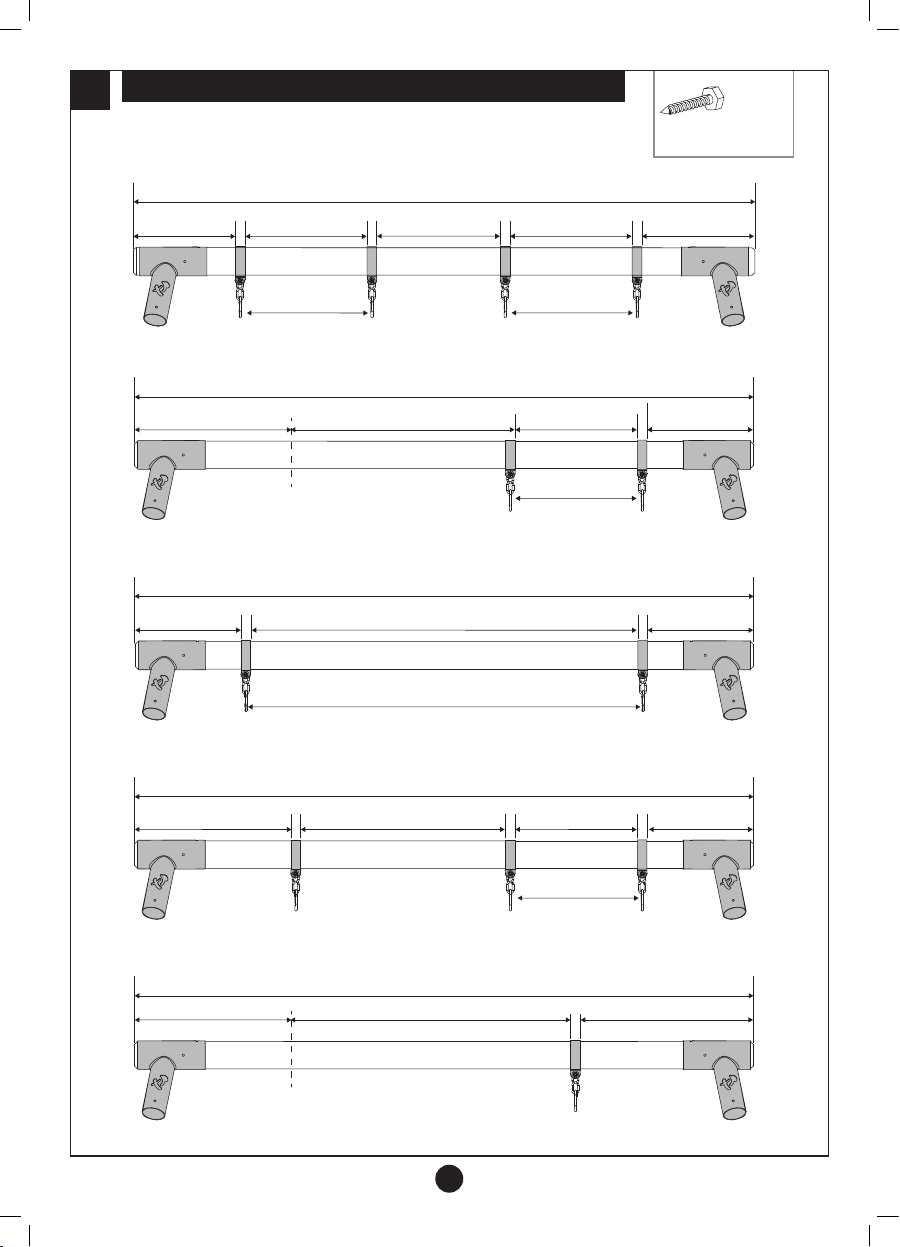

8Single, Double, Triple and Double with Extension

2250mm

836mm 829mm550mm

Bracket for rigid

downtube Glide Ride

Single Roped Seat

2250mm

445mm577mm 573mm550mm

Swing Seat Position

Single Roped Seat

2250mm

385mm385mm 1410mm

2250mm

445mm612mm 573mm550mm

Bracket for rigid

downtube Glide Ride

Swing Seat Position

2250mm

445mm 450mm 445mm 385mm 385mm

Swing Seat Position Swing Seat Position

3Double Wooden Swing Frame - Swing Configuration

With 1 glide ride and 1 single swing seat

With 1 Nest Swing (120cm)

With 1 single swing seat and 1 single roped accessory

With 2 single swing seats

With 1 glide ride 1 single roped accessory

40mm

FA8380

Double x4

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 8

15/04/2021 14:55

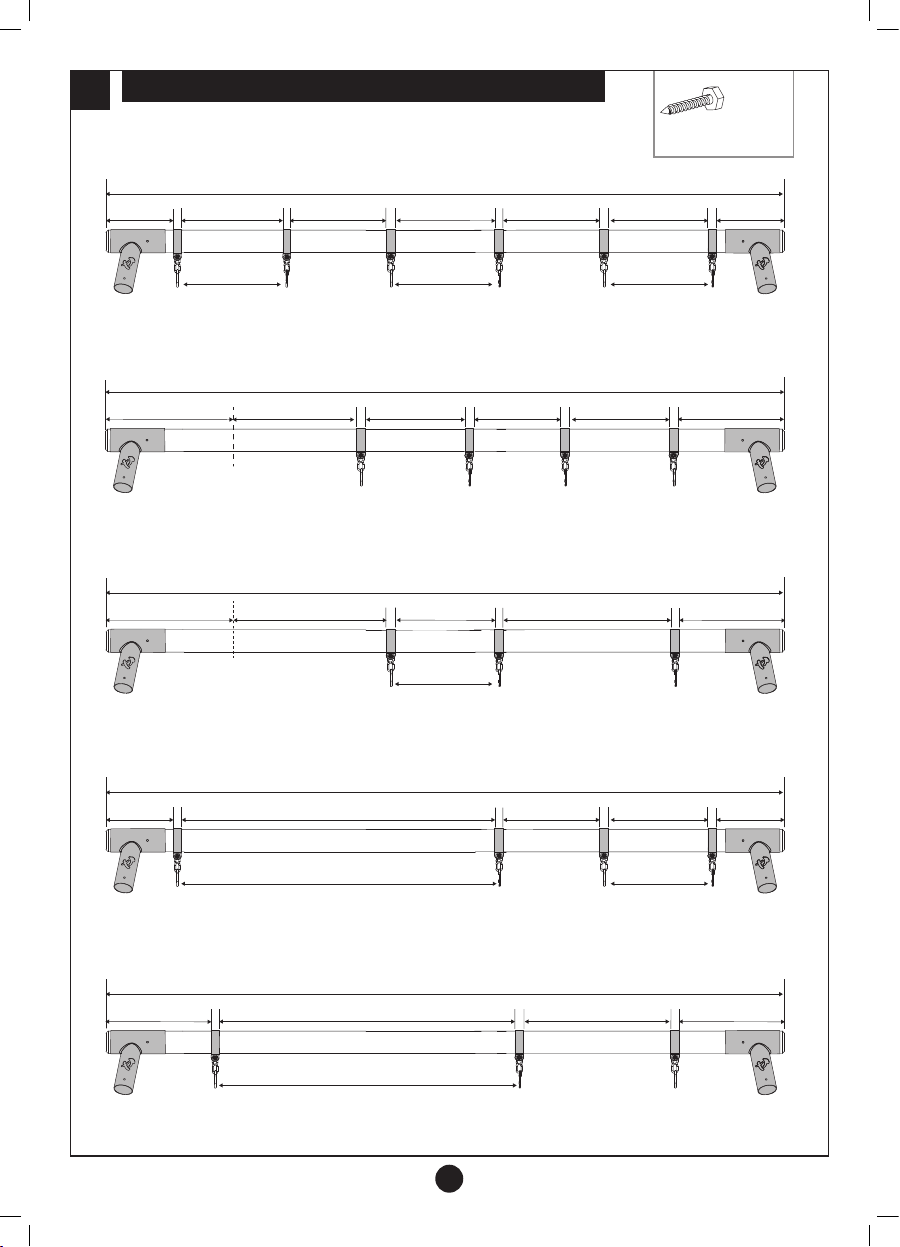

9Single, Double, Triple and Double with Extension

3000mm

445mm

445mm 445mm

Swing positionSwing positionSwing position

277mm450mm450mm277mm

With three single swing seats

3000mm

445mm

Swing position

753mm693mm550mm

Bracket for rigid

downtube Glide Ride Single Roped Seat

454mm

With 1 glide ride, 1 single swing and 1 single roped accessory

3000mm

1410mm

445mm

Swing positionSwing position

277mm450mm

277mm

With 1 nest swing and 1 single swing seat

3000mm

1410mm

577mm

Swing position Single Roped Seat

454mm

With 1 nest swing and 1 roped accessory

3Triple Wooden Swing Frame - Swing Configuration 40mm

FA8380

Triple x6

450mm 445mm570mm 445mm 500mm450mm

Bracket for rigid

downtube Glide Ride

3000mm

With 1 glide ride and two single swing seats

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 9

15/04/2021 14:55

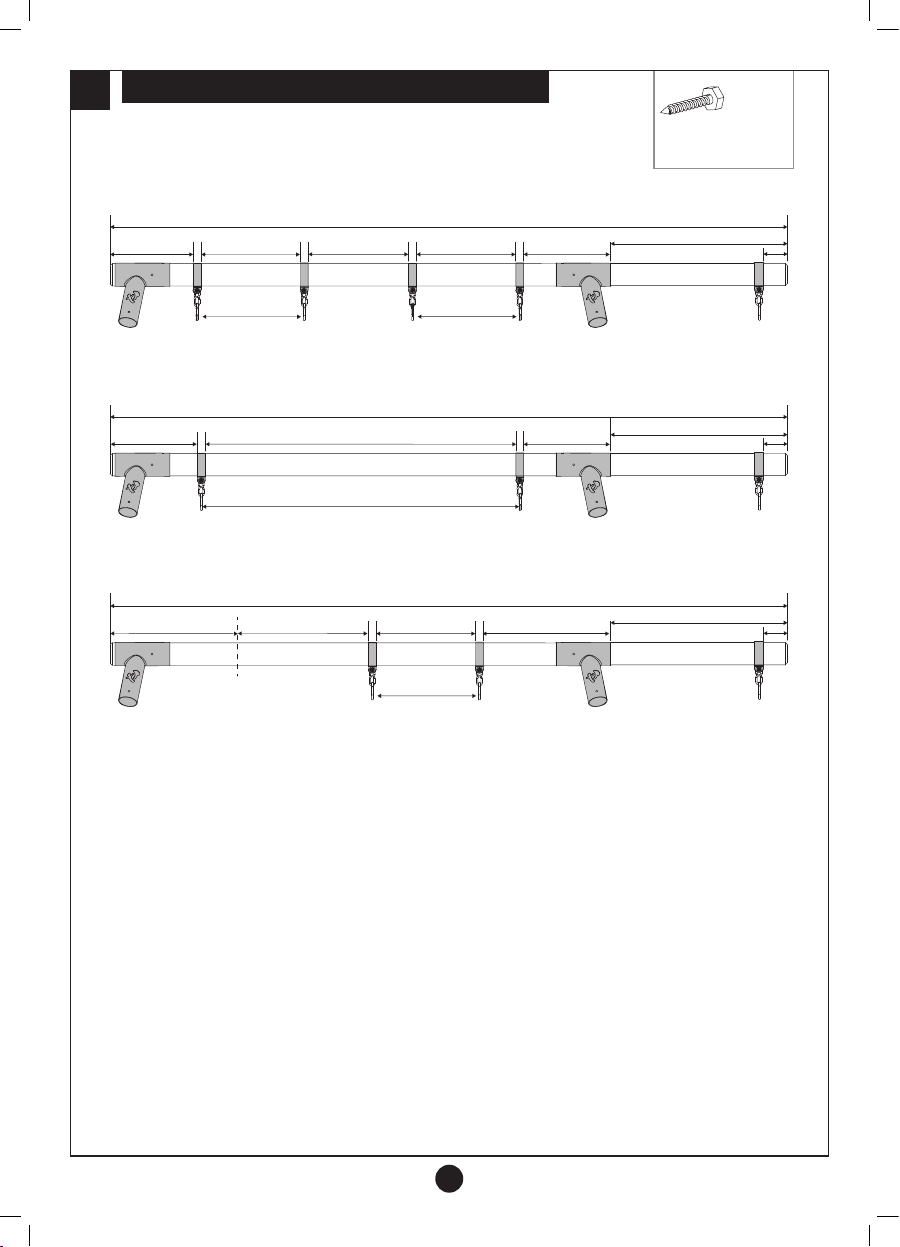

10 Single, Double, Triple and Double with Extension

3000mm

750mm

445mm 450mm 445mm 385mm 100mm

385mm

Swing Seat Position Swing Seat Position Single Roped Seat

With 2 single swing seats and 1 single roped accessory

3000mm

750mm

385mm 100mm

385mm

Swing Seat Position Single Roped Seat

1410mm

With 1 Nest swing seat and 1 single roped accessory

3000mm

750mm

735mm 445mm 500mm 100mm

500mm

Swing Seat Position

Bracket for rigid

downtube Glide Ride

Single Roped Seat

With 1 glide ride, 1 single swing seat and 1 single roped accessory

3Double Wooden Swing Frame with Extension 40mm

FA8380

Double with

Extension x6

TP Generic Roundwood STD-Compact Swings In8047-F 09.04.21.indd 10

15/04/2021 14:55
