Component Playgrounds AF30 Bedienungsanleitung
Installation
Instructions AF30
Required Crew: 2 Required
Concrete: 6-8, 80 lb. bags
Required Tools:
● Wheelbarrow
● Step Ladder (6’ or taller)
● Shovel
● Tape Measure
● Digging Bar or Pick
● Level
● Allen Wrench (Provided)
● Open end or Box Wrenches: 9/16”, ¾”
● Hammer or Mallet
● Ratchet Handle & Sockets: 9/16”, ¾”
● Marker Pen
● Drill: Cordless or electric, or impact driver
Component Playgrounds is concerned about the safety of your vision. It
is important that you choose to protect your vision by wearing proper
safety glasses during each and every phase of this construction
process.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING
The AF30 can be installed as a one day project. The normal time required
to install the AF30 is about 2-4 hours for a two man crew. This time
requirement will vary dependent upon the composition of the soil and the
speed of the installers. Mix and pour the concrete as the last step. *Before
digging, please obey local laws by notifying your local underground
utilities marking organization*
Top Rail Assembly
Step 1: Slide the ends of the 10’ Top Rail as far as it will go into the Sleeves
of the Triple Ends.
Step 2: Insert and tighten (4) 3/8” x 3/8” set screws into each of the Triple
End Sleeves using Allen Wrench provided.
Component Playgrounds
BRASS BUSHING SWING HANGER
1. Loosen and remove the two nyloc jam nuts. 2. Reassemble on to swing top rail.
Tighten securely so that the hanger is
firmly attached in place and cannot slide or swivel along top rail. 3. Attach
carabineer with chain through the ring.
Note: We recommend you check the pendulum in the swing hangers at
least every 6 months for normal wear.
ASSEMBLY
1. Slide the drilled end of the legs into the triple end. Find A-Frame Bolt Pack.
2. Align the holes in the legs with the holes in the triple end and join together using a
3/8” x 2 3⁄4” hex bolts and 3/8” nyloc nuts. Tighten.
3. Insert and tighten set screws into triple end with allen wrench provided.
Next have two adults stand on opposite ends and stand structure up into
the place you want it to be installed.
Mark holes around a-frame leg, move set to the side of markings and dig holes.
Notice! Most of the “A” frame leg hole needs to be dug towards the inside of the “A”
frame leg.

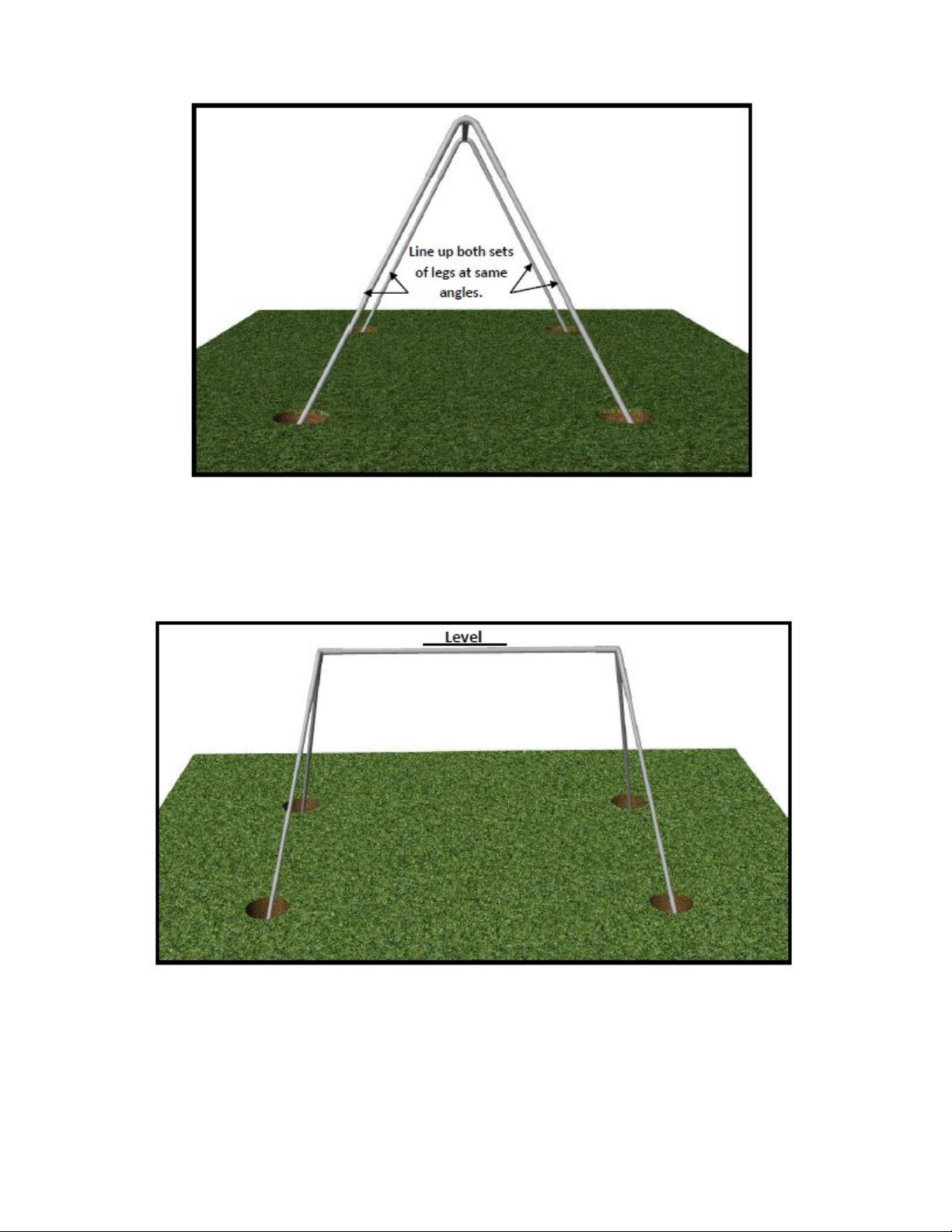

Place the set into the holes. Align the legs.
Place a level on the top rail and make the necessary adjustments to get set level.
When you are satisfied that the structure is level, mix and pour the
concrete according to the package directions. You will use
approximately one and a half to two 80 lb. bags in each leg hole.
Concrete will cure faster in warm conditions and slower in cold
conditions. The package directions on the concrete you buy will indicate
approximate curing times. If you are in doubt, it is better to wait longer
allowing the concrete more time to cure. We recommend 3-5 days
before use.
The amount of concrete to be used in each hole may vary. For
example: If you are installing your play structure into a grassy area, you
may want to leave the concrete about three to four inches below the top
of the hole. This will allow you to replace the sod and have enough soil
depth for the grass to continue growing. As a result of this, you will use
a lesser amount of concrete than someone who chooses to fill the
concrete to the top of the hole. The concrete should only be filled to the
top of the hole if you are planning to install 6 – 12 inches of soft fall
ground cover. The concrete footings should never be exposed as this
presents a potential risk of injury to those who use this play equipment.
Double Check and Secure: Before using your swing set, double
check and secure any loose set screws or nuts and bolts and enjoy
your Component Playground. Allow all of the concrete to cure
completely before using your playground. (3-5 days).
After concrete has cured, assemble and attach swing chains
and seats.
Read Before Use
Congratulations! You have just purchased one of the finest pieces of playground equipment available. Your family will
enjoy many hours of fun with this fine equipment. Playground equipment can be most enjoyable, but there are some
dangers if not used properly. You should be aware of the following:
Equipment should be installed in a level area, free from obstructions, with enough space to allow for adequate
clearance in all directions when equipment is in maximum use.
Keep objects away from equipment that could interfere with persons using it or that could be hazardous.
Misuse or abuse of this playground equipment is dangerous and can cause serious injury.
This equipment should be inspected before each use and any worn, defective or missing parts should be replaced.
Children should play on equipment only with adult supervision and should be duly warned of the potential hazards in
this type of equipment when used improperly. Children should be instructed as to proper caution to take in its use.
Equipment should NOT be used when it is wet or icy.
Equipment should only be used in a well-lit area.
Do NOT use equipment when tired, under stress or emotionally upset.
Do NOT overcrowd.
Do NOT use equipment when under the influence of alcohol or drugs.
Do NOT attempt somersaults or gymnastic stunts on or using this equipment.
Know your own limitations and exercise caution at all times.
Do not jump off of equipment when dismounting. It is a dangerous practice to jump on or off equipment.
Do not attempt to use equipment for something other than the use for which it was designed and intended, or in a
manner other than that for which it was designed and intended.
While every attempt is made by Component Playgrounds to ensure the highest degree of
safety in all of our equipment, we cannot guarantee freedom from injury. The user
assumes all risk of injury due to use. All merchandise is sold on this condition, which no
representative of the company can waive or change.
Maintenance of your playground
We hope that you and your family will enjoy many hours of great family fun while using your
Component Playgrounds Products. We appreciate your business. Our goal is to provide safe,
durable and fun products using the best materials available. Your product should be mostly
maintenance free. However, you should consider the following suggestions with regard to the
up keep of your new swing set.
1. Chains and Connectors: The chains are coated with the highest quality bright zinc
coating and the highest quality polymer coatings available. However, over time the
zinc coating may become discolored or eventually have surface rust appear. The
polymer coating may also become discolored with time and may eventually crack. This
depends mostly upon environmental conditions and normally will not affect the
durability and safety of the product. However, these items should be inspected
regularly for excessive wear and should be replaced as necessary.
2. Swing Hangers: These items are coated with a high quality galvanizing. However,
swing hangers may become discolored or may eventually rust. Should this happen, a
touch up using a cold galvanizing compound followed by a coat of silver aluminum spray
paint will make them look new again. These items can be purchased in aerosol cans
(“spray paint”) at most hardware stores and at Component Playgrounds. The brass
bushings inside of the swing hanger are impregnated with lubricant and will not
generally require any further lubrication. However, these should be periodically
inspected for wear and replaced as necessary. Note: Twisting the chains while swinging
will put extra wear on the swing hanger parts. If your children enjoy this practice, please
inspect the swing hangers more frequently.
3. Tire Swing Knuckles (for sets with a tire swing): The tire swing knuckle arrives at
Component Playgrounds pre-lubricated from the manufacturer. However, it is good
practice to inspect the knuckle and be sure that there is adequate lubrication before it
is used for the first time. After that, the tire knuckles should be lubricated at least twice
annually to prevent excessive wear and the eventual failure of the tire swing knuckle.
4. Welds: The heat from the welding process will damage the galvanizing that is on the
pipe when it arrives to us from the manufacturer. This damage to the galvanizing is
Inhaltsverzeichnis
