Track Vip TRCAR Bedienungsanleitung



GPS Tracking System



(GPS GSM GPRS)

TRCAR

User Manual



Thank you for purchasing the tracker. This manual shows how to operate the device

smoothly and correctly. Make sure to read this manual carefully before using this

product. Please note that specification and information are subject to changes without

prior notice in this manual. Any change will be integrated in the latest release.

Contents



◆

Quick using ...................................................................................................................................3

◆

Installation attentions ....................................................................................................................3

◆

Attention .......................................................................................................................................4

1. Summary ...................................................................................................................................5

2. Main functions ..........................................................................................................................5

3. Specs. ........................................................................................................................................5

4. Installation instructions .............................................................................................................6

5. Wires connection.......................................................................................................................7

6. Device Parameter Settings ........................................................................................................8

6.1 Initialization ........................................................................................................................8

6.2 Set password .......................................................................................................................8

6.3 Authorization.......................................................................................................................9

6.4 Single Locating ...................................................................................................................9

6.5 Get geographical location .................................................................................................10

6.6 Auto continuous track .......................................................................................................10

6.7 Voice Surveillance.............................................................................................................10

6.8 Geo-fence .......................................................................................................................... 11

6.9 Overspeed alarm ............................................................................................................... 11

6.10 ACC ON alarm................................................................................................................12

6.11 Time Zone Setting ...........................................................................................................12

6.12 GPRS setting ...................................................................................................................12

6.13 IP and Port setting ...........................................................................................................13

6.14 Cut oil or circuit (optional) .............................................................................................13

6.15 Recover oil or circuit.......................................................................................................14

6.16 Power failure alarm (optional) ........................................................................................14

6.17 Check device setting parameters .....................................................................................14

6.18 Web platform GPS tracking software..............................................................................14

◆

Quick using

1）Proper insert GSM card, connect external power supply, Must turn on

small switch inside SIM card hole.

2）Put device outside, around 30s three lights will keep lighting on stands



for device can work normally.



3）Dialing device number, it will hang up and reply tracking message with

valid Long and lat.

4）If need track online system, send 2 SMS connects to platform as



below:



SMS 1: #IP#123456#58.64.200.27#8169#



SMS2: #apn#123456#APN of operator#APN user name#APN password#



5）Login platform to track in real time(please contact supplier).



◆

Installation attentions



NOTE: device front side towards the sky.



When install in car, if the windscreen glued by metal thermal insulation

layer or heating layer, it will reduce the GPS receive signal and lead to

GPS work disorder.



◆

Attentions

◆

Device light



1）No yellow light: failed to read SIM card, need reinstall SIM card.



2）Blue light flash: no GPS signal, make sure device started outside.



3）Three lights off: lights entered sleep mode, make a call can wake up.



◆

Device failed located



1）Failed located: message replied with all 0, make sure device started

outside not in room.

2）Can’t reach the call: make sure SIM card has balance and installed



properly.



◆

Device can’t track on platform



1）Check three lights are stable lighting on. Make sure device can

communicate by sending SMS and make a call.

2）Send SMS

“

TCP

”

check GPRS setting：IP,port,APN are corret，Show



A（A means GPS located，V means not located）.

1. Summary



Working Based on existing GSM/GPRS network and GPS satellites, this

product can locate and monitor any remote targets by SMS or GPRS.

NOTE: Please turn on small switch inside SIM card hole after install SIM card



2. Main functions

GSM quad-band frequency;

Real time tracking location by SMS/GPRS;

Real time voice monitoring function ;

Recover original password;

Set authorized number;

Overspeed alarm;

ACC anti-theft alarm ;

Connect external relay to realize controlling oil and circuit of the

vehicle(optional);

Built-in backup battery to realize power failure alarm(optional);



3. Specs.



Content Specs.

Dim. 84 mm x47.5 mm x 15 mm

Weight 50g

Network GSM/GPRS/GPS

Band 850/900/1800/1900 Mhz

GPS chip UBLOX

GSM module MTK60

GPS sensitivity -159dBm

GPS accuracy 5m



Time To First Fix

Cold status 45s

Warm status

35s

Hot status 1s

Work voltage 9V-36V

Storage Temp. -40

C to +85

Operation Temp. -20

C to +45

Humidity 5%--95%

4. Installation instructions



4.1 Preparation



4.1.1 Open the package to check the device model number is correct, be

with full accessories, or else please contact your supplier;

4.1.2 Choose SIM card, need insert a GSM SIM card into the device,

please refer to the suggestion of your supplier for SIM card choice.



Notice:



Please insert SIM card before turning the device power switch

to on;

The SIM card need open the GPRS function;Please make sure SIM



card with full balance.



4.2 Installation



The device is hidden type installation, we suggest the device

installing by professional institution. Please pay attention to the following

points:

4.2.1 To avoid the thieves destruction, the device installation place should

be as far as hidden.

4.2.2 Avoid putting the device with reversing radar, car burglar alarm and

any other vehicle communication devices;

4.2.3 Can fix the device by ribbon or wide sponge powerful two-side glue

stick;

4.2.4 The device has built-in GSM and GPS antenna, make sure the

receive side upward and there is no metal shielding.

4.2.5 Recommended installation place: ①The hidden place in the board

below the front windscreen; ② The hidden place around former

dashboard (nonmetal material for skin); ③The hidden place in the board

below the back windscreen.



Notice:



If the windscreen glued by metal thermal insulation layer or heating

layer, it will reduce the GPS receive signal and lead to GPS work disorder,

then please change the installation place.



4.3 Device light description



Light Signal



Red light Power



Yellow light GSM signal



Blue GPS signal



Note: the three lights must be stable lighting represents device can work

normally. Device will turn into sleep mode with lights off after around 5 minutes,

it will wake up if make a call to device number.



5. Wires connection



1. Red wire connects to vehicle power anode



2. Black wire connects to vehicle power cathode



3. Yellow wire connects to oil or circuit control wires



4. Green wire connects to ACC wire



6. Device Parameter Settings



6.1 Initialization



Send SMS “#begin#123456#” to the tracker, it will reply “begin ok” and

initialize all the settings. (Default password:123456). Remark:

initialization is resetting all the parameters to factory defaults.

For example, send SMS “#begin#123456# ”, If succeeded, it will reply



“

begin ok”.



6.2 Set password



6.2.1Set Password: Send SMS: “#password#old password#new

password#” to the unit to change the password.

For Example, send SMS: “#password#123456#666888#” to device, it

will reply SMS: “password OK”.

6.2.2 Make sure the new password is in 6 digits arabic numbers, or the

device cannot recognize the password.

6.2.3 Resume original password: send SMS: “#resume#” to the device, it

will reply SMS: “resume password, password is 123456”.



6.3 Authorization



6.3.1 Set authorization: send SMS

“

#admin#password#cell phone

number#

”

to set up authorized number, device will reply “admin ok”.

6.3.3 Delete authorization send SMS

“

#noadmin#password#authorized

number#

”

to delete the authorized number, device will reply “no admin



ok”.



6.4 Single Locating



6.4.1 If there is no authorized number, any number dials up the device

number, it will report tracking message; If already set authorized number,

then it will not respond when an unauthorized number calls it.

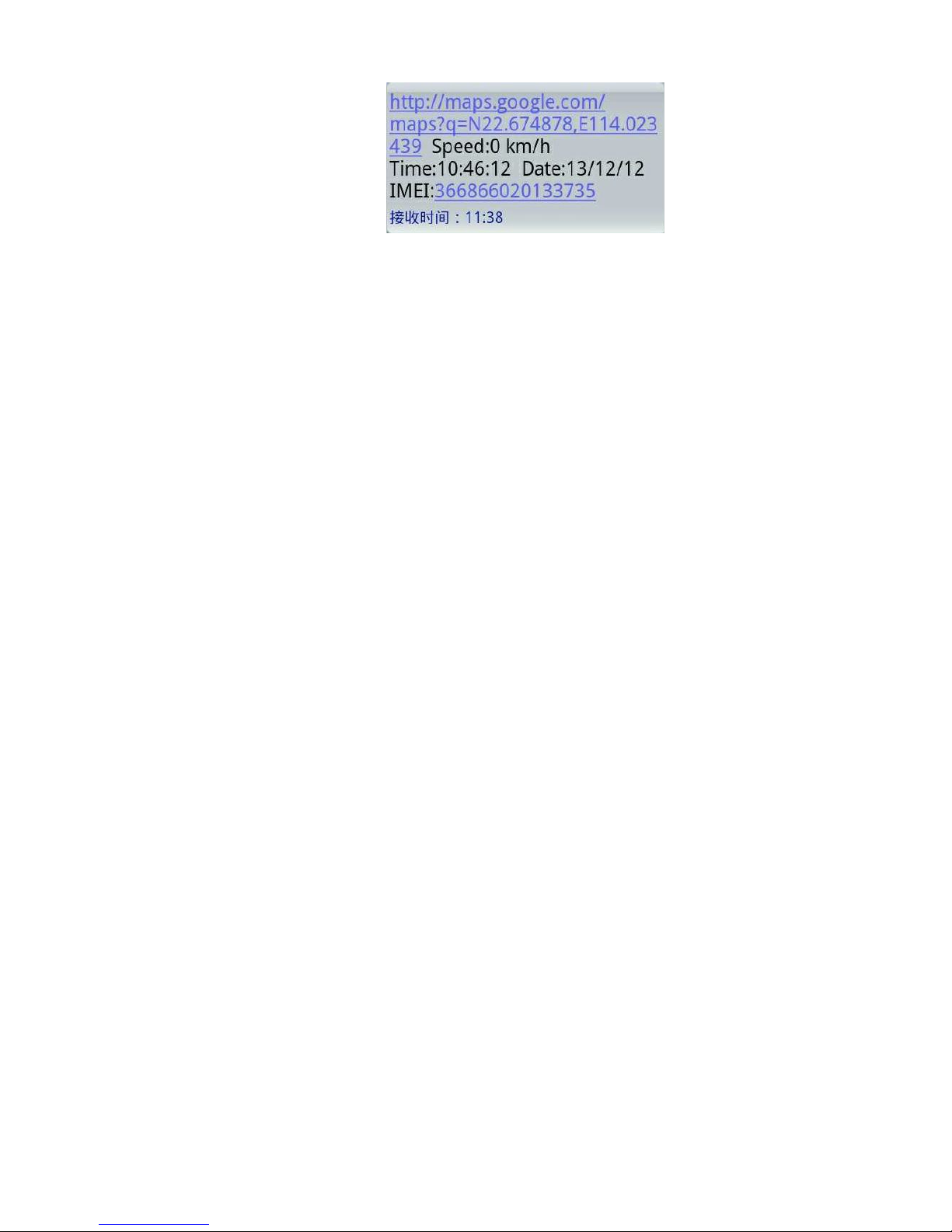

6.4.2 Dialing tracking: make a call to device number, it will hang up and

reply a real-time tracking message.

6.4.3 SMS tracking: send SMS“#smslink#123456#”, it will reply a

real-time tracking message.



*Tracking location, when GPS signals is weak, you will receive the last

location when GPS is available. If it is different with its exact current

location, pay attention to check the time included in the SMS.



6.5 Get geographical location



6.5.1 Must set the SIM Card APN parameter firstly before using this

function, if there is APN user name and password, Please refer to

point 6.13 to set.

6.5.2 Send SMS: “DW” to device, it will reply current location info：



around 118m, jianhui rd, bao’an district, Shenzhen, China.

Note: this function may not work in some certain area.



6.6 Auto continuous track



6.6.1 Unlimited time auto track: Send SMS “#at#30#sum#0#” to the



device. Remark: device must be connected to tracking software.



6.6.2 Cancellation: Send SMS “#noat#password#” to the device.



6.7 Voice Surveillance



6.7.1 The command to switch between Track and Monitor are “tracker”



and “monitor
