TradePro TP-N-511 Bedienungsanleitung

This thermostat requires 24 Volt AC Power or two (2) properly installed

“AA” Alkaline batteries for proper operation. When connecting 24 Volt

AC Power the batteries may be installed as a backup.

Thermostat

installation and all components of the system shall conform to

Class II Circuits per NEC code.

For use only as described in this manual. Any other use will void warranty.

TP-N-511

Single Stage Heat / Cool

Conventional and Heat Pump

Speciﬁcations

Installation

Setting User Options

Operating Your Thermostat

Additional Operation Features

Thermostat Maintenance

Warning

Turn off power to the heating or cooling

equipment before installation.

Attention

For installation by experienced service

technicians only.

TP-N-521

Up to 2 Heat / 1 Cool

Conventional and Heat Pump

Read all instructions before proceeding.

This thermostat is compatible with:

• Single stage heat / cool conventional and heat pump systems

• Conventional systems up to 2 heat / 1 cool (TP-N-521)

• Single compressor heat pump systems with an auxiliary heat stage (TP-N-521)

• 250 – 750 millivolt heat only systems

Electrical and control speciﬁcations:

• Electrical Rating: 24 Volt AC

• 1 amp maximum load per terminal

• AC Power: 18 – 30 Volts AC

• DC Power: 3.0 Volt DC (2 “AA” Alkaline Batteries Included)

• Control Range: 45° – 90° F (7° – 32° C)

• Temperature Accuracy: +/- 1° F (+/- .5° C)

Terminations

• TP-N-511 – Rc, Rh, O, B, Y1, W1, G, C

• TP-N-521 – Rc, Rh, O, B, Y1, E/W1, G, W2, C

Speciﬁcations

TPN-100-01

Non-Programmable Thermostats

User

Manual

Model number is located on

back of thermostat

Single Stage Heat / Cool

Conventional and Heat Pump

Operating Your Thermostat

Additional Operation Features

Thermostat Maintenance

For installation by experienced service

technicians only.

TPN-100-01

Installation

Warning

Disconnect power before beginning installation.

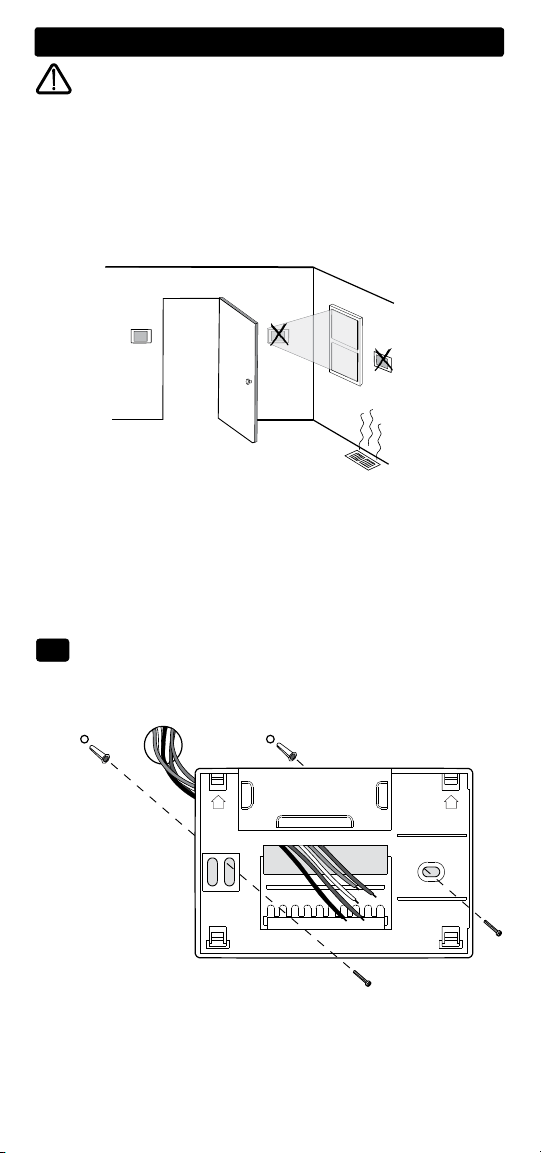

Thermostat Location

Install the thermostat approximately 5 feet (1.5m) above the ﬂoor in an

area that has a good amount of air circulation and maintains an average

room temperature.

Avoid installation in locations where the thermostat can be affected by

drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed

pipes, chimneys and outside walls.

Model number is located on

back of thermostat

Install your new TRADEPRO

thermostat in 5 basic steps:

1Install the Sub-Base

2Provide Power

3Connect Your Wires

4 Set Installer Switches

5Attach Thermostat to Sub-Base

Install the Sub-Base:

• Remove the sub-base from the body of the thermostat.

• Mount the sub-base as shown below:

Drill 3/16” pilot holes in

your desired location.

Use supplied anchors for

drywall or plaster.

UP UP

• For 24 Volt AC power, you must connect the common side of the trans-

former to the C terminal on the thermostat sub-base.

• For primary or back-up power, insert the 2 supplied “AA” type alkaline

batteries into the battery compartment located in the rear housing of the

thermostat. Make sure to position the Positive (+) and Negative (-) sides

of the batteries correctly with the +/- symbols in the battery compartment.

Provide Power

Connect Your Wires

1 HEAT / 1 COOL Single or Dual Transformer

Set Installer Switch to CONV

24 Volt AC Power (heating transformer) [note 2]

24 Volt AC Power (cooling transformer) [note 2]

W1 Heat Relay (appears as W1/E on TP-N-521)

Y1 Compressor Relay

G Fan Relay

C 24 Volt AC Transformer Common [note 1, 3]

Typical Wiring Conﬁgurations

NOTE: The “Installer Switch” option will be conﬁgured in the next step.

Conventional Systems

NOTES - Conventional Systems

[1] If batteries are installed the 24 Volt AC common connection is optional

[2] Remove factory installed jumper for dual transformer systems

[3] In dual transformer systems, transformer common must come from

cooling transformer

[4] If needed for system

Provide disconnect and overload protection as required.

2 HEAT / 1 COOL Single or Dual Transformer (TP-N-521 Only)

Set System Type to CONV

24 Volt AC Power (heating transformer) [note 2]

24 Volt AC Power (cooling transformer) [note 2]

W1 Heat Relay Stage 1

W2 Heat Relay Stage 2

Y1 Compressor Relay Stage 1

G Fan Relay

C 24 Volt AC Transformer Common [note 1, 3]

Heat Only or Millivolt

Set Installer Switch to CONV

Power Connection

W Heat Relay (appears as W1/E on TP-N-521)

G Fan Relay [note 4]

C 24 Volt AC Transformer Common [note 1]

Typical Wiring Conﬁgurations

NOTE: The “Installer Switch” option will be conﬁgured in the next step.

Heat Pump Systems

1 HEAT / 1 COOL - No Auxiliary Heat

Set Installer Switch to HP

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O or B

Changeover Valve [note 2]

Y1 Compressor Relay

GFan Relay

C24 Volt AC Transformer Common [note 1]

2 HEAT / 1 COOL - Including Auxiliary Heat (TP-N-521 only)

Set Installer Switch to HP

Rh 24 Volt AC Power

Rc Connected to Rh with supplied Jumper Wire

O or B

Changeover Valve [note 2]

Compressor Relay (1st stage heating/cooling)

W2 Auxiliary Heat Relay (2nd stage heating) [note 3]

W1/E Emergency Heat Relay [note 3]

G Fan Relay

C 24 Volt AC Transformer Common [note1]

NOTES - Heat Pump Systems

[1] If batteries are installed the 24 Volt AC common connection is optional.

[2] Select Ofor cool active or B for heat active.

[3] Install a ﬁeld supplied jumper between the W2 and Eterminals if

there is no separate emergency heat relay installed.

Provide disconnect and overload protection as required.

Factory Setting

Switch Default Options Comments

CONV / HP CONV

F / C F

HE / HG HG

Set Installer Switches

CONV Select for conventional systems

HP Select for heat pump systems

F Select for fahrenheit temperature scale

C Select for celsius temperature scale

HG Select for gas heat

HE Select for electric heat

NOTE: The reset button should be pressed after making any changes to the

installer switches.

Attach Thermostat to Sub-Base

1. Line up the thermostat body with the sub-base.

2. Carefully push the thermostat body against the sub-base until it snaps

into place.

3. Insert quick reference card into slot on top of thermostat.

Setting User Options

Advanced User Options

User options allow you to customize some of your thermostats features.

Most users will not need to make any changes to the settings in this section.

To access the User Options menu, hold down both the and buttons

for approximately 3 seconds until the screen changes and displays

the ﬁrst User Option.

Press the or button to change the setting for the displayed User Option.

After you have made your desired setting, press and together to

advance to the next User Option.

The thermostat will return to normal mode after your last user option is

made or after no keys have been pressed for 15 seconds.

User Factory Setting

No. Options Default Options Comments

1 1st stage

0.5

0.5, 1.0

Select a 1st stage temperature

differential

or 2.0 differential of .5˚, 1˚ or 2˚F (.2˚, .5˚

or 1˚C)

2 2nd stage

2.0

1.0, 2.0,

Select a 2nd stage temperature

differential

3.0, 4.0

, differential of 1˚, 2˚, 3˚, 4˚, 5˚ or 6˚F

(TP-N-521

)

5.0

6.0

(.5˚, 1˚, 1.5˚, 2˚, 2.5˚ or 3˚C)

Table of User Options

Detailed Explanation of User Options:

Temperature Differential

(User Option 1 and 2)

The differential setting is the temperature control range that your thermostat

will provide. The smaller the setting, the tighter your range of temperature

control and comfort will be. The 2nd stage differential is only for systems

with a second stage of heating (auxiliary heat).

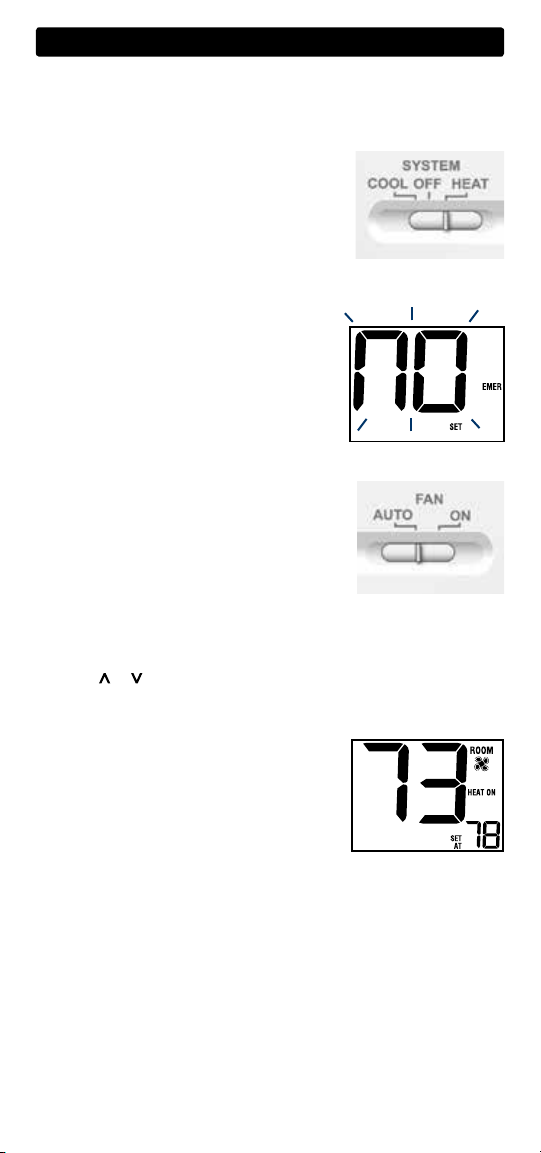

Operating Your Thermostat

Setting the System Control Mode

The System Control has several modes of operation that can be selected by

moving the SYSTEM switch to the appropriate position.

COOL Only your cooling system will operate

OFF Heating and cooling systems are off.

HEAT Only your heating system will operate.

Additional Switch Position (Model TP-N-521 Only):

EMER Operates a backup heat source (Emergency Heat) for heat pump

systems only.

NOTE:

If your model TP-N-521 was conﬁgured

for a conventional system (CONV) then you will not

have

the EMER (emergency heat) option and “NO

EMER SET” will ﬂash in the display if EMER is

selected with the system switch.

Setting the Fan Control Mode

The Fan Control has 2 modes of operation – AUTO

and ON. The mode can be selected by moving the

FAN switch to the appropriate position.

AUTO The system fan will run only when your

heating or cooling system is running.

ON The system fan stays on.

Temperature Adjustment

Press the or button to adjust the current set point temperature.

Status Indicators

Status indicators appear in the display to let

you know if your system is heating, cooling

or off.

HEAT ON

Indicates your heating system is running.

COOL ON

Indicates your cooling system is running.

Additional Status Indicators (Model TP-N-521 Only):

AUX Indicates that the auxiliary stage of heating is running

(Multi-Stage Systems only).

EMER Indicates that the emergency heating system is running

(Heat Pump Systems only).

Resetting the Thermostat

This thermostat provides you with a reset button that will erase all of your

user settings. To reset the thermostat, use a small object such as a tooth

pick or paperclip and gently press the button located inside the small hole

on the front of the thermostat housing labeled “reset”.

Additional Operation Features

Compressor Protection

This thermostat includes an automatic compressor protection delay to

avoid potential damage to your system from short cycling. This feature

activates a short delay after turning off the system compressor.

Thermostat Maintenance

Changing the Batteries

Depending on your particular installation, this thermostat

may be equipped with two (2) “AA” type alkaline batteries.

If batteries are installed and they become low, a low battery indicator will

appear in the display.

You

should change your batteries immediately when

you see the low battery signal by following these instructions.

1. Remove thermostat body by gently pulling it from base.

2. Remove old batteries and replace with new batteries.

3. Make sure to correctly position the (+) and (-) symbols.

4. Gently push thermostat body back onto base.

NOTE: We recommend replacing the thermostat batteries annually or if the

thermostat will be unattended for an extended period of time.

Thermostat Cleaning

Never spray any liquid directly on the thermostat. Using a soft damp cloth

wipe the outer body of the thermostat. Never use any abrasive cleansers to

clean your thermostat.

Store this manual for future reference.

3 Year Limited Warranty

TRADEPRO

warrants each new TRADEPRO

thermostat against any defects that are

due to faulty material or workmanship. This warranty and our liability does not apply to

batteries, nor does it include damage to merchandise or the thermostat resulting from

accident, alteration, neglect, misuse, improper installation or any other failure to follow

TRADEPRO

installation and operating instructions. This limited warranty applies for

the duration of the warranty period from the original date of purchase by a professional

service technician.

TRADEPRO

agrees to repair or replace at its option any TRADEPRO

thermostat under

warranty provided it is returned postage prepaid to our warranty facility in a padded

carton within the warranty period, with proof of the original date of purchase and a

brief description of the malfunction. This limited warranty does not include the cost of

removal or re-installation.

This warranty gives you speciﬁc legal rights and you may also have other rights that

vary from state to state or province to province. Answers to any questions regarding our

limited warranty may be obtained by writing our corporate ofﬁces.

For warranty service, please visit your nearest TRADEPRO

facility.

Technical Assistance: 866-268-5599 (U.S.) • 630-844-1968 (Outside the U.S.)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere TradePro Thermostat Handbücher

TradePro

TradePro TP-P-511 Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
