ASSEMBLY GUIDE

Please read this entire manual before installation and use of this pellet fuel-burning appliance. Failure to follow these instructions could result in property

damage, bodily injury, or even death. Contact your local building or ﬁre ocials about restrictions and installation inspection requirements in your area.

WARNING!

MANY PARTS OF THE GRILL WILL BECOME VERY HOT DURING OPERATION. CARE MUST BE TAKEN TO AVOID BURNS,

BOTH DURING OPERATION AND AFTERWARDS, WHILE THE GRILL IS STILL HOT.

Never leave the grill unattended when young children are present.

Never move the grill when it is operating.

Let the grill cool completely before moving or attempting to transport.

A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES)

BETWEEN COMBUSTIBLE MATERIALS. IT IS OF UTMOST IMPORTANCE THAT THIS PRODUCT BE

INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

TFB42PLF

TRAEGER PELLET GRILLS LLC

1215 E. WILMINGTON AVE

SALT LAKE CITY, UT 84106

TRAEGERGRILLS.COM

MESA

TFB42P

T01805

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

PARTS LIST

WARNING!

• When operating this grill under overhead

combustibles, a MINIMUM of 102 cm

(40 inches) is required.

• When operating this grill, maintain a

MINIMUM distance of 45.7 cm (18 inches)

from the grill to combustibles.

IMPORTANT!

• The grill is very heavy. Always lif the grill with

TWO people.

BLISTER PACK PARTS NEEDED

Hex Key (1 pc)

Screwdriver (1 pc)

Wrench (1 pc)

BWashers: 5/16" (16 pcs)

IHex Nuts: 1/4"-20 (2 pcs)

Bolts: 5/16"-18x2.5 button head (6 pcs)

GHandle Insulation

(2 pcs)

FWashers: 1/4" (6 pcs)

DHex Nuts: 5/16"-18 (8 pcs)

Bolts: 5/16

-18x3.5 (2 pcs)

CSpring Washers:

5/16" (8 pcs)

˚F

225 325

180 350

275

250 300

375

Smoke

ShutDownCycle High

Power

Temperature

Power

Probe1

Probe

Selector

OFF

102 cm

(40.00")

45.7 cm

(18.00")

45.7 cm

(18.00")

HBolts: 1/4"-20x.375

Phillips (2 pcs)

Owner’s Manual

Probe

Selector

Probe1

˚F

JBolts: 1/4"-20x0.5

Phillips (2 pcs)

Traeger’ing is more fun with friends! (No, really, you will need two people to lif the grill.)

READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE GRILL

REMOVE GRILL PARTS AND PACKAGING

Probe

Selector

Probe1

˚F

THIS WILL REQUIRE TWO PEOPLE.

NOTE: We recommend you use the packing to prop

up the grill to make attaching the legs easier.

NOTE: You should assemble grill on a clean, ﬂat surface, as

you will need to lay it on its back at times during assembly.

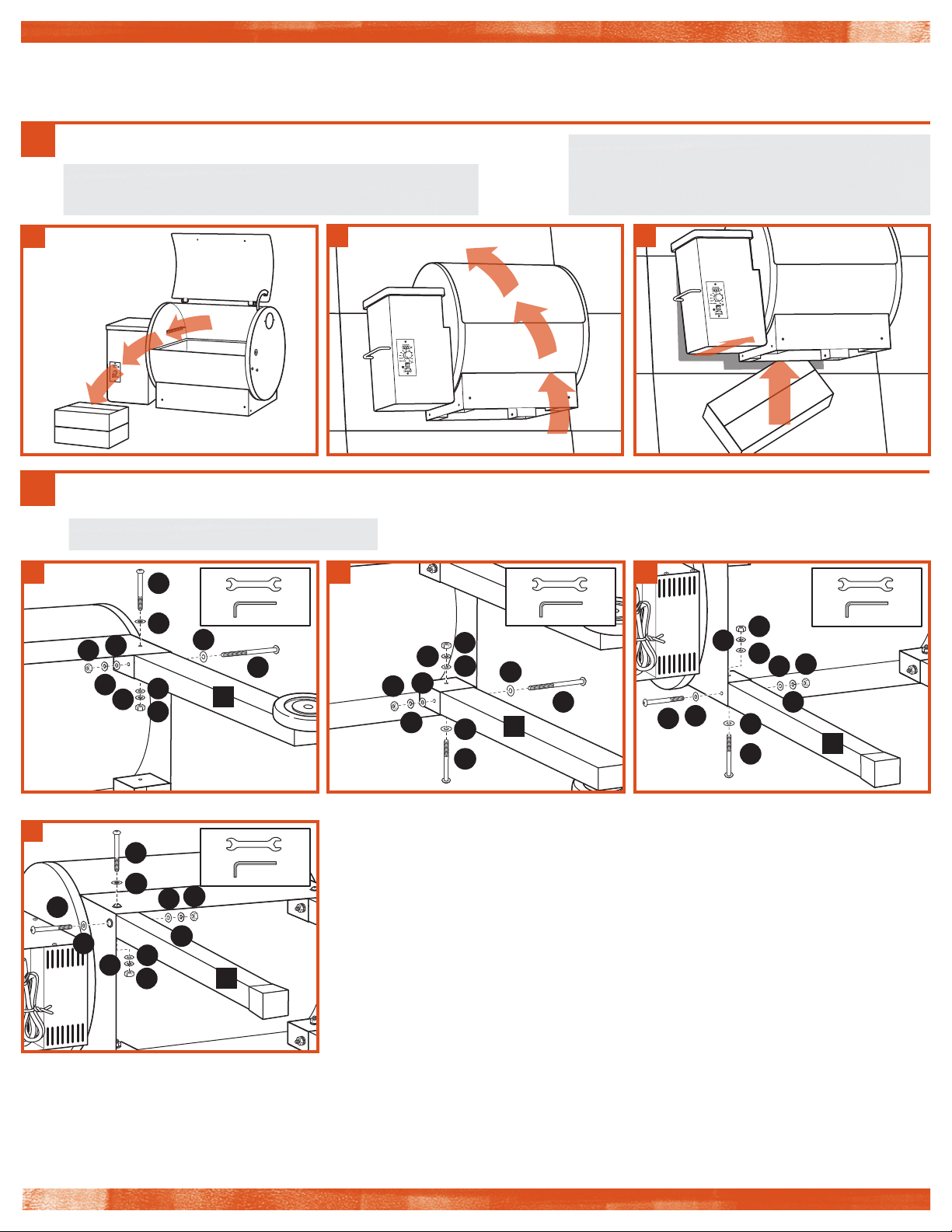

INSTALL LEGS

GRILL IS HEAVY. USE TWO PEOPLE TO LIFT.

Probe

Selector

Probe1

Probe2

Probe

Selector

Probe1

˚F

CDE

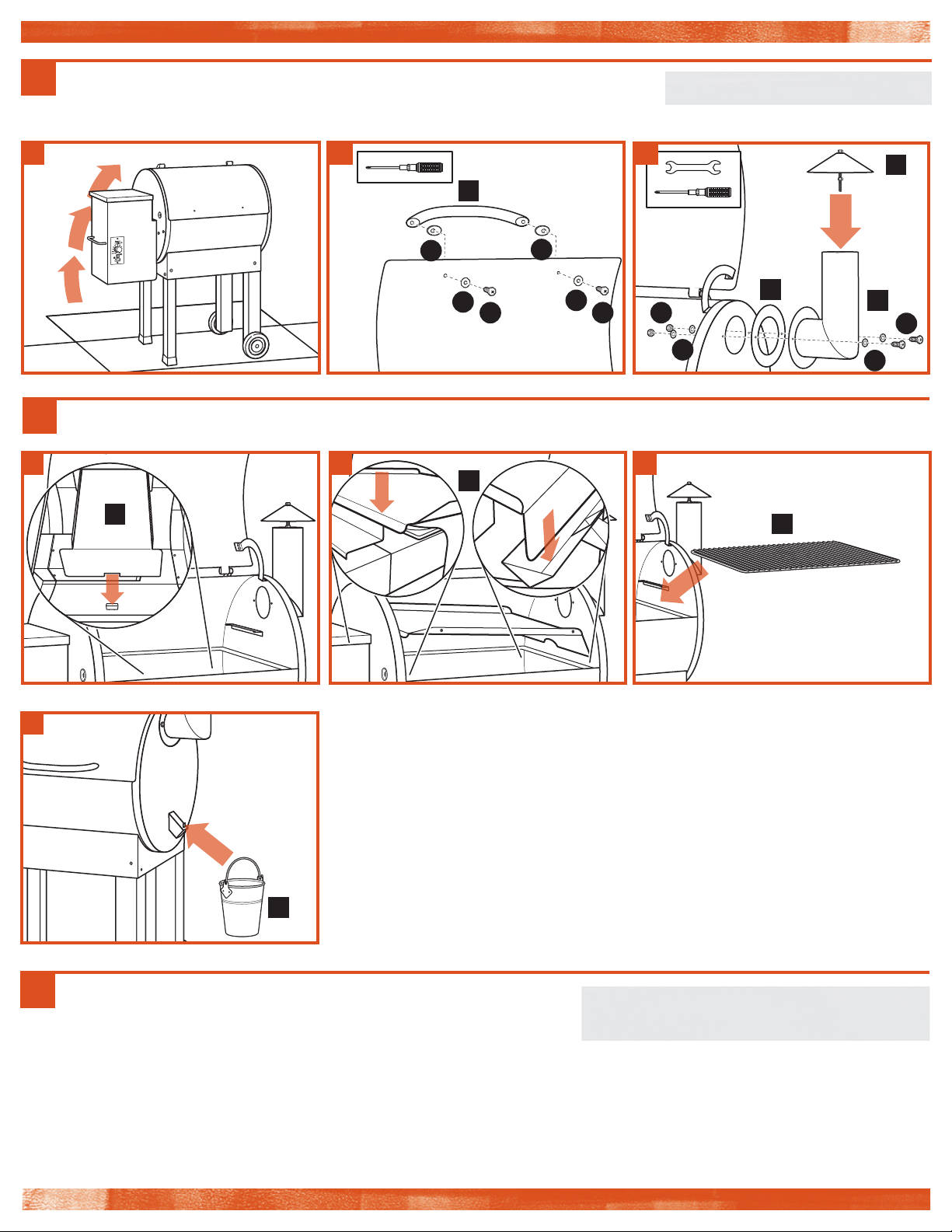

ATTACH HANDLE AND SMOKE STACK/

CHIMNEY CAP ASSEMBLY

3B 3C

Probe

Selector

Probe1

˚F

THIS WILL REQUIRE TWO PEOPLE.

YOU ARE READY TO SEASON YOUR

GRILL AND GET TRAEGER’ING!

5Refer to your Owner’s Manual for operating

instructions.

PLACE INTERIOR PARTS AND BUCKET
