TT11 VoIP Router 1FXS/1FXO TA

User Guide

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 2

Table of Contents:

1.0 Introduction .......................................................................................... 3

2.0 Package Contents .................................................................................. 3

3.0 Summary of LED & Connector Descriptions .......................................... 4

3.1 The Front LEDs .......................................................................................................... 4

3.2 The Rear Ports........................................................................................................... 5

4.0 Installation ............................................................................................ 6

5.0 Using The Configuration Menu ............................................................. 7

5.1 Accessing the Configuration Menu........................................................................... 7

5.2 Main Menu................................................................................................................ 8

5.3 Status –Device Information and Line Status............................................................ 9

5.4 Status - LAN............................................................................................................. 10

5.5 Status –WAN and DNS ........................................................................................... 10

5.6 System - Provision................................................................................................... 11

5.7 System - Firmware .................................................................................................. 12

5.8 System - Restart ...................................................................................................... 12

5.9 System –Backup/Restore ....................................................................................... 13

5.10 System –User Management................................................................................. 13

5.11 Networks –PPPoE WAN Setting ........................................................................... 14

5.12 Networks –Static WAN Setting ............................................................................ 15

5.13 Networks –DHCP WAN setting............................................................................. 15

5.14 Networks –LAN Setting ........................................................................................ 16

5.15 Networks –SNTP Setting ...................................................................................... 17

5.16 VoIP –SIP Settings ................................................................................................ 18

5.17 VoIP –Line Settings............................................................................................... 21

5.18 VoIP –IAX Settings ................................................................................................ 23

5.19 VoIP –Call Control ................................................................................................ 24

5.20 VoIP –Dialling Plan ............................................................................................... 27

5.21 VoIP - CDR ............................................................................................................. 28

5.22 Advanced –Remote Access .................................................................................. 28

5.23 Advanced –Virtual Server..................................................................................... 28

5.24 Advanced –Firewall –MAC Filter ......................................................................... 29

5.25 Advanced –Firewall –IP Filter.............................................................................. 29

5.26 Advanced –Firewall –Port Filter.......................................................................... 29

6.0 Troubleshooting .................................................................................. 30

Appendix: Product Specification............................................................... 32

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 3

1.0 INTRODUCTION

Voice over IP is a technology that allows anyone to make a telephone call over the Internet.

This is a quick user guide for the TT11 VoIP Router 1FXS/1FXO Telephone Adaptor. It is

intended to help you configure this device and have it ready to run within a few minutes.

Please follow the user guide carefully as troubleshooting the TA can be very difficult and

time consuming.

Before Installation

This product can be set up using a web browser, such as Internet Explorer.

If you purchased this product to make a VoIP call, you must have either an Ethernet-based

Cable or a DSL modem with an active connection to the Internet.

2.0 PACKAGE CONTENT

The following materials are included in the package. Please check the package to ensure

that all the materials are listed below. Contact TraiTel immediately if an item is missing.

TT11 VoIP Router TA

Ethernet cable

Phone cable

Quick User Guide

Before You Begin

This productcan be set up us inga webbrowser,su ch as InternetExplorer.

If you purchased thisp roduct tomake aVoIPc all, you musthave eitheran Ethernet-based

Cable ora DSL modemwith an active connection tot heInternet.

Check Your Package Contents

These arethe items includedwith your VoIP router TApurchase:

• VoIP Router TA

Quick Installation Guide Power Adapter (12V DC)

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 4

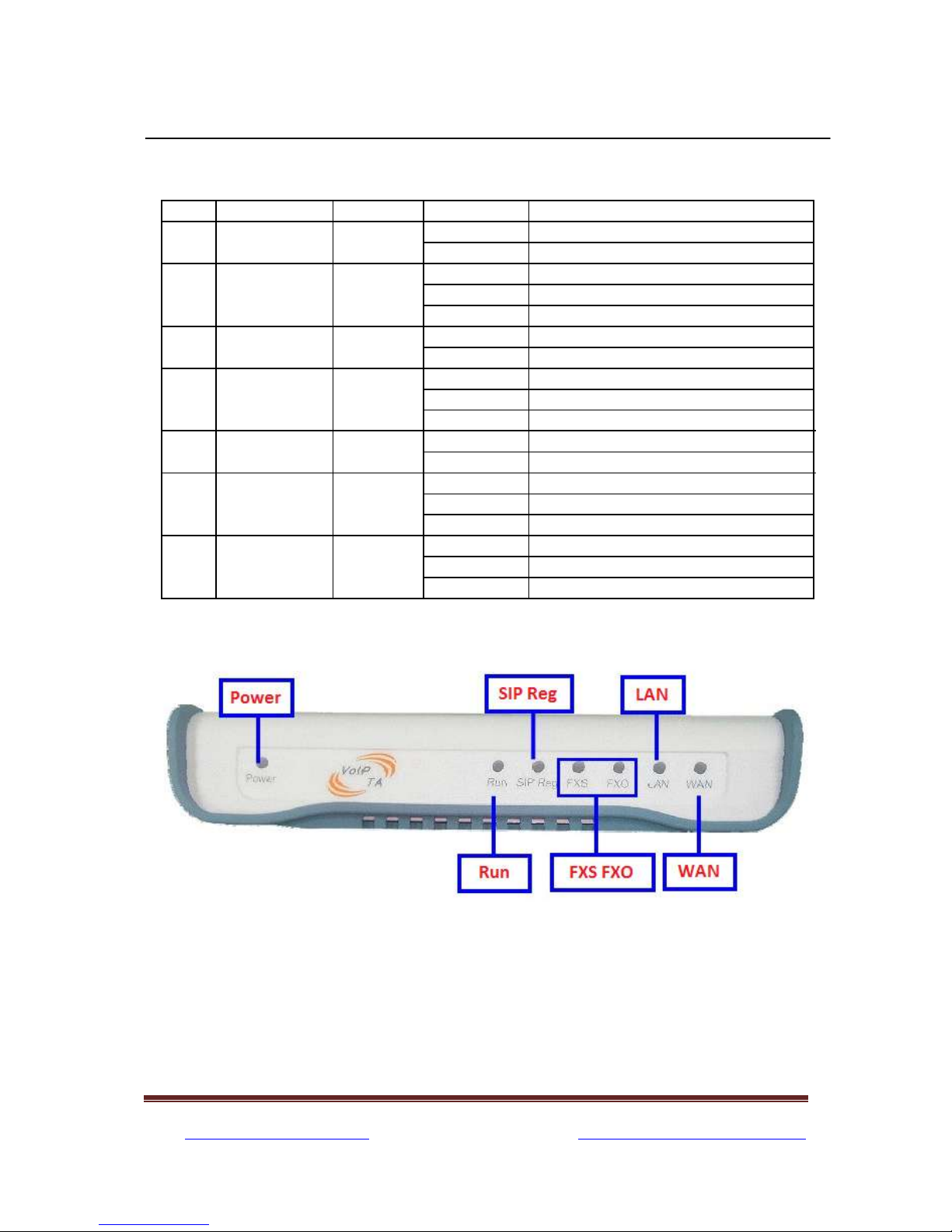

3.0 SUMMARY OF LED & CONNECTOR DESCRIPTION

3.1 The Front LEDs

Item

Name

Colour

Status

Description

Power

Green

System Power on

Off

System Power off

Run

Green

System crash

Off

System crash

Flash

System running

SIP Reg

Green

SIP Registration Ok

Off

SIP Registration Fail

FXS

Green

FXS Channel is in use

Off

FXS Channel is not in use

Flash

FXS Channel is ringing

FXO

Green

FXO Channel is in use

Off

FXO Channel is not in use

LAN

Green

LAN port is connected

Off

LAN port is not connected

Flash

Packet transmit in LAN port

WAN

Green

WAN port is connected

Off

WAN port is not connected

Flash

Packet transmit in WAN port

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 5

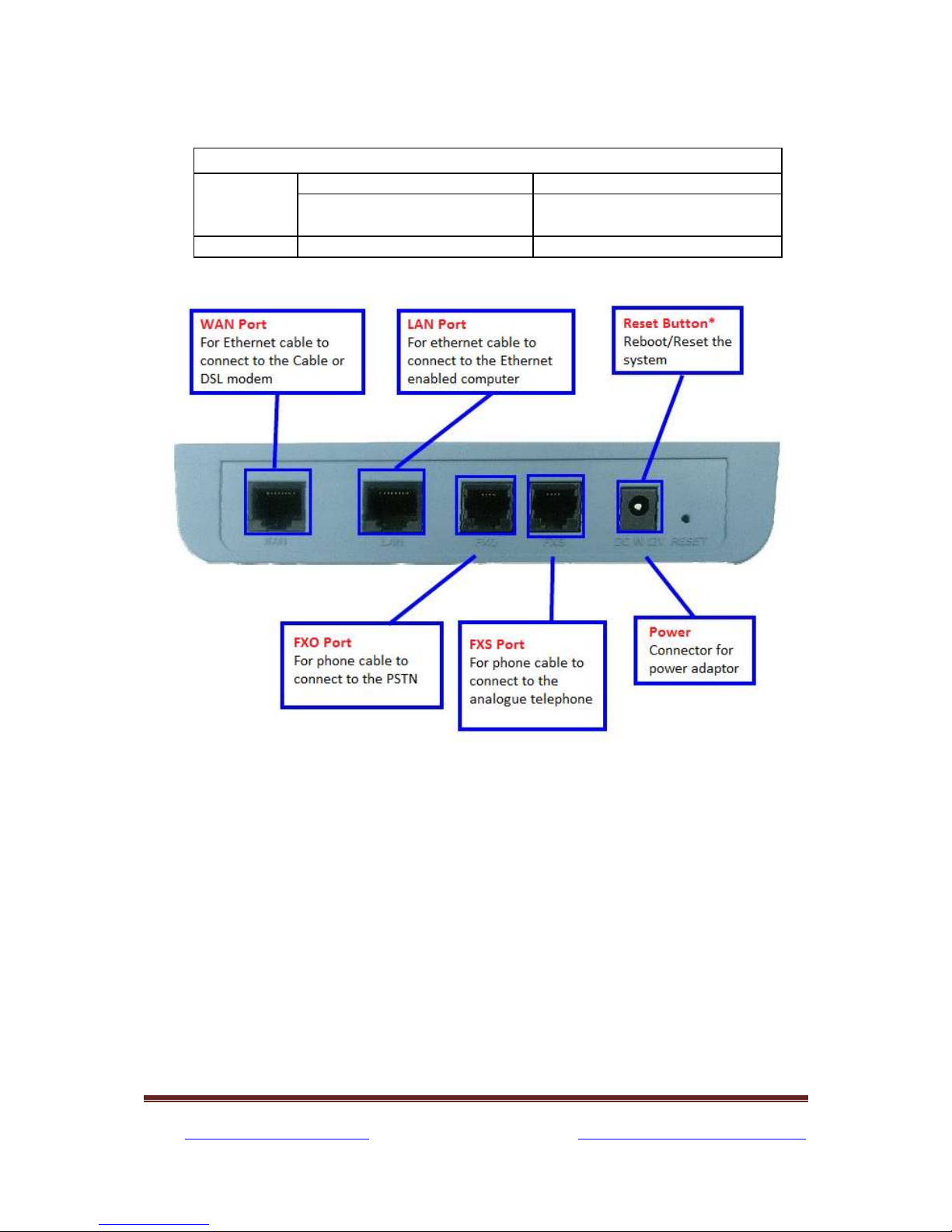

3.2 The Rear Ports

Reset Button Mode*

Mode

Situation A

Situation B

Press and hold for less than 3

Press and hold for more than 3

seconds

Result

Reboot the system

Restore to default setting

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 6

4.0 INSTALLATION

Connecting the TT11 VoIP Router 1FXS/1FXO TA to Your Network

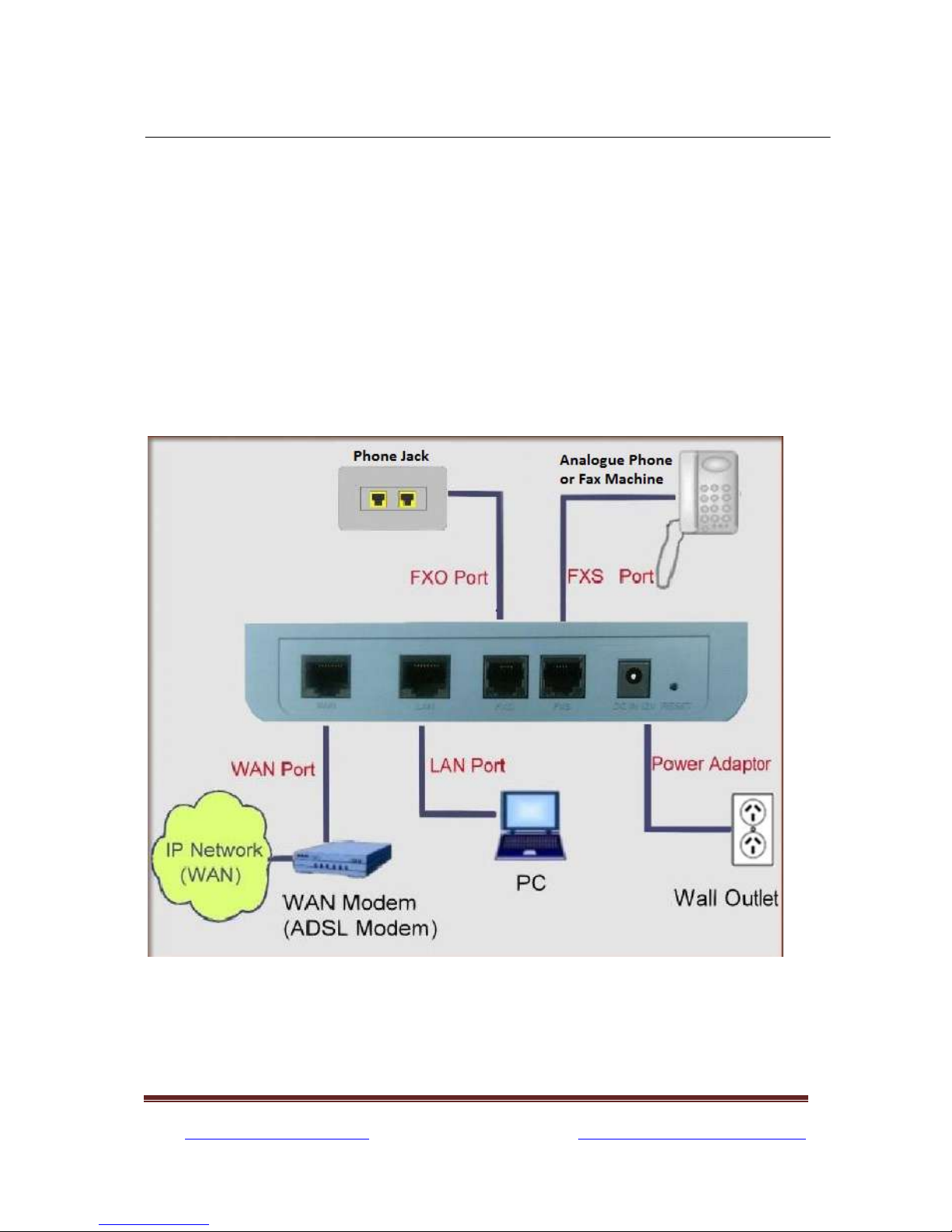

A. Connect the power adapter to this jack. The power LED will light to indicate proper

operation.

B. Connect an Ethernet cable to the WAN port when connecting to the Internet access

device such as a Cable or DSL modem. The WAN LED will indicate the proper

connection.

C. Connect an Ethernet cable to the LAN port when connecting to a PC or an

office/home network. The LAN LED will indicate the proper connection.

D. Connect the phone cable to the FXO port when connecting to the phone jack.

E. Connect the phone cable to the FXS port when connecting an analogue telephone.

When you have connected all the cables to the VoIP TA, it will look similar to this:

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 7

5.0 USING THE CONFIGURATION MENU

The configuration menu of TT11 VoIP Router 1FXS/1FXO TA can be accessed using a

convenient and user-friendly web browser.

If you have an account with TraiTel, please log in at www.traitel.com.au, select “Voice

Services” then “Configure SIP device”. If you have multiple SIP devices, you must create a

unique sub-account for each device. Sub-accounts can be created by going to “Settings”

then “Sub-Accounts”.

Once you have logged in to your TraiTel account, please continue here.

5.1 Accessing Configuration Menu

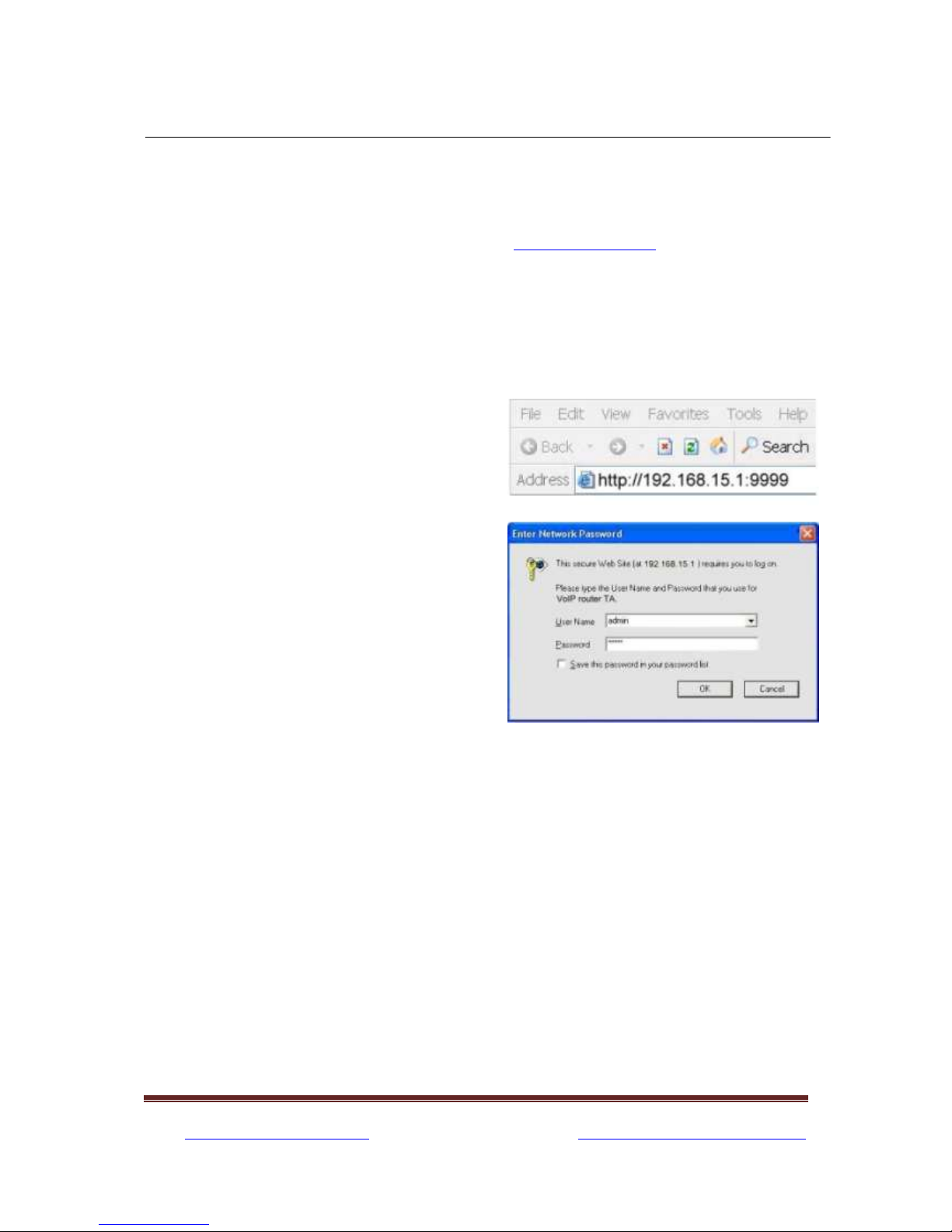

Open the web browser (i.e.

Internet Explorer, Netscape…)

Enter the IP Address of the

router, which by default is

192.168.15.1 followed by

:9999

The default username and

password are “admin” and

“admin”.

Click OK

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 8

5.2 Main Menu

Once you have logged on to the TT11 VoIP Router TA through the web browser, you can

begin the set up according to your requirements. On the configuration main menu, the left

navigation panel links you to the set up pages directly. They include:

Status

System (Provision, Firmware, Restart, Backup/Restore, User Management)

Networks

VoIP (SIP Settings, Line Settings, IAX settings, Call Control, Dialling Plan, CDR)

Advanced (Remote Access, Virtual Server, Firewall, MAC Filter, IP Filter, Port

Filter) The following sections provide an overview of the settings.

©Traitel Telecommunications Pty Ltd 2012 Telephone: (61) (2) 9032 2700

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 9

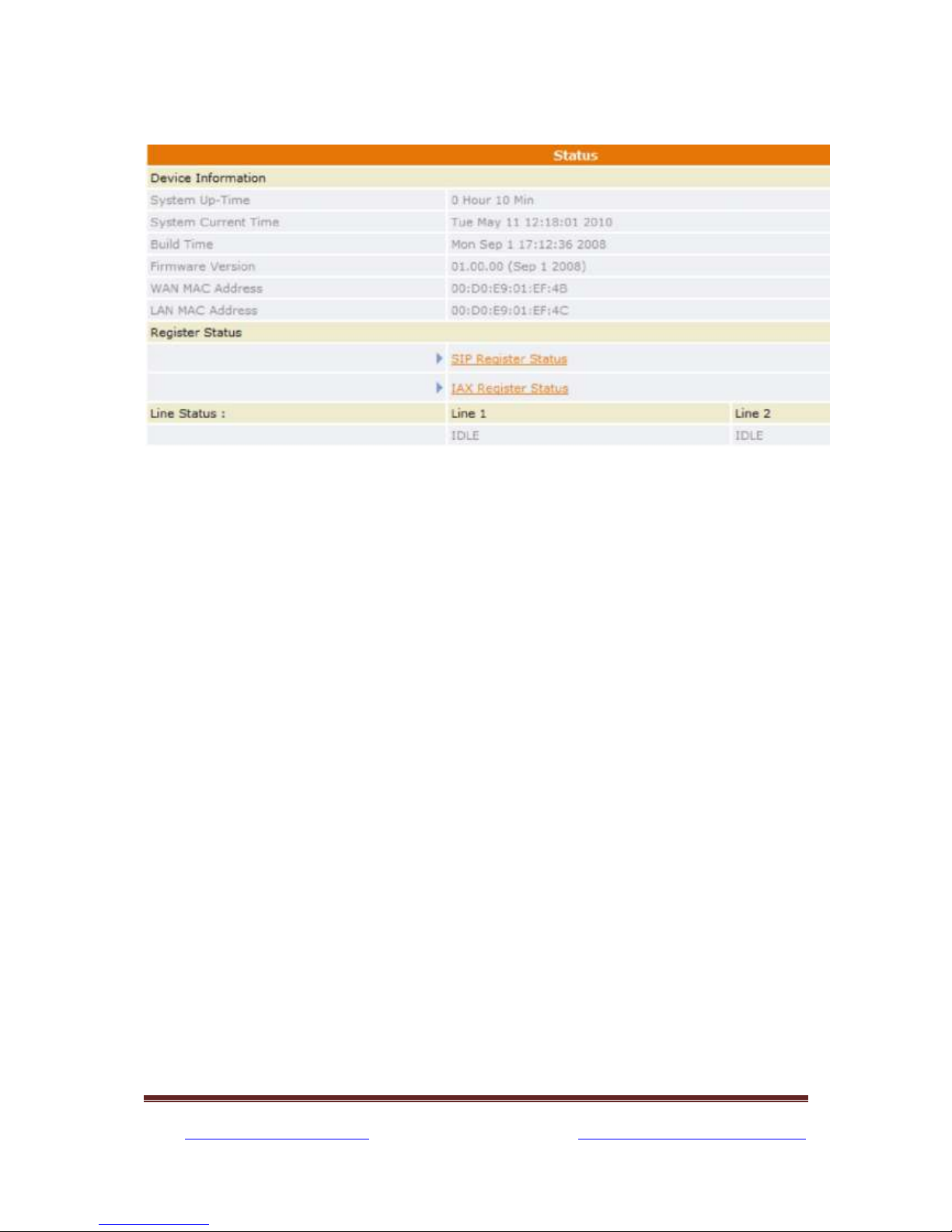

5.3 Status –Device Information and Line Status

System Up-Time Records system up-time.

System Current Time Shows the system current time. See the Time Zone

section for more information.

Build Time Shows the build time of the software.

Firmware Version Shows the firmware version.

WAN MAC Address Shows the WAN MAC address.

LAN MAC Address Shows the LAN MAC address.

SIP Register Status A hotlink to SIP settings status.

IAX Register Status A hotlink to IAX settings status.

Line 1 Status Shows line 1 register status (FXS).

Line 2 Status Shows line 2 register status (FXO).

Web: http://www.traitel.com.au Email: customer-servi[email protected]

Page 10

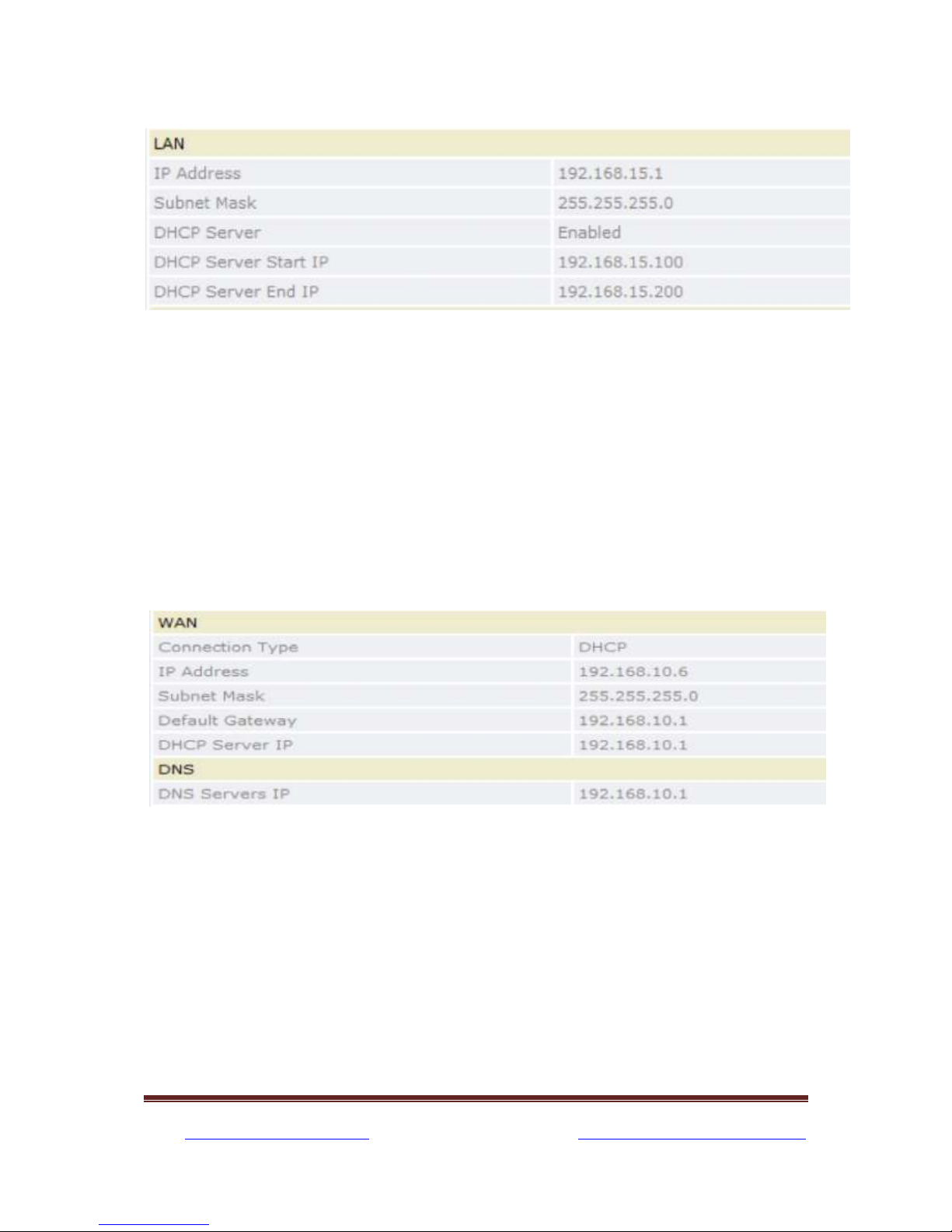

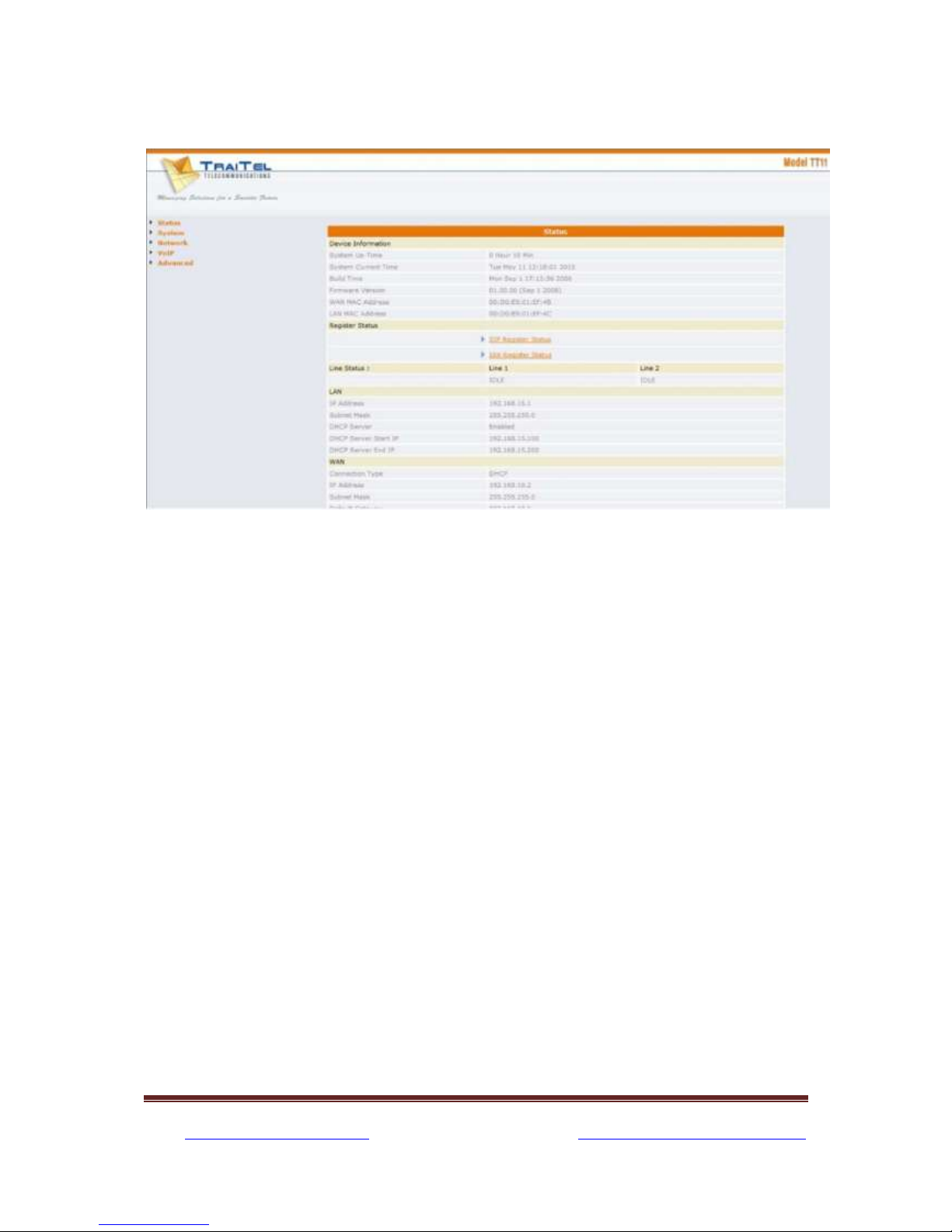

5.4 Status –LAN

IP Address Shows the LAN port IP address.

Subnet Mask Shows the LAN port subnet mask.

DHCP Server Shows the DHCP server status —Enable or Disable

DHCP Server Start IP Shows the start IP address that DHCP server distributes.

DHCP Server End IP Shows the end IP address that the DHCP server

distributes.

5.5 Status –WAN and DNS

Connection Type Shows the network connection type of WAN port.

IP Address Shows the WAN port IP address.

Subnet Mask Shows the WAN port subnet mask

Default Gateway Shows the IP address of default gateway.

DHCP Server IP Shows the DHCP server IP address.

DNS Servers IP Shows the DNS server IP address.
