Transcend Secure Digital Card TS2GSD133 Bedienungsanleitung

Secure Digital Card

Transcend Information Inc.

Description

Secure Digital Card of high capacity but economic

cost. It is specifically designed to meet the security,

capacity and small form factor requirements in newly

emerging audio and video consumer electronic

devices.Transcend Secure Digital Card can lead you

to a colorful digital world.

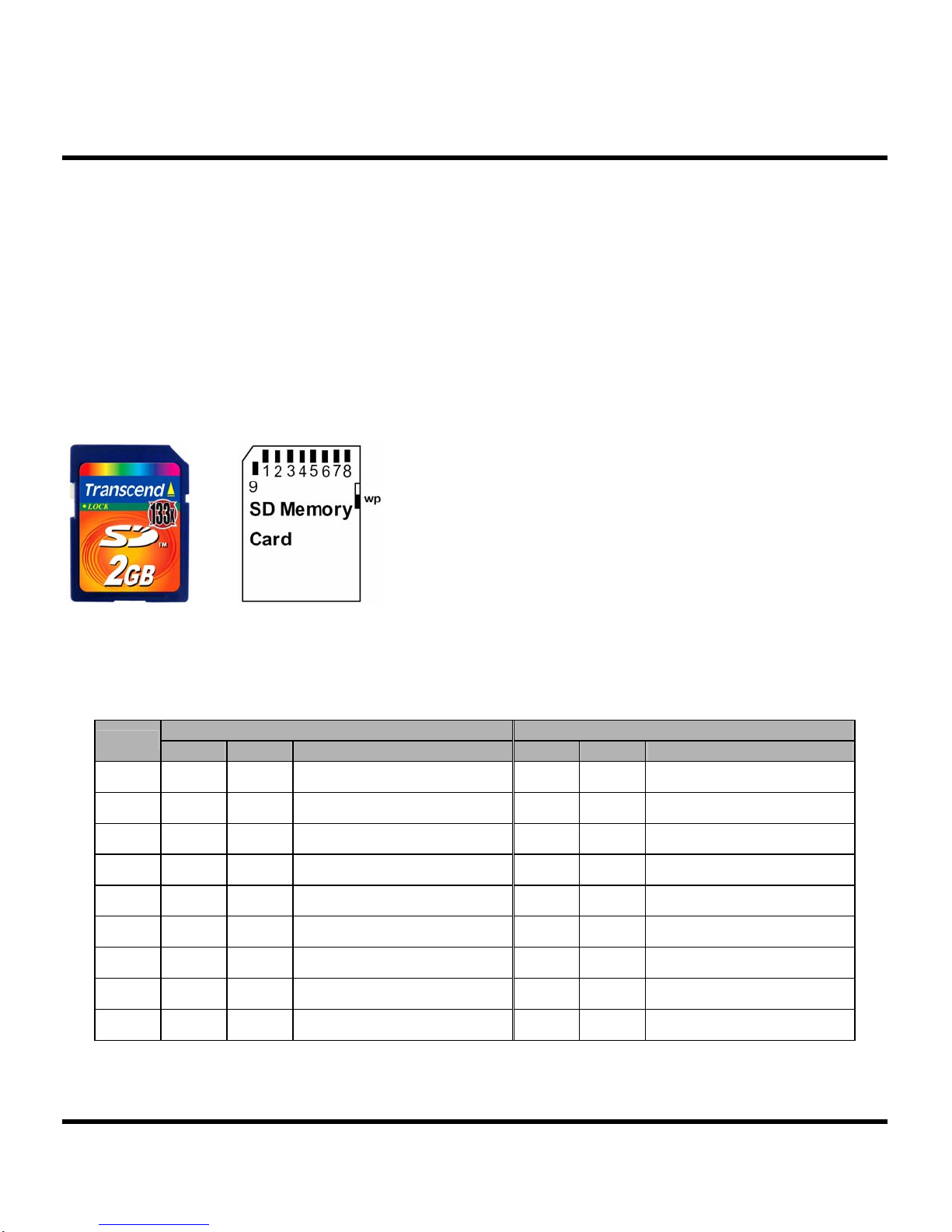

Placement

Front Back

Features

•ROHS compliant product

•Operating Voltage: 2.7 ~ 3.6V

•Operating Temperature: -25 ~ 85°C

•Insertion/removal durability: 10,000 cycles

•Fully compatible with SD card spec. v1.1

•Mechanical Write Protection Switch

•Forward compatibility to MultiMediaCard Version 2.11

•Supports Copy Protection for Recorded Media(CPRM) for

music and other commercial media

•Form Factor: 24mm x 32mm x 2.1mm

Pin Definition

SD Mode SPI Mode

Pin No. Name Type Description Name Type Description

1 CD/DAT I/O/PP3Card Detect/Data Line [Bit3] CS I

Chip Select (neg true)

2 CMD PP Command/Response DI I

Data In

3 VSS1 S Supply voltage ground VSS S

Supply voltage ground

4 VDD S Supply voltage VDD S

Supply voltage

5 CLK I Clock SCLK I Clock

6 VSS2 S Supply voltage ground VSS2 S Supply voltage ground

7 DAT0 I/O/PP Data Line [Bit0] DO O/PP

Data Out

8 DAT1 I/O/PP Data Line [Bit1] RSV

9 DAT2 I/O/PP Data Line [Bit2] RSV

Secure Digital Card

Transcend Information Inc.

Architecture

Secure Digital Card

Transcend Information Inc.

Bus Operating Conditions

• General

Parameter Symbol Min. Max. Unit Remark

Peak voltage on all lines -0.3 VDD+0.3 V

All Inputs

Input Leakage Current -10 10 µA

All Outputs

Output Leakage Current -10 10 µA

• Power Supply Voltage

Parameter Symbol Min. Max. Unit Remark

Supply voltage VDD 2.0 3.6 V CMD0, 15,55,ACMD41

commands

Supply voltage specified in OCR register 2.7 3.6 V Except CMD0, 15,55,

ACMD41 commands

Supply voltage differentials (VSS1, VSS2) -0.3 0.3 V

Power up time 250 ms From 0v to VDD Min.

Note. The current consumption of any card during the power-up procedure must not exceed 10 mA.

• Bus Signal Line Load

The total capacitance CLthe CLK line of the SD Memory Card bus is the sum of the bus master capacitance CHOST, the bus

capacitance CBUS itself and the capacitance CCARD of each card connected to this line:

CL= CHOST + CBUS + Ν*CCARD

Where N is the number of connected cards. Requiring the sum of the host and bus capacitances not to exceed 30 pF for

up to 10 cards, and 40 pF for up to 30 cards, the following values must not be exceeded:

Parameter Symbol Min. Max. Unit Remark

Bus signal line capacitance CL100 pF fPP ≤ 20 MHz, 7 cards

Single card capacitance CCARD 10 pF

Maximum signal line inductance 16 nH fPP ≤ 20 MHz

Pull-up resistance inside card (pin1) RDAT3 10 90 kΩMay be used for card

detection

Note that the total capacitance of CMD and DAT lines will be consist of CHOST, CBUS and one CCARD only since they are

connected separately to the SD Memory Card host.

Parameter Symbol Min. Max. Unit Remark

Pull-up resistance RCMD, RDAT 10 100 kΩTo prevent bus floating

Bus signal line capacitance CL250 pF fPP ≤ 5 MHz, 21 cards

Secure Digital Card

Transcend Information Inc.

• Bus Signal Levels

As the bus can be supplied with a variable supply voltage, all signal levels are related to the supply voltage.

To meet the requirements of the JEDEC specification JESD8-1A, the card input and output voltages shall be within the

following specified ranges for any VDD of the allowed voltage range:

Parameter Symbol Min. Max. Unit Remark

Output HIGH voltage VOH 0.75*VDD V IOH = -100 μA @VDD min

Output LOW voltage VOL 0.125*VDD V IOL = -100 μA @VDD min

Input HIGH voltage VIH 0.625*VDD VDD + 0.3 V

Input LOW voltage VIL VSS – 0.3 0.25*VDD V

Secure Digital Card

Transcend Information Inc.

• Bus Timing

Parameter Symbol Min Max. Unit Remark

Clock CLK (All values are referred to min (VIH) and max (VIL)

Clock frequency Data Transfer Mode fPP 0 25 MHz CL≤ 100 pF, (7 cards)

Clock frequency Identification Mode

(The low freq. is required for MultiMediaCard

compatibility.)

fOD 0 400 KHz CL≤ 250 pF, (21 cards)

tWL 10 ns CL≤ 100 pF, (7 cards)Clock low time

50 ns CL≤ 250 pF, (21 cards)

tWH 10 ns CL≤ 100 pF, (7 cards)Clock high time

50 ns CL≤ 250 pF, (21 cards)

tTLH 10 ns CL≤ 100 pF, (7 cards)Clock rise time

50 ns CL≤ 250 pF, (21 cards)

Secure Digital Card

Transcend Information Inc.

tTHL 10 ns CL≤ 100 pF, (7 cards)Clock fall time

50 ns CL≤ 250 pF, (21 cards)

Inputs CMD, DAT (referenced to CLK)

Input set-up time tISU 5 ns CL≤ 25 pF, (1 cards)

Input hold time tIH 5 ns CL≤ 25 pF, (1 cards)

Outputs CMD, DAT (referenced to CLK)

Output Delay time tODLY 0 14 ns CL≤ 25 pF, (1 cards)

Secure Digital Card

Transcend Information Inc.

Reliability and Durability

Temperature Operation: -25°C / 85°C (Target spec)

Storage: -40°C (168h) / 85°C (500h)

Junction temperature: max. 95°C

Moisture and corrosion Operation: 25°C / 95% rel. humidity

Storage: 40°C / 93% rel. hum./500h

Salt Water Spray: 3% NaCl/35C; 24h acc. MIL STD Method 1009

Durability 10.000 mating cycles; test procedure: tbd.

Bending 10N

Torque 0.15N.m or +/-2.5 deg

Drop test 1.5m free fall

UV light exposure UV: 254nm, 15Ws/cm² according to ISO 7816-1

Visual inspection

Shape and form

No warp page; no mold skin; complete form; no cavities surface smoothness <=

-0.1 mm/cm² within contour; no cracks; no pollution (fat, oil dust, etc.)

Minimum moving force of WP witch 40gf (Ensures that the WP switch will not slide while it is inserted to the connector.)

WP Switch cycles minimum 1000 Cycles(@Slide force 0.4N to 5N)

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no

warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.

Transcend reserves the right to make changes in specifications at any time without prior notice.

Secure Digital Card

Transcend Information Inc.

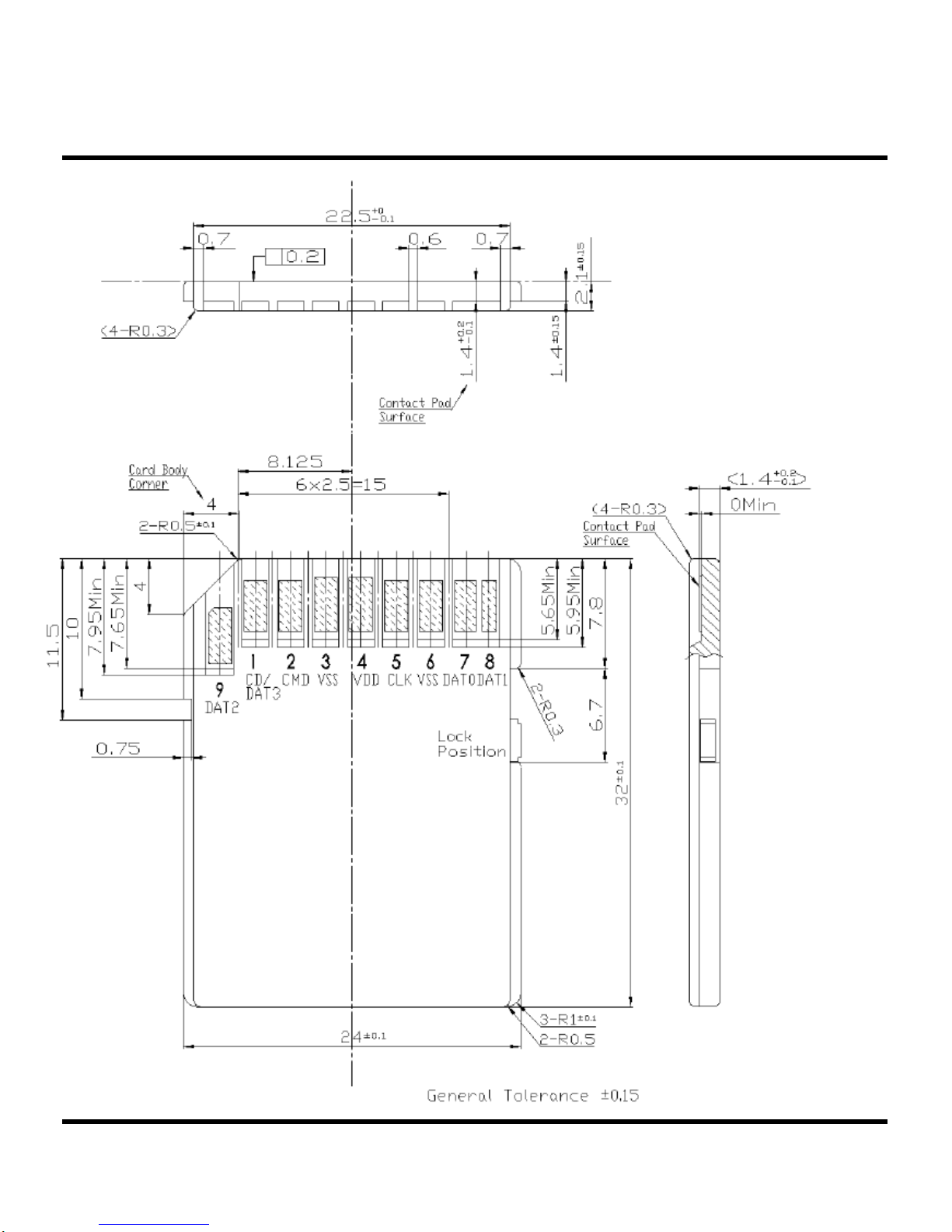

Mechanical Dimension

Secure Digital Card

Transcend Information Inc.

Secure Digital Card

Transcend Information Inc.
