22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

Description

With a 7P Signal + 15P Power SATA interface, high

speed and low power consumption, SATA Flash

Modules is perfect replacement storage device for

PCs, Laptops, gaming systems, and handheld

devices.

Placement

Features

• RoHS compliant

• Fully compatible with devices and OS that support the

SATA 1.0a 1.5Gbps standard

• Non-volatile Flash Memory for outstanding data

retention

• Supports up to Ultra DMA Mode 4

• Built-in ECC (Error Correction Code) functionality and

wear-leveling algorithm ensures highly reliable of data

transfer

• 7P Signal + 15P Power male SATA connector

• Lower Power Consumption

• Shock resistance

Dimensions

Side Millimeters Inches

A 45.80 ±0.40 1.803 ±0.016

B 33.00 ±0.50 1.299 ±0.020

C 7.08 ±0.20 0.279 ±0.008

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

Specifications

Physical Specification

Form Factor SATA Flash Modules Vertical Type

Storage Capacities 1~2GB

Length 45.80 ±0.40

Width 33.00 ±0.50

Dimensions (mm)

Height 7.08 ±0.20

Input Voltage 5V ±10% / 3.3V ±5%

Weight 8 g

Connector SATA 7+15 pins combo connector

Environmental Specifications

Operating Temperature 0 ℃to 70 ℃

Storage Temperature - 40 ℃to 85 ℃

Power Requirements

Input Voltage 5V ±10%

Mode MAX (mA)

Write 171.1

2GB SATA Flash Modules

Power Consumption

(DC 5V @25℃) Standby 112.6

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

* Note : 25 ℃, according to 7+15 pins combo connector test on GA-8IG1000MK, 256 MB RAM, IDE interface support

UDMA4, Windows®XP Version 2002 SP2, benchmark utility HDBENCH (version 3.4006), copied file 100MB

* Note: FAT format

Reliability

Data Reliability Built-in 4 symbol/page correction ECC

Data Retention 10 years

Connector Durability 10,000 times

Performance

Model P/N Read (KB/s) Write (KB/s) Random Read (KB/s) Random Write (KB/s)

2GB SATA Flash Module 49636 17519 47123 4598

Actual Capacity

Model P/N Capacity C/H/S Capacity (BIOS) DOS Format (Bytes) Windows Format (Bytes)

2GB SATA Flash

Module 2GB 3884 / 16 / 63 2004MB 2,003,697,664 2,003,697,664

Regulations

Compliance CE, FCC and BSMI

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

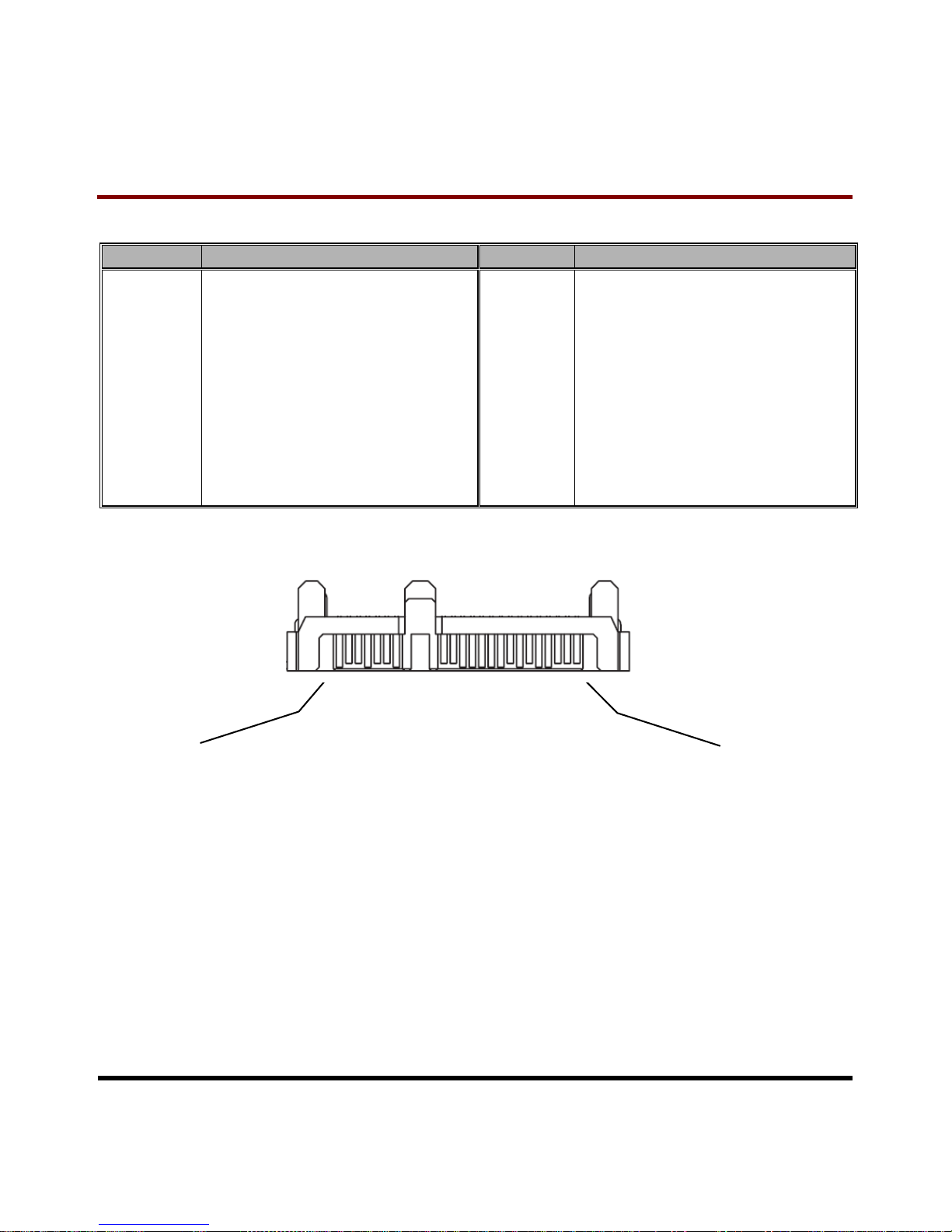

Pin Assignments

Pin No. Pin Name Pin No. Pin Name

01 GND 02 A+

03 A- 04 GND

05 B- 06 B+

07 GND 08 NC

09 NC 10 NC

11 GND 12 GND

13 GND 14 5V

15 5V 16 5V

17 GND 18 GND

19 GND 20 NC

21 NC 22 NC

Pin Layout

Pin out

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22

GND

A+

A-

GND

B-

B+

GND

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

Block Diagram

DC Characteristics

Parameter Symbol Min. Max. Unit Remark

Supply Voltage VCC 2.97 5.5 V

High level output voltage VOH V

CC – 0.8 V

Low level output voltage VOL 0.8 V

2.4 V Non-schmitt trigger

High level input voltage VIH

2.05 V Schmitt trigger1

0.6 V Non-schmitt trigger

Low level input voltage VIL

1.25 V Schmitt trigger1

Pull up resistance2R

PU 52.7 141 KOhm

Pull down resistance RPD 47.5 172 kOhm

IDE

Flash Disk

Controller

Flash Memory

D0 – D7

-CE0

-CE1

-WE…-RE

Flash Memory

D0 – D7

-CE0

-CE1

-WE…-RE

D00 ~ D07

D10 ~ D17

-CE0, -CE2…

-CE1, -CE3…

Data bus

Control

Signal

Power

Others

SATA

Bridge

SATA 7+15 PIN Combo

Data

bus

Power

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

Command Set

Command Code FR SC SN CY DH LBA Status Note

1 Check Power Mode E5 or 98h – – – – Y – Support

2 Execute Drive Diagnostic 90h – – – – Y – Support

3 Erase Sector C0h – Y Y Y Y Y Not Support #3

4 Flush Cache E7h – – – – Y – Support

5 Format Track 50h – Y – Y Y Y Support

6 Identify Device ECh – – – – Y – Support

7 Idle E3h or 97h – Y – – Y – Support

8 Idle Immediate E1h or 95h – – – – Y – Support

9 Initialize Drive Parameters 91h – Y – – Y – Support

10 Key Management

Structure Read B9 (Feature

0-127) Y Y Y Y Y – NOT Support #1

11 Key Management Read

Keying Material B9 (Feature

80) Y Y Y Y Y – NOT Support #1

12 Key Management Change

Key Management Value B9 (Feature

81) Y Y Y Y Y – NOT Support #1

13 NOP 00h – – – – Y – NOT Support

14 Read Buffer E4h – – – – Y – Support

15 Read DMA C8h – Y Y Y Y Y Support

16 Read Long Sector 22h or 23h – Y Y Y Y NOT Support #2

17 Read Multiple C4h – Y Y Y Y Y Support

18 Read Sector(s) 20h or 21h – Y Y Y Y Y Support

19 Read Verify Sector(s) 40h or 41h – Y Y Y Y Y Support

20 Recalibrate 1Xh – – – – Y – Support

21 Request Sense 03h – – – – Y – Not Support #3

22 Security Disable Password F6h – – – – Y – Support

23 Security Erase Prepare F3h – – – – Y – Support

24 Security Erase Unit F4h – – – – Y – Support

25 Security Freeze Lock F5h – – – – Y – Support

26 Security Set Password F1h – – – – Y – Support

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

27 Security Unlock F2h – – – – Y – Support

28 Seek 7Xh – – Y Y Y Y Support

29 Set Feature EFh Y – – – Y – Support

30 Set Multiple Mode C6h – Y – – Y – Support

31 Set Sleep Mode E6h or 99h – – – – Y – Support

32 Standby E2 or 96h – – – – Y – Support

33 Standby Immediate E0 or 94h – – – – Y – Support

34 Translate Sector 87h – Y Y Y Y Y Not Support #3

35 Wear Level F5h – – – – Y – Support #4

36 Write Buffer E8h – – – – Y – Support

37 Write DMA CAh – Y Y Y Y Y Support

38 Write Long Sector 32h or 33h – – Y Y Y Y Not Support #2

39 Write Multiple C5h – Y Y Y Y Y Support

40 Write Multiple w/o Erase CDh – Y Y Y Y Y Not Support #3

41 Write Sector(s) 30h or 31h – Y Y Y Y Y Support

42 Write Sector(s) w/o Erase 38h – Y Y Y Y Y Not Support #3

43 Write Verify 3Ch – Y Y Y Y Y Support

#1: This command is optional, depending on the key Management scheme in use.

#2: Use of this command is not recommended.

#3: CFA feature set command is not supported by P-ATA to S-ATA bridge controller.

#4: If Security command 22~27 are supported, this command is not supported.

Definitions

FR = Features Register

SC =Sector Count register (00H to FFH, 00H means 256 sectors)

SN = Sector Number register

CY = Cylinder Low/High register

DH = Head No. (0 to 15) of Drive/Head register

LBA = Logic Block Address Mode Support

– = Not used for the command

Y = Used for the command

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

SMART Command Set

 SMART Command Set

SMART Feature Register Values

D0h Read Data D4h Execute OFF-LINE Immediate

D1h Read Attribute Threshold D8h Enable SMART Operations

D2h Enable/Disable Autosave D9h Disable SMART Operations

D3h Save Attribute Values DAh Return Status

1. If reserved size is below the Threshold, the status can be read from Cylinder register by Return Status command

(DAh).



SMART Data Structure

BYTE F / V Decription

0-1 X Revision code

2-361 X Vendor specific

362 V Off line data collection status

363 X Self-test execution status byte

364-365 V Total time in seconds to complete off-line data collection activity

366 X Vendor specific

367 F Off-line data collection capability

368-369 F SMART capability

370 F Error logging capability

7-1 Reserved

0 1=Device error logging supported

371 X Vendor specific

372 F Short self-test routine recommended polling time (in minutes)

373 F Extended self-test routine recommended polling time (in minutes)

374 F Conveyance self-test routine recommended polling time (in minutes)

375-385 R Reserved

386-395 F Date Code

396 V Number of MU in device (0~n)

397+(n*6) V MU number

398+(n*6) V MU data block

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

400+(n*6) V MU spare block

401+(n*6) V Init. Bad block

402+(n*6) V Last Defect Bad block ( Newest state)

511 V Data structure checksum

F=the content of the byte is fixed and does not change.

V=the content of the byte is variable and may change depending on the state of the device or

the commands executed by the device.

X=the content of the byte is vendor specific and may be fixed or variable.

R=the content of the byte is reserved and shall be zero.

* 4 Byte value : [MSB] [2] [1] [LSB]

-2

22P Vertical Type

SATA Flash Modules

Transcend Information Inc.

V1.1

Ordering Information

1. The above technical information is based on industry standard data and has been tested to be reliable. However,

Transcend makes no warranty, either expressed or implied, as to its accuracy and assumes no liability in

connection with the use of this product. Transcend reserves the right to make changes to the specifications at any

time without prior notice.

2. For specific capacity, performance, and reliability requirement, please contact with sales.

USA

Los Angeles:

E-mail: [email protected]

Maryland:

E-mail: sales_md@transcendusa.com

www.transcendusa.com

CHINA

E-mail: sales@transcendchina.com

www.transcendchina.com

GERMANY

E-mail: vertrieb@transcend.de

www.transcend.de

HONG KONG

E-mail: sales@transcend.com.hk

www.transcendchina.com

JAPAN

E-mail: [email protected]

www.transcend.jp

THE NETHERLANDS

E-mail: sales@transcend.nl

www.transcend.nl

TAIWAN

No.70, XingZhong Rd., NeiHu Dist., Taipei, Taiwan, R.O.C

TEL +886-2-2792-8000

Fax +886-2-2793-2222

E-mail: [email protected]

www.transcend.com.tw

United Kingdom

E-mail: sales@transcend-uk.com

www.transcend-uk.com

TS XG SDOM XX

Capacity:

1G-2G SATA Flash Module

Transcend Product

Connector type

7H = 7pin SATA horizontal

22V = 22pin SATA vertical

22H = 22pin SATA

horizontal

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Transcend Lagerung Handbücher

Transcend

Transcend StoreJet TS80GSJ25S Bedienungsanleitung

Transcend

Transcend JetFlash 128MB-256MB JetFlash Bedienungsanleitung

Transcend

Transcend Compact Flash Card CF 266X Bedienungsanleitung

Transcend

Transcend Tsonic 320 2GB Bedienungsanleitung

Transcend

Transcend StoreJet Cloud Bedienungsanleitung

Transcend

Transcend CompactFlash CF 133X Bedienungsanleitung

Transcend

Transcend StoreJet 25M3 USB 3.0 750GB Bedienungsanleitung

Transcend

Transcend USB JetFlash Bedienungsanleitung

Transcend

Transcend StoreJet 25 mobile Bedienungsanleitung

Transcend

Transcend JetFlash 150 Series Bedienungsanleitung

Transcend

Transcend CompactFlash TS16GCF100I-P Bedienungsanleitung

Transcend

Transcend Wi-Fi SD Bedienungsanleitung

Transcend

Transcend TS64GSSD10-M Bedienungsanleitung

Transcend

Transcend StoreJet 35T Bedienungsanleitung

Transcend

Transcend 40GB Portable Hard Disk TS40GHDENC Bedienungsanleitung

Transcend

Transcend StoreJet 25 mobile Bedienungsanleitung

Transcend

Transcend CompactFlash TS1G-32GCF133 Bedienungsanleitung

Transcend

Transcend Secure Digital Card SD80 Bedienungsanleitung

Transcend

Transcend JETFLASHTM TS32M-2GJF2B Bedienungsanleitung

Transcend

Transcend TS160GSJ25M Bedienungsanleitung

Transcend

Transcend SSD18C3 Bedienungsanleitung

Transcend

Transcend USB JetFlash Bedienungsanleitung

Transcend

Transcend JetFlash 150 Series Bedienungsanleitung

Transcend

Transcend TS128M~8GJF2A Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung

Dell

Dell PowerVault MD3600f Series Bedienungsanleitung
