40GB Portable Hard Disk

Transcend Information Inc.

Description

TS40GHDENC is a USB 2.0 40GB Portable Hard Disk.

This device is a 40GB 2.5” hard disk drive (HDD)

installed in a Portable Hard Disk Enclosure. It is

designed to expedite exchanging huge amounts of data

between this device and any desktop or notebook

computers.

Placement

™

System Requirements

•Desktop or notebook computers with USB port

•One of following operating systems:

Win

98, Win Me, Win 2000, Win XP, Mac OS

® ® ®

Features

•100% Compatible with USB Interface in Windows or Mac

•Single Power Supply: 5V ±10%

•Connector Durability: 10000 times

•Recommended operating temperature : 0 – 50 ℃

•USB connection for true Plug and Play

•Supports Resume Suspend and Low power modes

•Compliant with USB specification version 1.1 & 2.0

•Support 2.5” hard disk drive (Height: 9.5mm)

•USB bus power or PS/2 port power needed.

•LEDs indicate Power On and Data Traffic

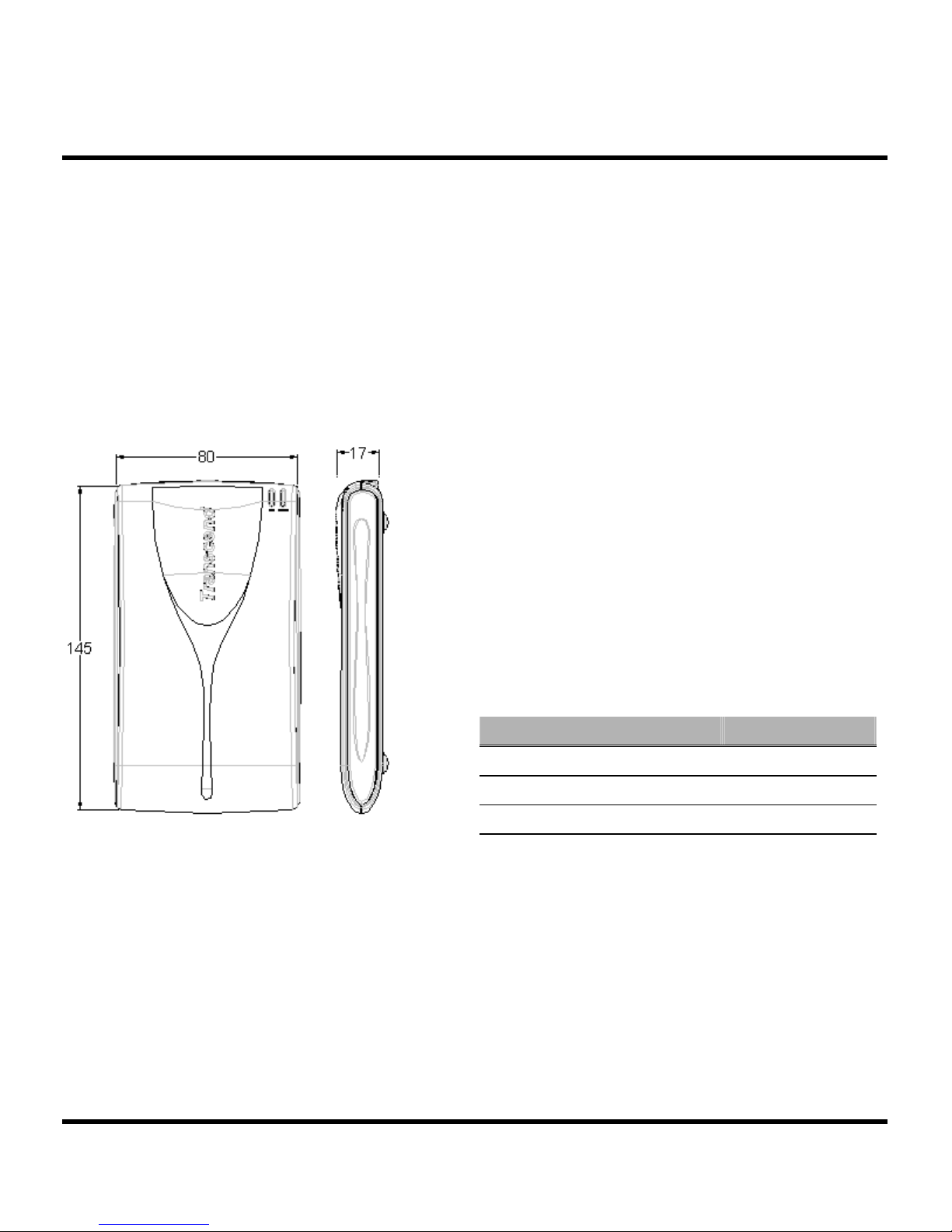

Dimensions

Side Millimeters Inches

A 145.00 ±1.00 5.71±0.04

B 80.00 ±1.00 3.15 ±0.04

C 17.00 ±1.00 0.67 ±0.04

0GD

40GB Portable Hard Disk

Transcend Information Inc.

Block Diagram

Control signal

USB IDE

Interface

Controller

USB Connector

D0~D15

/WE

/RE

40GB

HDD

...

USB-

USB+

D0~D15

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

Pin Identification

Symbol Function

USB-

USB+

USB differential signal:

The pairs are used to transmit

Data/Address/Command

VSS

Ground

VCC

USB power input

Crystal

12MHz

0GD

40GB Portable Hard Disk

Transcend Information Inc.

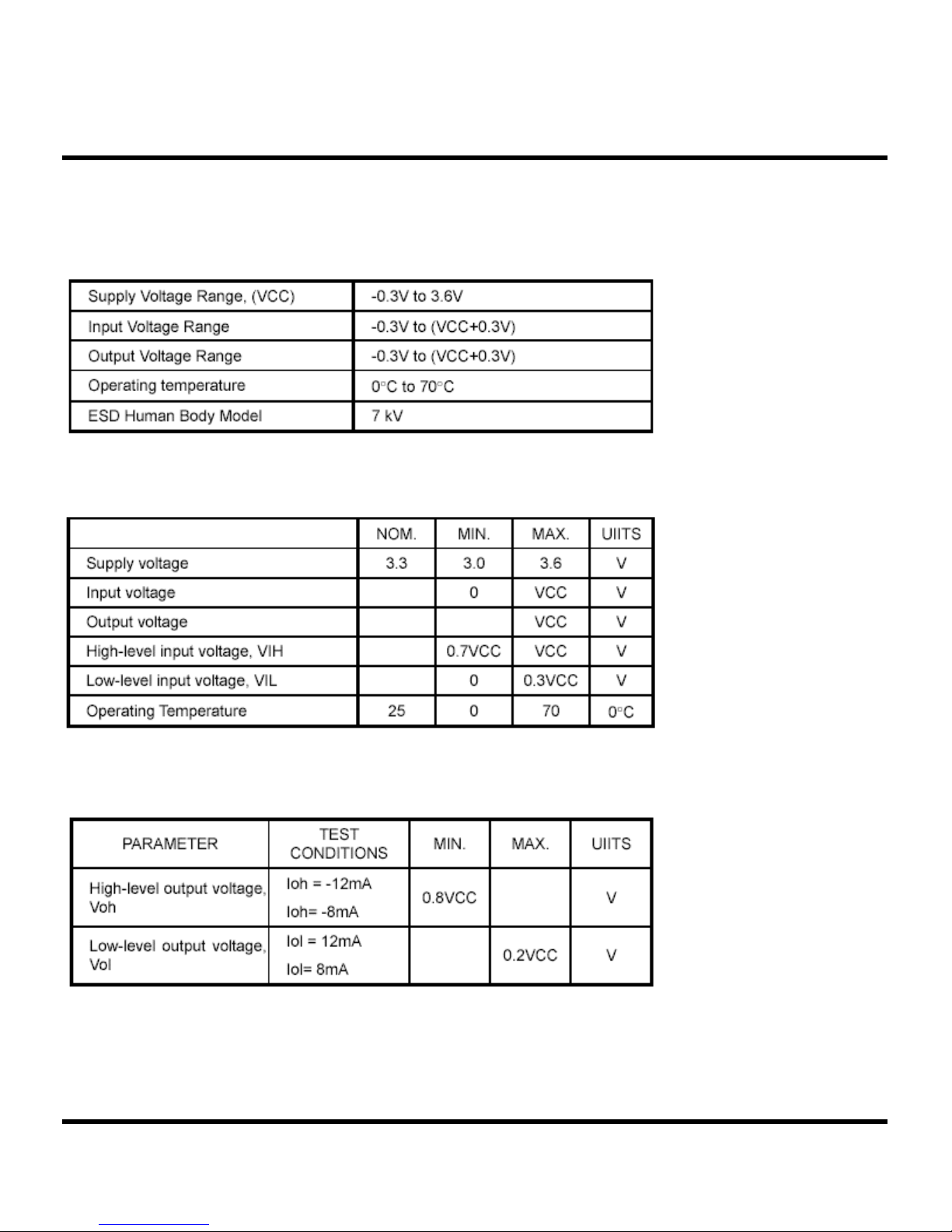

Electrical Characteristics

Absolute Maximum Ratings

Recommended Operation Conditions

Electrical Characteristics

40GB Portable Hard Disk

Transcend Information Inc.

HDD Physical Specifications:

Dimensions Unit

Height 9.5 mm

Weight 70 mm

Depth 100 mm

Weight 91 g

Temperature Unit

Operating 5 ~ 55

℃

Non-Operating -40 ~ 70

℃

Relative Humidity Unit

Operating 5 ~ 90 %

Non-Operating 5 ~ 95 %

Power Requirements(Supply voltage 5V ±5%):

Power consumption Unit

Seek current 0.45 A

Spin-up current 0.90 A

Idle current 0.13 A

Read/Write current 0.40 A

Sleep current 0.02 A

Stand-by current 0.03 A

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes

no warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this

product. Transcend reserves the right to make changes in specifications at any time without prior notice.
