Transmitter Solutions MONARCH 295SEPC2K Bedienungsanleitung

1A-General information

The Transmitter Solutions Monarch-295SEPC2K isakey chain style

mini transmitter operating at 295 MHz. It has been designed for use

with programmable telephone entry, security, and access control

systems operating witha295 MHz frequency receiver.

The protocol is ClikCard® compatible and includesa16 bit security

code which allows up to 65,536 number combinations and 8 bits of

facility code which allows up to 256 facility codes .

CONTENTS

1A-General information

1B-Technical specifications

1C-Main components

1-TRANSMITTER OVERVIEW

2-NUMBERING

3-PROGRAMMING

4-OPERATION

5-BATTERY ACCESS

1B - Technical specifications

Operating frequency 295 MHz

Number of keys: 2

Battery life: 18 24 months

Number combinations : 65,536

Different Facilities codes 256

Operating temperature: -20°F÷+131°F (-20°C

Overall dimensions: 2.4”x1.4”x0.63” (61x36x16 mm)

).rg02(.zo1:thgieW

6102RCseirettabmuihtilV3ae2:yrettaB

÷+55°C)

The Transmitter Solutions - 295R receiver which operates with this

transmitter hasaWiegand 30 bit format output, which will operate any

type of access control system equipped to accepta30 bit Wiegand

input. The CR 2016 lithium batteries have a shelf life of about6months.

Part 15 of FCC Regulations and ehthtiwseilpmocylluftcudorpehT

European Directives 99/5/CE, 89/336/CEE, 73/23/CEE.

1C-Main components

Push-button B

Red

LED

Key

holder

ring

Battery

door

Push-button A

6-TROUBLESHOOTING

Grey&White Case

Transmitter

Solutions

Thank you for choosingaTransmitter Solutions product .

Please read this manual carefully before using the product.

Manual

MONARCH 295SEPC2K

2 - NUMBERING

6 - TROUBLESHOOTING

PROBLEM SOLUTION

The operating range is reduced

Check to verify the

transmitter is programmed

into your system

Replace the transmitter

batteries

To access the battery turn the battery door

. Place the 2 lithium CR2016 batteries

into their holder making sure they make contact

with the internal ring and with the positive (+) side

of the battery facing the back of the transmitter.

clockwise

NOTE: Please dispose of the batteries properly

according to local laws and regulations.

Test proper battery installation by verifying that

the red LED illuminates when either button is

pushed.

5 - BATTERY ACCESS

3 - PROGRAMMING

Each transmitter is manufactured and sold with a different factory set

sequence number and facility code.

The transmitter facility code and sequence number must be

programmed into your system memory. Your own installer or reseller will

provide you the necessary instructions for your system.

Replace the transmitter

batteries

Transmitter Solutions - Type : SETW295AM2

FCC ID : PWJ W295

This device complies with FCC Rules

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept interference received, including

interference that may cause undesired operation.

Part. 15 of the

The system does not receiver the

transmitter signal.

The transmitter LED is ON

The system does not receiver the

transmitter signal.

The transmitter LED will not light

4 - OPERATION

a. Firmly depress either button until the small red LED illuminates.

b. After the LED has illuminated, release the button. If the device you are

attempting to activate does not respond, repeat steps a. and b. or

consult section 6 (Troubleshooting) of this manual.

Back of

transmitter

The warranty period of Transmitter Solutions 295 transmitters is 60 months,

beginning from the manufacturing date of the transmitter. During this period, if the

product does not operate correctly, due to a defective component, the product

will berepaired or replaced at the sole discretion of .

The warranty does not extend to the transmitter case which can be damaged by

conditions outside the control of Transmitter Solutions or to battery life.

Transmitter Solutions.

WARRANTY

Notice

Any changes or modification to Transmitter Solutions equipment not expressly

approved by could void the manufacturer’s warranty.

Transmitter Solutions

TRANSMITTER SOLUTIONS

7380 S. Eastern Ave, Ste 124-320

as Vegas, NV 89123 -

(866) 975-0101 - (866) 975-0404 F

[email protected]

Andere Transmitter Solutions Sender Handbücher

Transmitter Solutions

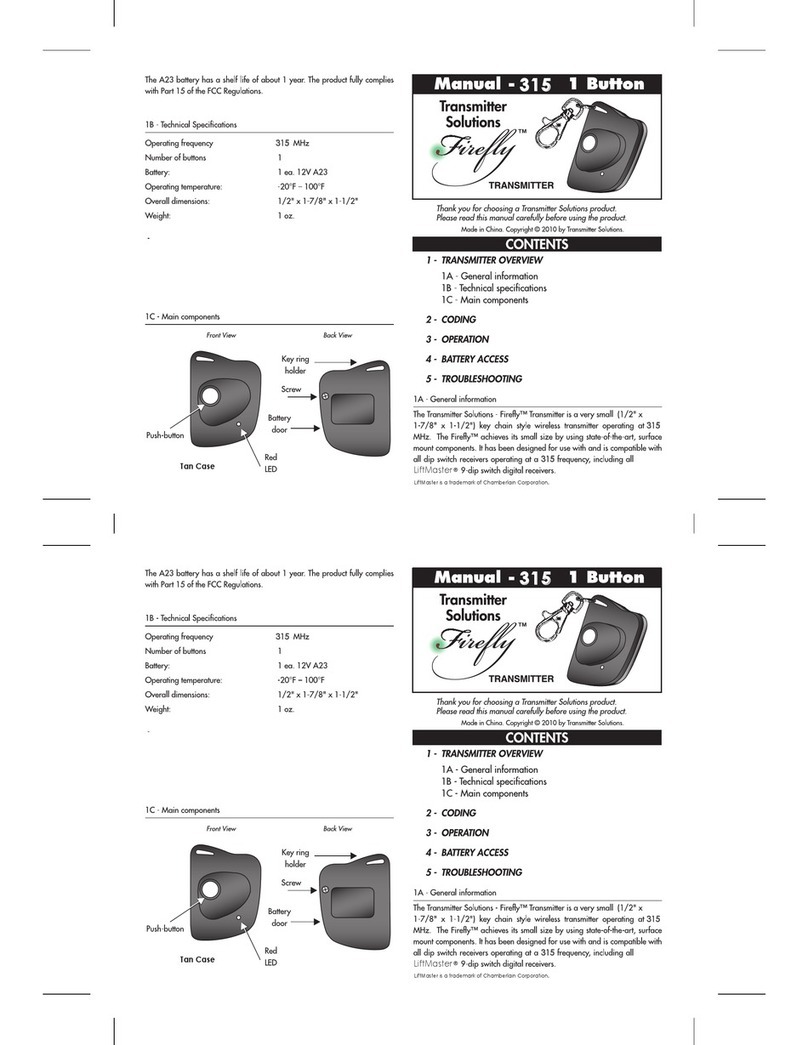

Transmitter Solutions Firefly 3 Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions 318LIPW4K Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions TRAKEYFREE2-W Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions 433TSPW4K Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions T3 PLUS Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Stinger2 31LID21V2 Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Firefly3 FIRlll310LID22K3 Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Monarch 318LIPW1K Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions MONARCH 433TSPW2K Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Stinger Installationsanleitung

Transmitter Solutions

Transmitter Solutions Monarch 295SEPA1K Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Firefly3 FIRlll433TSD22K3 Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Stinger 2 390LMD21V2 Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Firefly Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions Stinger2 310LID22V Bedienungsanleitung

Transmitter Solutions

Transmitter Solutions MONARCH 318DOPW2K-C Bedienungsanleitung

Transmitter Solutions

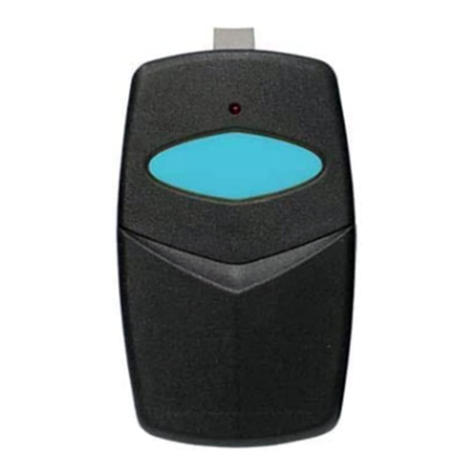

Transmitter Solutions Stinger 2 Bedienungsanleitung
